Fujitsu fi-4530C Guida alla configurazione
1
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
fi-4530C & fi-5530C CONSUMABLE REPLACEMENT
AND CLEANING INSTRUCTIONS
CG00000-718301RevisionC
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
2
Cotton Swabs
Qty 1 100/pack
F1 Cleaner
IsopropylAlcohol Qty 1
Cleaning Paper
Qty 1 10/pack
Lint Free
Cleaning Cloths
Qty 2 20/pack
PadAssembly Qty 5
Pick Roller Qty 2
KIT CONTENTS
Note: Kit Contents may Vary
3
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

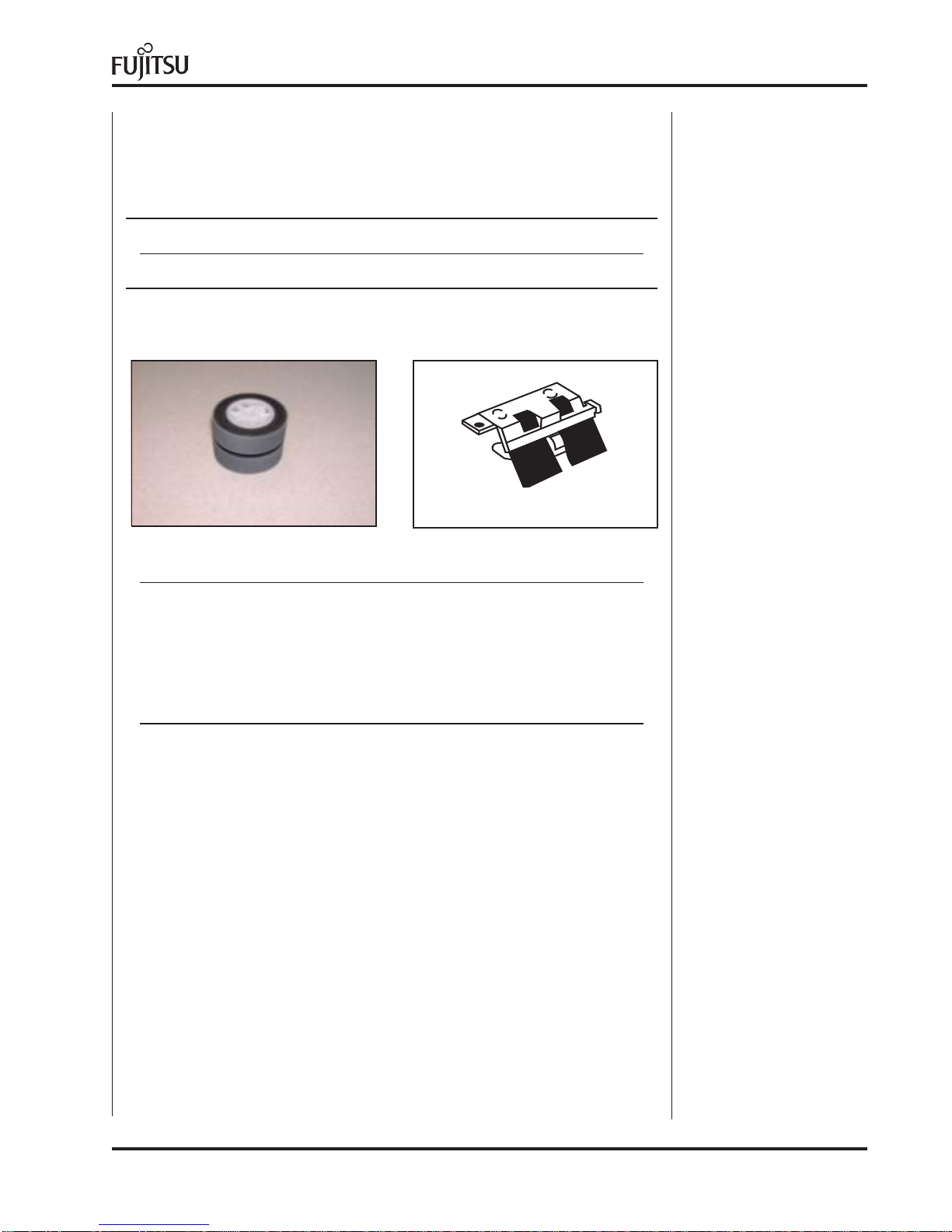

CONSUMABLES LIST
Description Qty Life Fujitsu P/N
Pick Roller 1 200,000 PA03334-0001
Pad Assembly 1 100,000 PA03334-0002
Note:
Replacement Cycles are estimated guidelines established by testing
with A4/Letter sized woodfree and wood based 17 lb paper. NCR or
Carbonless paper has chemical composition which damages the
Pad, and the Pick Roller. Cleaning of the consumables will be
required more frequently to avoid feed problems. Consumable life
will be reduced if NCR or Carbonless paper is scanned.
Pad AssemblyPick Roller
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
4

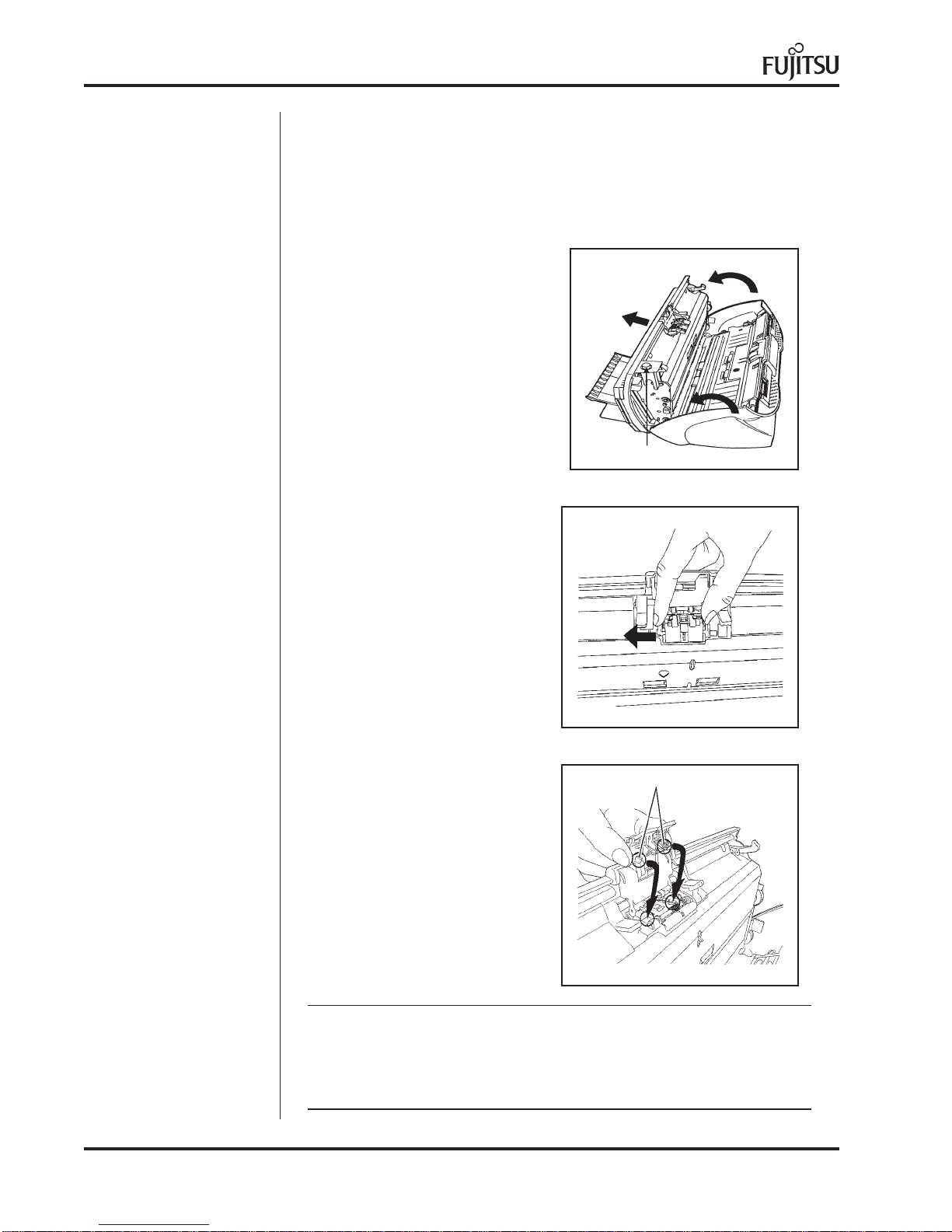

REPLACING THE PAD ASSEMBLY
• Remove all documents from
the ADF Paper Chute. Open
the ADF by pressing the
ADF button.
• Remove the Pad Assembly
by pressing on the top of the
pad assembly and sliding it
to the left to remove.
• Attach the new Pad
Assembly by inserting the
claws in the holes on the
ADF, pressing on the top of
the pad assembly and
sliding it to the right to lock it
in place.
A defective or improperly installed Pad Assembly can cause misspicks,
skew, or double fed documents. To replace the Pad Assembly perform
the following steps.
Note:
After replacement of any consumable reset the counter for that
consumable by following the instructions in your Operator’s Guide.
These instructions can be found under the “Replacing
Consumables” section of the Operator’s Guide.
OpenADF
to Front
ADF button
Claws
5
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

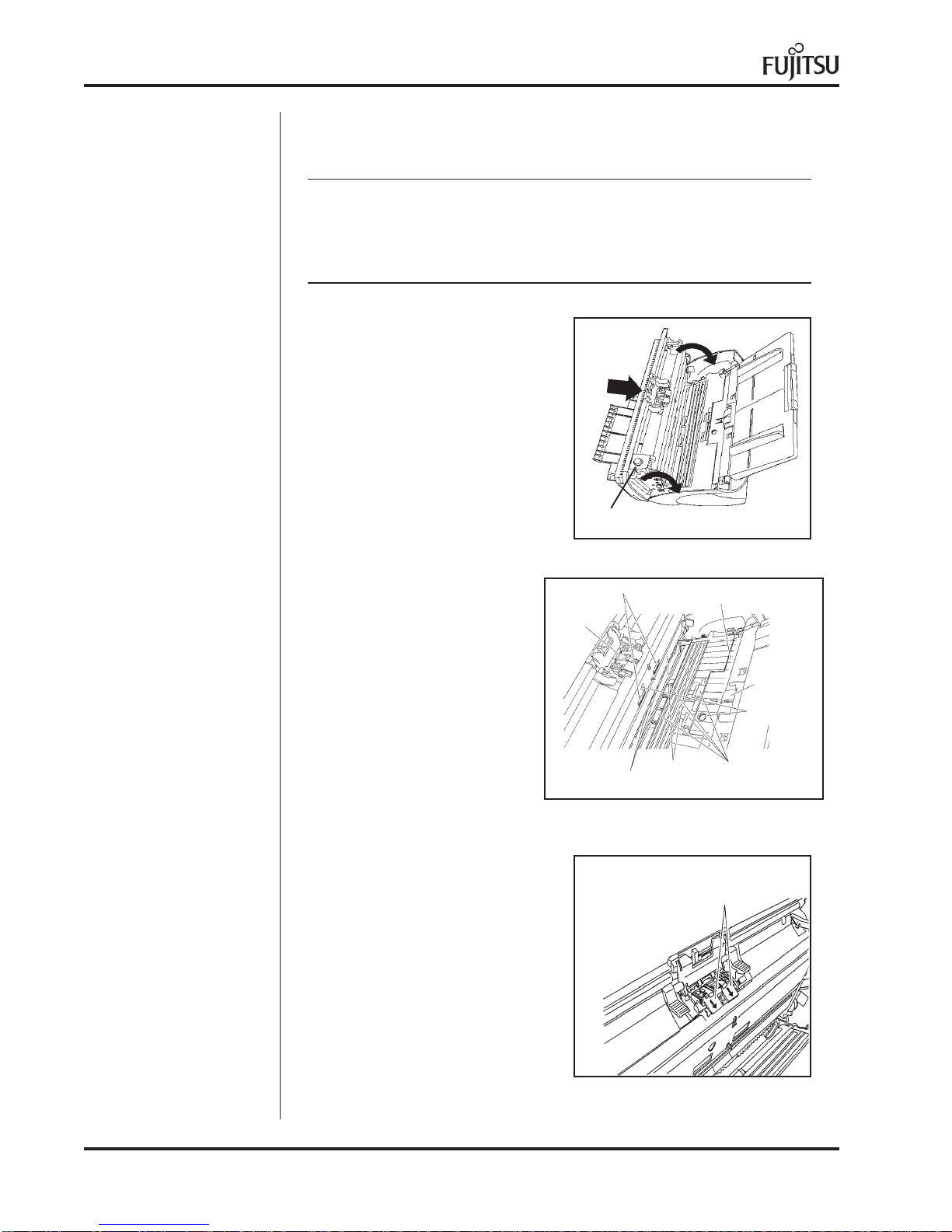

REPLACING THE PICK ROLLER
• Remove all documents from
the ADF paper chute and
take it off of the scanner.
• Open the ADF using the
ADF button.
• Pinch the knobs on the sheet
guide and lift to remove it from
the scanner. Be careful not to
let the ADF close while your
fingers are in side.
• Rotate the Pick Roller
Bushings on each end of the
Pick Roller Shaft in the
direction of the arrow so
each bushing is pointing up
don’t break the plastic tabs
that hold each bushing in
place.
• Lift the Pick Roller shaft up
being careful not to let the
ADF fall closed while your
fingers are inside the ADF.
The bushing is fixed to the
shaft on the end shown. On
the opposite end of the shaft
the bushing is loose and will
fall off. Use caution so you
don’t loose this bushing.
ADF Paper Chute
Front of
Scanner
ADF Button
PickRollerBushing
(one on each end
of this shaft)
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
6
• Lift the Pick Roller Shaft out
of the scanner in the
direction of the arrow. The
bushing is fixed to the shaft
on the end shown. On the
opposite end of the shaft the
bushing is loose and will fall
off. Use caution so you
don’t loose this bushing.
• Remove the loose bushing
from the end of the Pick
Roller Shaft. Lift up slightly
on the Tab shown and slide
the Pick Roller off of the
shaft while the assembly is
out of the scanner.
• Attach the new Pick Roller
by sliding it on to the shaft.
Rotate the Pick Roller to
align the screw on the shaft
with the slot on the Pick
Roller. Be sure the Pick
Roller tab clicks and the Pick
Roller is locked in place on
the shaft.
REPLACING THE PICK ROLLER (CONT.)
Slot on Pick
Roller
Screw On
Shaft
Tab
Pick
Roller
Shaft
7
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
• Reinstall the Pick Roller
Shaft with the new Pick
Roller installed in reverse
order used to remove the
Pick Roller Shaft.
• Be sure to lock the bushings
in place on both ends of the
shaft. Replace the sheet
guide by pressing in the
center until the guide snaps
in place and is locked.
REPLACING THE PICK ROLLER (CONT.)
Note:
Be sure to reset the Pick Counter as shown in the Operator’s Guide
under Replacing Consumables section for replacing the Pick Roller.
Press the
Center of the
Sheet Guide
PickRoller
Bushing
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
8
CLEANING LOCATIONS AND FREQUENCIES
Note:
The scanner will need to be cleaned every day (or possibly more than
once a day) if the following paper is scanned.
• Paper with special coating such as carbonless paper.
• Paper with large amount of printing. (Heavy toner or ink)
• Documents with toner that is not fused properly.
CLEANING MATERIALS
Location Tools Frequency
Cleaning Sheets Every 1,000 Sheets
Cloth With F1 Cleaner Every 5,000 Sheets
Plastic Feed Rollers Cloth With F1 Cleaner Every 5,000 Sheets
Sheet Guides Cloth With F1 Cleaner Every 5,000 Sheets
Eject Rollers Cloth With F1 Cleaner Every 5,000 Sheets
Feed Rollers Cloth With F1 Cleaner Every 5,000 Sheets
Glass Surfaces Cloth With F1 Cleaner Every 5,000 Sheets
Ultra Sonic Sensors Cloth With F1 Cleaner Every 5,000 Sheets
Pick Roller and Pad
Cotton
Swabs
F1 Cleaner
Isopropyl Alcohol
Cleaning Paper
Lint Free
Cleaning Cloths
9
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
CLEANING THE ROLLERS WITH THE CLEANING SHEET
• Set the Hopper Guides to
the widest width possible.
The cleaning sheets are designed to remove only loose paper dust and
ink from the rollers. Use the sheet approximately every 1,000 sheets
scanned. They are to be used in between the thorough cleanings of the
scanner. Using the cleaning paper does not take the place of the
more complete cleanings described later in this section
• Spray theCleaning Paperlightly withF1Cleaner andplace theCleaning
paperagainst the rightedge ofthe HopperGuide. Using theScanning
Application scan the cleaning paper. Do Not Save These Images. This
operationisused onlyto passthecleaning paperthrough thepaperfeed
path. Check the path to see if it needs further cleaning, if you find debris
inthe paperpathperformthiscleaningor theCLEANING THE ADF WITH
LINT-FREE CLOTHS inthe followingsteps.
• Placethe CleaningPaper againsttheLeftHopperGuide andperform the
previousstep.
Hopper Guides
fi-4530C &fi-5530C CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
10
• Turn Scanner power off.
• Open the ADF cover by
pressing the ADF button.
Disconnect the AC power
plug. Let the scanner cool
for at least 15 minutes after
operation. This is to prevent
burns to your skin as the
lamps will heat the surface
of the glass in the feed path.
• Use F1 Cleaner (90% or
higher Isopropyl Alcohol) on
a lint free cloth and clean the
areas shown in the drawing
to the right. (See following
steps to clean properly)
• Clean the Pad Assembly
using a downward stroke
with the lint free cloth
mostened lightly with F1
Cleaner (90% or higher
Isopropyl Alcohol).
CLEANING THE ADF WITH LINT-FREE CLOTHS
Note:
The glass surface inside the fi-4530C ADF becomes hot during
scanner operation. Before performing this cleaning disconnect the
AC adapter from the power outlet and wait at least 15 minutes for
the scanner to cool.
CLEANING THE PAD ASSEMBLY.
Front of
Scanner
ADF button
Pad
Assy
Ultra Sonic
Sensors (2)
Feed Rollers (2)
Eject Rollers (2)
Glass (2) Plastic
Rollers (4)
Pick
Roller
Sheet Guide
Clean the Rubber Portion
in Direction of Arrows
