Fujitsu M3093EX Guida alla configurazione
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
M3093EX/GX/DE/DG and ScanPartner 93GX
Consumable Replacement and Cleaning Instructions
cG00000-676501rEviSion b
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
Pad Assembly Qty 3
Pick Roller Qty 2
Kit Contents
Note: Kit Contents may Vary
F1 Cleaner
Isopropyl Alcohol
Qty 1
Q-Tips
Qty 1 100/pack
Lint Free
Cleaning Cloths
Qty 2 20/pack
Cleaning Paper
Qty 1 10/pack
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
Consumables list
m3093eX/GX/De/DG anD sCanPartner 93GX Consumables
Description Qty. Life Fujitsu P/N
Pad Assembly 1 100,000 PA02201-0020
Pick Roller 1 200,000 PA02212-K001
Note:
NCR or Carbonless paper has chemical composition which damages
the Pad the Pick Roller. Cleaning of these items will be needed more
frequently to avoid feed problems. Also their life will be reduced if
this paper is scanned.
Pad Assembly
Pick Roller
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
• Lift the ADF Lever and open the ADF.

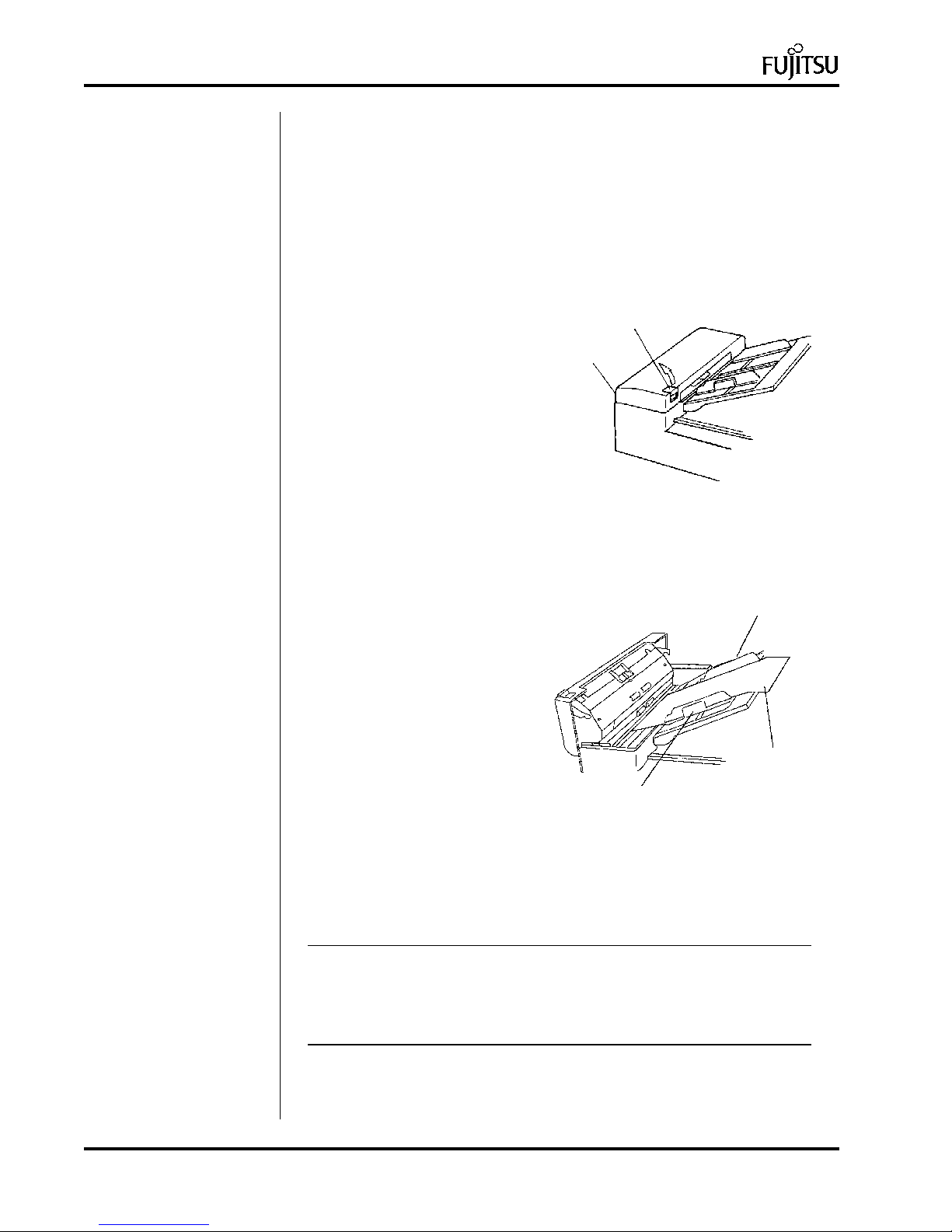

ADF Lever
ADF
• Make sure the Paper Select Lever is set to “N” before removing the
Pad Assembly.
Paper Thickness
Adjustment
Thick
Paper Normal
Paper
ADF
Frame
Slot
B
A
• Hold the Pad Assembly at
points A & B, or insert a coin
or a at head screwdriver
into the slot in the Pad
Assembly.
• Slide the Pad Assembly to
rePlaCinG the PaD assembly
Side Views of New and Worn Pads
Retainer Worn Pad
Pick
Spring
New Pad
Retainer
Pick
Spring
Multiple feeds can be caused by a worn out Pad Assembly. The life span
of the Pad Assembly is about 100,000 sheets or 1 year if maintained
properly. If NCR or carbonless paper is used the life span may be
decreased by half.
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
rePlaCinG the PaD assembly (Cont.)
Note:
The Pad Assembly consists of
the Pad, the Pick Spring, and
the Pad Holder.
• If you receive only the
rubber pad, replace the Pad
according to the following
procedure.
• Remove the Pick Spring.
• Remove the Pad from
the Pad Holder.
• Align the holes in the
new Pad with the pins on
the Pad Holder.
• Attach the Pick Spring so
that both ends of the Pick
Spring are located on the
Pad.
• Insert the new Pad Assembly
into the bigger side of the
mounting holes in the ADF
frame, and then slide to the
right until it locks into place.
• Close the ADF.
Pad
Pad Holder
Pick
Spring
Pad Assy
ADF Frame
Correct Incorrect
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
• Lift the ADF Lever and
open the ADF.
• Remove the two thumb
screws and lift the Guide A
Assembly out of the ADF.
• At the front of the ADF,
compress the ends of the
retaining hook and remove
from the groove in the
shaft.
• Slide the hook and the
bushing toward the middle
of the scanner.
• Remove the Pick Roller
by sliding the shaft toward
the front of the scanner
to remove the back of the
roller shaft from the ADF
frame.
• Raise up and then slide
the shaft back toward
the rear of the scanner
to completely remove the
shaft.
rePlaCinG the PiCK roller
Bushing
Retaining
Hook
Front of ADF
Misfeeds can be caused by a worn Pick Roller. The life span of the Pick
Rollers is about 200,000 sheets or 1 year if maintained properly. If NCR
or carbonless paper is used the life span may be decreased by half.
Rear of
Scanner
Thumb
Screw
Thumb
Screw Guide A
Assy.
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
rePlaCinG the PiCK roller (Cont.)
• Place the other bushing into
the hole at the rear of the
ADF. Note that the bushing
and the hole are keyed.
• Place the end of the roller
shaft with the bushing and
retaining hook into the
mounting hole at the front of
the scanner.
• Now slide the roller shaft
into the mounting hole and
bushing in the back of the
scanner.
• Make sure the bushings
are in the mounting holes
properly and move the
retaining hook into the
groove in the roller shaft.
• Reinstall the Guide A
Assembly and tighten the
two thumb screws.
Bushing
Back of Scanner
• Remove the two bushings and the retaining hook from the roller shaft.
• Take the new Pick Roller and place the retaining hook on the end of
the shaft away from the gear.
• Place one of the bushings on the roller shaft, on the same side as
the retaining spring. Make sure the large diameter of the bushing is
facing the inside of the shaft.
Retaining Hook
Bushing Bushing
Gear
Front of
Scanner
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
CleaninG Kit
CleaninG loCations anD FrequenCies
Location Tools Frequency
Flatbed Area Cloth with F1 Cleaner Whenever Dirty
Pad Cloth with F1 Cleaner Every 5,000 Pages
Pick Rollers Cloth with F1 Cleaner Every 5,000 Pages
Feed Rollers Cloth with F1 Cleaner Every 5,000 Pages
Plastic Rollers Cotton Swab with F1 Cleaner Every 5,000 Pages
ADF Glass Cloth with F1 Cleaner Every 5,000 Pages
Sheet Guide Cloth with F1 Cleaner Every 5,000 Pages
F1 Cleaner
Isopropyl Alcohol Q-Tips
Lint Free
Cleaning Cloths Cleaning Paper
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
Document Cover
Document
Holding Pad
Cloth
Document Bed
Neutral Cleanser
or Isopropyl Alcohol
CleaninG the FlatbeD
• Open the Document Cover.
• Apply F1 Cleaner or isopropyl alcohol. to a clean cloth.
• Wipe the Document Holding Pad and Document Bed.
• Allow to dry.
Note:
Window or glass cleaner can be used instead of F1 Cleaner or
isopropyl alcohol.
Be sure to prevent liquid from seeping through the opening between
the document bed and the plastic cover.
A dirty Document Bed or Holding Pad can cause repetitive spots, marks
or unclear areas when scanning from the Flatbed.
M3093EX/GX/DE/DG anD ScanPartnEr 93GX conSuMablE rEPlacEMEnt anD clEaninG inStructionS
ADF Lever
ADF
Paper Guide
Paper Guide
Cleaning
Sheet
CleaninG the aDF with the CleaninG PaPer
• Pull the ADF Lever to open
the ADF.
• Apply F1 Cleaner or
isopropyl alcohol to both
sides of a new sheet of
Cleaning Paper.
• Place the Cleaning Paper
on the ADF so that the
edge of the sheet touches
the Plastic Rollers.
• Close the ADF and turn
the scanner ON. The
Cleaning Paper will be fed
through the scanner.
• Turn the scanner OFF.
The cleaning paper is designed to remove only loose paper dust and ink
from the rollers. Use them approximately every 5,000 pages scanned.
They are to be used in between the thorough cleanings of the scanner.
Using the cleaning paper does not take the place of the more
complete cleanings described later in this section
• Flip the Cleaning Paper over and repeat the steps above.
Note:
The cleaning paper is used to remove loose paper particles and
toner. They are not a substitute for doing a thorough cleaning to the
ADF.
