FUJITSU Storage

ETERNUS DX, ETERNUS AF

Configuration Guide -Server Connection-

(iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

This page is intentionally left blank.

Preface

This manual briefly explains the operations that need to be performed by the user in order to connect an

ETERNUS DX/AF to a server running Solaris OS via an iSCSI interface.

This manual should be used in conjunction with any other applicable user manuals, such as those for the

ETERNUS DX/AF, server, OS, LAN cards, and drivers.

Refer to "Configuration Guide -Server Connection- Notations" for the notations used in this manual such as

product trademarks and product names. For storage systems that are supported by the OS, refer to the Server

Support Matrix of the ETERNUS DX/AF.

18th Edition

May 2017

The Contents and Structure of this Manual

This manual is composed of the following ten chapters.

•"Chapter 1 Workflow" (page 6)

This chapter describes how to connect the ETERNUS DX/AF to a server.

•"Chapter 2 Checking the Server Environment" (page 8)

This chapter describes which servers can be connected to ETERNUS DX/AF storage systems.

•"Chapter 3 Notes" (page 9)

This chapter describes issues that should be noted when connecting the ETERNUS DX/AF storage systems

and server.

•"Chapter 4 Checking the Server Information" (page 13)

This chapter describes how to check the server information registered in the ETERNUS DX/AF.

•"Chapter 5 Installing and Setting Up ETERNUSmgr" (page 14)

This chapter describes how to install ETERNUSmgr.

•"Chapter 6 Setting Up the ETERNUS DX/AF" (page 15)

This chapter describes how to use ETERNUS Web GUI or ETERNUSmgr to set up the ETERNUS DX/AF storage

systems.

•"Chapter 7 Installing the iSCSI Software Initiator and Setting Up the Server" (page 16)

This chapter describes how to install the iSCSI Software Initiator and set up the server.

•"Chapter 8 Checking Connections" (page 23)

This chapter describes how to check the connection status between the server and ETERNUS DX/AF.

•"Chapter 9 Setting the Multipaths" (page 24)

This chapter describes what to be set in order to create multipath environment.

•"Chapter 10 Setting a File System" (page 26)

This chapter describes how to create a file system.

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Table of Contents

Chapter 1 Workflow 6

Chapter 2 Checking the Server Environment 8

2.1 Hardware ....................................................................................................................................... 8

2.2 OS (Operating System)................................................................................................................... 8

2.3 Network Interface Card................................................................................................................... 8

2.4 Multipath Configuration................................................................................................................. 8

Chapter 3 Notes 9

3.1 LAN Environment Notes ................................................................................................................. 9

3.2 Server Startup and Power Supply Control Notes............................................................................ 12

3.3 Jumbo Frame Setting Notes.......................................................................................................... 12

3.4 Notes on Configuring an iSCSI Boot Environment......................................................................... 12

Chapter 4 Checking the Server Information 13

Chapter 5 Installing and Setting Up ETERNUSmgr 14

Chapter 6 Setting Up the ETERNUS DX/AF 15

Chapter 7 Installing the iSCSI Software Initiator and Setting Up the Server 16

7.1 Installing the iSCSI Software Initiator ........................................................................................... 16

7.2 Setting Up the Server.................................................................................................................... 16

7.2.1 Setting Up the Command Queue Depth ..............................................................................................................16

7.2.2 iSCSI Basic Settings .............................................................................................................................................18

7.2.3 Server Settings when CHAP Authentication is Used.............................................................................................19

7.2.4 Server Settings when Bidirectional CHAP Authentication is Used........................................................................21

Chapter 8 Checking Connections 23

8.1 Turning on the Devices................................................................................................................. 23

8.2 Setting Up the Server to Recognize the Logical Units ................................................................... 23

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Chapter 9 Setting the Multipaths 24

9.1 Enabling MPxIO............................................................................................................................ 24

9.2 Editing "/kernel/drv/scsi_vhci.conf" ............................................................................................... 24

9.3 Reconfiguring and Restarting the Server ...................................................................................... 25

Chapter 10 Setting a File System 26

Table of Contents

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Chapter 1

Workflow

Exactly which documents are required depends on the connection environment, see the "Workflow" section

that follows for details.

IPv4 is used for IP address examples in this manual.

Required Documents

•"Server Support Matrix"

•"Configuration Guide -Server Connection- Storage System Settings" that corresponds to the ETERNUS DX/AF

to be connected

•"ETERNUS Web GUI User's Guide"

•"ETERNUSmgr Install Guide"

•"ETERNUSmgr User Guide"

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Workflow

Installing ETERNUSmgr and Setting Up the ETERNUS DX/AF

If ETERNUSmgr is to be used, install it and set up the ETERNUS DX/AF.

•"Chapter 4 Checking the Server Information" (page 13)

•"Chapter 5 Installing and Setting Up ETERNUSmgr" (page 14)

•"Chapter 6 Setting Up the ETERNUS DX/AF" (page 15)

•Checking the setup and maintenance operations

-"ETERNUS Web GUI User's Guide"

-"ETERNUSmgr Install Guide"

-"ETERNUSmgr User Guide"

•Setting up the ETERNUS DX/AF

-"Configuration Guide -Server Connection- Storage System Settings" that corresponds to the ETER-

NUS DX/AF to be connected

Installing the iSCSI Software Initiator and Setting Up the Server

Set up the OS to connect to the ETERNUS DX/AF.

•"Chapter 7 Installing the iSCSI Software Initiator and Setting Up the Server" (page 16)

Setting Up the Server to Recognize the Logical Units

Set up the server so that it can recognize the LUNs (logical unit numbers) of the ETERNUS DX/AF.

•"8.2 Setting Up the Server to Recognize the Logical Units" (page 23)

Configuring the System

Set up the server as required by the system configuration.

•Setting the multipaths

-"9.1 Enabling MPxIO" (page 24)

•Setting a file system

-"Chapter 10 Setting a File System" (page 26)

Chapter 1 Workflow

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Chapter 2

Checking the Server Environment

Connection to servers is possible in the following environments.

Check the "Server Support Matrix" for server environment conditions.

2.1 Hardware

Refer to the "Server Support Matrix".

2.2 OS (Operating System)

Refer to the "Server Support Matrix".

2.3 Network Interface Card

Refer to the "Server Support Matrix".

2.4 Multipath Configuration

Refer to the "Server Support Matrix".

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

Chapter 3

Notes

Note the following issues when connecting the ETERNUS DX/AF to a server.

3.1 LAN Environment Notes

•The ETERNUS DX/AF can be connected to a server via an existing LAN. However, a decrease in LAN perform-

ance may be observed by prior users of said LAN.

•For the iSCSI LAN (used to transfer data), do not set multipath configuration with IP Network Multipathing

(IPMP).

•Since an iSCSI LAN handles large amounts of data (traffic volumes) like an FC-SAN, the iSCSI LAN must have

its own switch and be a dedicated LAN that is separate from the business LANs.

•For IP network security, separate the iSCSI LAN from the management LAN (for administration).

•The iSCSI LAN must be configured as a dedicated LAN for each path from a server to the ETERNUS DX/AF.

•A configuration where multiple LAN ports of a single server are connected to the same network may be

restricted depending on the OS and/or driver specifications. For a multipath connection, connect each path

using different LAN segments by separating the VLAN and so on.

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0

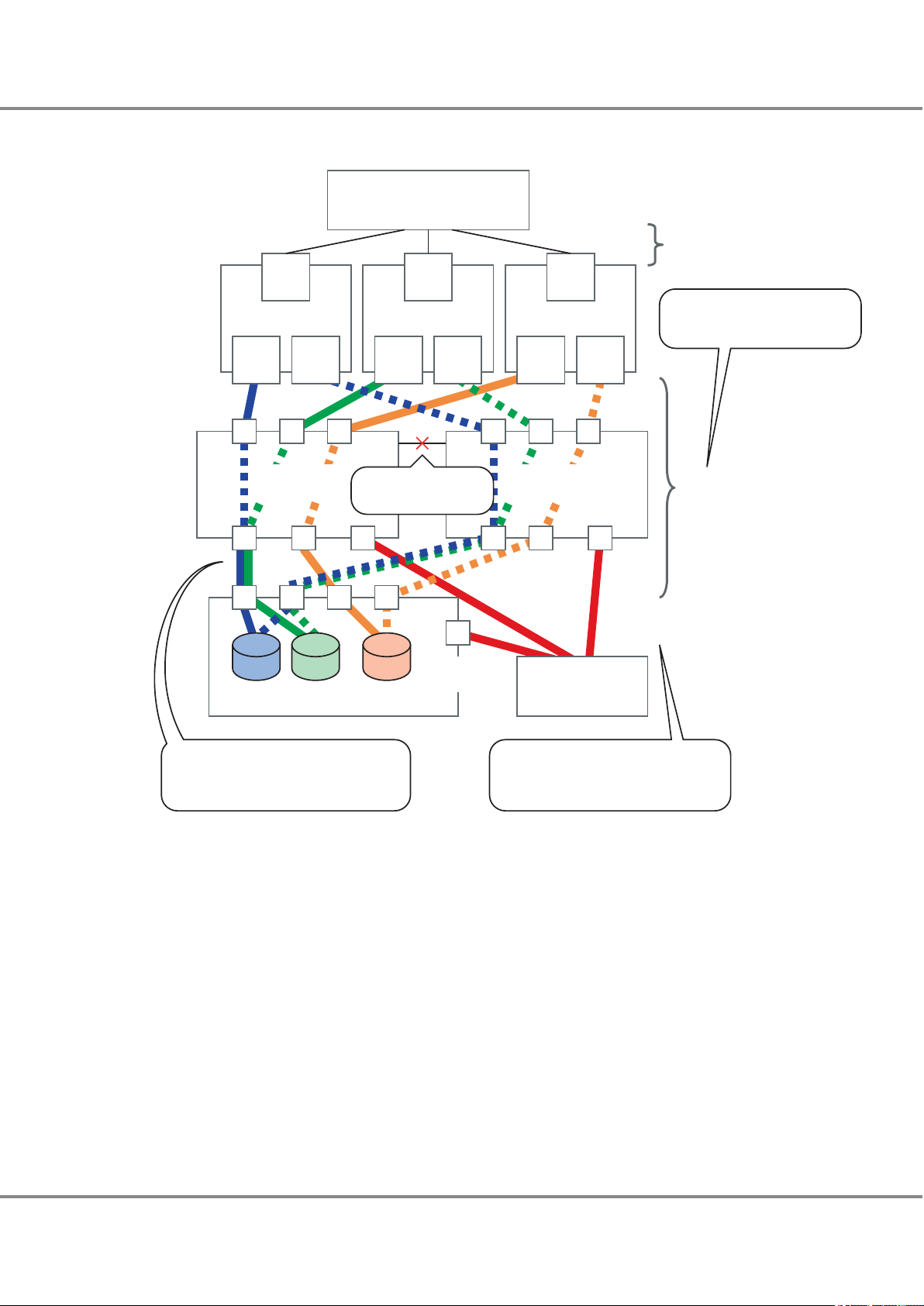

Example of a LAN switch connection configuration

Business server A

LAN

Card#2

LAN

Card#1

Business server B

LAN

Card#2

LAN

Card#1

Business server C

LAN

Card#2

LAN

Card#1

LAN

Card#3

LAN switch

[Business LAN]

LAN switch

[Management LAN]

ETERNUS DX/AF

1 2 3

10 11 12

LUN1 LUN2

2 3

LAN

Card#3

LAN

Card#3

LUN3 Management

LAN port

LAN switches should not

be inter-connected (*1)

A separate LAN segment is used for each

Server/Storage grouping (*2).

Here, LAN ports 1, 2 and 10 comprise VLAN1,

while LAN ports 3 and 11 comprise VLAN2.

The iSCSI LAN and management LAN

segments are kept separate in the iSCSI

LAN switches, helping maintain the security

of each.

Similarly to FC-SAN,

a dedicated LAN is used for iSCSI,

not the business LAN.

Business LAN

iSCSI LAN

Management LAN

LAN switch #1

[iSCSI LAN]

LAN switch #2

[iSCSI LAN]

*1: In this system configuration, multipaths provide redundant connections between the servers and stor-

age system. LAN switches #1 and #2 provide physical separation of the network paths.

*2: A separate LAN segment is provided in the LAN switch (using the switch VLAN function) for each group-

ing of business servers and storage systems (equivalent to the FC zones).

Chapter 3 Notes

3.1 LAN Environment Notes

FUJITSU Storage ETERNUS DX, ETERNUS AF Configuration Guide -Server Connection- (iSCSI) for Oracle Solaris

P3AM-4042-18ENZ0
