Fujitsu S3-0801 Manuale utente

User Guide

KVM series3-0801/1601

Keyboard/Video/Mouse Switch English/Deutsch/Français/Español/Italiano/日本語

KVM s3-0801/1601

Installer/User Guide

Edition February 2011

Comments... Suggestions... Corrections

The User Documentation Department would like to know your opinion of this

manual. Your feedback helps us optimize our documentation to suit your

individual needs. Fax forms for sending us your comments are included in the

back of the manual. There you will also find the addresses of the relevant User

Documentation Department.

Certified documentation

according to DIN EN ISO 9001:2000

To ensure a consistently high quality standard and user-friendliness, this

documentation was created to meet the regulations of a quality management

system which complies with the requirements of the standard DIN EN ISO

9001:2000.

Delivery subject to availability; right of technical modifications reserved. All

hardware and software names used are trademarks of their respective

manufacturers.

This manual is printed on

paper treated with

chlorine-free bleach.

Contents
Contents
Product Overview 1
1 Features and Benefits 1
Installation 3
1 s3-0801/1601 Switch Connectivity 3
2 Installation Overview 3
3 Rack Mounting a Switch 5
4 Connecting the Switch Hardware 6
5 Cascading Switches 8
Local Port Operation 9
1 Main Dialog Box Functions 9
2 Setup Dialog Box Functions 13
3 Commands Dialog Box Functions 18
Web Interface Operations 23
1 s3-0801/1601 Switch OBWI 23
2 Viewing Ports and Servers 23
3 The Explorer Window 24
4 Managing Device Properties 30
5 Installing a Web Certificate 36
Flash Upgrades 39
1 Recovering from a failed Flash upgrade 39
UTP Cabling 41
1 UTP copper cabling 41
2 Wiring standards 41
3 Cabling installation, maintenance and safety tips 42
Technical Specifications 45
Sun Advanced Key Emulation 47
1 Special considerations for Japanese Sun USB and Korean Sun USB
keyboards (USB IQ modules only) 48
Technical Support 51
590-1035-640A 5

Contents

590-1035-640A

1. Product Overview

1.1 Features and Benefits

Fujitsu s3-0801/1601 KVMswitches provide control of data center servers. The

switches provide users with a significant reduction of cable volume.

TheFujitsu s3-0801/1601 switch family has several options depending on the

model:

• a rack mountable keyboard, video and mouse (KVM) switch, configurable for

analog (local) connectivity

• support for VGA, SVGA, SGA and SXGA video

• video resolutions up to 1600 x 1200

• cascading expansion; each switch supports up to 16 directly attached

servers and can conveniently scale to support more

Reduce cable bulk

With server densities continually increasing, cable bulk remains a major concern

for network administrators. The s3-0801/1601 switches significantly reduce KVM

cable volume in the rack by utilizing the innovative IQ module and single,

industry-standard Unshielded Twisted Pair (UTP) cabling or the SMBAdapter

USB-VGAcabling option. This allows a higher server density while providing

greater airflow and cooling capacity.

The IQ and SMB Adapter modules are powered directly from the target device

and provide Keep Alive functionality when the switch is not turned on. The serial

IQ module is a DCE device that provides the primary interface between a serial

device and a s3-0801/1601 switch. It provides VT100 terminal emulation, break

suppression and port history in a compact, convenient module.

590-1035-640A 1

1. Product Overview

590-1035-640A

2. Installation

2.1 s3-0801/1601 Switch Connectivity

The s3-0801/1601 switching system transmits keyboard, video and mouse (KVM)

information between an operator and target devices attached to the switch.

2.2 Installation Overview

The general procedure for setting up and installing a switch is as follows:

• Unpack the switch and verify that all components are present and in good

condition.

• Make all hardware connections between the power source, switch and target

devices

• Turn on the power and verify that all connections are working.

• Configure the switch’s IP address using the On-Screen Display (OSD) or On-

board Web Interface (OBWI).

Figure 2.1 illustrates a basic configuration for the s3-0801/1601 switch with

descriptions in the table following the figure.

590-1035-640A 3

2. Installation

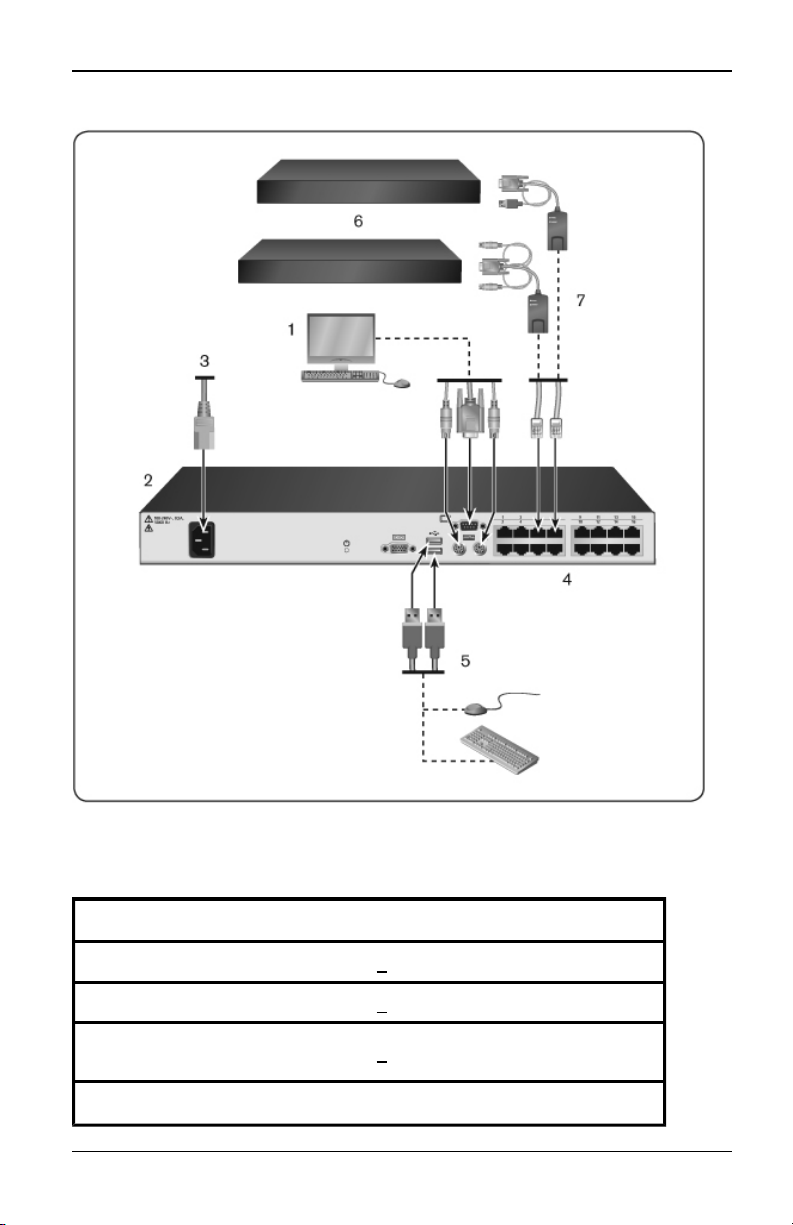

Figure 2.1. Basic s3-1601 Switch Configuration

Number Description Number Description

1Analog User 5Local USBConnections

2KVM Switch 6Servers 1-16

3Power Cord 7IQ or SMBAdapter modules.

PS/2, USB, Sun and serial IQ.

4Ports 1-16

Table 2.1: Descriptions for Figure 2.1
