Furuno LH-3000 Manuale utente

LOUD HAILER

LH-3000

SAFETY INSTRUCTIONS

WARNING

Do not disassemble or modify the

equipment.

Fire, electrical shock or serious injury can

result.

Do not place liquid-filled containers on

the top of the equipment.

Fire or electrical shock can result if a liquid

spills into the equipment.

Immediately turn off the power at the

switchboard if the equipment is emitting

smoke or fire.

Continued use of the equipment can cause

fatal damage to the equipment. Contact a

FURUNO agent for service.

Make sure no rain or water splash leaks

into the equipment.

Fire or electrical shock can result if water

leaks in the equipment.

Keep heater away from equipment.

A heater can melt the equipment's power

cord, which can cause fire or electrical

shock.

Use the proper fuse.

Use of a wrong fuse can result in damage

to the equipment.

Do not open the equipment.

Only qualified personnel should work inside

the equipment.

CAUTION

Do not use the equipment for other than

its intended purpose.

Use of the equipment for other than its

intended purpose may result in damage to

the equipment or cause bodlily injury.

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

LH-3000 1.55 m 1.00 m

Standard

compass

LH-3010 2.15 m 1.40 m

Steering

compass

TABLE OF CONTENTS

FOREWORD ........................................................................................................iii

SYSTEM CONFIGURATION................................................................................ iv

EQUIPMENT LIST................................................................................................ iv

INSTALLATION................................................................................................1

1.1

Mounting the Loud Hailer..............................................................................................1

1.2 Intercom Speaker (option).............................................................................................3

1.3 Wiring............................................................................................................................4

OPERATIONAL OVERVIEW............................................................................9

2.1

Controls.........................................................................................................................9

2.2

Turning the Power On/Off............................................................................................10

2.3

Adjusting Key Backlighting..........................................................................................11

2.4

Adjusting Output Level................................................................................................11

2.5

Adjusting Listening Volume .........................................................................................11

2.6

Calling All Intercom Stations........................................................................................11

2.7

Calling a Specific Intercom Station ..............................................................................12

2.8

Receiving a Call from an Intercom Station...................................................................12

2.9

Hailing by Voice...........................................................................................................13

2.10

Sounding Warning Signals ..........................................................................................14

2.11

Transmitting the Auxiliary Signal..................................................................................18

2.12

Alarm Mode.................................................................................................................19

MAINTENANCE, TROUBLESHOOTING

.............................................................21

3.1

Preventive Maintenance..............................................................................................21

3.2

Replacing the Fuse .....................................................................................................22

3.3

Troubleshooting...........................................................................................................22

SPECIFICATIONS...........................................................................................SP-1

PACKING LIST

OUTLINE DRAWINGS

INTERCONNECTION DIAGRAM

iii

FOREWORD

A Word to the Owner of the LH-3000

Congratulations on your choice of the FURUNO LH-3000 Loud Hailer. We are confident you

will see why FURUNO has become synonymous with quality and reliability.

For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for

innovative and dependable marine electronics equipment. This dedication to excellence is

furthered by our extensive global network of agents and dealers.

Your Loud Hailer is designed and constructed to meet the rigorous demands of the marine

environment. However, no machine can perform its intended function unless installed,

operated and maintained properly. Please carefully read and follow the recommended

procedures for installation, operation and maintenance.

We would appreciate hearing from you, the end-user, about whether we are achieving our

purposes.

Thank you for considering and purchasing FURUNO equipment.

Features

•

30 W audio output power to get another boat’s attention under almost any condition.

•

Eight internationally accepted warning signals can be selected for automatic operation for

a variety of different maritime situations alerting nearby vessels of your presence and

status in low visibility conditions.

•

Four intercom stations (speakers) may be connected to get 2-way communications

between master station and one or all intercom stations.

•

LED indicators alert you to equipment status.

•

Keys are backlit for nighttime operation.

•

Smartly designed and intuitive front panel for ease of operation.

•

An auxiliary audio input allows transmission of music or other external audio signals (from

cassette player, CD player, radio, etc.) to the intercom speakers, external horns or both.

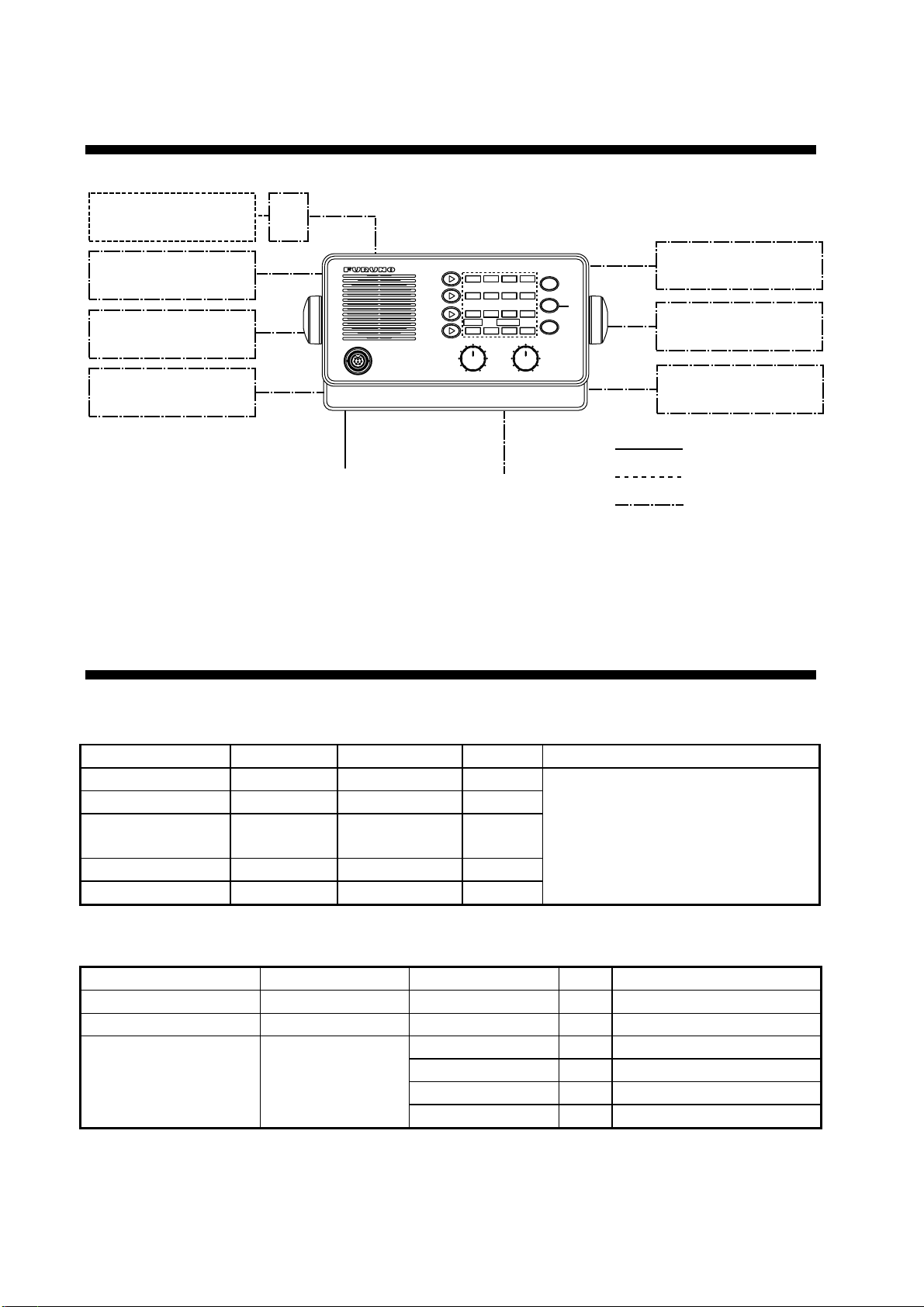

SYSTEM CONFIGURATION

Intercom Speaker

(Max. 4)

Forward Horn

After Horn

External Speaker

Remote Microphone

Auxiliary Audio

Source

Alarm Sensor

13.6 VDC

: Standard Supply

: Optional Supply

: Local Supply

Microphone

Junction

Box

DIM

AFT

BOTH

FWD

ALL

AUX

FUNC

IC 4IC 3

TOW

SAIL

HAIL

VOL

ANCH AGND

IC 2

UNWY

IC 1

YELP

FUNC/PTT

LISTEN

STOP

VOL

MAN

AUTOMATIC

PWR OFF

MIC

System configuration

EQUIPMENT LIST

Standard supply

Name Type Code No. Qty Remarks

Loud Hailer LH-3000 1

Microphone Set DM-2003 1 set

Installation

Materials 1 set

Spare Parts 1 set

Template E52-00303 000-149-157 1

See packing list for details.

Optional supply

Name Type Code No. Qty Remarks

Intercom Speaker LH-3010 000-149-111 1 Max. 4

Flush Mount Kit LH-3020 000-149-112 1 See packing list.

000-111-680 1 5 m

000-120-892 1 10 m

000-120-793 1 15 m

Twisted Pair Cable CO-SPEVV-SB-C

0.2X2P

000-120-794 1 20 m

1. INSTALLATION

1.1 Mounting the Loud Hailer

The Loud Hailer can be mounted on a desktop, on the overhead, on a bulkhead or flush

mounted in a panel (optional kit required). Refer to the mounting template (supplied) for

installation instructions.

Mounting considerations

When planning the location for the Loud Hailer, keep in the mind the following

considerations.

•

Locate the unit where the front panel can be easily viewed and operated.

•

Leave sufficient space at the sides and rear of your unit for ease of maintenance.

•

Locate the unit as near to the power source as possible.

•

The location should be out of direct sunlight because of heat that can build up inside the

cabinet.

•

Choose a location not subject to rain and salt spray.

•

Locate the unit well away from sources of noise such as motors, alternators and

generators.

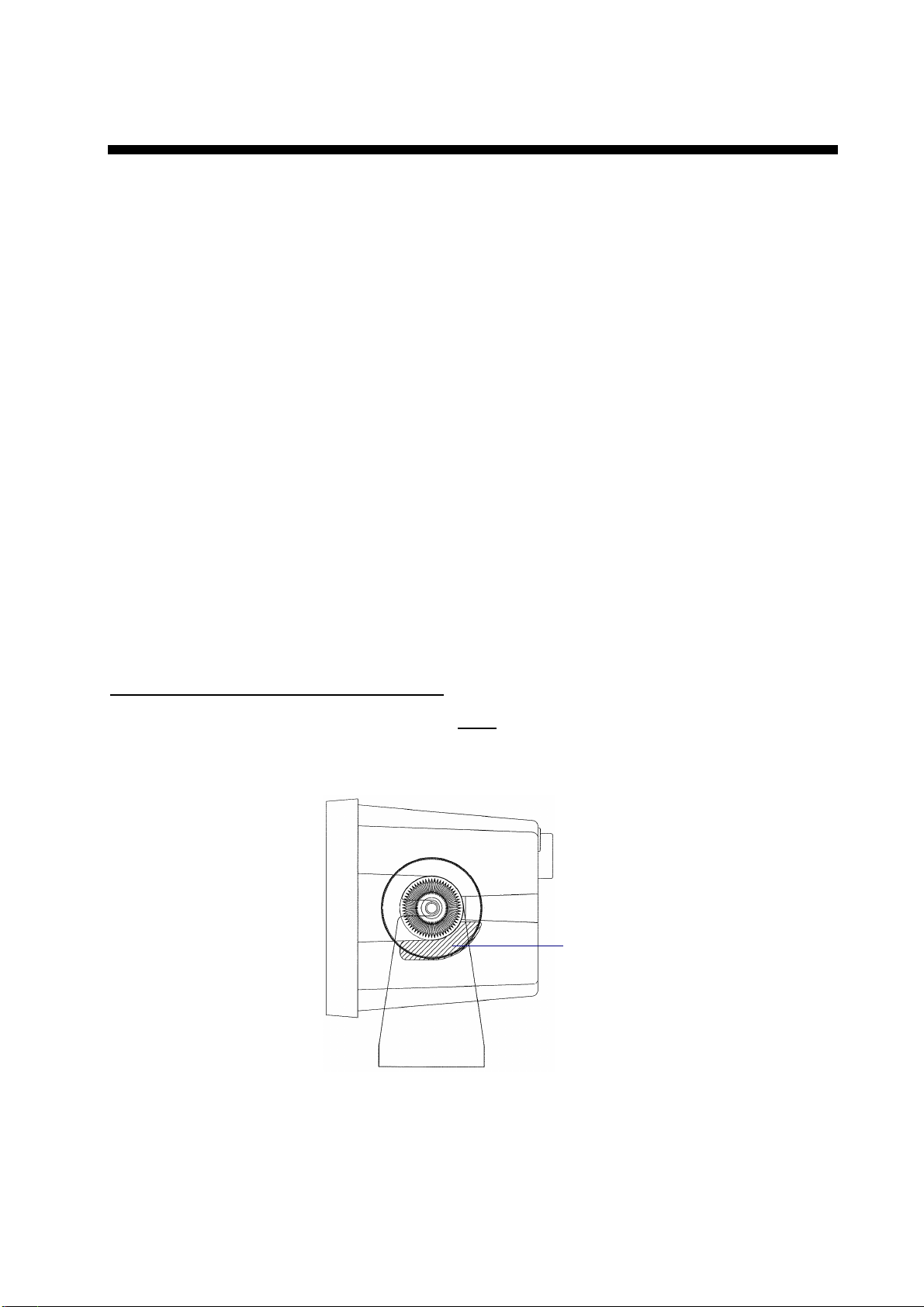

Mounting procedure

Desktop, bulkhead, overhead mounting

1. Attach rubber cushions (supplied) to the body of the Loud Hailer. Position the cushions

so they locate across from the bottom of the slot in the hanger regardless of mounting

method.

Rubber

cushion

2. Fix the hanger to the mounting location with tapping screws (6x20).

3. Screw knob bolts into the Loud Hailer.

4. Set the Loud Hailer to the hanger and tighten knob bolts.

1. INSTALLATION

Flush mounting

Requires flush mount kit LH-3020 (Code No. 000-149-112). See the flush mount outline

drawing for details.

Contents of flush mount kit

Name Type Code No. Qty

Flush Mounting Plate TZ7300012A 999-999-025 2

Screw 6X12 SUS304 999-999-027 2

Wing Screw M4X35 SUS304 999-999-027 4

Wing Nut M4 SUS304 999-999-028 4

1. Make a cutout in the mounting location referring to flush mount outline drawing.

2. Place the Loud Hailer in the cutout.

3. Fix the two flush mounting plates to the Loud Hailer with screws.

4. Screw the wing nuts on the wing screws.

5. Fix the Loud Hailer with the wing bolts and then tighten the wing nuts.

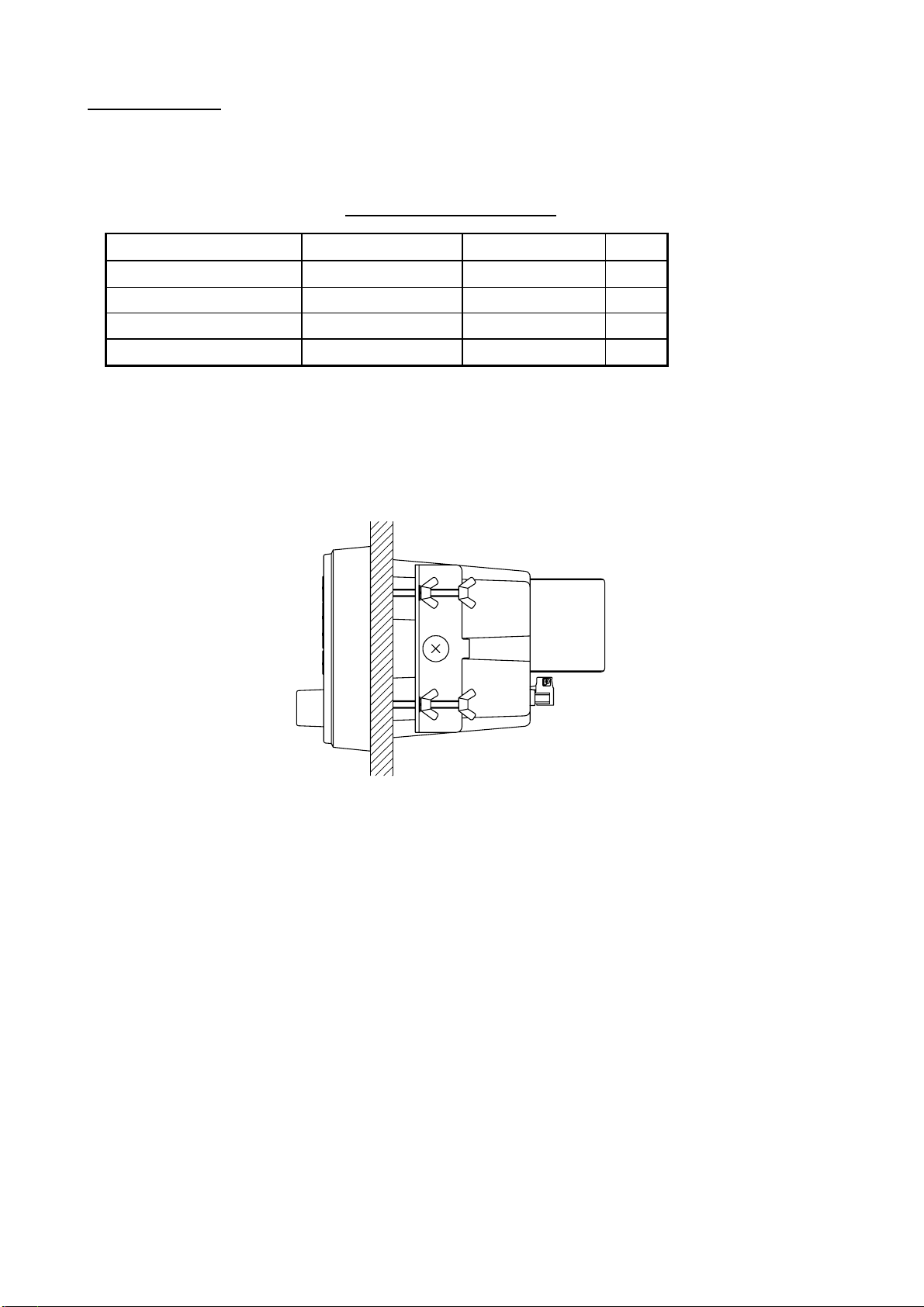

Loud hailer, flush mount

1. INSTALLATION

1.2 Intercom Speaker (option)

Four intercom speakers (maximum) may be connected to get 2-way communications

between master station and one or all intercom speakers. For mounting dimensions and

fixing instructions, see the outline drawing.

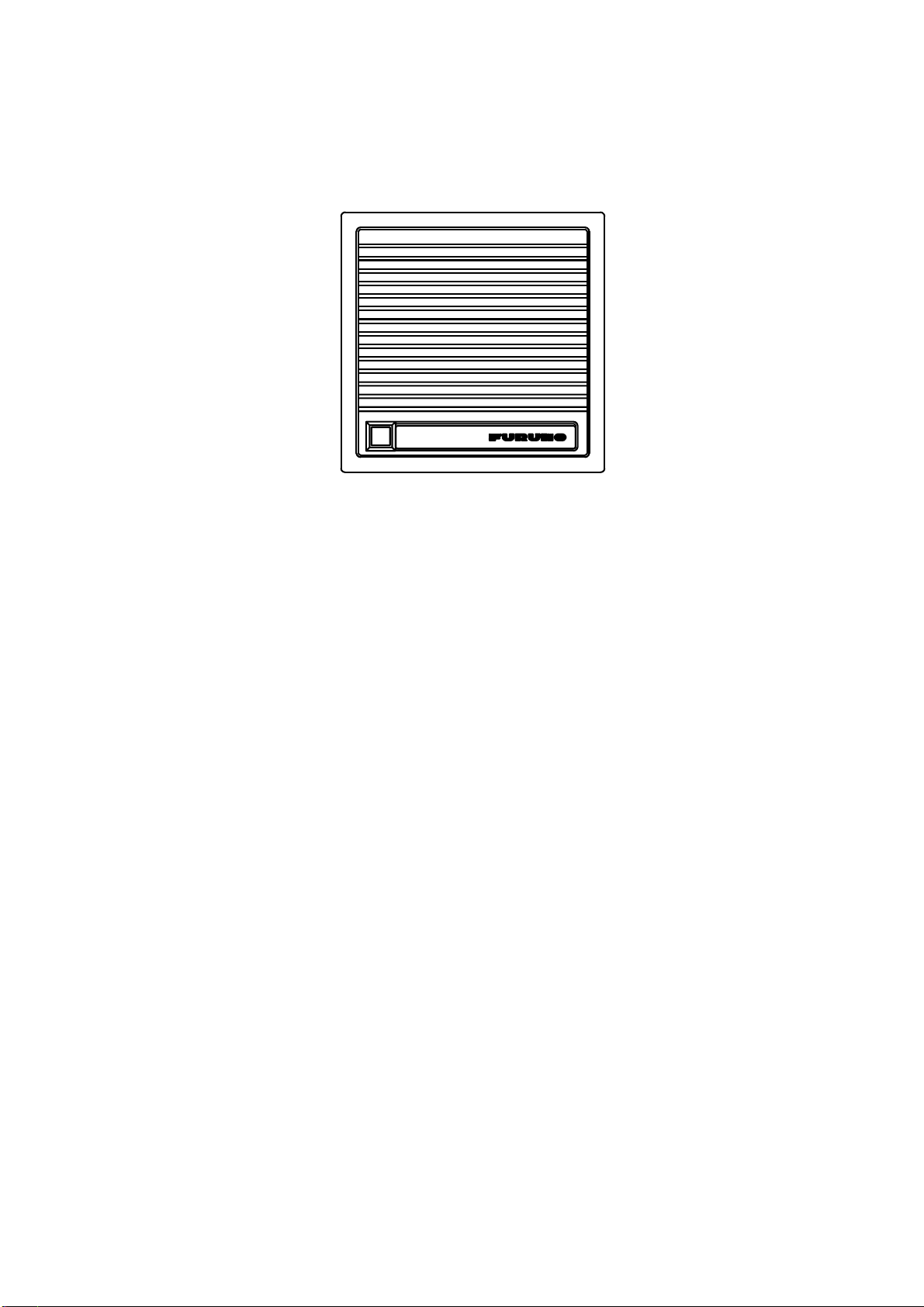

Intercom speaker

1. INSTALLATION

1.3 Wiring

All equipment are terminated at the rear panel of the LH-3000. See the illustration on the

next page for how to connect equipment to terminals. Refer to the interconnection diagram

for detailed information.

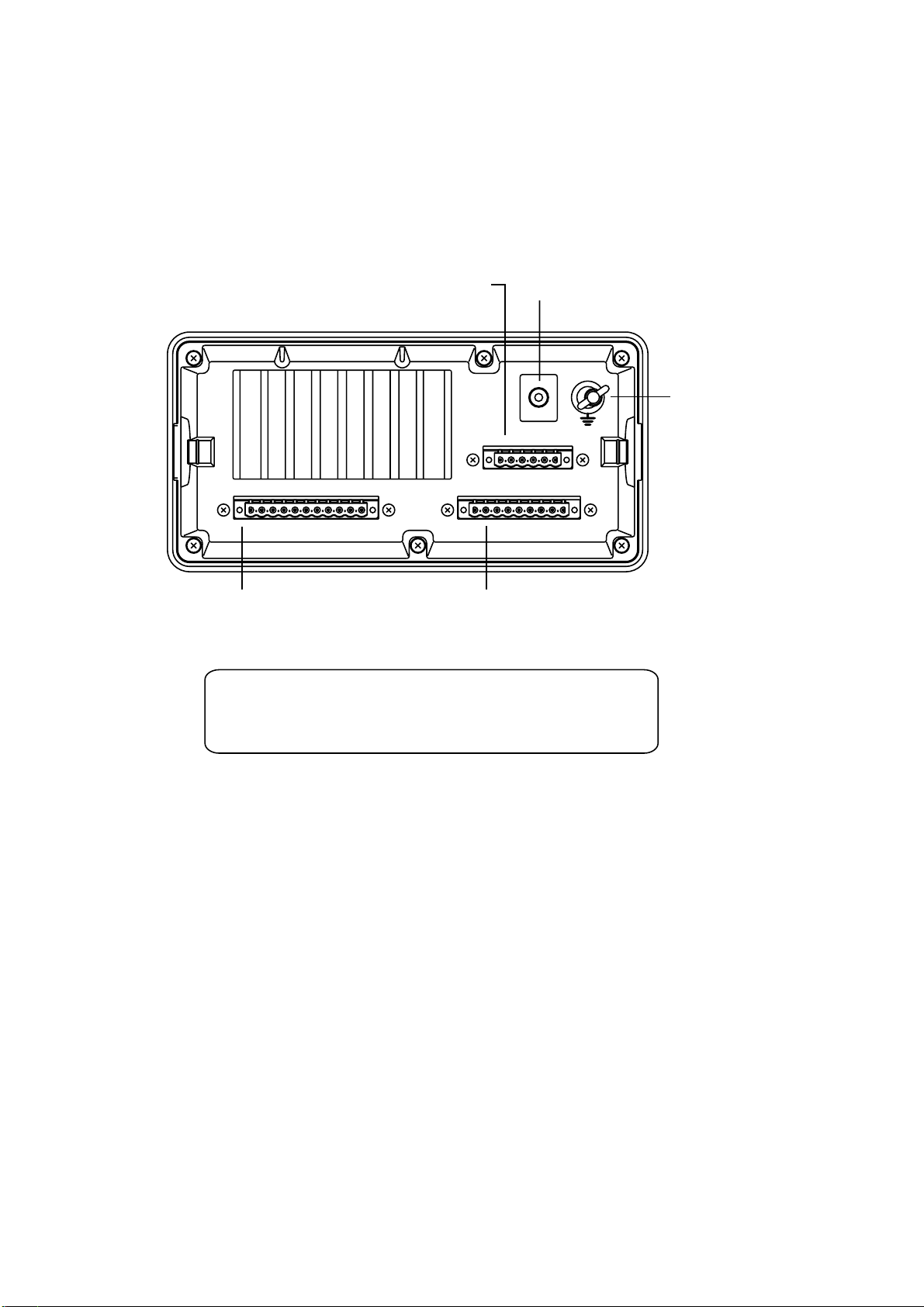

Rear panel layout

Ground

Terminal

External Speaker

13.6 VDC (Power),

FWD and AFT

terminals

SP and CAL (intercon

station #1 - #3) terminals

MIC, AUX, ALRM, PTT, CAL

and SP (intercom speaker #4)

terminals

Connect drain wires of armored cables to the ground terminal.

Do not short them to the heat sink.

NOTICE

LH-3000, rear panel
