GAMA Electronics LRF120VPR1L Manuale utente

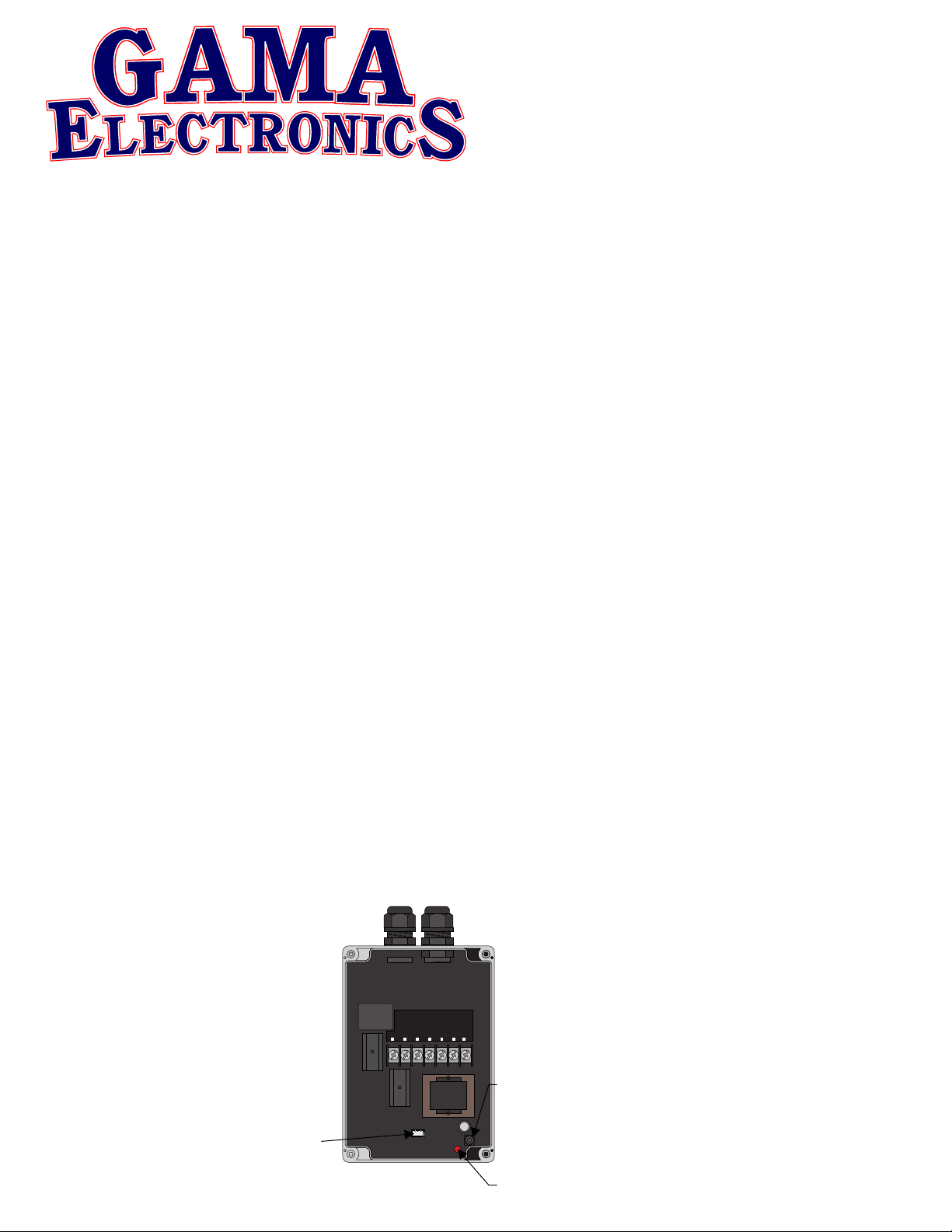

LRF120VPR1L

Instruction Manual

WWW.GAMAINC.COM

Included in this Kit:

(1) LRF120VPR1L Receiver

(1) 3-Button Transmitter with Light

Available accessories:

- Wireless Outdoor Keypad KP340-DRC

- 3-Button Waterproof Transmitter KF340-3L-WP

The LRF120VPR1L is an RF receiver operating at a fixed frequency of 340 MHZ. It operates from 120VAC and provides

one polarity reversing output for use with a four/six lead AC motor. The receiver is not designed to operate with any

existing hand or drum switch. The receiver is equipped with a manual toggle switch. An additional latching output is

available for connecting to a 120VAC light. Up to twelve, three-button keyfob transmitters can be used to activate the

receiver’s relay. The receiver has a terminal block for connecting the power and relay contacts. Each transmitter has a

unique address that is transmitted when a button is pressed. A “program” button is provided on the receiver to program

the transmitter(s) address into the receiver’s memory. An LED on the receiver indicates the receiver’s programming status

and illuminates when the receiver is energized. The receiver is encased in a waterproof enclosure. The operating range is

approximately 500 ft. Operating temperature range is 0°F to 160°F.

Polarity Reversing Output: The transmitter has two buttons assigned to the motor output. The up (^) button runs the

motor in one direction and the down (v) button runs the motor in the opposite direction. The reversing function

accomplished by reversing the phase on two of the four motor connections at the receiver output.

Manual Switch: The receiver is equipped with a manual switch. This switch replaces any hand or drum switch previously

connected to the motor.

Light Output: The light output is activated using the “B” button on the transmitter. Press button “B” once to latch this

output on. Press button “B” again to turn the light output off. The light function is active at all times and does not require

the power up sequence to be performed.

Maximum Ratings: Power for the receiver can be in the range of 100VAC to 132VAC. The relay contacts are rated at 20

Amps.

Page 1 REV B 05/20/19

(1) Long Range Antenna LRA340 **See PAGE 3 FOR SETUP**

- Rechargeable Transmitter GKF-WPTX-3L

- 3-Button Keyfob Transmitter KF340-3

Programming Instructions

Each transmitter has its own unique internal address along with the data as to which button is pressed and transmitted.

The receiver needs to be programmed to respond only to the specific transmitter it is intended to operate with. The

following steps configure the receiver to operate with a particular transmitter. Up to 12 transmitters can be programmed

to one receiver. Please read the entire programming procedure before starting. When the receiver enters program

mode, all previous transmitter addresses that were programmed will be erased from the receiver's memory.

1. Locate the pushbutton labeled "PROGRAM" on the receiver. Press and hold this button until the red LED next to the

program button illuminates (approximately 3 seconds). The receiver is now in the transmitter program mode. Release

the button. At this point all previously programmed transmitter addresses are erased from the receiver's memory.

2. To configure the receiver for a latching output, go to Step 4.

3. To configure the receiver for momentary output, press and release either button ONCE on the transmitter and verify that

the red program LED

extinguishes and then illuminates (blinks once). Proceed to Step 5.

4. To configure the receiver for latching output, press and release either button TWICE on the transmitter and verify that

the red program LED extinguishes and illuminates (blinks once).

5. Repeat previous step for additional transmitters that will operate with this particular receiver. The red LED on the

receiver will extinguish and illuminate (blink) once for the first transmitter being programmed, twice for the second, three

times for the third, etc. The receiver will not respond to transmitters that have already been programmed. The first

transmitter that is programmed determines the receiver’s relay operating mode.

6. The receiver will return to normal mode if no transmitter buttons are pressed for 5-seconds. The red LED on the

receiver will blink rapidly, then extinguish. The receiver is now in the normal mode of operation. This completes the

programming instructions. The receiver will retain all of its programming even when power is removed.

WWW.GAMAINC.COM

Page 2 REV B 05/20/19

LRF120VPR1L

Instruction Manual

LIGHT

T2, T4

T1, T3

AC IN

NEUT

AC IN LINE

Long Range

Antenna Jack

Program

Switch

Program

LED

WWW.GAMAINC.COM

Page 3 REV B 05/20/19

Wiring Instructions

Prior to this, verify that there is no power at any of the motor terminals.

1. Disconnect or turn off the circuit breaker to remove power (if a hand or drum switch is connected to the motor it will

need to be disconnected). Takes notes before disconnecting the switch in the unlikely event it will need to be reconnected.

2. See motor connections using the tables on pages 4 and 5 for terminal connections specific to the motor.

3. 120VAC power is connected to the line and neutral terminal of the receiver.

NOTE: After completing the installation, if the motor goes the wrong direction, simply swap the wires connected to T5 and

T8 on the receiver. The motor will now rotate in the correct direction. The 120VAC light connects between “common” and

“light” terminals on the receiver.

LRF120VPR1L

Instruction Manual

LIGHT

T2, T4

T1, T3

AC IN NEUT

AC IN LINE

LIGHT

T2, T4

T1, T3

AC IN NEUT

AC IN LINE 120VAC IN

Relays shown in off position

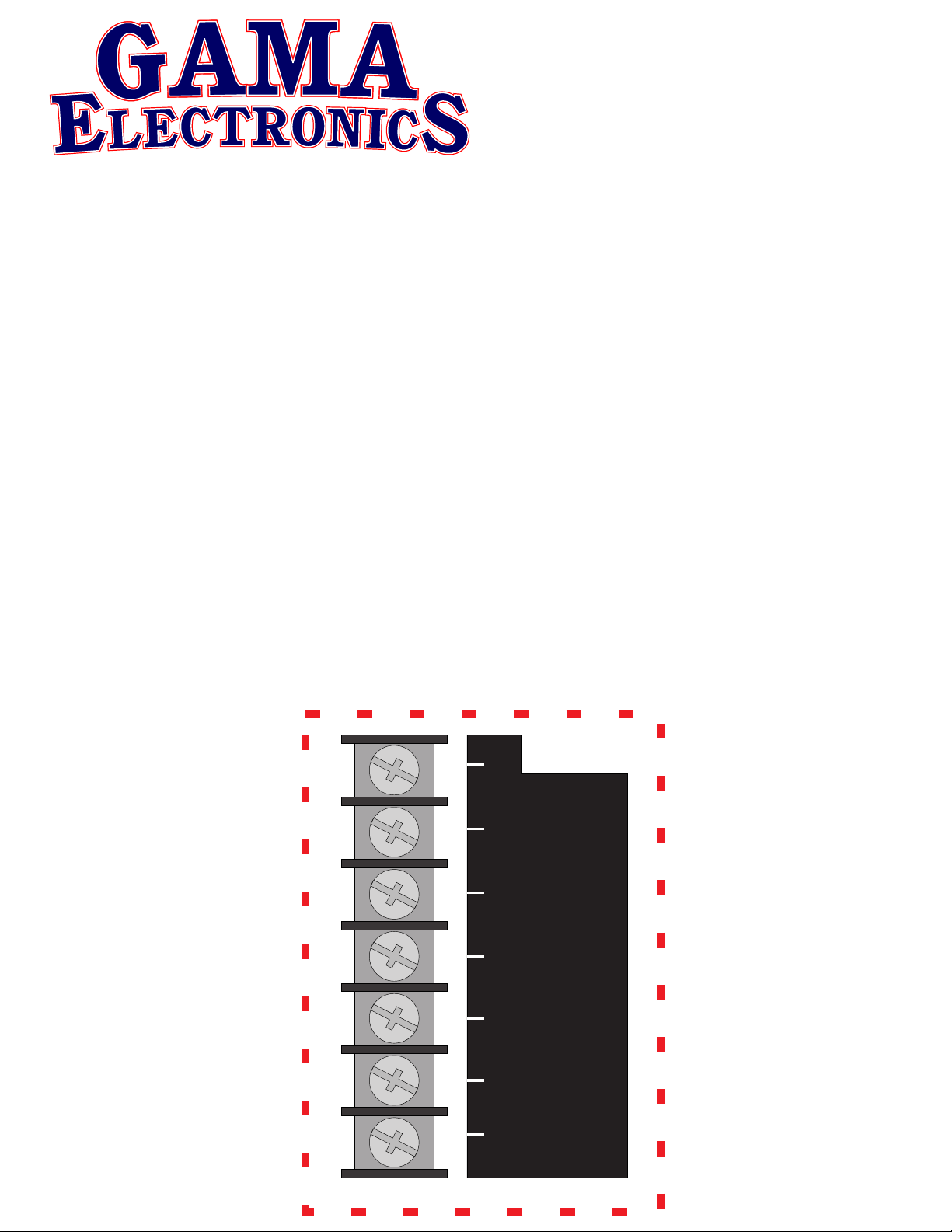

Truth Table

K1 = Up or Down

K4 = Up

K2 = Light (Latch

On/Latch Off)

K4A

K4B

Schematic

LRF120VPR1L

Instruction Manual

Page 4 REV B 05/20/19

WWW.GAMAINC.COM

Page 5 REV B 05/20/19

Troubleshooting

All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment.

If your RF remote control system does not work out of the box, stops working or functions intermittently please take the

following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating

the remote control. Operating within 2-3 feet may result in no operation or intermittent operation.

1. Replace the A23 12V Battery in the transmitter

· The remote control can activate during shipping and drain the battery that is installed in the control. We

send a replacement battery with the system if this occurs.

2. Check the voltage supply at the receiver

· The receiver is designed to function at 10-15VDC. Voltage on the (+) and (-) terminals on the control

should be within this range.

3. Reprogram the remote control

· If the system is non-functional try to reprogram the remote control. The program may not have taken

during the programming process or the program button may have been pressed. If the program button is

pressed the memory of the remote controls programed to the receiver are erased.

4. Listen and look for functionality on the receiver.

· The LED that is used for programming the system will illuminate when the receiver is activated. You will

also hear a “click” when the internal relays engage. If you can see the LED illuminate and you hear the

relay “click” the issue is most likely in the wiring or device being controlled.

5. Add a long-range antenna

· If the receiver is in an area that is averse to the reception of an RF signal, such as near a motor or in a

metal casing, a long-range antenna may solve the issue. Connect the antenna per the instructions on

page 3 and mount the antenna in an exposed area away from any motor.

LRF120VPR1L

Instruction Manual

Motor Name

A.O Smith with L1, L2 Terminals & Colored Wire

A.O. Smith C426 Motors with Terminals & Colored Wires

A.O. Smith C526 Motors with Terminals & Colored Wire

A.O. Smith C926 Motor with Colored Wire

A.O. Smith Motor 7-181021-20

A.O. Smith Motor C56A31B17

A.O. Smith Motor C56B05B17

A.O. Smith Motor

Ace Motors with Terminals

Baldor Motor CPI2000

Baldor Motor Type LC, DV

Baldor Motors with L1, L2 Terminals & Colored Wire

Century AC Motors with Colored Wire

Century AC Motors with Terminals & Colored Wire

Century Motors with Terminals

Dayton Motor 6K719L (Thermal Protection)

Eastbay Motors with Terminals

Elite Pointed Motors

Emerson Motors with Terminals

GE Motors with Terminals & Colored Wire

Leeson Motor M6K17F61A

Leeson Motors with Terminals

Leeson Type Motor (with Protector) M6C17FB10

Magnetek Motor 8-181021-20

Magnetek Motors with Terminals

Marathon Motor 5KC42JN0214 (3/4 HP)

Marathon Motor 5KC49PN0216 (1 HP)

Marathon Motor 5KC49TN0063Y

Marathon Motor 5KCP35KNB057AS

Marathon Motor 7PJ56C17F5945

Marathon Motors with Terminals & Colored Wire

Powerfist Motor 8703050

Regal Beloit Motor

Regal Beloit Motor 52A105379AA

Regal Beloit Motor C56AD36B17

Regal Beloit Motor with Type K Protector

WEG Motor with Protection

Figure

See Figure 3

See Figure 6

See Figure 7

See Figure 19

See Figure 20

See Figure 11

See Figure 8

See Figure 16

See Figure 17

See Figure 3

See Figure 7

See Figure 6

See Figure 4

See Figure 22

See Figure 5

See Figure 12

See Figure 10

See Figure 9

See Figure 21

See Figure 8

See Figure 18

See Figure 23

See Figure 4

See Figure 15

See Figure 24

See Figure 21

See Figure 9

See Figure 18

See Figure 11

See Figure 13

See Figure 14

See Figure 18

See Figure 25

STANDARD MOTOR WITH “T” NUMBERS

STANDARD MOTOR WITH COLORED WIRE

See Figure 1

See Figure 2

Page 6 REV B 05/20/19

WWW.GAMAINC.COM

LRF120VPR1L

Instruction Manual

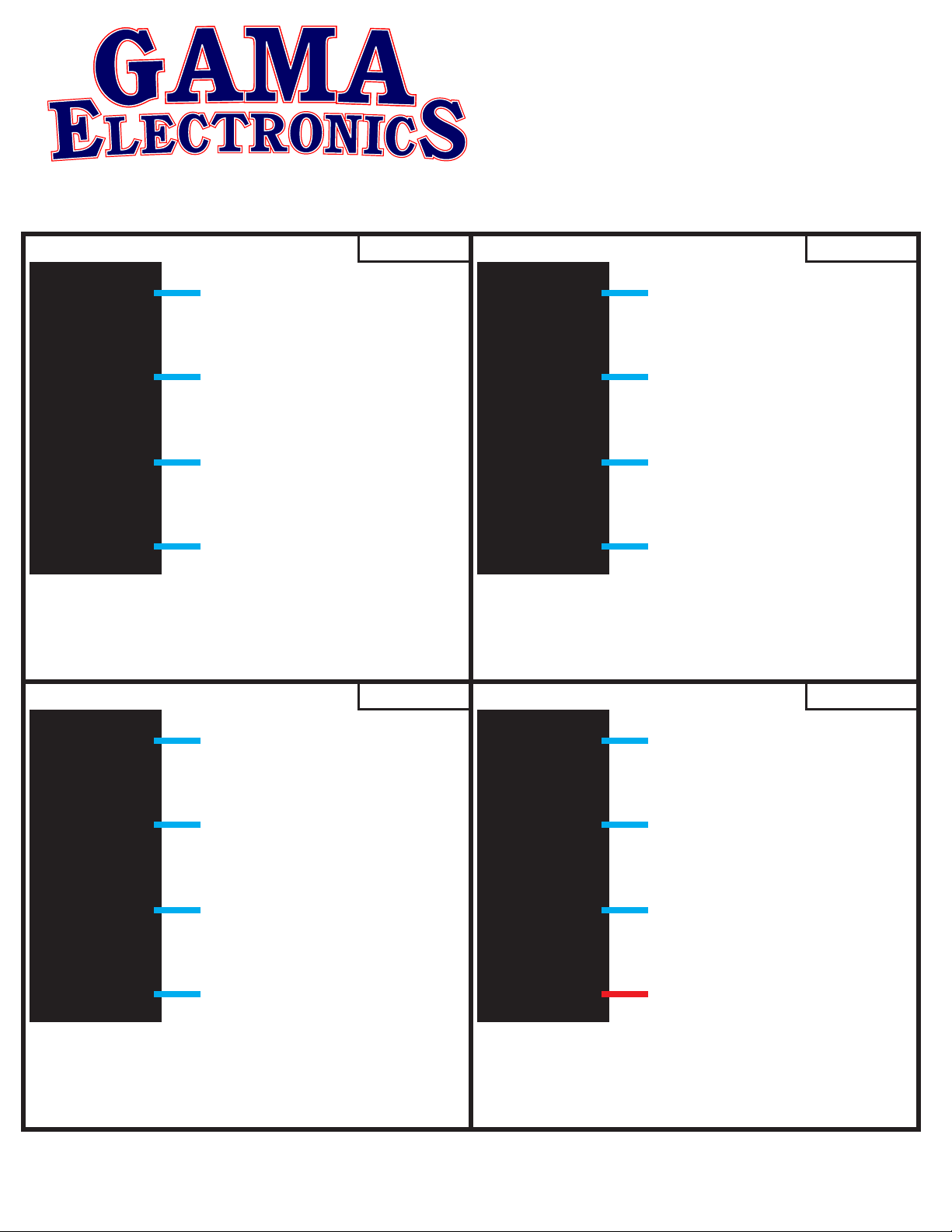

FIGURE 1

FIGURE 3

FIGURE 2

FIGURE 4

T2,T4

T1,T3

T2,T4

T1,T3

T2,T4

T1,T3

RED

BLACK

T2,T4

T1,T3

RED

BLACK

WHITE/YELLOW

BLUE/ORANGE

T2,T4

T1,T3

TERMINAL 8

TERMINAL 5

TERMINAL 6

TERMINAL 1

*USE WIRE NUTS TO CONNECT

THE RECEIVER TO MOTOR WIRES

*USE WIRE NUTS TO CONNECT

THE RECEIVER TO MOTOR WIRES

Page 7 REV B 05/20/19

LRF120VPR1L

Instruction Manual

FIGURE 5

FIGURE 7

FIGURE 6

FIGURE 8

T2,T4

T1,T3

TERMINAL B

TERMINAL A

TERMINAL D

TERMINAL E

T2,T4

T1,T3

RED

YELLOW

BLUE

BLACK

T2,T4

T1,T3

Motor Red *Use blue wire nut

to connect the receiver to motor wire

TERMINAL 5

TERMINAL 6

TERMINAL 1

T2,T4

T1,T3

TERMINAL 3

TERMINAL 5

TERMINAL 2

TERMINAL 1

*MOTOR WIRES BROWN & ORANGE

MUST BE CONNECTED TO TERMINAL 3

Page 8 REV B 05/20/19

LRF120VPR1L

Instruction Manual

FIGURE 9

FIGURE 11

FIGURE 10

FIGURE 12

T2,T4

T1,T3

TERMINAL 2

MOTOR RED

MOTOR YELLOW

& WHITE

TERMINAL 1

T2,T4

T1,T3

RED

ORANGE

WHITE

BLACK

T2,T4

T1,T3

RED

BLACK

WHITE

ORANGE

*USE BLUE WIRE NUTS TO CONNECT THE

RECEIVER TO MOTOR WIRES

T2,T4

T1,T3

TERMINAL 4

TERMINAL 1

TERMINAL 3

TERMINAL 2

Page 9 REV B 05/20/19

LRF120VPR1L

Instruction Manual

FIGURE 13

FIGURE 15

FIGURE 14

FIGURE 16

T2,T4

T1,T3

RED

BLACK

T2,T4

T1,T3

RED

(2) BLACK

(1) ORANGE

WHITE

T2,T4

T1,T3

NO CONNECTION

T2,T4

T1,T3

BLACK

L1 (BLUE)

L2 (WHITE)

RED

*J-NEUTRAL IN RECEIVER

*4-NEUTRAL IN FROM AC POWER SOURCE

*LINE OF RECEIVER TO LINE OF

AC POWER SOURCE

Page 10 REV B 05/20/19

LRF120VPR1L

Instruction Manual
