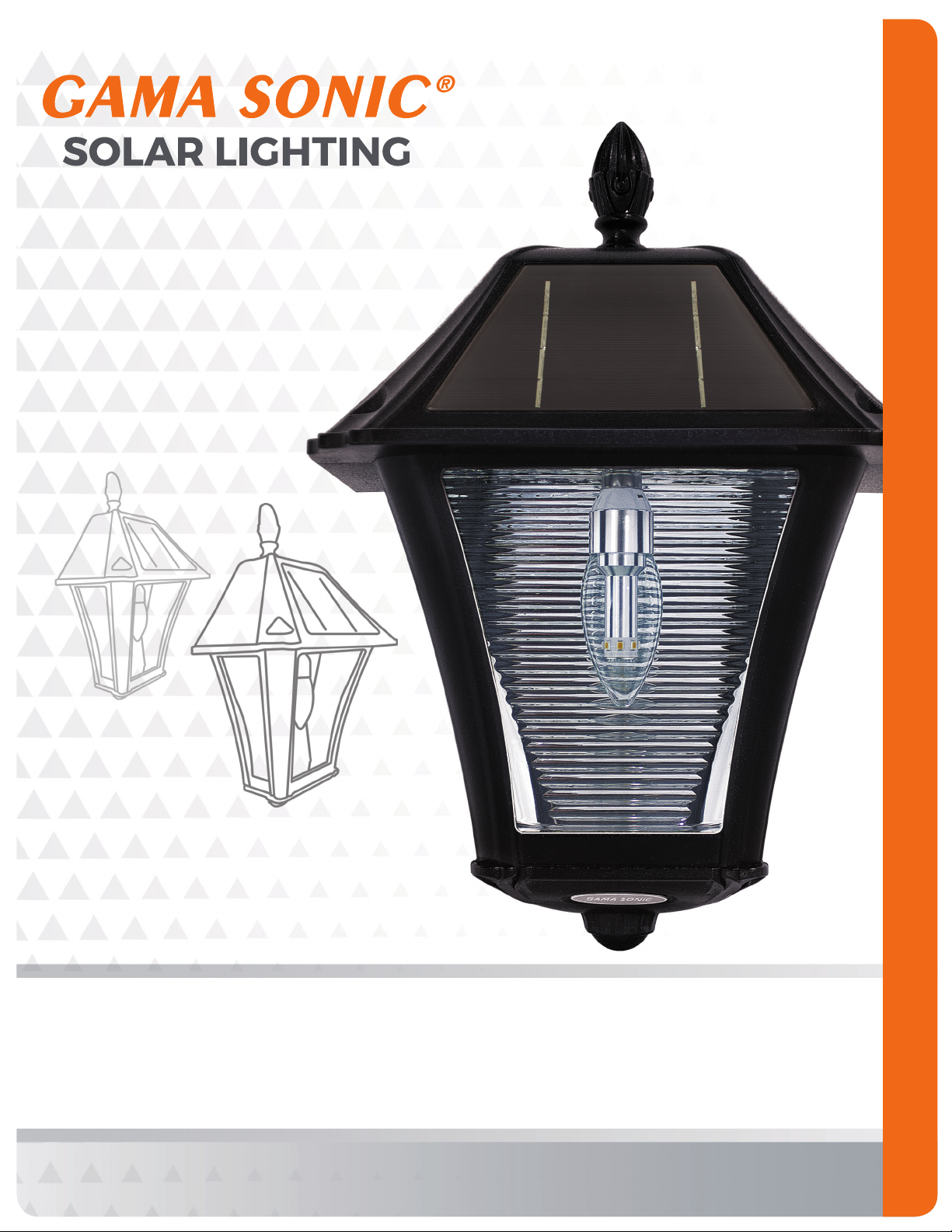

Gama Sonic 105BP250040 Manuale utente
BAYTOWN II SCONCE
SOLAR LAMP
Model: 105BP250040
Version 1.1
Instruction Manual
US Patent # 9458970 #7478919
Solar Lamp Location:
Tools that are needed but not supplied with the solar post
lamps are: a screwdriver, power drill.
For optimum light duration throughout the night, it is very important
to place your solar lamp in a spot where it will receive the maximum
amount of direct sunlight throughout the day.
Note: For best results, the solar lamp post must be charged for two
sunny days in the “ON” (High or Low) position.
Open your package and remove the contents. Check to
make sure all pieces are present and accounted for.
page 2
Thank you for your purchase. GAMA SONIC® solar charged lights are brighter and last all
night with a full day solar charge. Unique designs, superior light output, and numerous
installation options confirm the outstanding value of our product.
For technical assistance and more information call our Toll-Free number:
800-835-4113 (only within the US)
Or
visit our website or download the latest version of your instruction manual:
www.gamasonic.com Or www.gamasonic.com/user-guides
Please read the instruction manual carefully to obtain the best results from your purchase.
A. Fixture Body C. BulbB. Wall bracket
What’s Inside:
WARNING: GAMA SONIC® Light bulbs are built and designed for Gama Sonic products only.
They are not designed to be used in other electrical sockets.
For the same reason, regular AC and/or Low Voltage bulbs cannot be used in Gama Sonic products.
page 3
1. Using the mounting
bracket as a template, mark
where the two holes will
need to be to hang your
light.
2. Using a drill, make two
holes where those marks
are and insert the wall
anchors.
3. Place the bracket in line
with the holes and secure
with the provided screws.
(make sure the bracket is
installed so the two tabs
are not against the wall)
4. Install the lamp onto the
bracket making sure the
two tabs slide into the
grooves on the back of the
lamp.
1. Make sure the lamp is in the OFF (O)
position (Fig. 1).
2. Detach the back of the lamp unit (B)
by removing the 2 screws at the base
of the lamp (Fig. 2).
3. Remove the existing bulb by turning it
counterclockwise (Fig 3). (If Replacing)
4. Install the new GS Solar LED Bulb by
turning it clockwise into the bulb socket
5. Reassemble the unit by reversing the
above steps.
6. Make sure the High/OFF/Low switch is in
the ON (High) or (Low) position (Fig. 1).
Make sure the new bulb you purchase is
compatible with this model (C37 bulb)
Operation Instructions
Installation Instructions (Fig 4)
Fig. 1
Fig. 2 SCREWS
Fig. 3
Fig. 4
page 4
Replacing the Batteries
Replacement batteries are available
at www.gamasonic.com or via our Toll free number: +1-800-835-4113
After several years of use, the battery may need replacing.
1. Make sure the ON/OFF switch is in the OFF (O) position.
2. Unscrew the one screw and detach the cover.
3. Unclip the connector and remove the old battery. (Fig. 5)
4. Make sure the new battery is a Gama Sonic –
3.2V/1,500mAh, Li-ion Rechargeable Battery with a connector.
5. Clip on the new battery and place it inside
the battery compartment.
6. Re-Install the battery compartment cover.
WARNING: Do not dispose of Li-On battery in the regular trash,
municipal waste stream or by fire as batteries may leak or explode.
Do not open, short circuit, or mutilate batteries as injury may occur.
Preserve our environment by recycling Li-Ion batteries or disposing
of them in accordance with local, State and federal regulations. Do
not mix old and new batteries.
Maintenance
Clean the solar module regularly with a damp towel to guarantee optimum performance
of the solar panel. Do not use any type of solvent for cleaning and be careful not to put too
much pressure on the module while cleaning.
Trouble Shooting
If your solar charged light does not come on at dusk despite
observance of all the instructions, please try the following steps:
1. Make sure that the solar light is not being affected by any other light source.
2. Ensure the solar light is not positioned in the shade during the day.
3. Make sure the switch in the lamp head is in the ”LOW” or "HIGH" position.
4. Check that the batteries are installed correctly.
NOTE: The performance of the solar light will vary with the time of year. It will deliver
longer duration when it has had a full day in the sun rather than a day in overcast
weather.
WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris
accumulation from solar panel(s). A solar panel free of debris will charge the batteries
much more efficiently.
WARNING: Please keep out of reach of children.
Fig. 5
