Gama Sonic GS-145 Manuale utente
SOLAR GARDEN PATHWAY LIGHT
WITH DUAL COLOR OPTION
Instruction Manual
Model: GS-145
This product is covered for a 2-year warranty period.
In order to make sure that you will be covered, please activate your warranty by filling out all the
information needed with the proof of purchase in the link below.
www.gamasonic.com/warranty
1
Introduction
Thank you for your purchase. GAMA SONIC® solar-charged accent lighting eliminates the problems
associated with most solar lighting available today. GAMA SONIC® solar-charged lights are brighter
and last all night with a typical solar charge. Unique design, superior light output and numerous
installation options confirm the outstanding value of our product.
GAMA SONIC® has been recognized as a worldwide leader in the lighting industry for over 20 years.
The company also offers unique multi-purpose rechargeable products that range from fans with built
in radios to emergency lighting products.
For technical assistance and more information call our Toll Free number:
1-800-835-4113 (only within the US)
Visit our website or download the latest version of your instruction manual:
www.gamasonic.com or www.gamasonic.com/user-guides
Please read the instruction manual carefully to obtain the best results from your purchase.
Solar Garden Pathway Light Location:
For optimum light duration throughout the night, it is very important to place your solar light in a spot
where it will receive the maximum amount of direct sunlight throughout the day.
Note: The unit will operate optimally after 2 full days of charging.
What’s Inside
Open your package and remove the contents. Check to make sure all pieces are present and
accounted for.
2
Operation Instructions

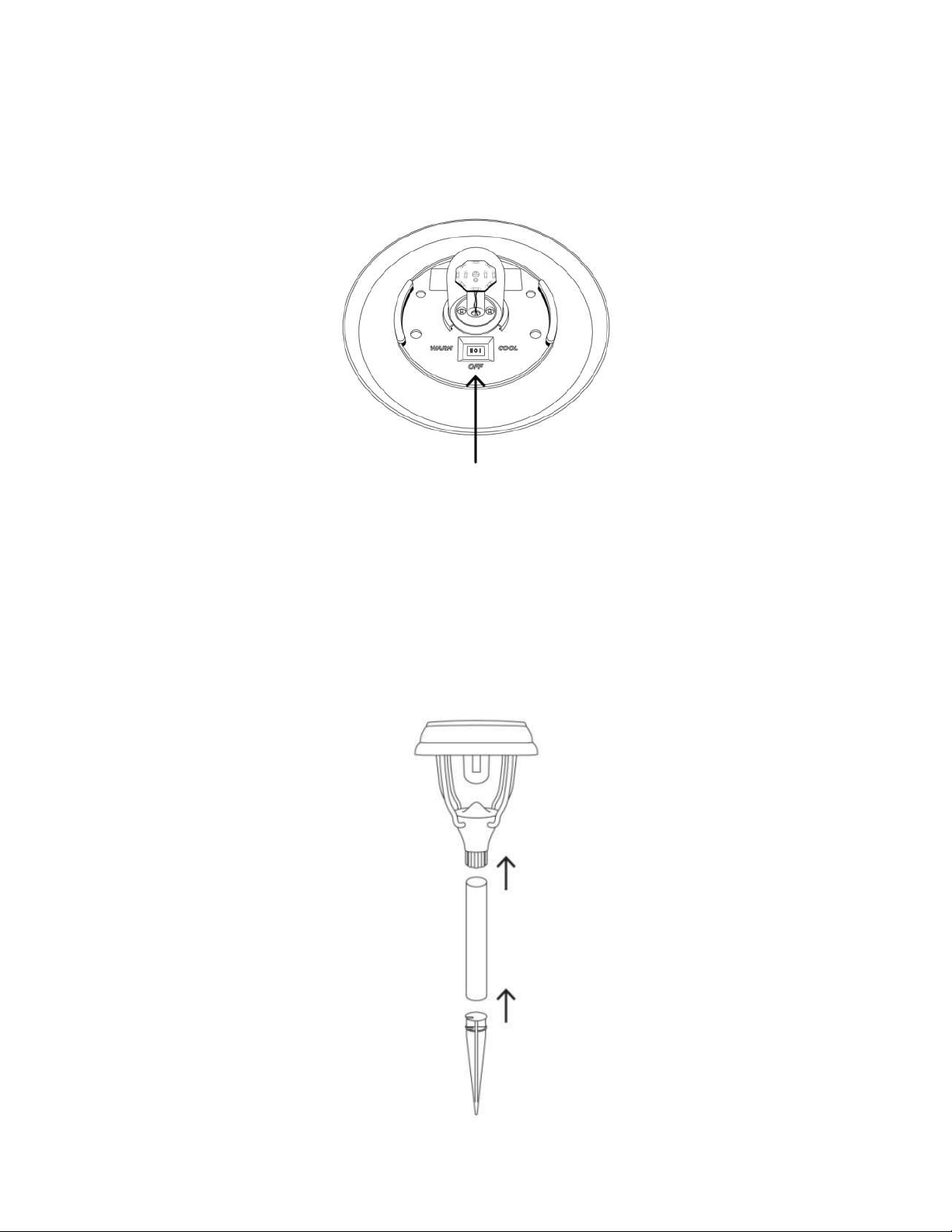

1. Turn the operation switch (Fig. 1) to either the WARM (warm white) or COOL (cool white).
position, the solar light will automatically operate from
dusk to dawn.
Installation Instructions
1. Attach the pole and the fixture together tightly (Fig. 2).
2. Attach the stake to the unit by twisting it on to the bottom pole (Fig. 2).
3. Insert the stake into the ground.
FIG. 1
FIG.
2
3
Replacing the Batteries
After several years of use, the battery may need replacing.
1. Remove the top of the lamp off by turning it counter clockwise and lifting it off. (Fig. 3).
2. Flip the top upside down to expose the battery compartment. (Fig. 4).
3. Take the battery out of its secured position, and unclip its wire (Fig. 5).
4. Clip your new battery in and reinstall the lamp in reverse order.
5. This lamp takes a Li-Ion 3.2V/600 mAh battery pack. Extra batteries can be purchased through
our authorized dealers or by going to www.gamasonicstore.com
WARNING: Do not dispose of Li-Ion battery in the regular trash, municipal waste stream or by fire as
batteries may leak or explode. Do not open, short circuit, or mutilate batteries as injury may occur.
Preserve our environment by recycling Li-Ion batteries or disposing of them in accordance with local,
state and federal regulations. Do not mix old and new batteries.
Maintenance
Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not use
any type of solvent for cleaning and be careful not to put too much pressure on the solar panels while
cleaning.
Troubleshooting
If your solar charged light does not come on at dusk despite observance of all the instructions, please
try the following steps:
1. Make sure that the solar light is not being affected by any other light source.
2. Ensure the solar light is not positioned in the shade during the day.
3. Make sure the switch in the light is the ON position.
4. Check that the batteries are installed correctly.
Note: The performance of the solar light will vary with the time of year. It will deliver more light when it
has had a full day in the sun rather than a day in overcast weather.
Wintertime Tips: For optimal performance, be sure to remove any snow or debris accumulation from
solar panel(s). A solar panel free of debris will charge the batteries much more efficiently.
WARNING: Please keep out of reach of children.
