Ganz ZN-D2024 Manuale utente
Warnings Before Installation
Contact your distributor when such
cases happen.
Power off the IP Camera as
soon as it is found smoking or
smelt unusual.
Do not place the IP Camera
around the heat sources, such
as television or oven.
Keep the IP Camera away
from direct sunlight.
Keep the IP Camera away
from water. If the IP
Camera is wet, power off
immediately.
Refer to your user's
manual for the operating
temperature.
Do not place the IP Camera
in high humid environments.
Contact your distributor when such
cases happen.
1
Do not place the IP Camera on
unsteady surfaces.
Do not disassemble the IP
Camera.
Do not insert any object
into the IP Camera, such as
needles.
Do not touch the IP Camera
when it's lightening.
Do not drop the IP Camera.
2
ZN-D2024 Power Adapter
Warranty Card Quick Installation Guide
Software CD Alignment Sticker
Screws and I/O Connector
3
Package Contents
1
Physical Description
2
Keep a note of the MAC address
before installing the camera.
001CB8600052
RoHS
Pat.6,930,709
Indoor IP Dome Camera
Model No:ZN-D2024-A
Drill holes
Dome cover
4
Lens
Tilt screw
Built-in MIC
Power cord socket
Ethernet 10/100 RJ45 socket
Indented reset button
Audio Out Mic. In Ext. Int.
1 2 3 4
Focus controller
Zoom controller
General I/O terminal block
Audio out
MIC in External/Internal MIC switch
Pan screw
Image adjustment screw
Status LED
First, use the supplied screwdriver to detach the dome cover from the camera base. Then,
follow the steps below to install the camera; either to a ceiling or to a wall.
Hardware Installation
When mounting to a ceiling
Through the two holes on each side of the camera base, insert the supplied two screws
to corresponding holes and secure them with a screwdriver.
When mounting to a wall
1. Attach the alignment sticker to the wall.
2. Through the two circles on the sticker, drill two pilot holes into the wall.
3. Hammer the supplied plastic anchors into the holes.
4. Align the two holes on each side of the camera base with the two plastic anchors on
the wall, insert the supplied screws to corresponding holes and secure them with a
screwdriver.
Alignment sticker
5
3
6

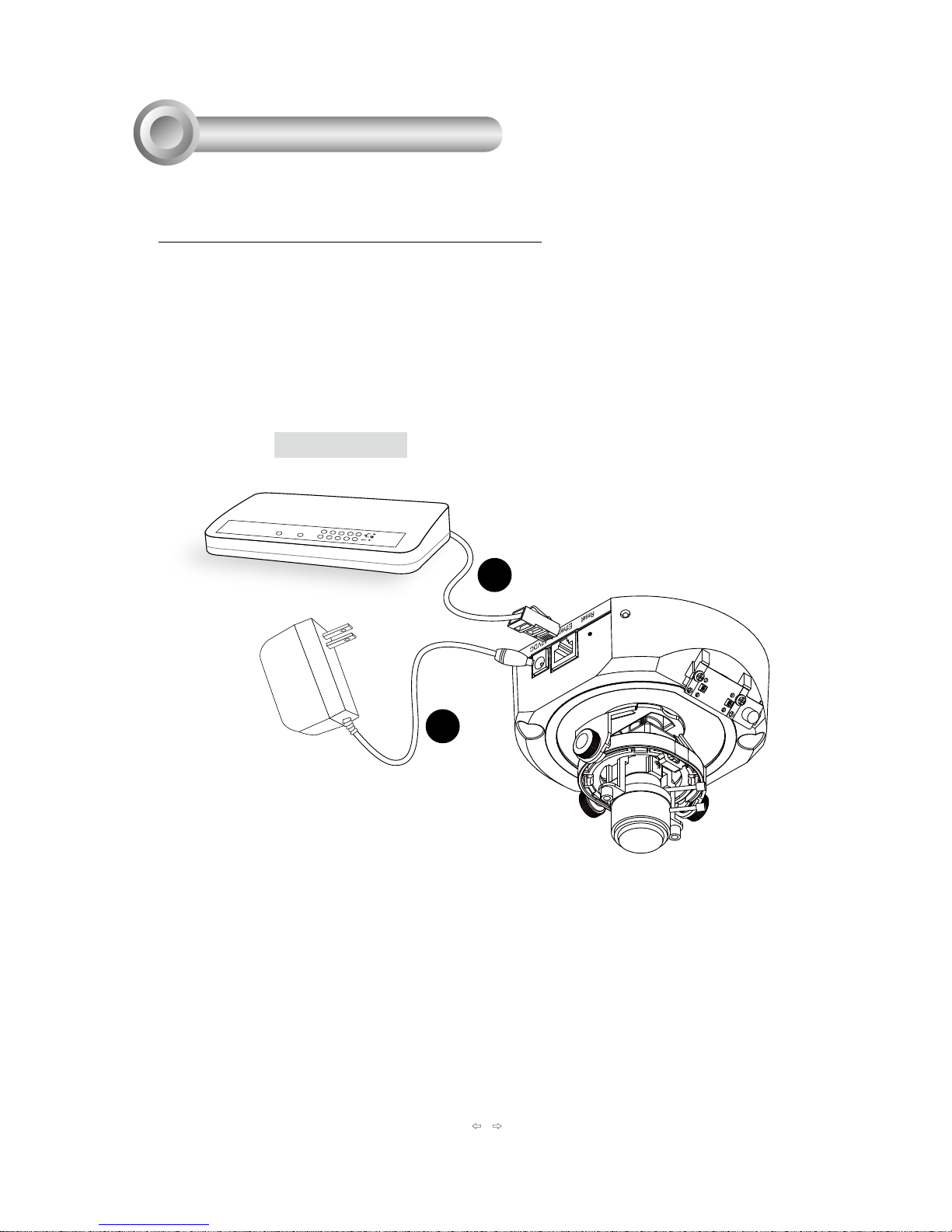

General Connection (without PoE)
1. Connect the camera to a switch via a Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
1
2
Ethernet switch
Network Deployment
4
Power over Ethernet (PoE)
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
PoE switch
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
non-PoE switch
PoE power injector
(optional)
When using a PoE-enabled switch
The camera is PoE-compliant, allowing transmission of power and data via single
Ethernet cable. See the following illustration to connect the camera to a PoE-enabled
switch via Ethernet cable.
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the camera and a non-PoE
switch.
7
8
This serial number is the same as Ethernet address,
for example: 001CB8600052=00-1C-B8-60-00-52
GANZ
Installation Tool
3. From the "GANZ Installation Tool" window, click on the MAC that matches the one you
just noted from the product label of your device to connect the Internet Explorer to the
IP Camera.
00-1C-B8-60-00-52
00-1C-B8-60-00-52 192.168.5.134 ZN-D2024
001CB8600052
RoHS
Pat. 6,930,709
Indoor IP Dome Camera
Model No:ZN-D2024-A
Assigning IP Address
1. Install the "GANZ Installation Tool" under the Software Utility directory from software CD.
2. Run the "GANZ Installation Tool" program.
5
9
For further setup, please check the user's manual on the software CD.
The Internet Explorer Connects to the IP Camera
6
