Garmin StreetPilot c330 Manuale utente

START HERE

StreetPilot® c330

190-00436-02 Rev. C

This setup guide includes instructions for

mounting, conﬁguring, and using your

c330. Remove your unit and the vehicle

suction cup mount from the product box

before you begin.

Your unit’s battery must be charged

before it can be used on battery-

operated power. It will begin to charge

once the c330 is fully mounted as

described in this guide.

setup guide

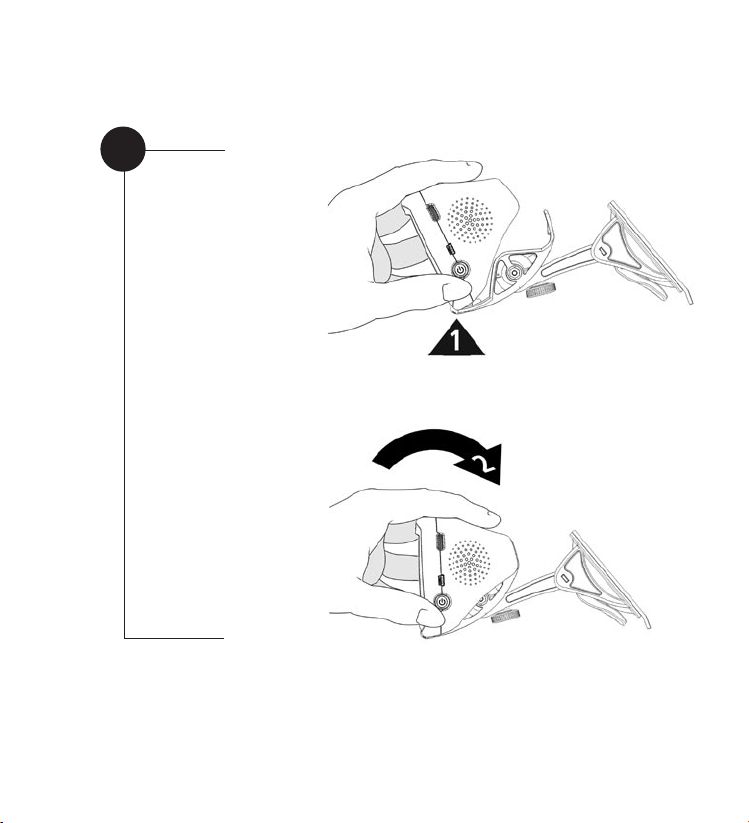

Mount your c330

Fit the bottom of

your c330 into the

cradle of the suction

cup mount (1).

Tilt your c330 back

until it snaps in

place (2).

WARNING: For use in vehicles, it is the sole responsibility of the owner/operator of a vehicle with the c330 installed to place and

secure the device so it will not interfere with the vehicle operating controls and safety devices, obstruct the driver’s view of driving

conditions, or cause personal injury in the event of an accident.

NOTICE TO STATE OF CALIFORNIA DRIVERS: California Vehicle Code Section 26708 (a) (1) provides that drivers in California

should not use suction mounts on their windshield or side or rear windows. Other garmin dashboard or friction mounting options

should be used. For available accessories, refer to the garmin web site at www.garmin.com. Also, refer to the

Owner’s Manual

for

instructions on using the included mounting disk with the suction cup mount.

Place the suction cup

on your windshield. Be

sure the lever is pointing

down, as shown at right.

Note: To ensure a tight

grip, make certain your

windshield is clean and

dry before you mount the

suction cup.

Flip the lever back, toward

the windshield. Adjust the

c330 to obtain a maximum

viewing angle.

To remove the suction

cup from the windshield,

lift the lever to release

the suction cup’s grip. To

help release the grip, pull

upwards on the rubber tab.

If necessary, use the tension

knob to loosen or tighten

the tension in the mount to

improve your viewing angle.

Lever

Rubber

tab

To remove the unit

from the mount, press

the indentation on the

back of the unit (1).

Then, lift the unit off

of the mount (2).

Plug the end of

the cable into an

available power

receptacle. Your unit

will automatically

turn on if you have

started your vehicle.

To remove the unit from the mount

Once the power is turned

on, follow the on-screen

instructions to set up your

c330 for the ﬁrst time.

When the setup is complete,

you will see the WARNING

screen, shown at right.

Touch Agree to begin using

your c330.

Conﬁgure your c330

Press the Power button to turn

on the unit.

Note: If the unit is not receiving

power, a “Low Battery” warning

may appear. Do not worry

about this message. Connect

the unit to your vehicle’s

power receptacle, as described

previously.

volume

control

power

button

USB cable

connector

Touch an icon that will

help you ﬁnd your

destination.

Find a place

Touch Where to?

Touch a destination.

Enjoy the route!

Touch Go!

To learn more about the exciting features that

are available with your c330, see the enclosed

Owner’s Manual

To register your c330, go to the Garmin Web site at:

http://www.garmin.com/unlockregister/register.jsp.

Your “Registration Code” is located on the enclosed

sheet.

Registering your unit enables you to be informed of map

software and product updates. It also allows Garmin to

better track your unit if it is lost or stolen.

March 2005 190-00436-02 Rev. C Printed in Taiwan
