Garrett ACE 200 Manuale utente

1881 W. State Street

Garland, Texas 75042

USA

Tel: 1.972.494.6151

Email: [email protected]

Fax: 1.972.494.1881

Owner’s Manual

English/Spanish

ACE 200™1

TABLE OF CONTENTS

ACE 200 Control Panel ........................................................... 2

Quick Start Guide.................................................................... 3

ACE 200 Contents................................................................... 4

Detector Assembly .................................................................. 5

Power On/Basic Controls........................................................ 6

Target Information................................................................... 7

Audio Features ........................................................................ 8

Selecting Modes (Discrimination Patterns)............................... 9

Sensitivity ..............................................................................10

Bench Tests ...........................................................................11

Hunting Tips With Your ACE 200..........................................12

Troubleshooting Guide..........................................................14

Battery Replacement ............................................................15

Metal Detecting Code of Ethics............................................16

Cautions................................................................................. 17

Caring For Your ACE 200 Detector....................................... 17

ACE 200 Warranty / Service ................................................18

ACE 200 Accessories............................................................19

2Garrett Metal Detectors ACE 200™3

QUICK START GUIDE

1. Power ON.

Press and release the ON / OFF Power button. The ACE 200

powers on in the last mode used, automatically adjusts for

ground minerals and is ready to search. The detector

operates with four (4) AA batteries which are already

installed by Garrett. (Factory default mode is Coins.)

2. Select Mode.

Use the Mode button to select a different detection mode,

when desired.

3. Adjust settings.

Adjust Sensitivity setting, if desired.

4. Begin scanning.

Lower the searchcoil to approximately 1 inch above the

ground and scan the coil left and right at approximately

3 ft/second. The coil must be in motion for target

detection.

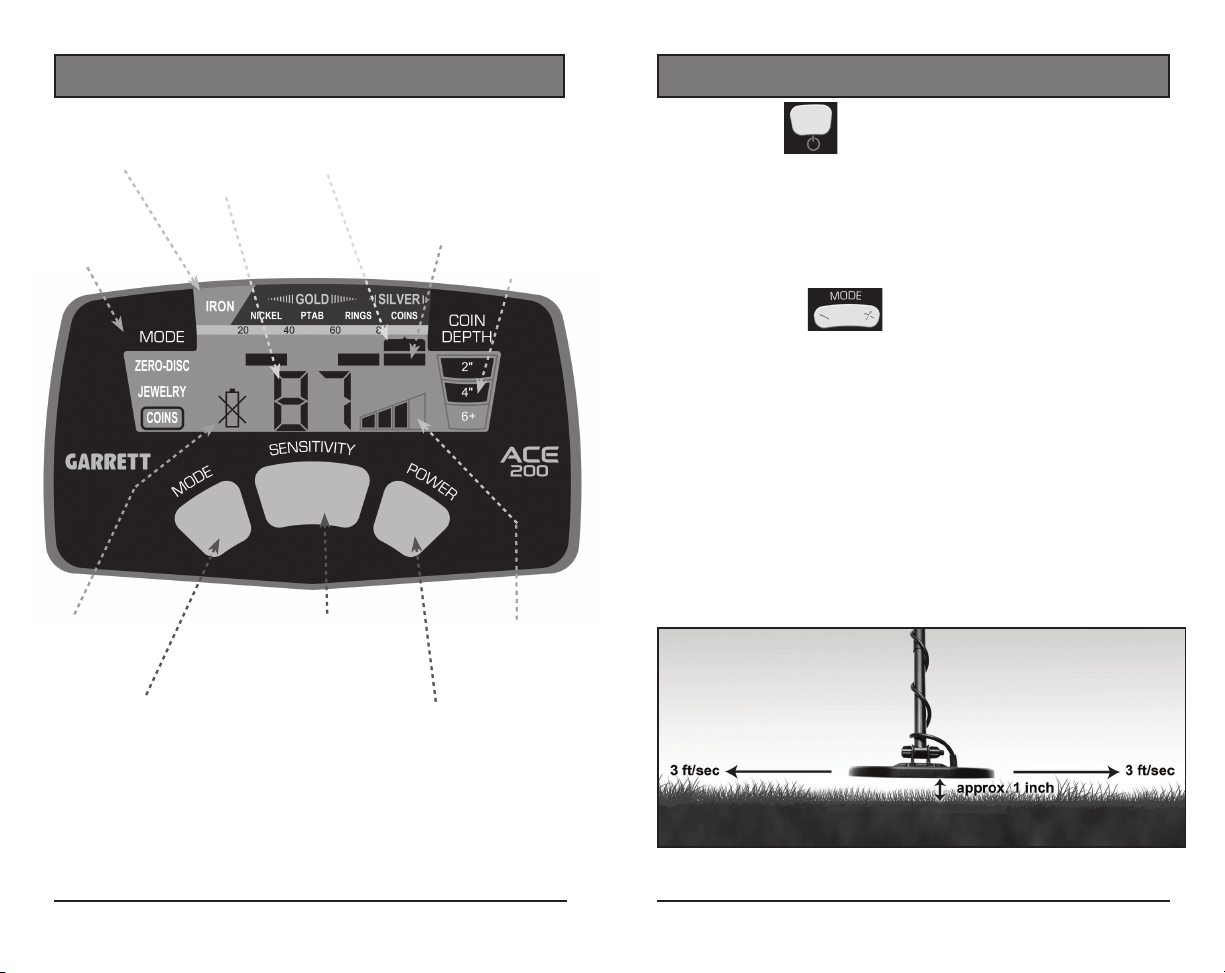

ACE 200 CONTROL PANEL

Sensitivity

Setting

MODE

Button

selects detection mode (i.e.

discrimination pattern).

Power ON / OFF:

hold 5 seconds for

Factory Reset.

Depth

Indicator

indicates depth

of coin-sized

target.

Mode

Indicator

Target ID Legend

indicates metal types.

Lower Scale

indicates notch

discrimination

pattern.

Target ID Cursor

indicates probable target identity.

SENSITIVITY

Button

increases or decreases

sensitivity.

Digital

Target ID

Low Battery

Level

Indicator

DETECTOR ASSEMBLY

4Garrett Metal Detectors ACE 200™5

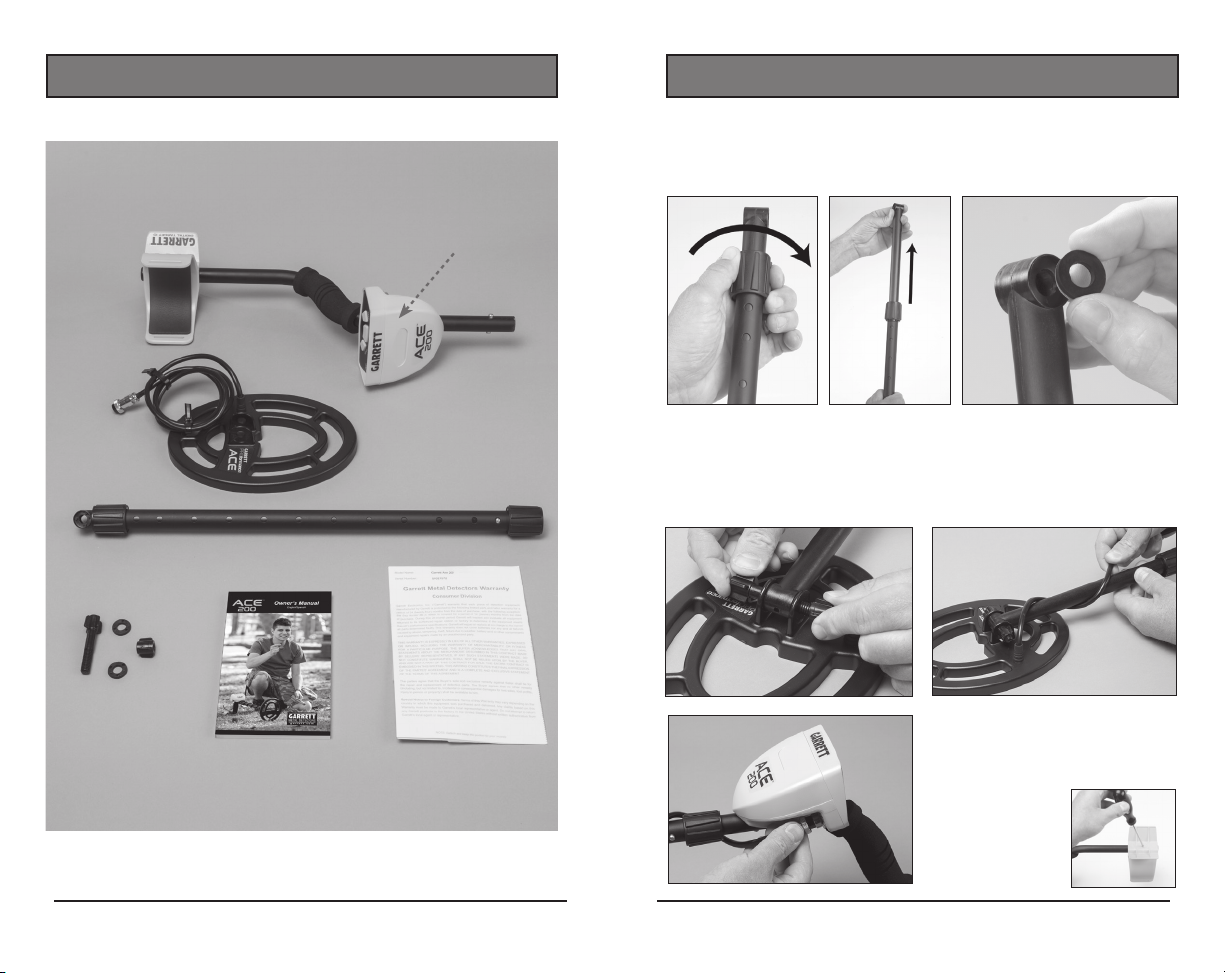

ACE 200 CONTENTS

If any part is missing, please contact Garrett Customer Service.

Nut, bolt,

mounting washers

Batteries

installed

Control housing with

S-shaped stem

Searchcoil

Upper, lower

stem (connected)

Warranty card

Manual

Loosen lower camlock and extend lower stem. Insert mounting

washers, connect searchcoil to stem as shown, and hand-

tighten wing nut.

Loosen upper camlock, insert S-stem with control housing,

adjust lower stem to comfortable length, and hand-tighten

the camlocks. Wrap cable snugly around the stem with the

first turn of the cable over the stem.

Note: The arm cuff can be

adjusted by removing the screw

on the bottom and moving it to

the other hole.

6Garrett Metal Detectors ACE 200™7

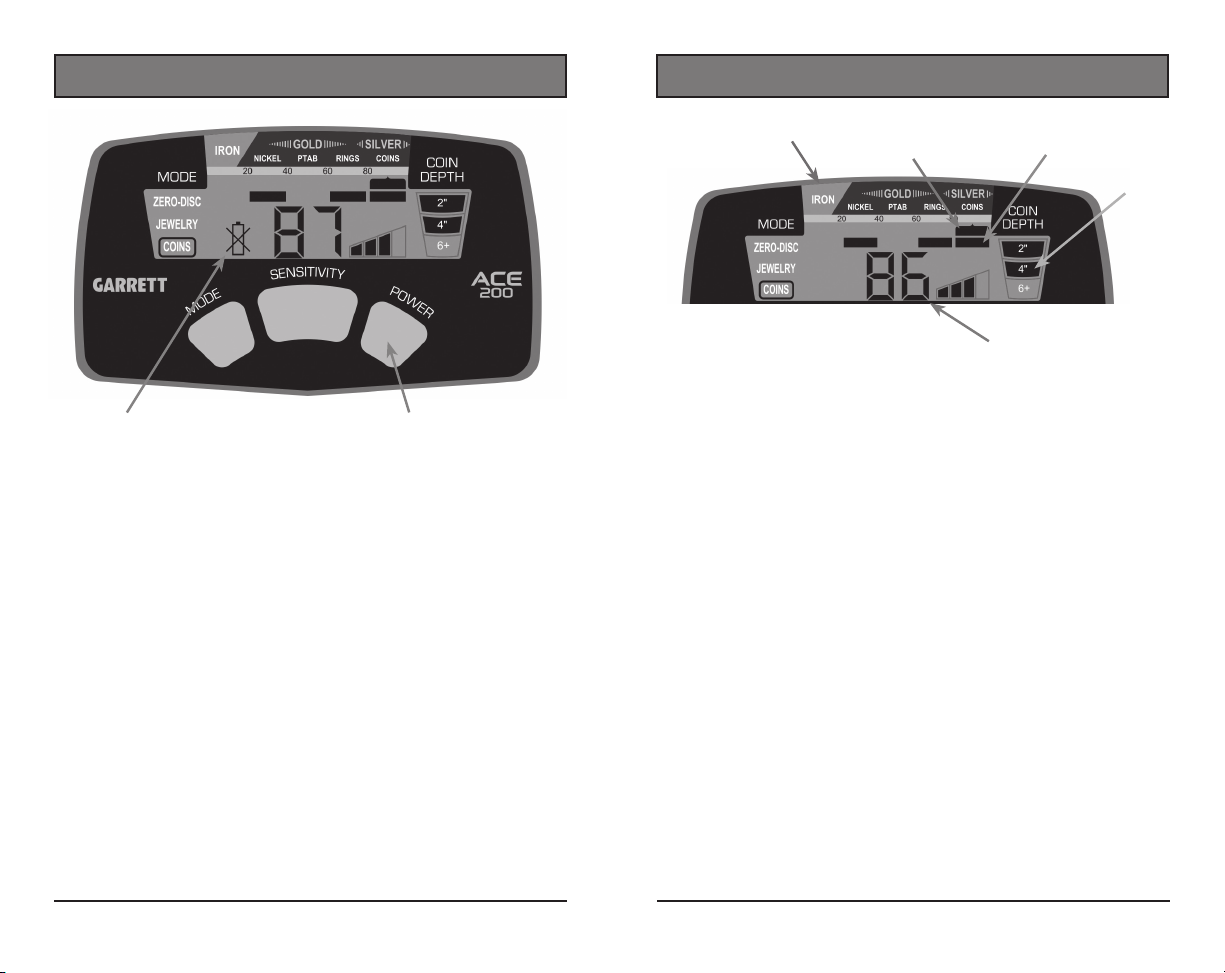

POWER ON/BASIC CONTROLS

Power ON/OFF

Button

Power ON/OFF—Press this button to turn power ON or OFF.

Factory Reset —To restore factory settings, press and hold

the power button for 5 seconds (until the detector produces

a fast double beep).

Low Battery Indicator—When the detector's batteries become

weak, the Low Battery Indicator will remain on.

TARGET INFORMATION

Target ID Cursor

(Upper Scale)

Target ID Legend Discrimination Pattern

(Lower Scale)

Target ID Legend—Works with the Target ID Cursor to

indicate a target's probable identity, with Ferrous (iron)

targets at the left, non-ferrous targets that are thin or have

low conductivity in the middle, and thick or high conductivity

targets (e.g. thick silver) at the right.

Lower Scale—Displays the current discrimination pattern,

with lighted pixels indicating accepted targets and blank

pixels indicating rejected targets.

Target ID Cursor (Upper Scale)—Will display for every

target, but will produce audio only for targets accepted on the

Lower Scale.

Digital Target ID—Provides a value from 0 to 99 to identify

targets more precisely than the ID cursor.

Coin Depth Indicator—Shows the depth of a coin, or a

similar sized target. Note: targets larger than a coin may

display shallower than actual depth while targets smaller

than a coin may display deeper than actual depth.

The sample chart on the following page provides Digital

Target ID ranges of some commonly found items.

Coin Depth

Indicator

Digital Target ID

Low Battery

Level Indicator

8Garrett Metal Detectors ACE 200™9

AUDIO FEATURES

Tone ID—The ACE 200 produces three distinct tones based

on a target’s metal type and conductivity:

• High conductivity targets (Digital ID >80) produce a

unique belltone signal.

• Medium to low conductivity targets (Digital ID of 21–80),

produce a medium-pitched signal.

• Ferrous targets (Digital ID <21) produce a low-pitch

signal.

Headphone Jack—Use any headphones with a 1/4” plug.

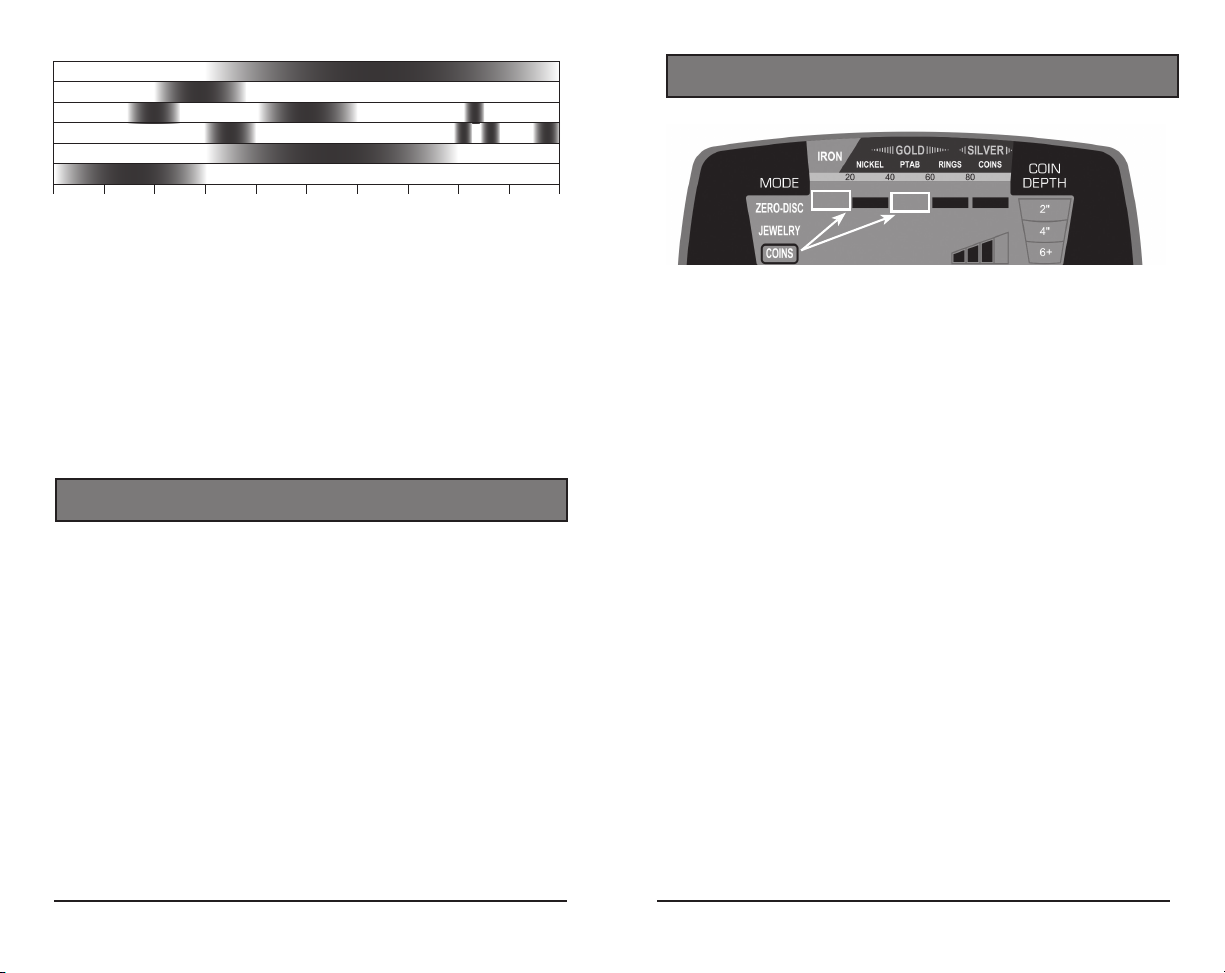

Example: this is the preset notch discrimination pattern for COINS Mode.

Target ID can vary widely based upon the target's size

and thickness because small, thin pieces of metal cannot

conduct electrical current as well as thicker pieces of metal.

In addition, mineralized soils can cause Target ID errors,

especially for small targets.

Tip: Target ID is most reliable when the target is centered

under the searchcoil and the coil is swept flat and at a

constant height above the ground.

Silver

10¢10¢

1¢1¢ 25¢25¢

5¢5¢

ThinThin ThickThick

0 10 20 30 40 50 60 70 80 90 99

Iron, SteelIron, Steel

FoilFoil

Gold nuggets, silver, copper

bronze, larger jewelry

Gold nuggets, silver, copper

bronze, larger jewelry

Lead Projectiles

Pull-

tabs

Pull-

tabs

Tiny gold,

small jewelry

Tiny gold,

small jewelry

DIGITAL TARGET ID

SELECTING MODES (Discrimination Patterns)

Choose from one of three preset discrimination patterns by

using the MODE button to scroll through the three modes:

• ZERO-DISC Mode–Detects every type of metal. All 5

discrimination pixels are switched on; no metals targets

have been notched out (eliminated). Use this mode to find

all metal items or when the material of the desired object

is unknown. Switch to the Zero-Disc Mode to aid in locating

a target when its signal is inconsistent. Such signals could

mean a trash target is close to a good target.

• JEWELRY Mode–designed to find jewelry such as rings,

bracelets, watches, and necklaces, while ignoring most iron

trash.

• COINS Mode—designed to find U.S. and similar coins

and to eliminate common trash items such as iron, small foil,

and pulltabs. Be aware some jewelry that reads the same

as a pulltab may be missed with this discrimination pattern.

Some digging of junk targets is to be expected, such as

aluminum cans.

10 Garrett Metal Detectors ACE 200™11

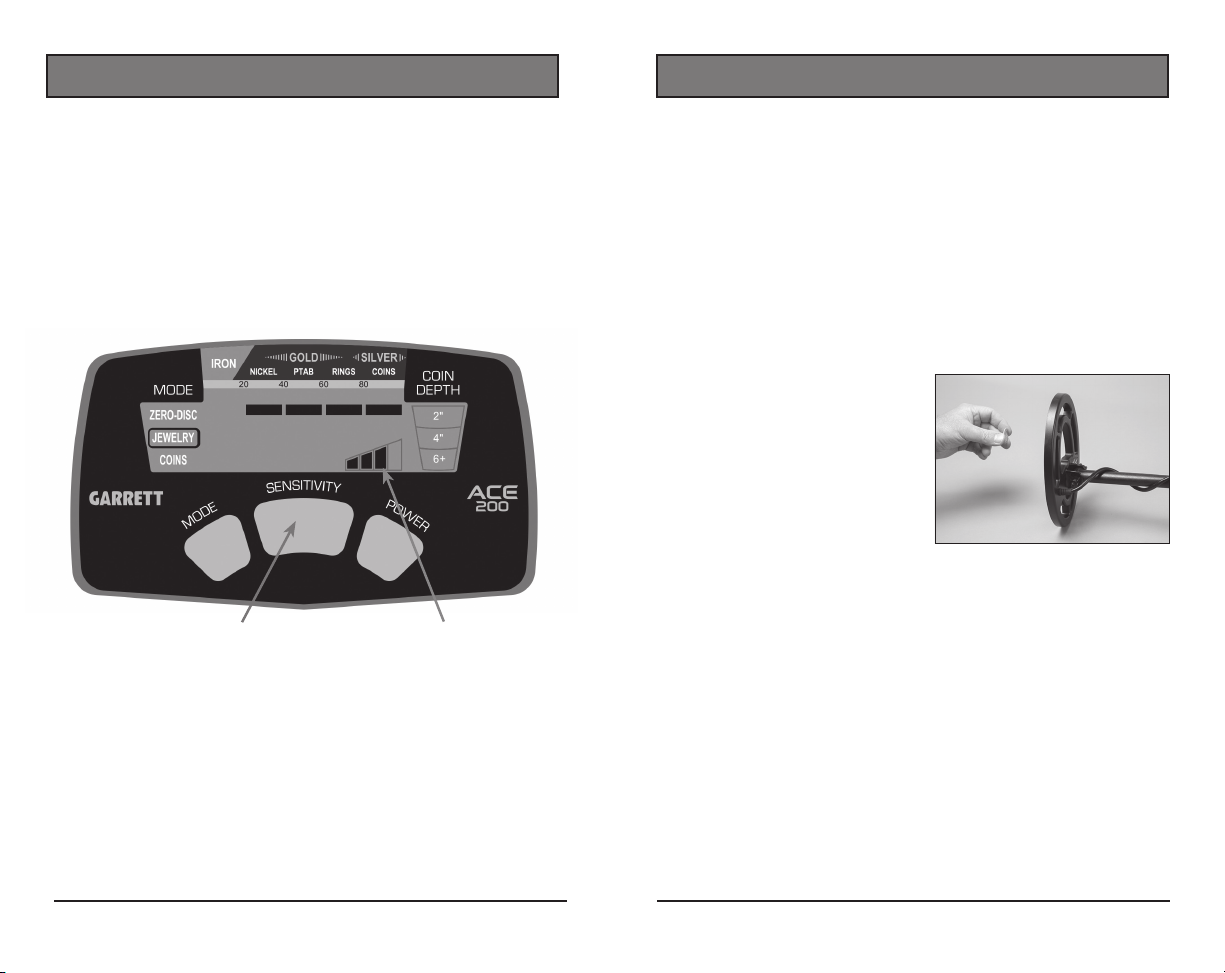

BENCH TESTS

You should conduct bench tests to become more familiar

with your detector’s operation. To conduct a bench test:

1. Place the searchcoil on a flat, non-metallic surface that is

several feet from other metallic objects.

2. Select the ZERO-DISC mode.

3. Pass various metal objects (coins, bottle caps, nails, etc.)

across the searchcoil at a distance of 3 to 4 inches. Your

metal detector will audibly and visually identify the target.

4. Perform this test in all the modes available on your

detector. Observe the sounds

as well as the graphics on

the LCD that are made in

each mode.

5. Record the results of your

bench tests and refer to them

when hunting in the field.

Once you have determined how your test targets register

on the Target ID during bench tests, test them in the soil. Bury

your targets at recorded depths to create a "test plot." Note

how various targets read based upon whether they are lying

in the ground flat or at various angles.

Keep accurate records or surface markers to indicate your

test plot targets and their depths. Try testing these targets

again in several months after the ground has settled, during

periods of extreme drought or after a soaking rain. Take note

of any changes in how these targets are detected.

SENSITIVITY

Button

Sensitivity

Indicator

Use the SENSITIVITY button to step through the four (4)

levels. Use increased sensitivity when searching for very

small or very deep targets. Use lower sensitivity levels when

the detector is behaving erratically (due to excessive metallic

trash, highly mineralized soils, electrical interference or the

presence of other metal detectors) and the erratic operation

cannot be resolved with discrimination.

12 Garrett Metal Detectors ACE 200™13

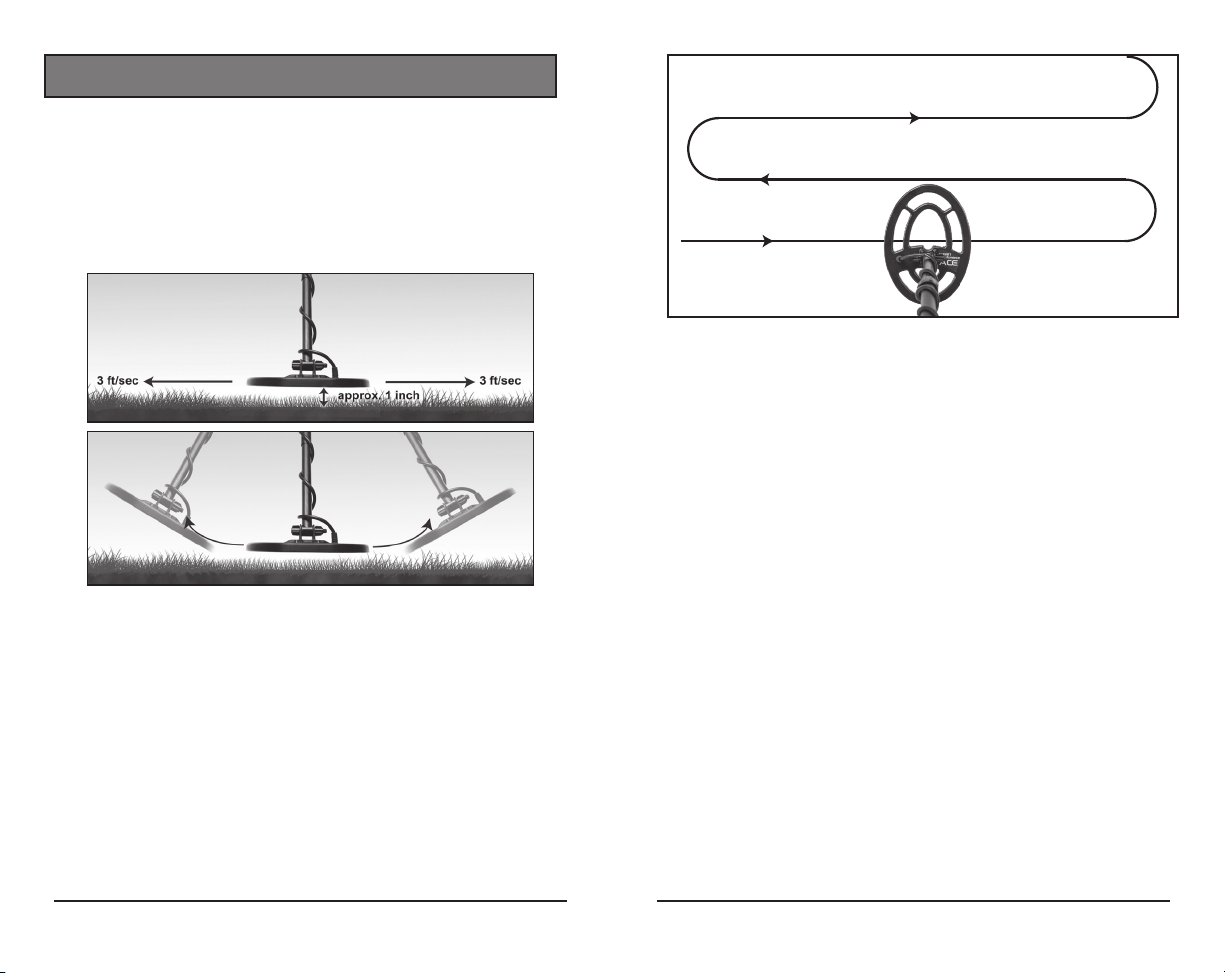

• If you are new to metal detecting, start searching in areas

with sandy and loose soil to make it easier to learn how to

use your metal detector, pinpoint and dig targets.

• Keep your searchcoil height about 1 inch above and

parallel to the ground at all times for best detection results.

HUNTING TIPS WITH YOUR ACE 200

CORRECT

SWING

INCORRECT

SWING

• Swing your searchcoil parallel to plow lines and the

water's edge. This will minimize the negative effects

caused by uneven ground in plowed fields and varying

amounts of moisture near the water. Do not swing the

searchcoil perpendicular to plow lines and the water's edge,

as this may produce abrupt changes in ground response

that can reduce the detector's performance.

• Walk slowly as you scan your searchcoil in a straight line

from side to side at a speed of about 2 to 5 feet per second.

Advance the searchcoil about half the length of the

searchcoil at the end of each sweep.

by 4.5 inches

3 ft/sec

Overlap Swing

by 4.5 inches

Overlap Swing

In order to fully search an area, overlap the swings of your searchcoil by

half the length of the coil (about 4.5 inches). Sweep the searchcoil in a

straight line or with a slight arc at a sweep speed of about 3 ft/sec.

14 Garrett Metal Detectors ACE 200™15

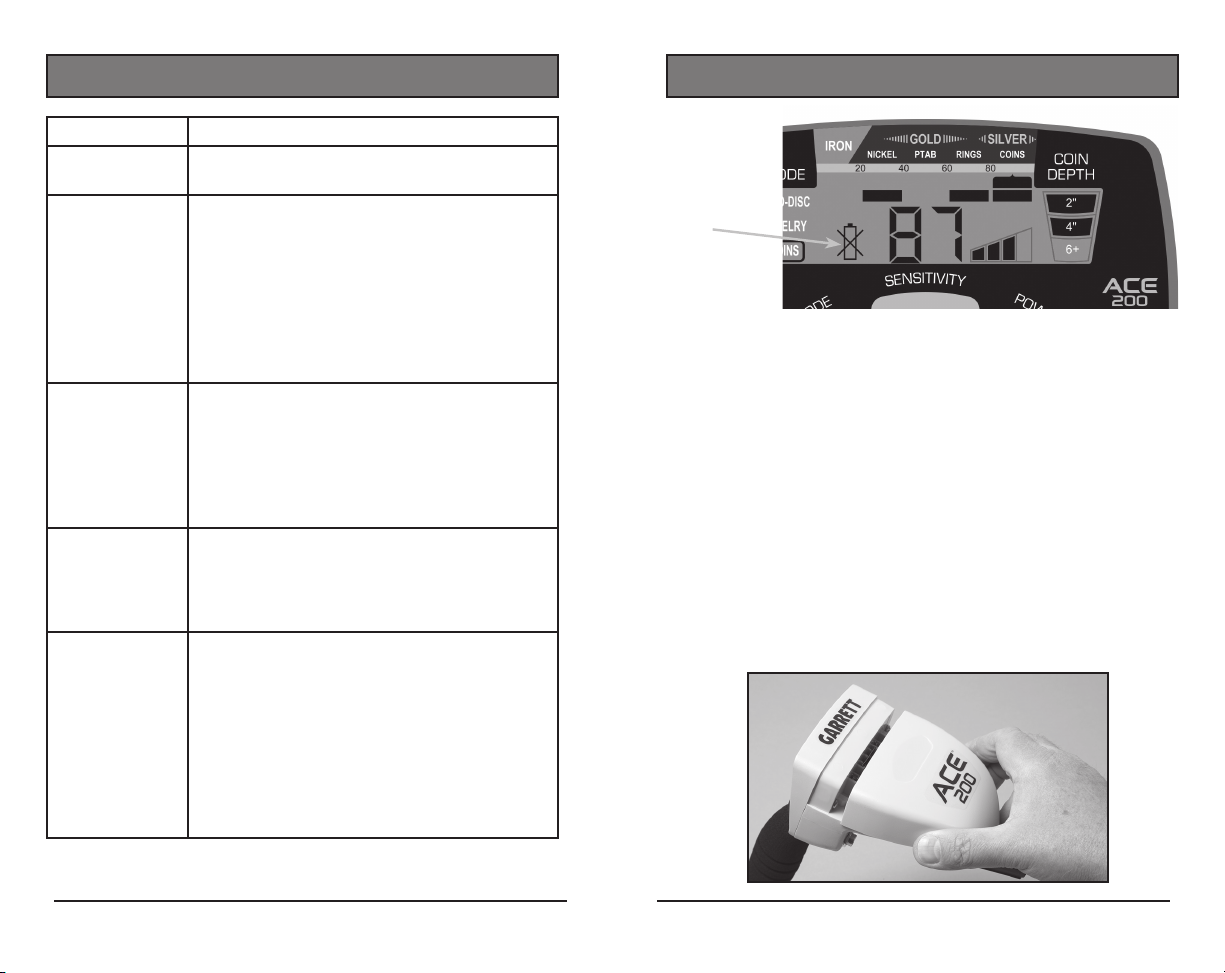

SYMPTOM SOLUTION

No power 1. Ensure batteries are installed in the correct orientation.

2. Replace all old batteries with all new batteries.

Erratic sounds or

target ID cursor

movement

1. Ensure your searchcoil is securely connected and the coil

cable is snugly wound around the stem.

2. If using the detector indoors, be aware that excessive

amounts of electrical interference exists, plus excessive

amounts of metal can be found in floors and walls.

3. Determine if you are close to other metal detectors or other

metal structures such as electrical power lines, wire fences,

benches, etc.

4. Reduce your sensitivity setting.

Intermittent Signals

Intermittent signals typically mean you’ve found a deeply

buried target or one that is positioned at a difficult angle for

your detector to read. Scan from different directions to help

define the signal. In the case of multiple targets, switch to

the ZERO-DISC Mode to locate all targets. In trashy areas, use

the Super Sniper™ or a 5" x 8" DD searchcoil. NOTE: Iron

targets may cause Intermittent Signals. You can identify iron

targets in the ZERO-DISC Mode.

I’m not finding

specific targets

Ensure you are using the correct mode for the type hunting

you are doing. If specifically hunting for coins, COINS mode

should be your best choice to eliminate other undesirable

targets. You may also use the ZERO-DISC mode, which

detects all metal targets to ensure desired targets are present.

Target ID Cursor

bounces

If your Target ID Cursor bounces erratically, chances are

you’ve found a trash target. However, a Target ID Cursor may

bounce if a good target (such as a coin) is not parallel to the

searchcoil (e.g. on edge). It may also bounce if there is one

or multiple “junk” targets laying next to the good target. Scan

from different directions until your Target ID Cursor becomes

more stable.

NOTE: Large, flat pieces of iron—depending on their

orientation in the ground—can read as a good target or can

cause erratic Target ID Cursor movement.

TROUBLESHOOTING GUIDE

Low Battery

Indicator

BATTERY REPLACEMENT

The Low Battery Indicator will switch on when the detector's

batteries become weak. The detector will maintain full

performance but the batteries should be replaced soon when

this indicator appears. NiMH rechargeable batteries may be

used, but may have a shorter life per charge. You can expect

20 to 40 hours of operation depending on battery type and

quality.

Replace the batteries by sliding the cover off the control

housing. Remove batteries when the ACE 200 will be stored

for longer than 30 days.

Note: 1.5V/cell Lithium batteries can also be used, but the

use of 3.7V/cell Lithium batteries will damage the detector.

16 Garrett Metal Detectors ACE 200™17

The following is a Code of Ethics that many treasure hunters

and clubs follow to preserve our exciting sport of metal

detecting. We encourage you to do the same:

• I will respect private and public property, all historical and

archaeological sites and will do no metal detecting on

these lands without proper permission.

• I will keep informed on and obey all local and national

legislation relating to the discovery and reporting of found

treasures.

• I will aid law enforcement officials whenever possible.

• I will cause no willful damage to property of any kind,

including fences, signs and buildings.

• I will always fill the holes I dig.

• I will not destroy property, buildings or the remains of

deserted structures.

• I will not leave litter or other discarded junk items lying

around.

• I will carry all rubbish and dug targets with me when I leave

each search area.

• I will observe the Golden Rule, using good outdoor manners

and conducting myself at all times in a manner which will

add to the stature and public image of all people engaged

in the field of metal detection.

METAL DETECTING CODE OF ETHICS

When searching for treasure with your Garrett detector, observe

these precautions:

• Never trespass or hunt on private property without permission.

• National and state parks / monuments and military zones, etc.

are absolutely off-limits.

• Avoid areas where pipelines or electric lines may be buried. If

found, do not disturb and notify proper authorities.

• Use reasonable caution in digging any target, particularly if you

are uncertain of the conditions.

• If you are unsure about using your metal detector in any area,

always seek permission from the proper authorities.

CAUTIONS

Your Garrett detector is rugged, designed for outdoor use. However,

as with all electronic equipment, there are some simple ways you

can care for your detector to maintain its high performance.

• Avoid extreme temperatures as much as possible, such as storing

the detector in an automobile trunk during the summer or

outdoors in sub-freezing weather.

• Keep your detector clean. Disassemble the stem and wipe it,

the control housing, and the searchcoil with a damp cloth when

necessary.

• Remember that your searchcoil is submersible, but your

control housing and connectors are not.

• Protect your control housing from heavy mist, rain and blowing

surf.

• When storing for longer than one month, remove the batteries

from the detector.

• When changing batteries, use quality alkaline or rechargeable

batteries, and replace with all new batteries for optimum

performance.

CARING FOR YOUR ACE 200 DETECTOR

Indice

Altri manuali Garrett Rilevatore di metalli

Garrett

Garrett Pro-Pointer AT 1140900 Manuale utente

Garrett

Garrett Metal Detectors GTAx 550 Manuale utente

Garrett

Garrett ACE 400i Manuale utente

Garrett

Garrett Sea Hunter Mark II None Manuale utente

Garrett

Garrett Graphic Target Profiling 1350 Manuale utente

Garrett

Garrett Investigator G-500 Manuale utente

Garrett

Garrett Master Hunter CX Plus Manuale utente

Garrett

Garrett GTI 2500 Manuale utente

Garrett

Garrett EURO ACE Manuale di istruzioni

Garrett

Garrett TREASURE ACE 300 Manuale utente

Garrett

Garrett ACE 150 Manuale utente

Garrett

Garrett PD 6500i Manuale utente

Garrett

Garrett Scorpion gold stinger Manuale utente

Garrett

Garrett ACE series detector Manuale utente

Garrett

Garrett Pro-pointer II Manuale utente

Garrett

Garrett SuperScanner Manuale utente

Garrett

Garrett SuperScanner Manuale utente

Garrett

Garrett AT Gold Manuale utente

Garrett

Garrett Sea Hunter Mark II None Manuale utente

Garrett

Garrett Investigator G-500 Manuale utente

Garrett

Garrett AT Pro Manuale utente

Garrett

Garrett GTI 2500 Manuale utente

Garrett

Garrett Treasure Hound CX Manuale utente

Garrett

Garrett Axiom Manuale utente

Manuali Rilevatore di metalli popolari di altre marche

Valex

Valex 1800200 Manuale utente

Gauss

Gauss MIL MD Manuale utente

Velleman

Velleman CS130 Manuale utente

Sears

Sears 321.596370 Manuale utente

Eriez

Eriez X8 Manuale utente

Steinberg Systems

Steinberg Systems SBS-MD-22 Manuale utente

Zircon

Zircon MetalliScanner m60c Manuale utente

nalanda

nalanda MD027 Manuale utente

REV Ritter

REV Ritter CB-7005 Manuale utente

Minelab

Minelab F1A4 Manuale utente

Fisher Research Labs

Fisher Research Labs F70 Manuale utente

Steinberg Systems

Steinberg Systems SBS-MD-12 Manuale utente

GOLDEN MASK

GOLDEN MASK 5 Manuale utente

Grizzly

Grizzly YM 203 Manuale utente

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manuale utente

Treasure Cove

Treasure Cove Vibra-Probe 560 Manuale utente

Accurate Locators

Accurate Locators XL16 IMAGER Manuale utente

Teknetics

Teknetics G2 Manuale utente
