Garrett Metal Detectors
GARRETT SUPERWAND
Congratulations on selecting the Garrett SuperWand
hand-held metal detector. You can begin using your
SuperWand with this user manual, a summary
guide to basic operation. The SuperWand with both
audible and silent vibrating alarms offers outstanding
performance as well as operating features not found
in any other hand-held detector, with state of the art
circuitry that allows instant operation, which provides
the optimum setting with no operator adjustment.
With full 360° Plus™ detection coverage—even at
its tip—the SuperWand is very effective in easily
detecting even the smallest of metallic objects.
SUPERWAND™
3
3-Way Power Switch
(Audible-Off-Silent)
Battery
Cover
LED
Light Alerts
(Red/Amber/Green)
Audio
Alert
360° Plus
Detection Area

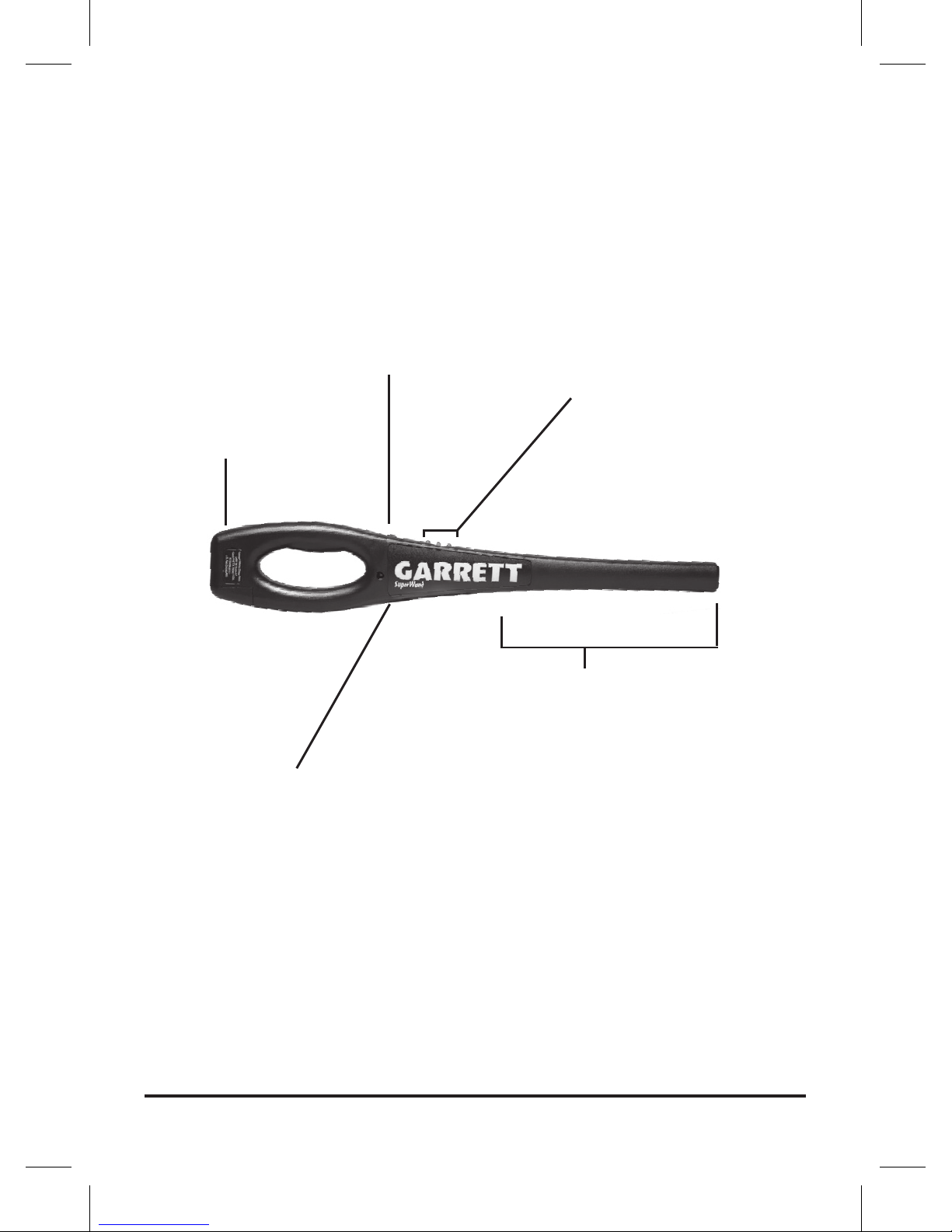

COMPONENTS
4
Garrett Metal Detectors
COMPONENTS / FUNCTION
3-Way Power Switch - Has two On
positions and a central Off position. When the
Power Switch is pressed forward, the SuperWand
will sound an audible alert upon detection of any
metal and the red Light Alert will appear. When
the switch is slid backward, the SuperWand will
vibrate upon detection of any metal and no sound
will be heard even though the red Light Alert will
appear. Power is turned off when the switch is in the
central position.
Light Alerts -The rear green light illuminates
whenever the detector is operating. The red
light, forward most of the three lights, illuminates
whenever metal is detected. The center amber light
illuminates when battery power becomes low and
the battery should be recharged or replaced.
Audio Alert - The speaker provides a clearly
audible sound whenever metal is detected. The
Audio Alert sounds only when the Power Switch is
pressed forward.
SUPERWAND™
5
Vabrating Alert - When unit is in vibrating
mode,the handle will vibrate and red light will alert
operator whenever metal is detected.
Battery Cover -Remains securely in place
at all times but can be easily opened for changing
the battery with no tools required.
OPERATING INSTRUCTIONS
When the SuperWand is operating, it will
detect metal only while it is in motion. Scan within
approximately two inches of the person (object) being
inspected. Sound will be heard or vibration felt and
the red light will illuminate when metal is detected
anywhere around or at the tip of the SuperWand's
detection area. Operation is completely automatic.
No "retuning" is ever necessary. All ferrous and non-
ferrous metals will be detected. To scan feet and
ankles, position the SuperWand vertically with the
tip pointed at the floor and sweep the SuperWand
parrallel and approximately one to two inches above
the floor.
6
Garrett Metal Detectors
Audible Operation- Press power switch
forward and a clearly audible sound will be heard
whenever the SuperWand detects metal. The
forward most red alert light will also appear upon
detection of metal.
Silent Vibrating Operation- Slide the power
switch back and the detector handle will vibrate
whenever metal is detected, but no sound will be
heard. The red alert light will always appear upon
detection of metal.
SPECIFICATIONS
Model Number: 1165800
Circuitry: Transmitter/receiver with automatic
retune. No adjustments ever necessary.Operating
Frequency: 95kHz
Audio Frequency: 2 kHz
Dimensions: Length: 19” (48.3cm)
Width: 3.25” (8.3cm)
SUPERWAND™
7
Thickness: 1.25” (3.2cm)
Weight: 16oz (.45 kg)
Battery: Standard 9V (Eveready No. 216 or
equivalent) or 7.2V Nickel Metal Hydride (NiMH)
(rechargeable)
Note:
Do not affix metallic labels (or any material that
might cause the detector to alarm) to the detection
area of the SuperWand. Doing so might cause an
imbalance within the detection field and thereby
reduce scanning effectiveness.
SERVICE INFORMATION
Battery Replacement
The central amber light will illuminate when
battery power is low and the battery needs to be
replaced. Slide back the battery cover (use a coin if
necessary), tilt the detector and the battery will slip
8
Garrett Metal Detectors
out. Before installing the new battery, look inside the
battery compartment and note the locations of the
small and large battery contact openings. Install the
new battery with the proper orientation to align the
battery posts with the openings. If a 9V battery is
improperly installed, no circuitry damage will occur;
however, the SuperWand will not operate. Because
the battery cover will not close tightly if the battery is
inserted improperly, never force the cover. When the
SuperWand is to be stored for more than 30 days,
remove the battery.
FACTORY SERVICE
Pack the detector carefully and include full
details concerning its problem as well as your name,
address and telephone number.
Ship to: Garrett Metal Detectors
Service Department
1881 W. State St.
Garland, TX 75042 USA
Allow approximately one week for technicians to
examine and repair your instrument.
SUPERWAND™
9

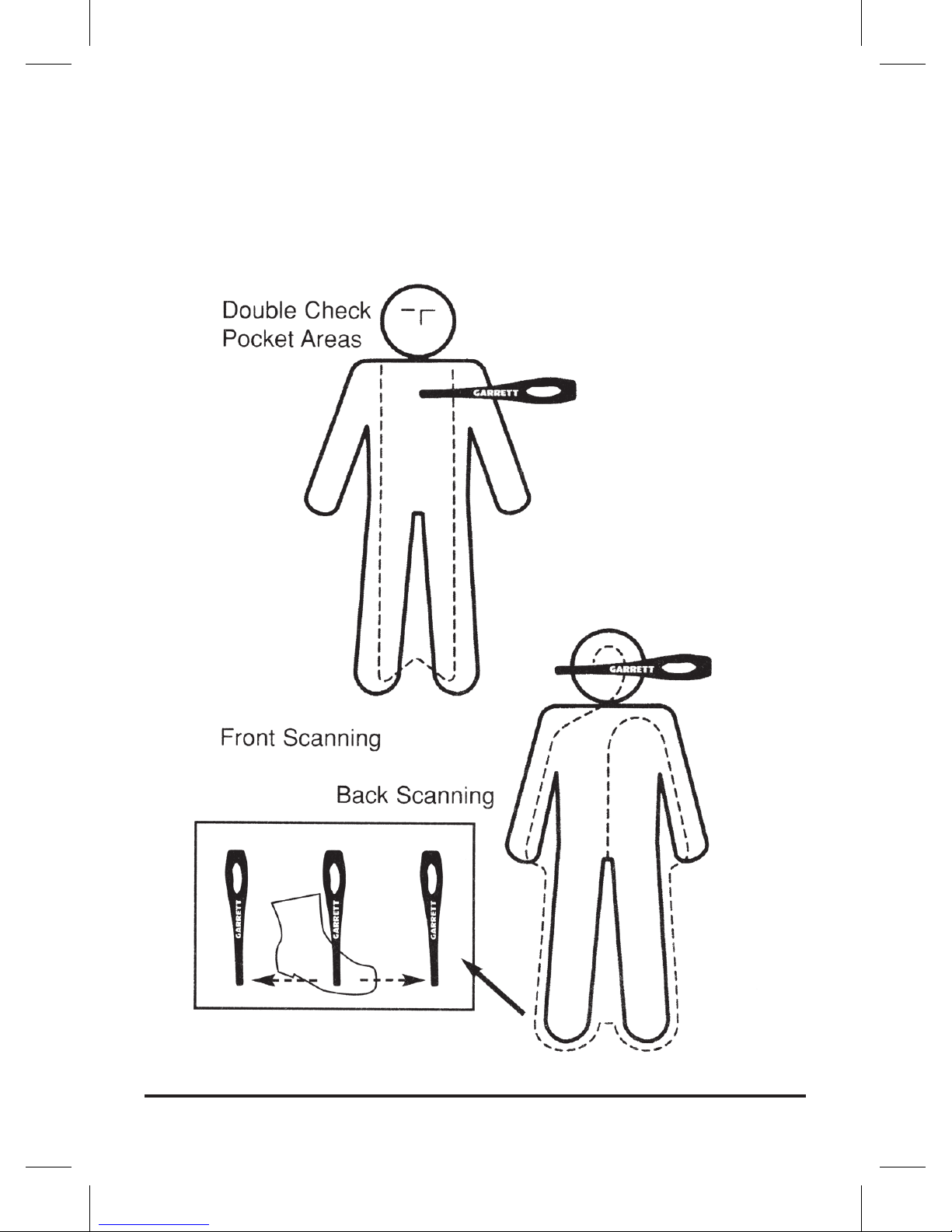

RECOMMENDED BODY
SCANNING PROCEDURE
10
Garrett Metal Detectors

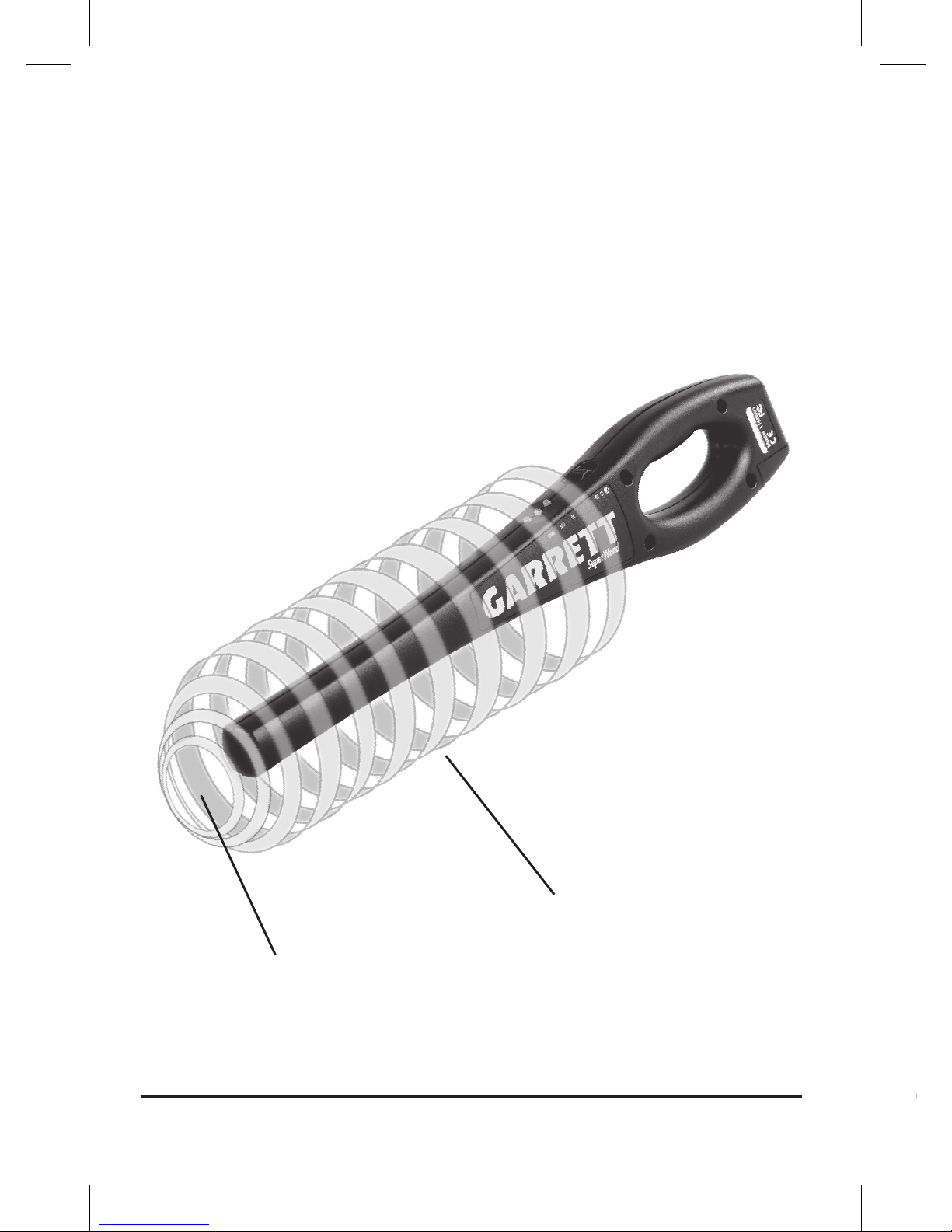

360° PLUS DETECTION FIELD
Tip Pinpointing
360° Detection Area
