GBC Shredmaster 4220S Manuale utente

1.0 4220S/4230S/4260X. INTRODUCTION

This service manual covers both the GBC Shredmaster 4220S/4230S straight

cut, and 4260X cross cut shredders. All areas from set up, to disassembly are

included along with an illustrated parts list.

The 4220S/4230S/4260X shredders are both designed for centralized, light to

medium use in a copier area. The 4260X has the added benefit of cross cut

security.

Innovative engineering has provided this shredder with the following operating

and safety features:

1. Automatic Operation -The unit begins to operate when a light beam is

broken as paper is inserted into the shredder throat. The motor stops running

when the light beam is no longer broken and the paper has had an

opportunity to clear the cutting head.

2. Overload Warning -Whenever the capacity of the shredder is exceeded the

unit stops shredding and the “Reverse” symbol illuminates.

3. Thermal Protection -The motor is equipped with a thermal protection device

which is triggered if the motor temperature reaches a predetermined level.

The motor will not operate until it cools.

4. Bag Full Sensor -When the shred bag becomes full, the motor

automatically turns off and the “Bag” light symbol illuminates. The shredder

will not operate until the shredded material is either compressed down or

emptied.

5. Door Ajar Sensor -When the door of the shredder is not fully closed, the

“Door” light symbol illuminates. This is a safety feature that will only allow

the shredder to operate when the cabinet door is in the closed position.

Before using your GBC Shredmaster shredder, carefully read the operating

instructions in this manual. Once you have gained experience and familiarity

with its operation, you will be better equipped to use the remaining sections of

this manual to troubleshoot and repair the shredder.

2.0 4220S/4230S/4260X. SPECIFICATIONS

4220S 4230S

Required

Electrical

Service:

115V AC ±10%, 60 Hz,

15 AMP 230V AC ±10%, 50 Hz,

10 AMP

Electrical

Rating: 115V AC

4.6A, @ 60Hz 230V AC

3.0A, @ 50Hz

Motor: 1/4 Hp

Thermally Protected 1/4 Hp

Thermally Protected

Duty Cycle: Continuous

Duty Continuous

Duty

Dimensions

HxWxD: 33” x 20.5”x 18.5” 83.8 x 52 x 46.9 cm

Shipping

Weight W/

Cabinet:

114 lbs. 40.4 Kgs

Shredding

Speed: 35 FPM @ 1 sheet 10 MPM @ 1 sheet

Shred Size: 1/4” 4 mm

Throat Width: 12” 30.4 cm

Shredder

Capacity: 15-

17 sheets of 20# Bond

Paper* 16-18 sheets of 70G/M2*

Noise Level: 65 dB No Load 65 dB No Load

Shipping Box

Dimensions

HxWxD:

33” x 20.5” x 18.5” 83.8 x 52 x 46.9 cm

*Line voltage will affect results.

2.0 4220S/4230S/4260X. SPECIFICATIONS

4260X

Required

Electrical

Service:

115V AC ±10%, 60 Hz,

15 AMP 230V AC ±10%, 50 Hz,

10 AMP

Electrical

Rating: 115V AC

4.6A, @ 60Hz 230V AC

2.3A, @ 50Hz

Motor: 1/4 Hp

Thermally Protected 1/4 Hp

Thermally Protected

Duty Cycle: Continuous

Duty Continuous

Duty

Dimensions

HxWxD: 39” x 24.25”x 18.5” 83.8 x 52 x 46.9 cm

Shipping

Weight W/

Cabinet:

116 lbs. 39.8 Kgs

Shredding

Speed: 25 FPM @ 1 sheet 6.1 MPM @ 1 sheet

Shred Size: 3/16” x 1 1/2” 4 x 40 mm

Throat Width: 12” 30.4 cm

Capacity: 13-

15 sheets of 20# Bond

Paper* 15-17 sheets of 70gm*

Noise Level: 65 dB No Load 65 dB No Load

Shipping Box

Dimensions

HxWxD:

45” x 29” x 23” 83.8 x 52 x 46.9 cm

*Line voltage and frequency of cutter lubrication will affect results.

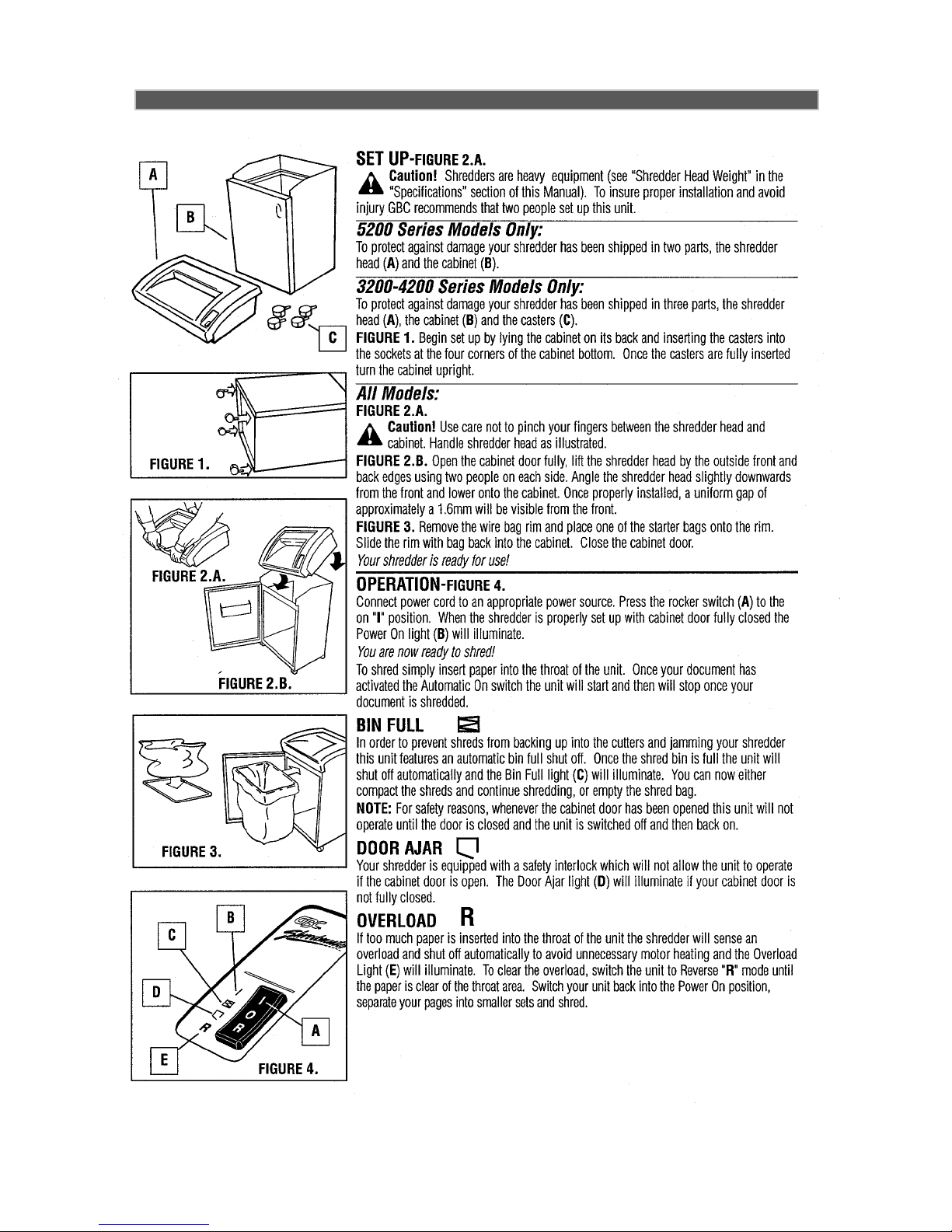

3.0/4.0 4220S/4230S/4260X INSTALLATION/OPERATING PROCEDURES
