GBC Shredmaster 6160X Manuale utente

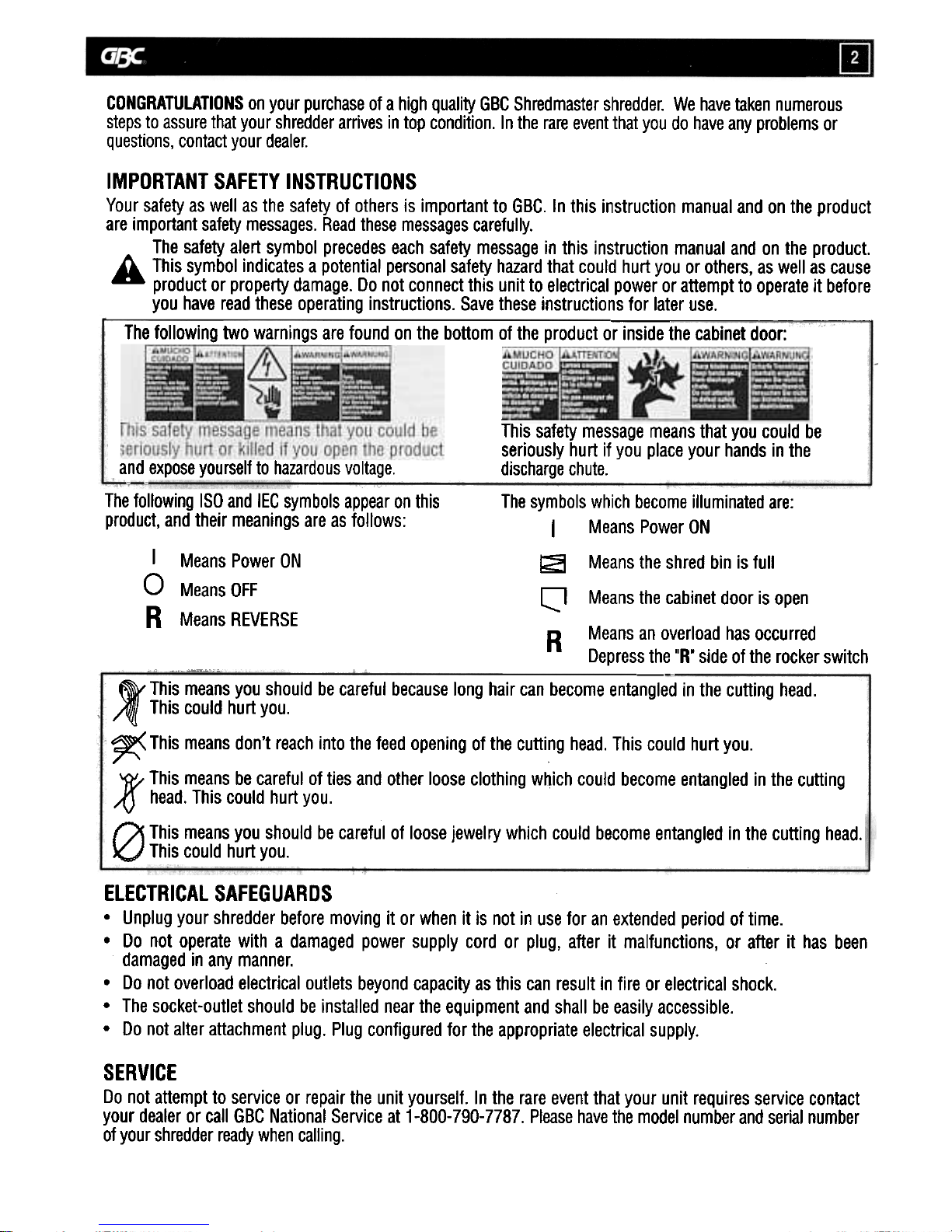

CONGRATULATIONSonyourpurchaseofahighqualityGBCShredmastershredder.Wehavetakennumerous

stepsto assurethatyourshredderarrivesintop condition.Intherareeventthatyoudo haveanyproblemsor

questions,contactyourdealer.

IMPORTANT SAFETY INSTRUCTIONS

Yoursafetyaswellasthe safetyof othersis importantto GBC.In this instruction manualandonthe product

areimportantsafetymessages.Readthesemessagescarefully.

Thesafetyalert symbol precedeseachsafetymessagein this instruction manualand on the product.

A Thissymbolindicatesa potentialpersonalsafetyhazardthat could hurt you or others,aswellascause

productor propertydamage.Donot connectthis unitto electricalpoweror attemptto operateit before

you havereadtheseoperatinginstructions.Savetheseinstructionsfor lateruse.

Thefollowing two warningsarefound on the bottom of the productor insidethe cabinetdoor:

Thissafetymessagemeansthat you could be

seriouslyhurt if you placeyour handsinthe

dischargechute.

andexposeyourselfto hazardousvoltage.

ThefollowingISOandIECsymbolsappearonthis

product,andtheir meaningsareasfollows:

I Means Power ON

O Means OFF

R Means REVERSE

Thesymbolswhichbecomeilluminatedare:

I MeansPowerON

~ Meanstheshredbinisfull

Cl Meansthecabinetdoorisopen

R Meansanoverloadhasoccurred

Depressthe"R'sideoftherockerswitch

~ Thismeansyoushouldbecarefulbecauselonghaircanbecomeentangledinthecuttinghead.

/JIj Thiscouldhurtyou.

~ Thismeansdon'treachintothefeedopeningofthecuttinghead.Thiscouldhurtyou.

'W Thismeansbecarefuloftiesandotherlooseclothingwhichcouldbecomeentangledinthecutting

I'Q head.Thiscouldhurtyou.

0 Thismeansyoushouldbecarefulofloosejewelrywhichcouldbecomeentangledinthecuttinghead.

Thiscouldhurtyou.

ELECTRICALSAFEGUARDS

.Unplug yourshredderbeforemovingit orwhenit isnotinuseforanextendedperiodoftime.

.Do notoperatewitha damagedpowersupplycordor plug,afterit malfunctions,or afterit hasbeen

damagedinanymanner.

.Do notoverloadelectricaloutletsbeyondcapacityasthiscanresultinfireorelectricalshock.

.The socket-outletshouldbeinstalledneartheequipmentandshallbeeasilyaccessible.

.Do notalterattachmentplug.Plugconfiguredfortheappropriateelectricalsupply.

SERVICE

Donot attemptto serviceor repairthe unityourself. Inthe rareeventthat your unit requiresservicecontact

your dealeror call GBCNationalServiceat 1-800-790-7787. Pleasehavethemodelnumberandserialnumber

ofyourshredderreadywhencalling.

FIGURE1. 4-.-/

FIGURE 2.

SET UP-FIGURE 1, 2 & 3

Toprotectagainstdamageyourshredderhasbeenshippedintwoparis,theshredder

head(FIGURE1.A) andthecabinet(FIGURE1.8).

~ Caution! Shreddersareheavyequipment(see"ShredderHeadWeight"in the

.."Specifications" sectionof this Manual).Toinsureproperinstallationandavoid

injury,GBCrecommendsthattwopeoplesetupthis unit. Usecarenotto pinchyour

fingersbetweentheshredderheadandcabinet.Handleshredderheadasillustrated.

1. Usingthehandgrips(FIGURE2.A) provided,placetheshredderheadontothetop

ofthecabinet.Thecontrolpanelmayfacetowardthefrontor backofthecabinet.

2. Openthedoorbypressingonthedoorknob(FIGURE2.8) andplacethehandgrips

(FIGURE3.A) intotheholesfoundin thecabinetfloor (FIGURE3.8).

3. Removethewirebagrimandplaceoneoftheshredbagsontotherim. Slidetherim

withbagbackintothecabinet. Closethecabinetdoor.

4. Connectthepowercordto astandard,singlephasesocket.Fuse:15Amp.Max.

5. Afterreadingtheoperatinginstructions,slidethemintotheholder(FIGURE3.C)

andclosethedoor.

I Yourshredderis readyfor use!

;:- -01

FIGURE~

~'.:

/i. ) ,

--- tli / ' ,

+- f~- : !

-.i,/ --,

OPERATION-FIGURE 4.

Presstherockerswitch(A)to thePowerON'I' position. Whentheshredderis properly

setupwithcabinetdoorfully closed,thePowerON'1' light (8) will illuminate.

Youarenowreadytoshred!

Toshredsimplyinsertpaperintothethroatoftheunit. Onceyourdocumenthas

activatedtheautomaticonfeature,theunitautomaticallywill startandthenwill stoponce

yourdocumentisshredded.

BIN FULL ~

Inorderto preventshredsfrombackingup intothecuttersandjammingyourshredder,

this unitfeaturesanautomaticbinfull shutoff. Oncetheshredbin is full, the

unitwill shutoffautomaticallyandthebinfull light (C)will illuminate.Youcannow

eithercompacttheshredsandcontinueshredding,oremptytheshredbag.

NOTE:Forsafetyreasons,wheneverthecabinetdoorhasbeenopenedthis unitwill not

operateuntilthedooris closedandtheunitis switchedoffandthenbackon.

DOOR AJAR C1

Yourshredderis equippedwithasafetyinterlockwhichwill notallowtheunitto operate

if thecabinetdooris open. TheDoorAjarlight (D)will illuminateif yourcabinetdooris

notfully closed.

OVERLOAD R

Iftoo muchpaperis insertedintothethroatoftheunit,theshredderwill sensean

overloadandshutoffautomaticallyto avoidunnecessarymotorheatingandtheOverload

Light(E)will illuminate.Tocleartheoverload,switchtheunitto Reverse'R' modeuntil

thepaperisclearofthethroatarea.SwitchyourunitbackintothePowerON'I' position,

separateyourpagesintosmallersetsandshred.

II;

MAINTENANCE

Forbestperformanceit isrecommendedthatyouoilthecuttingbladeswheneveradecreaseinshred

capacityisnoticed.Followthestepsbelowto oilyourcuttingblades:

1. Sprayastreamof GBCShredmastershredderoilontoasheetofpaper.

2. Turntheshredderonandshredthelubricatedsheet.

3. Whenshreddingiscomplete,switchtheshredderto reverseto helpdistributethelubricantacross

thecuttingblades.

4. Repeatasnecessary.

NOTE:GBCShredmastershredderoilisaspeciallyformulatedsyntheticlubricant.GBCdoesnot

recommendtheuseofanyotherlubricantwiththisproduct.ToorderGBCShredmastershredderoil-

seeAccessories.

OrderPartNumber1145482

OrderPartNumber1760049

OrderPartNumber1751237

ACCESSORIES

Shred Bags.Shredder Oil.Continuous Forms Rack. ..

To order contact your dealer.

TROUBLE SHOOTING

If your machinedoesnot function pleasecheckthe following:

SPECIFICATIONS

16'

1/4'

32-36

Continuous

157 Ibs.

2251bs.

12A

115/60

16"

3/16"x2-3/8"

18-22

Continuous

127Ibs.

199Ibs.

10A

115/60

ThroatWidthShredSizeSheet Capacity (20# bond)

Speed (feet I min.)Duty Cycle.Shredder Head Weight. ..

Total Unit Weight.AmperageVolts/Hz.

16"

3/16"x 2-3/8"

25-30

Continuous

1631bs.

232 Ibs.

12A

115/60

...16"

...1/4"

..22-26

...30

Continuous

.121 Ibs.

.192 Ibs.

...10A

..115/60
