Windows 98 USB Software Installation Instructions

GCC Elite 12ppm Series Printers

This document is intended to provide instructions for downloading and installing

the Windows 98 USB driver software for GCC’s Elite 12ppm Series of laser

printers. Please follow all instructions in this document in order to assure that the

software is properly installed and configured onto your Windows 98 PC. Please

contact GCC Technical Support directly at (781)276-8620 or on-line at

www.gccprinters.com/support for assistance with this installation.

Part One - Download Software

Start by downloading the GCC USB software from GCC’s web site at the

following address:

ftp://ftp.gccprinters.com/pub/postscript-pcl/elite-12ppm/windows/Elite12USB.exe

This will give you a file called “Elite12USB.exe”. This file is a self-extracting

archive. Double-click the file’s icon in Windows to extract the software. When

prompted for a location to extract the files to, type in:

C:\windows\desktop

This will place the driver files in a folder on your desktop called “Elite12USB”.

Once this is done, proceed to the installation instructions starting on the next

page.

Part Two - Uninstall Previous GCC USB Software

1. Delete any current printers set up to print

via USB on the PC. To do this, click the

Start button, then go to Settings and

Printers. Highlight the icon(s) for any GCC

printer(s) connected over USB and press

Delete. If prompted to remove files

associated with the printer, click Yes.

2. Open the folder called “Elite21USB”that

was created on your desktop. Locate the

icon named “Uninstall GCC USB.”Double-

click this icon to run the Uninstall utility.

3. A dialog box will appear informing you that

the previous USB driver has been

deinstalled. This window will also inform

you that the PC will require a re-boot. Click

Yes to restart the PC.

If you have previously installed GCC’s USB software on your PC from an older

software download or disk, you will need to uninstall this software in order for

this newer software version to be used. To uninstall the older software, follow

these steps:

Part Three - Install USB Software

1. Make sure that the PC and printer are both

turned on and running, and that the

printer’s LCD display is reading “Ready.”

2. Connect the USB cable first to the printer’s

USB port, then to an available USB port on

the PC.

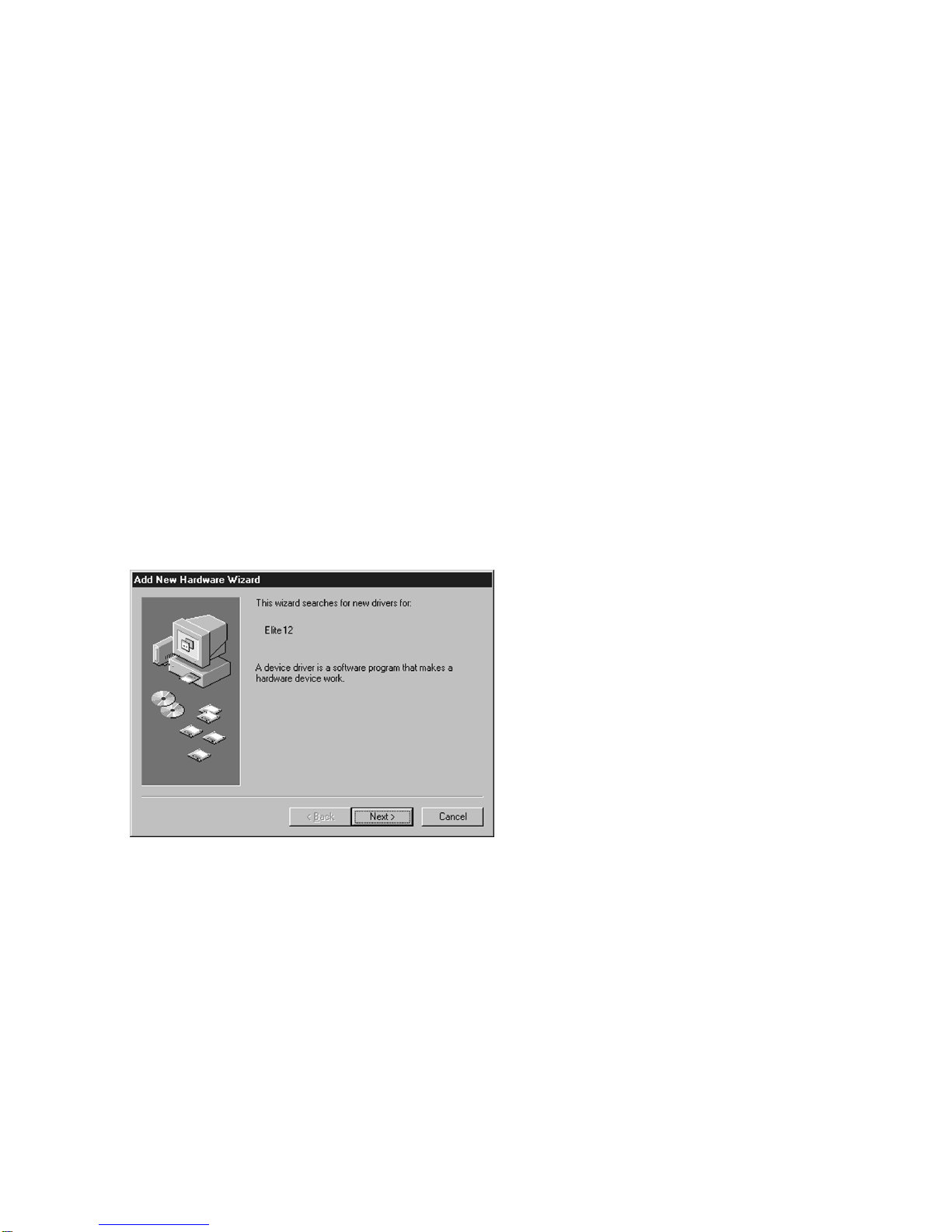

3. The Add New Hardware Wizard should

start up, informing you that a new device

has been found. Click Next.

The new USB software is installed through the Windows Plug and Play process.

When the printer is plugged into the PC, the PC should automatically begin a

two-step Plug and Play installation. The first step is to install the USB printing

software, and the second step is to install specific software for your GCC printer

model. The steps for these installations are as follows:

4. The next window will ask what you want

Windows to do. Choose “Search for the

best driver for your device”and click Next.

5. The system will then ask where to look for

new drivers. Check off “Specify a

Location.”Use the Browse button to select

the Elite12USB folder on the desktop.

Select the USBPRINT.INF item in this

folder. Click OK. Click Next.

6. The next window will inform you that a

driver has been found for USB Printing

Support. Click Next to install the USB

driver.

Once this driver is installed, the PC should

automatically sense the printer and start

the second Plug and Play installation, for

the specific printer software. This process

is covered in Part Four of these

instructions.

Part Four - Install Printer Software

1. The Add New Hardware Wizard will start

once again, this time to install software

specific to your GCC printer. Click Next to

continue.

2. The next window will ask what you want

Windows to do. Choose “Search for the

best driver for your device”and click Next.

3. The system will then ask where to look for

new drivers. Check off “Specify a

Location.”Use the Browse button to select

the Elite12USB folder on the desktop.

Select the GCCE12.INF item in this folder.

Click OK. Click Next.

4. The next window will inform you that a

driver has been found for your GCC printer

model. Click Next to install the driver.

5. The next window will ask for a name for

the printer. You can type in a new name,

or keep the default name. Click Next.

If more than one printer is installed on this

computer, this window will also ask if you

wish to make this printer the default printer

for your Windows applications. Click Yes or

No. Click Next.

6. A window will appear asking if you wish to

print a test page. Click Yes. Click Finish.

7. A dialog box may appear asking you to

insert the Windows 98 CD. Insert the CD

and click OK.

8. A dialog box may appear telling you that

necessary files on the CD cannot be

found. Make sure the Windows CD is

inserted, then use the Browse button to

access the Windows CD. Select the folder

called ‘WIN98’on the Windows 98 CD.

Click OK.

8. A status window will appear, showing the

progress of the installation.

9. When finished, the test page will be

generated (if you chose to print a test

page in Step 8). If the page prints, click

Yes in this window. If not, click No and

follow the Windows troubleshooting steps

that appear.

13. When the installation is complete, you will

be returned to the Printers window and a

new icon for the printer will appear.

This completes the Windows 98 USB installation process for the Elite 12ppm

printer.
