JS760BL/DL/EL/SL

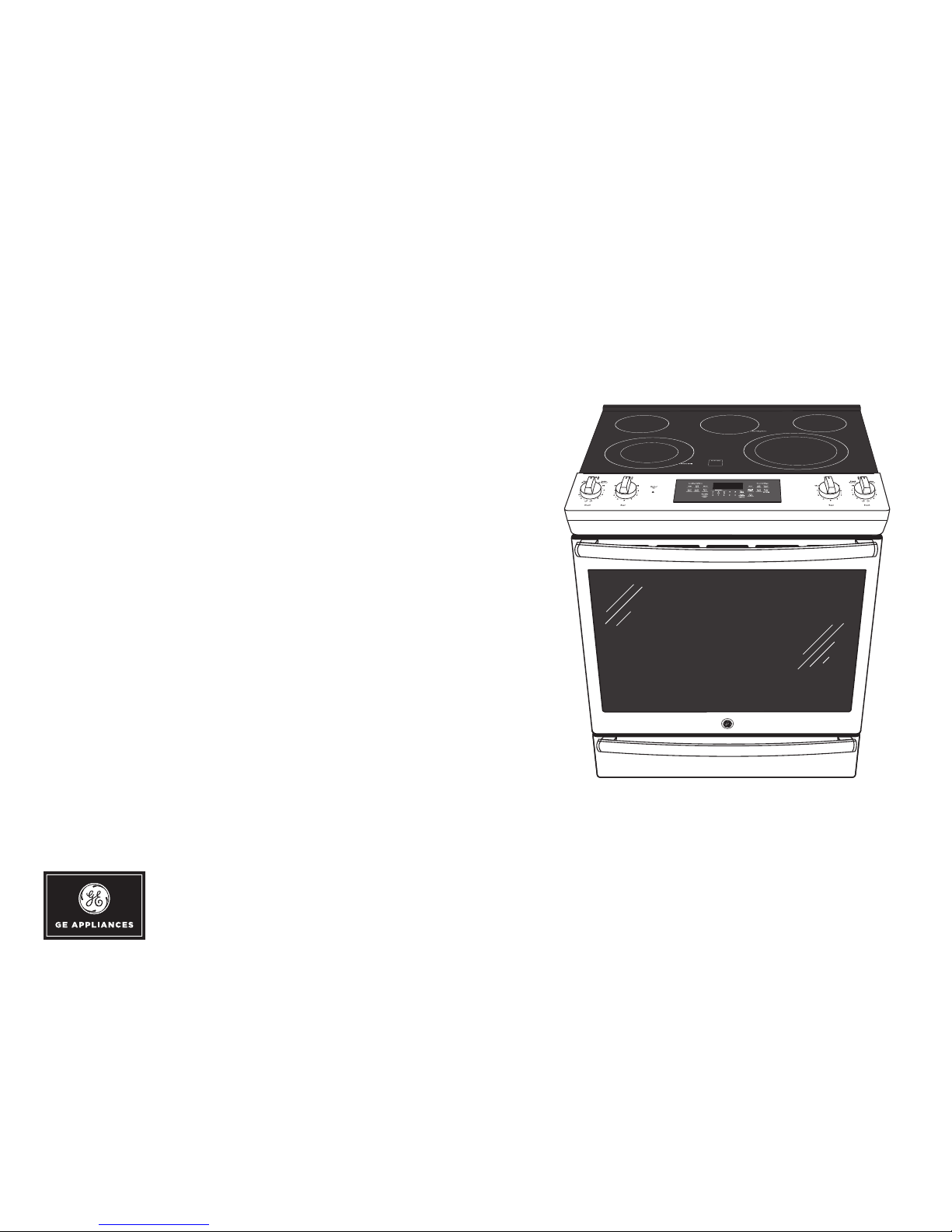

GE®30" Slide-In Electric Convection Range

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

For answers to your Monogram, GE Café™Series, GE Profile™Series or

GE Appliances product questions, visit our website at geappliances.com

or call GE Answer Center®Service, 800.626.2000. Specification Revised 6/17

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

KW RATING

240V 13.6

208V 10.2

BREAKER SIZE

240V 40 Amps†

208V 40 Amps†

†NOTE: Check local codes

for required breaker size.

RECEPTACLE LOCATIONS: Locally approved

flexible service cord or conduit must be used because

terminals are not accessible after range installation.

See

shaded area in drawing for location of electrical outlet

box. Recommended

outlet locations allow range to be

installed directly against rear wall.

NOTE: This appliance has been approved for 0" spacing

to adjacent surfaces above the cooktop. However, a 6"

minimum spacing to surfaces less than 15" above the

cooktop and adjacent cabinet is recommended to reduce

exposure to steam, grease splatter and heat.

INSTALLATION INFORMATION: Before installing,

consult installation instructions for current dimensional

data and additional requirements

ADA

COMPLIANT

29 7/8"

48 1/4"

25 7/8"

36"

37 1/4"

Recommended

6" Min.

From Walls

30"

Min.

30"

Min.

15" Min.

2-1/2"

Acceptable electrical

outlet area

7-1/2"

25"

30"

2-1/2"

3"

7"

14-1/2"

29 7/8"

48 1/4"

25 7/8"

36"

37 1/4"

Recommended

6" Min.

From Walls

30"

Min.

30"

Min.

15" Min.

2-1/2"

Acceptable electrical

outlet area

7-1/2"

25"

30"

2-1/2"

3"

7"

14-1/2"

JS760BL/DL/EL/SL

GE®30" Slide-In Electric Convection Range

Specification Revised 6/17

FEATURES AND BENEFITS

12"/9" dual element - Two heating elements in one offer flexibility

True European Convection with Precise Air - Accurate heat circulation ensures

evenly baked foods

9"/6" Power Boil element - Produces rapid, powerful heat

Fifth element warming zone - Provides low-heat capability for foods

Fast preheat - Make hot meals in a hurry with less time preheating

Self-clean with Steam Clean option - Clean your oven the way you want

Smooth-glide storage drawer - Drawer opens and closes easily for instant access

and extra storage

Hidden bake oven interior - Make cleanup easy by eliminating hard-to-reach areas

Model JS760BLTS - Black stainless

Model JS760DLBB - Black on black

Model JS760DLWW - White on white

Model JS760ELES - Slate

Model JS760SLSS - Stainless steel

JS760BLTS JS760ELES

JS760SLSS JS760DLBB JS760DLWW

GUARANTEED FIT

Replace your old 30" free-standing range with a new 30" slide-in model.

GE slide-in ranges are guaranteed for an exact fit to make replacement easy

Visit geappliances.com for more info
