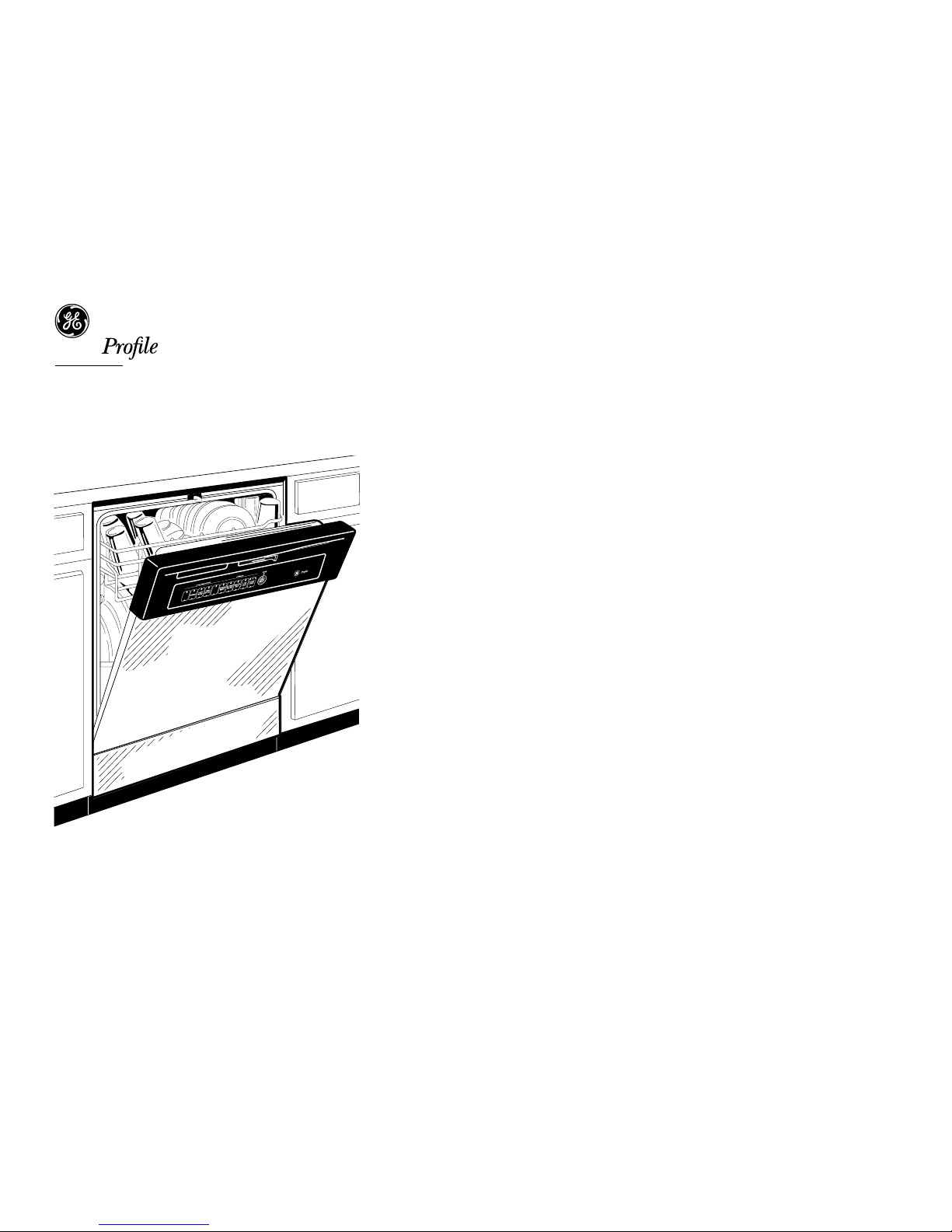

GSD5360FSS - GE Profile™Triton™Built-In Dishwasher
Dimensions (in inches) Wood Insert Cut-Out
Dimensions (in inches)
Installation Information
(in inches)
Note: Dishwasher must not be installed more than 10 feet from
sink for proper drainage. All plumbing and electrical work must
be in accordance with local codes.
Note: If a flush look is needed, a 25" base cabinet needs to
be used.
R
Listed by
Underwriters
Laboratories
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
White (neutral)
Black (line)
Ground
24
24-3/4*
21-1/2*
3-1/4 4 (Adjustable)
34" MIN.
adj. to 35*
*Add 1/4" for
rear insulation
24-3/4
23-3/8*
Models/Kit A B C Thickness
GE Profile
Performance™and
GE Profile™
models/GPF425 19-3/4" 23-9/16" 3-11/16" 1/4"
GE Profile
Performance™and
GE Profile™4-1/4" to
models/GPF475 19-7/8" 23-5/8"* 3-11/16"** 3/4"
*Note: Bottom of panel must be notched 1-1/2"x1/2" to clear
across panel
**Adjustment required to match adjacent cabinets fronts due to
leveling leg adjustment, 4" nominal.
For answers to your Monogram,
®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
C
B
Access insert
Detail D
Door insert A
Panel Thickness
Front
of
Panel
1-1/2 1/2
1/4
3/4
TM
Specification Created 2/00
GSD5360FSS - GE Profile™Triton™Built-In Dishwasher
TriCleanWashSystem-QuietPowerIII
Triton
RINSE
ONLY
POTS
&PANS
Features and Benefits
• TriClean™Wash System Provides Six Levels of Wash
• 100% Triple Water Filtration
• Dual Pumps
• Piranha™Anti-Jamming Hard Food Disposer
• 5 Cycle Selections: Pots&Pans, Normal Wash, Light Wash,China/Crystal
and Rinse Only
• 34 Options: Start/Reset, Hi-Temp Rinse, Hi-Temp Wash, Heated Dry On/Off,
Lock Pad and 2/4/8-Hr Delay Start
• Super Upper Rack
• Super Lower Rack with 2 Rows of Fold Down Tines
• SmartShelf
• Super Capacity Silverware Basket with Two Cell Covers
• Rinse Aid Dispenser with Indicator
• QuietPower™III Sound Insulation Package
• GE Profile™QuietMotor and Active Vent
• Electronic Controls with 11 Touchpads and "Clean" Light Indicator
• Model GSD5350DCC - Bisque
• Model GSD5330DWW - White on white
• Model GSD5320DBB - Black on black
• Model GSD5310DAA - Almond on almond
• Model GSD5360FSS - Stainless steel
Questo manuale è adatto per i seguenti modelli
