GE Monogram

Assembly Instructions

Before you Begin – Read these instructions completely and carefully.

Note To Installer: Be sure to leave these instructions with the Consumer.

Note to Consumer: Keep these instructions with your Use and Care Book for future reference.

Assembly of this grill cart requires basic mechanical

skills. Proper assembly is the responsibility of the

installer.

NOTE:

This cart must be completely assembled before any

gas connections are made.

If you have questions concerning the installation of

this product, call the GE Answer Center®Consumer

Information Service at 800.626.2000, 24 hours a day,

7 days a week.

If you received a damaged Grill Cart, you should

contact your dealer.

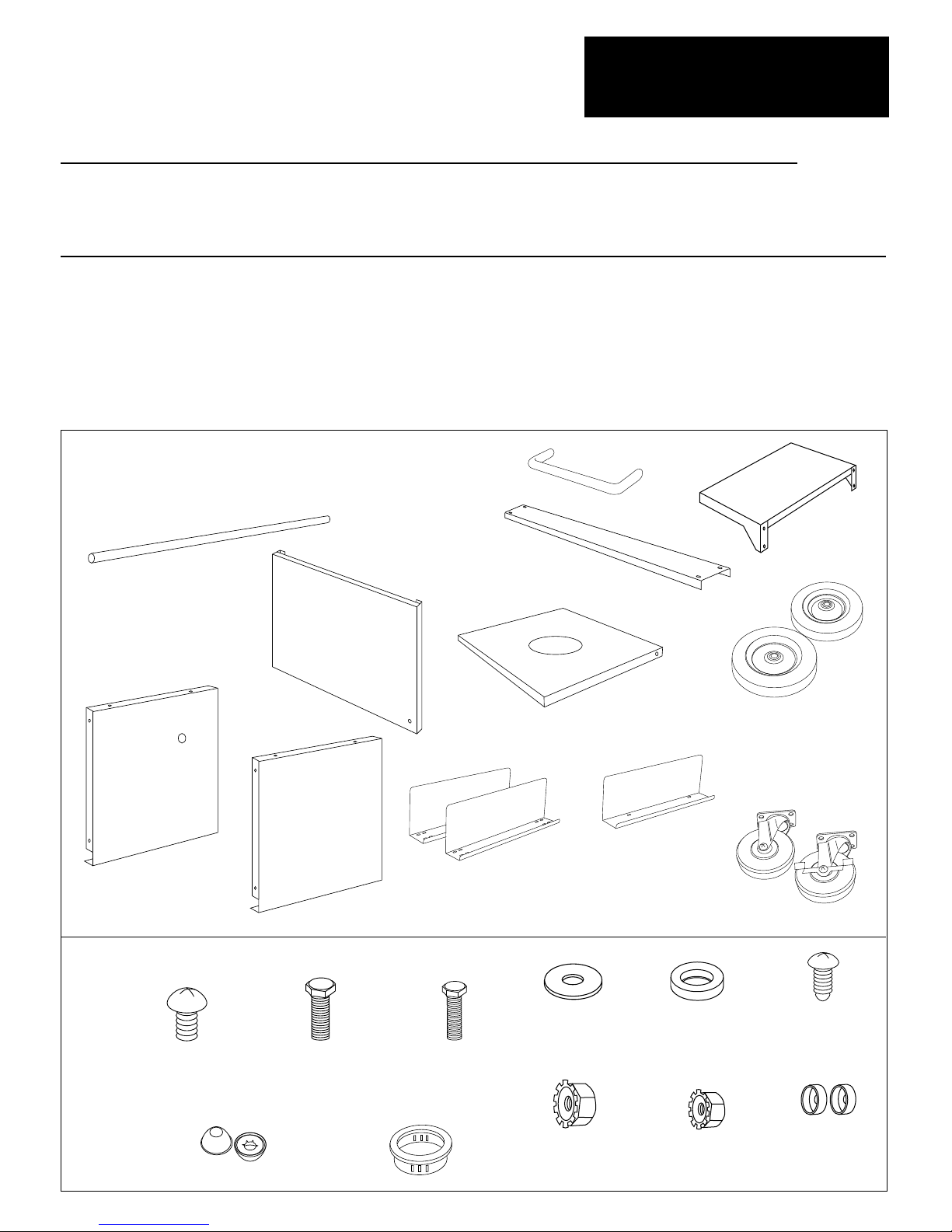

Step 1:

Remove

Packaging

Open the box and remove the contents.

Remove packaging and protective film from

all parts.

Shelf Handle

Shelf

Back Brace

Bottom/Base Panel

Wheels

Front Panel

Caster with Lock

Locate the hardware accessory package and check contents.

Side Braces

Front Brace

Left Side Panel

Right Side Panel

Axle

1/4-20 x 1/2 Bolts

Count 36

32 required, 4 extra

1/4-20 x 3/4 Bolts

Count 2

no extra

Wheel Caps

Count 2

Black Plastic

Grommet

Count 1

#10 Washers

Count 12

8 required, 4 extra

1/4 Washers

Count 40

32 required, 8 extra

Self-tapping Screws

Count 2

1/4-20 Nuts

Count 36

32 required, 4 extra

10-24 Nuts

Count 10

8 required, 2 extra

Black Plastic

Bezels

Count 2

Phillips Head Screws

Count 10

8 required, 2 extra

Caster

27" Outdoor Cooking Center

Grill Cart

Model ZX27CTYSS

Installation

27" Grill Cart Assembly

• Two 7/16" wrenches

• 3/8" wrench or socket

• Phillips head screwdriver

• Rubber or wooden mallet

• Gloves to protect against sharp edges

10-24 Nuts

Phillips

Head

Screws #10 Washers

USE

EACH

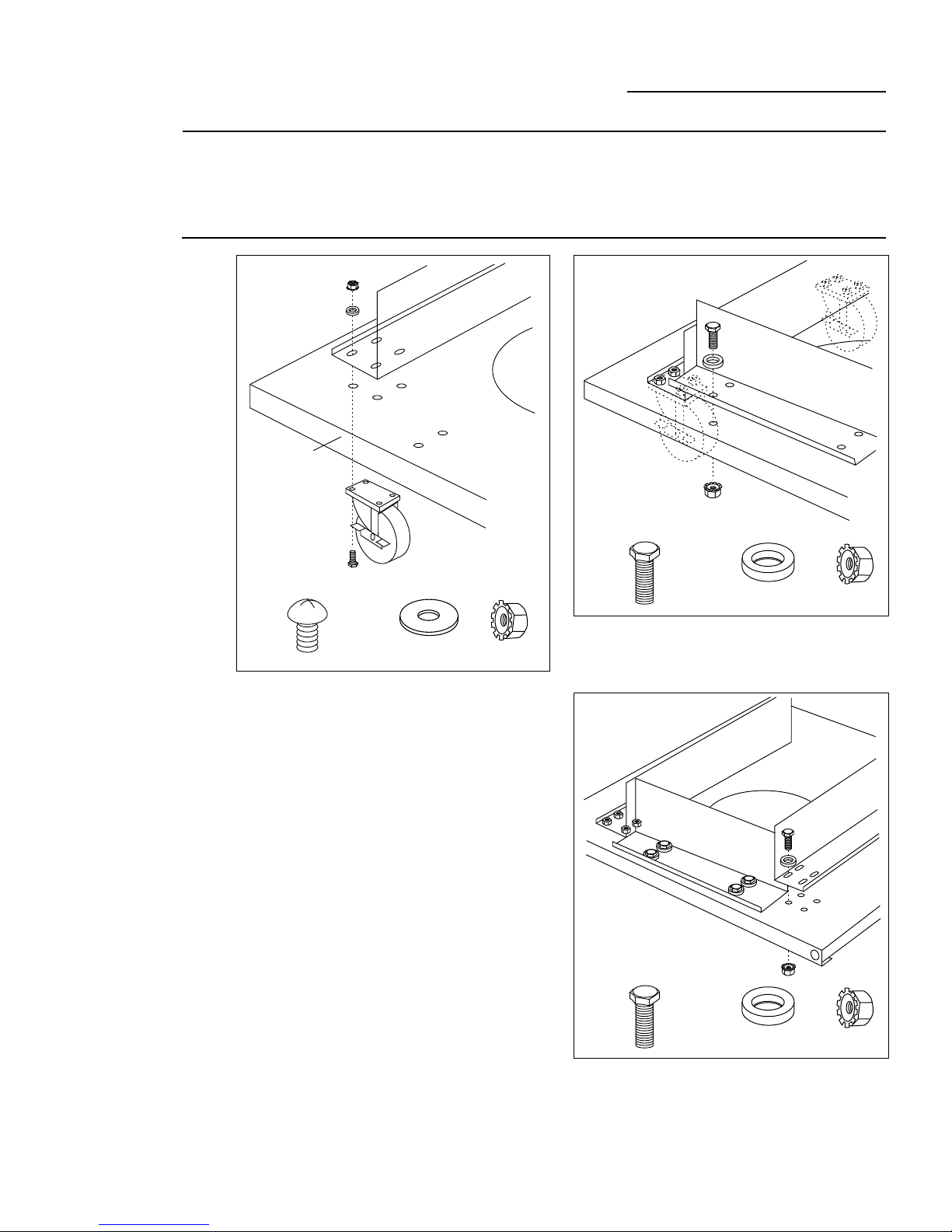

•Locate the bottom/base panel and one side

brace.

•Place the front of the base towards you.

(The front side has 6 screw holes on each

side.)

•Select the caster with lock on the side.

•Place the caster below the front side of the

base, aligned with 4 screw holes.

•Place a side brace on top of the base at the

left side with screw holes aligned.

•Install 4 phillips head screws through the

caster into the base and through the brace.

•Secure screws with flat washers and nuts on

top of the brace. Do not tighten.

•Install the other caster to opposite end of

the brace following the same procedure.

Bottom Panel

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

•Install front brace to base with 4 bolts and

washers through the top and secure with

nuts on the bottom. Do not tighten.

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

•Install right side brace to the base by

installing 8 bolts and washers through the

top and secure with nuts on the bottom.

Again, do not tighten.

•Adjust brace alignment by tapping and

sliding until corners meet. Tighten all

screws.

CAUTION: The grill is extremely heavy. 2

people are required to lift and place the grill

onto the cart.

Tools

You Will

Need

Step 2:

Install

Casters

and Braces

to Base

Installation

27" Grill Cart Assembly

Step 3:

Install Side

Panels

to Base

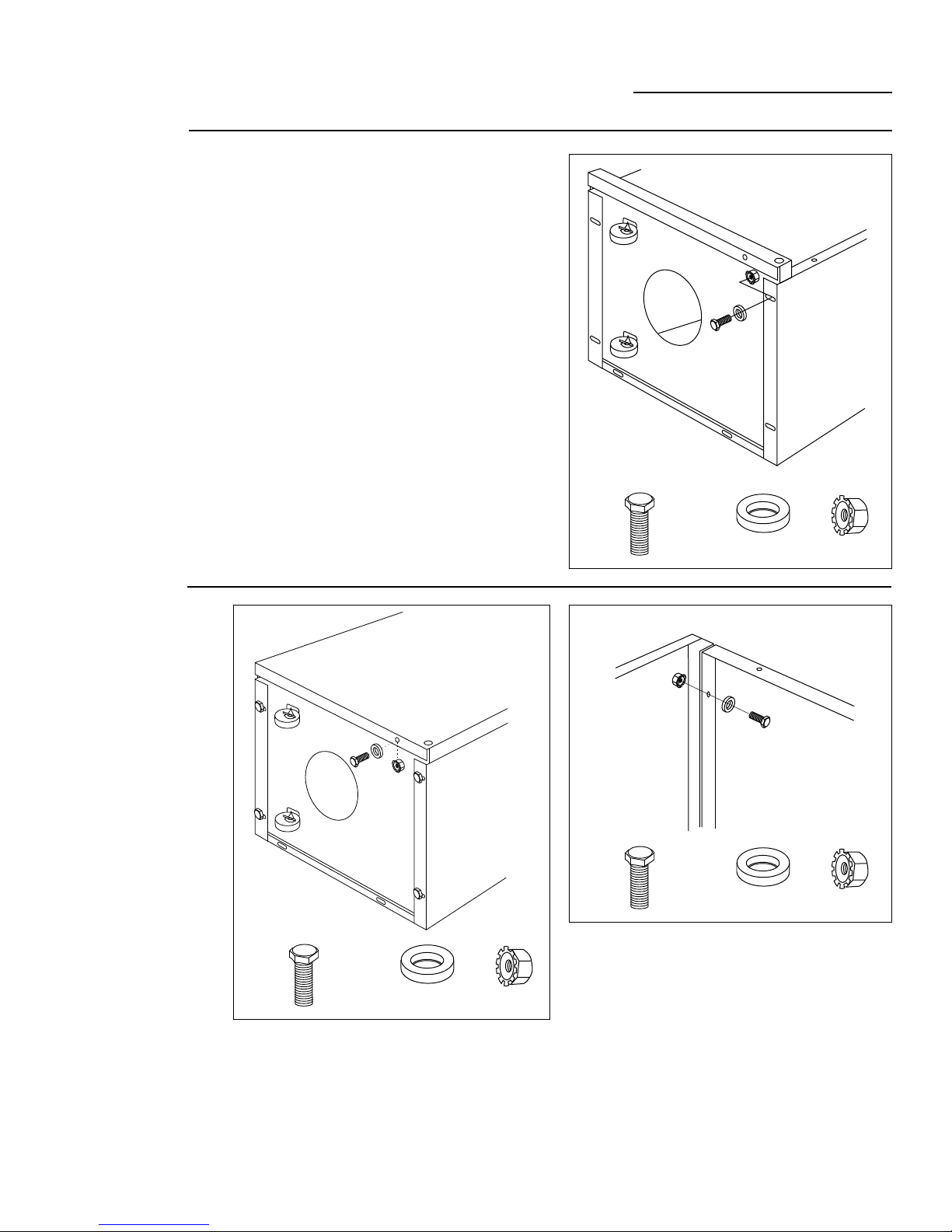

•Flatten the carton to use as a pad.

•Stand the assembled base on end.

•Secure left and right side panels to the

bottom panel with 4 bolts, washers and nuts

(2 on each side). Note: Right side panel has

a hole near the center.

•Install bolt and washer from the bottom and

into the base, secure with nuts inside. Do not

tighten.

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

Step 4:

Install

Front Panel

to Base

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

•Place the front panel on the assembly. Install

bolt with washer from the bottom into the

base and secure with nuts. Do not tighten.

Front Panel

Side Panel

Bottom Panel

Right Side Panel

Bottom Panel

Front Panel

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

•Stand the assembly up and bolt the front

panel to the side panels with bolts, washers

and nuts as shown. (2 on each side).

Installation

27" Grill Cart Assembly

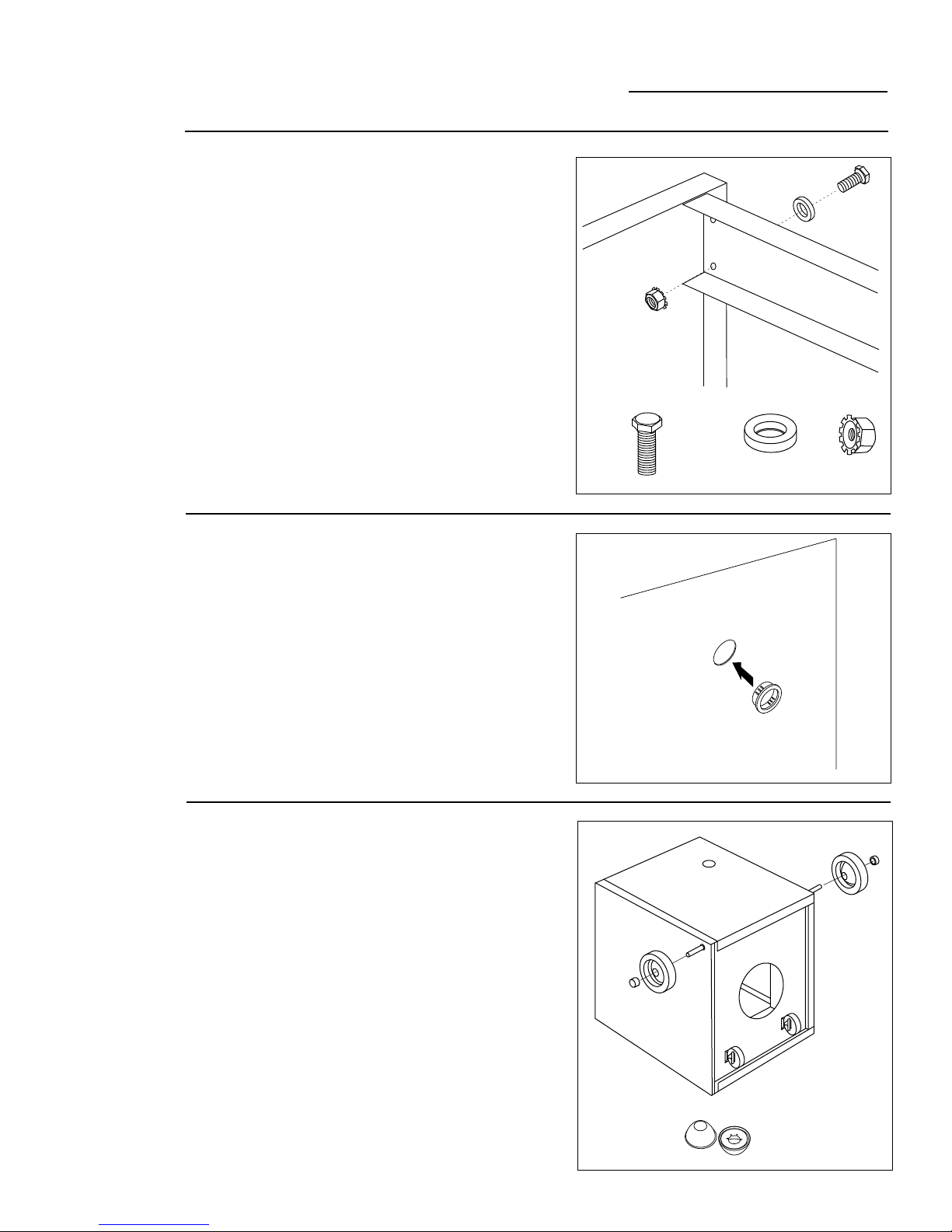

•Bolt back brace to side panels by installing

bolt with washer from the outside and

secured with nut on the inside. (2 bolts on

each side).

Back Brace

Side Panel

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

•Check to be sure all panels and holes in the

bottom right corner of the front panel are

correctly aligned.

•Tighten bolts by holding a 7/16" wrench on

bolt and turning nuts below with another

7/16" wrench.

•Snap grommet into the hole on the outside

of the right side panel.

•Place wheel cap onto axle and tap in place

with a mallot.

•Slide a wheel onto the axle with the flat side

against the cap and the spacer side (the

protruding side) towards the inside of the

cart.

•Slide the axle through the holes in the cart.

•Place second wheel onto the axle, with

spacer side against the cart, and tap wheel

cap with mallet to secure.

USE2

WHEELCAPS

Step 5

Install

Back

Brace

Step 6

Check Panel

Alignment,

Tighten

Assembly

Step 7

Install

Wheels

Installation

27" Grill Cart Assembly

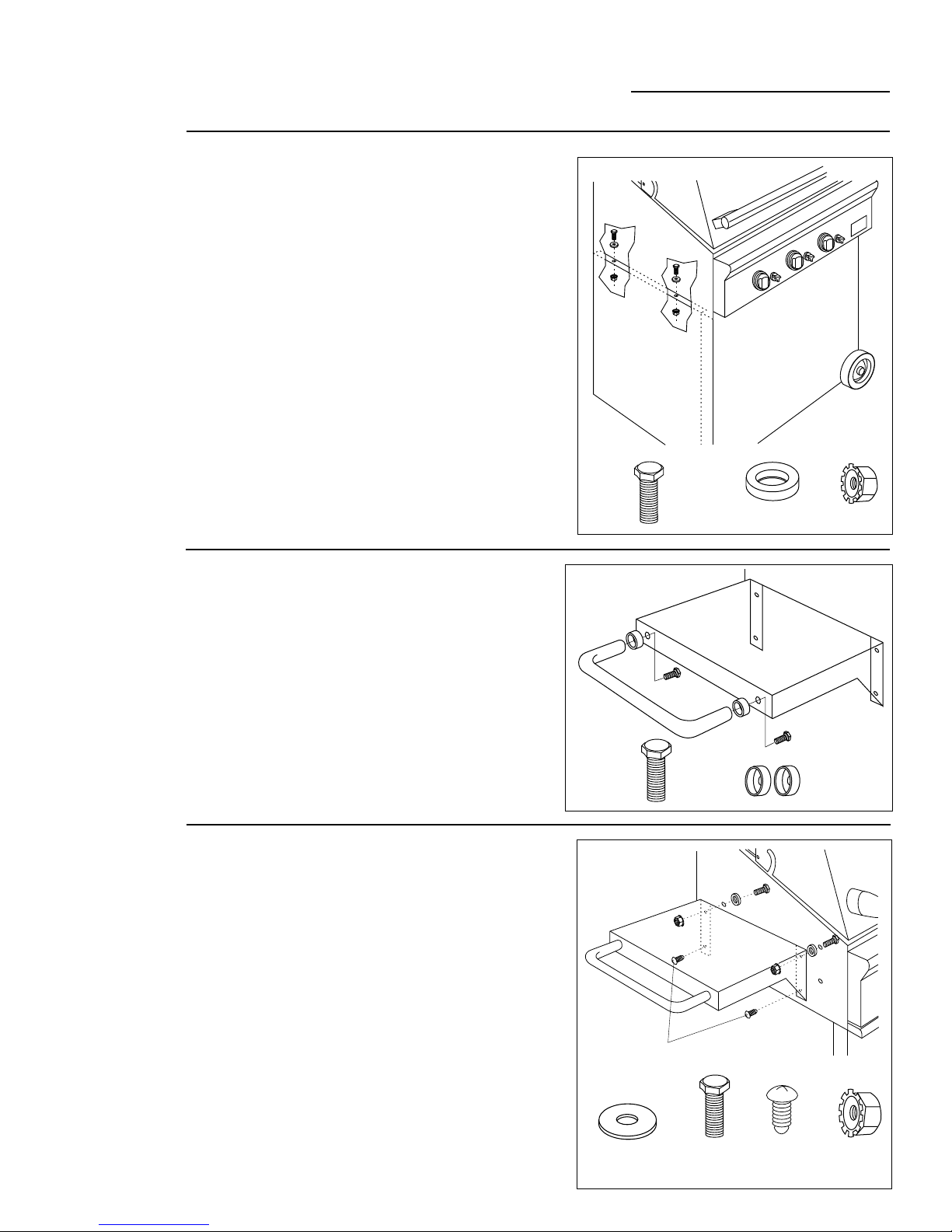

CAUTION: Lock front caster on the cart to

prevent movement.

See installation instructions packed with the

grill. Remove packaging, drip tray, burner

grates and parts box.

CAUTION: The grill is extremely heavy. 2

people are required to lift and place the grill

onto the cart.

•Lower the grill onto the cart.

•Check to be sure the grill rests securely and

fits square on the cart.

•Secure the grill to the cart with 2 bolts,

washer and nuts on each side. The bolts may

be accessed from the back of the cart.

1/4-20 x 1/2

Bolts 1/4 Washer 1/4-20 Nuts

USE

EACH

The shelf should be installed after the grill

has been secured to the cart.

•Place black plastic bezels onto the ends of

the handle.

•Hold the handle against the shelf and

secure with two 1/4-20 x 3/4" bolts as

shown.

Use 2

Black Bezels

•Hold the assembled shelf against the grill,

aligning screw holes.

•Install bolts and washer through the inside

of the grill, into the top of the shelf and

secure with nuts.

•Drive 2 self-tapping screws with washers into

the lower holes of the shelf and into the

grill.

1/4-20 x 1/2

Bolts

Self-Tapping

Screws

1/4-20 Nuts

Flat Washer

USE

EACH

USE

1/4-20x3/4

Bolts

Self Tapping Screws

Step 8

Mount Grill

to Assembled

Cart

Step 9

Install

Handle

on Shelf

Step 10

Mount Side

Shelf to

Grill

Notes

27" Grill Cart Assembly

Notes

27" Grill Cart Assembly

To obtain specific information concerning any

Monogram product or service, call GE Answer Center®

consumer information service at 800.626.2000—any

time, day or night.

For Monogram local service in your area, call

1-800-444-1845.

NOTE: Product improvement is a continuing endeavor at General

Electric. Therefore, materials, appearance and specifications are

subject to change without notice.

Monogram.

General Electric Company

Louisville, KY 40225

Pub. No. 49-8840

Dwg. No. 164D3333P080

 1997 GE Appliances

(N.D. 723) 4/97
