GE JKP25SHSS Istruzioni utente
GE Appliances
JKP25SH – GE® 27" Built-In Single Oven
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
27" Built-In Single Oven Dimensions (in inches)
Specification Revised 7/05
320431
2" x 4"
or equiv.
runners
B MIN.
C MIN.
Conduit 48-1/2" long
6015 Built-in Single Oven
(Pub. 1-G003 pg. 107) April 28, 1993
32-1/2
D
10
AAllow 3/4"
for overlap
over all edges
of cutout
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Minimum
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
E
G
F
20
Note: These ovens are not
approved for stackable or
side-by-side installations.
Note: These ovens can be
installed side-by-side with no
less than 30" distance between
center-to-center of each oven.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Note: For 27" built-in single ovens, if marks,
blemishes or the cutout opening is visible
above the installed oven, it may be necessary
to add wood shims under the runners and front
trim until the marks or openings are covered.
Cabinet 27"
A – Cabinet Width Required 27" min.
B – Minimum Cabinet Depth 23-5/8"
C – Opening Width 25" min. - 25-1/4 max.
D – Opening Height 27-5/8" min. - 28-1/8 max.
Oven
E – Overall Depth 23-5/8"
w/o trim 28-1/4"
F – Overall Height with trim 29"
G – Overall Width 26-5/8"
C
L
Suitable
bracing
to support
runners 18"
Over centerline
of cabinet
2" x 4" or
equivalent
runners
(Must support 275 lbs.)
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
KW Rating
240V 3.4
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
GE Appliances
JKP25SH – GE® 27" Built-In Single Oven

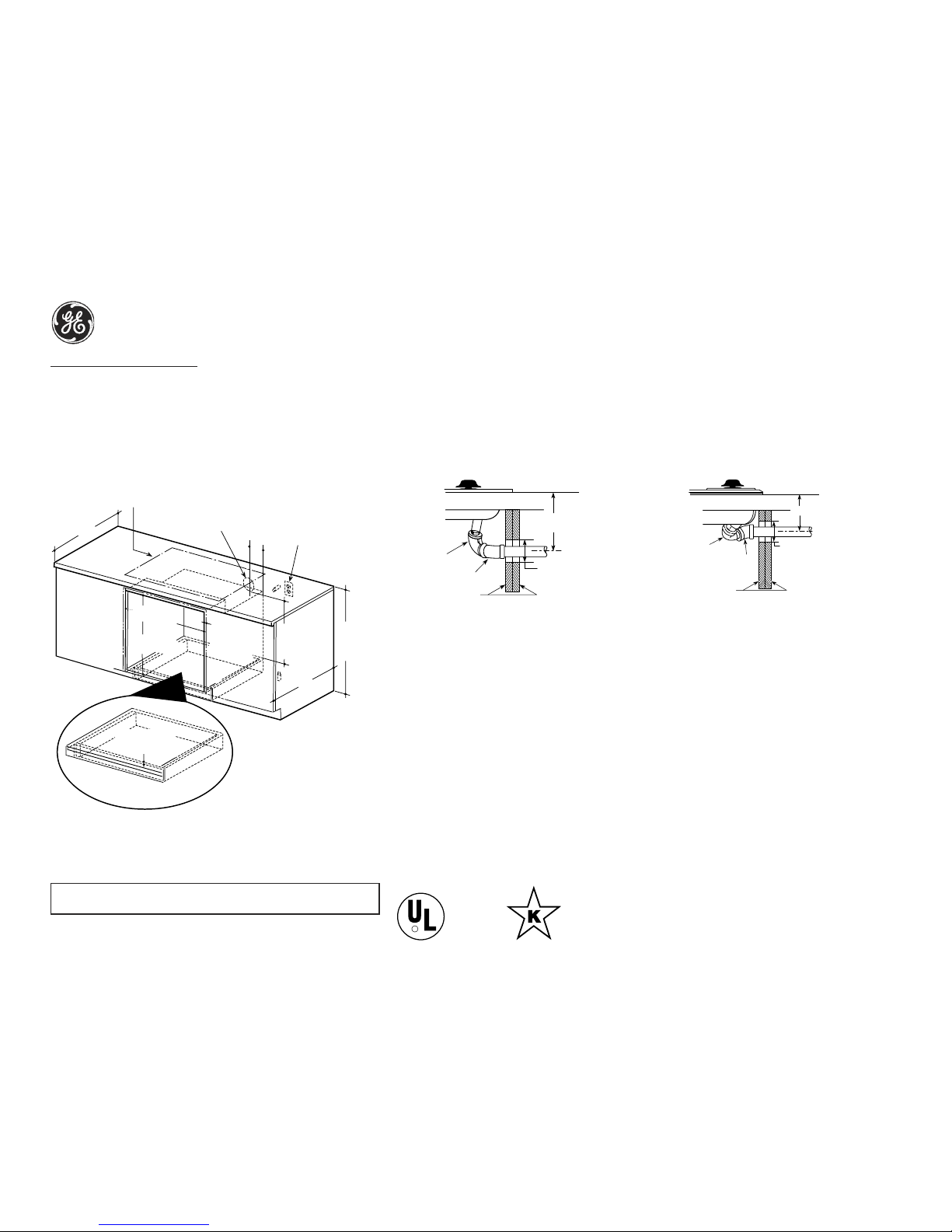

Undercounter Installation Dimensions (in inches)
Specification Revised 7/05
320431
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
® GE Profile™
or GE® appliance questions, visit our website
at
GEAppliances.com or call
Sealed Burner Gas Cooktop
Installation Dimensions (in inches)
Standard Burner Gas Cooktop
Installation Dimensions (in inches)
7
25
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right
5
240V / 208V
Junction Box
Location
36"
Typical
Countertop
Height
24
Allow 1"
unit overlap
all edges
25" MIN.
25 1/4" MAX.
27 5/8" MIN.
28 1/8" MAX.
3/4" Support
Platform Required
Must Support 150 Lbs.
22" MIN.
Above
Support
Platform
Note: Oven is rated for use only under 30" standard or sealed burner gas and
selected 30" CleanDesign and Calrod® electric cooktops.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
90° Street el
45° Elbow
Cabinet sides
2" Diameter hole (20-7/8"
from front of countertop
to hole center)
Sealed Burner Gas Cooktop Installation
(Pub. 1-G003 pg. 107) May 11, 1993
5" To center of 2" diameter
hole from countertop
90° Street el
45° Elbow
To center of 2" diameter
hole from countertop
Cabinet sides
3-7/16"
2" MIN. diameter hole
(23-1/4" from front
surface of countertop)
Standard Burner Gas Cooktop Installation
(Pub. 1-G003 pg. 107) May 11, 1993
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
GE Appliances
JKP25SH – GE® 27" Built-In Single Oven
JKP25SHSS
Features and Benefits
• Self-clean oven – Conveniently cleans oven cavity without the need for scrubbing.
• Extra-large oven capacity – Provides a large oven interior ideal for cooking more items
at once.
• Electorinc oven controls – One-touch electronic pads are easy-to-use and allow for simple
oven operation.
• TrueTemp™ system – Delivers even heat distribution and maximum oven control.
• BIg ClearView™ window – An extra large clear window makes monitoring the progress of
the food easy.
• Interior oven light – Supplies light to make viewing progress of cooking easy and convenient.
• Dual element bake – Alternates the upper broiling element and the lower baking elements
for even heating and optimal baking results.
• Model JKP25SHSS – Stainless steel
Specification Revised 7/05
320431
