Advantium wall oven/GE Profile cooking tower dimensions and cabinet installation information (in inches)

Note: Cabinets

installed adjacent

to wall ovens must

have an adhesion

spec of at least a

194°F temperature

rating.

Note: 2" minimum

between cutouts

when installed

above warming

drawer or single

wall oven.

Installation

Information:

Before installing,

consult installation

instructions packed

with product for current

dimensional data.

Specification Created 11/08 240443

Listed by

Underwriters

Laboratories

cooking_tower_solid_floor.eps

(Must support 130 lbs.)

2 x 4’s or

equivalent

solid floor

Suitable

bracing

to support

runners

21-5/8"

over centerline

of cabinet

A=Allow 1” overlap of oven over top and bottom edges of cutout.

B=Allow 11/16”-3/4” for overlap of oven over side edges of cutout.

A=Allow 1” overlap of oven over top and bottom edges of cutout.

B=Allow 11/16”-3/4” for overlap of oven over side edges of cutout.

PSB1000NBB/WW

GE Profile Advantium® 120 Volt - 27" Wall Oven

Cabinet

Width

Height

Depth

(excluding

handle)

Cutout

Width

Cutout

Height

Cutout

Depth

minimum

PSB1000/1:27"

Installation 27 26-3/4 19 -1/32 21-1/2 25-1/4 17-1/2 23-1 /2

Cutout width

cabinet

width

Required

cutout location

36-3/4"

minimum

from floor

Junction box

location

(240-volt

models only)

A=Allow 7/8" overlap of oven over bottom edge of cutout, and allow

1-1/4” overlap at top edge of cutout.

B=Allow 2-1/8" for overlap of oven over side edges of cutout.

*Required for UL approval.

4-3/16

Cutout height

Cutout depth

Advantium Wall Oven Dimensions (in inches)and

Cabinet Installation (in inches)

Note: Cabinets installed adjacent

to wall ovens must have an adhesion

spec of at least 194° F temperature rating.

Construct Solid

Bottom Min.

3/8" Plywood

Supported by

2 x 4 or 1 x 2

Runners, all

Four Sides.

(Must Support

150 lbs.)

Conduit

(48-1/2"

long)

adv_240_120_cooktower_dia.eps

1" Min. above toekick or adjust

to oven installation height

2" MIN between cutouts

3" MIN between cutouts

recommended—2" MIN required

9-1/4" cutout height

28-1/2" cutout width

Junction box location

ABConstruct Solid Bottom

MIN 3/8" Plywood Supported by

2 x 4 or 1 x 2 Runners, all Four Sides.

(Must Support 150 lbs. for Advantium)

(Must Support 200 lbs. for Wall Oven)

4-3/16

Excluding

Handle

Conduit

(46" long)

Cabinet width

(240-volt models only)

Specification Created 11/08 240443

Features and Benefits

• SpeedcookTechnology-Cooksupto4timesfasterthanaconventionaloven

• 4Ovensin1toMeetYourCookingNeeds-Speedcook,TrueEuropeanConvection,

Warming/Proofing, Sensor Microwave

• SensorMicrowaveOven-975-wattsensormicrowaveovenmodeautomatically

delivers exceptional cooking results

• WarmingOven-Keepspreparedfoodswarmandfresh,andretainssuperb

moistness and crispness

• ProofFeature-Specializedmodeallowsdoughtorisequickly

• 16"Turntable-Allowscompleterotationofa9"x13"casseroledish

• GlassTouchControls-Featuresasmoothglassdesignthatiseasytooperateand

easy to clean

• PreprogrammedRecipes-Providequickandeasyprogrammingofover175

speedcook food selections

• Multi-LevelCooking-Removablepedestalrackallowscookingofmultipledishes

at once

• ModelPSB1000NWW-Whiteonwhite

• ModelPSB1000NBB-Blackonblack

0000

BAKE

BROIL

WARM

PROOF

SPEED

COOK

OVEN

CUSTOM

SPEED COOK

EXPRESS

REHEAT

COOK

MICROWAVE

DEFROST

FAVORITE

RECIPES

TIMER

HELP

OPTIONS

BACK

POWER

TEMP

SCB1000MWW

SCB1000MCC

SCB1000MBB

START

PAUSE

CLEAR

OFF

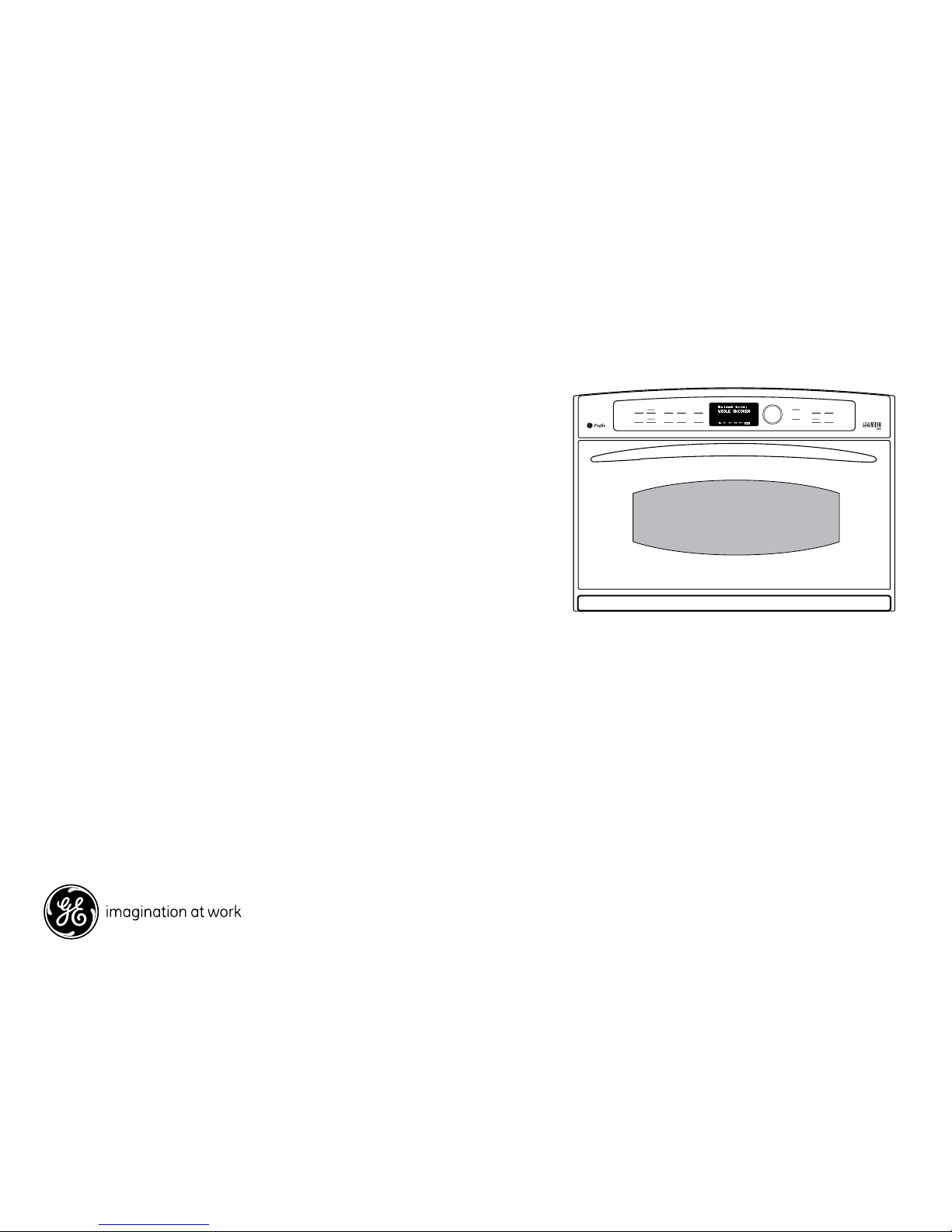

PSB1000NBB/WW

GE Profile Advantium® 120 Volt - 27" Wall Oven
