GE Profile PK916SRSS Manuale

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

KW Rating

240V 3.6

208V 2.7

Breaker Size

240V 20 Amps

208V 20 Amps

Note: These ovens are not approved for stackable or side-by-

side installations.

Note: Cabinets installed adjacent to wall ovens must have an

adhesion spec of at least a 194°F temperature rating. For 27”

built-in single ovens, if marks, blemishes or the cutout opening

is visible above the installed oven, it may be necessary to add

wood shims under the runners and front trim until the marks or

openings are covered. Electric wall ovens are not approved

for installation with a plug and receptacle. They must be hard

wired in accordance with installation instructions.

Note: Door handle protrudes 3" from door face. Cabinets and

drawers on adjacent 45° and 90° walls should be placed to avoid

interference with the handle.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Cabinet 27"

A – Cabinet width required 27" min.

B – Minimum cabinet depth 23-5/8"

C – Opening width 25" min. - 25-1/4" max

D – Opening height 27-5/8" min. - 28-1/8" max.

Oven

E – Overall depth* 23-5/8"

F – Overall height with trim 29-7/8" - 30-3/4"

Overall height without trim 29"

G – Overall width 26-5/8"

*Depth including door handle is approximately 26-7/10" min. to

26-8/10" max.

Access

from

adjacent

cabinet

required

Suitable

bracing

to support

runners 18"

Over centerline

of cabinet

(must support 275 lbs.)

2" x 4" or

equivalent

runners

2" x 4"

or equiv.

runners

B MIN.

C MIN.

Conduit 48-1/2" long

32-1/2

AAllow 3/4"

for overlap

over all edges

of cutout

Locate

junction box

either 5" MIN.

below cutout

floor or 44"

MIN. above

cutout floor

Minimum

cutout location

from floor

(Minimum 15-5/8"

from floor when

installed below built-in

microwave oven)

Dimensions and Installation Information (in inches)

Cabinet 27"

A – Cabinet width required 27" min.

B – Minimum cabinet depth 23-5/8"

C – Opening width 25" min. - 25-1/4" max

D – Opening height 27-5/8" min. - 28-1/8" max.

Oven

E – Overall depth* 23-5/8"

F – Overall height with trim 29-7/8" - 30-3/4"

Overall height without trim 29"

G – Overall width 26-5/8"

*Depth including door handle is approximately 26-7/10" min. to

26-8/10" max.

Access

from

adjacent

cabinet

required

Suitable

bracing

to support

runners 18"

Over centerline

of cabinet

(must support 275 lbs.)

2" x 4" or

equivalent

runners

2" x 4"

or equiv.

runners

B MIN.

C MIN.

Conduit 48-1/2" long

32-1/2

AAllow 3/4"

for overlap

over all edges

of cutout

Locate

junction box

either 5" MIN.

below cutout

floor or 44"

MIN. above

cutout floor

Minimum

cutout location

from floor

(Minimum 15-5/8"

from floor when

installed below built-in

microwave oven)

220365

PK916SR

GE Profile™27" Built-In Single Convection Wall Oven

Specification Created 5/10

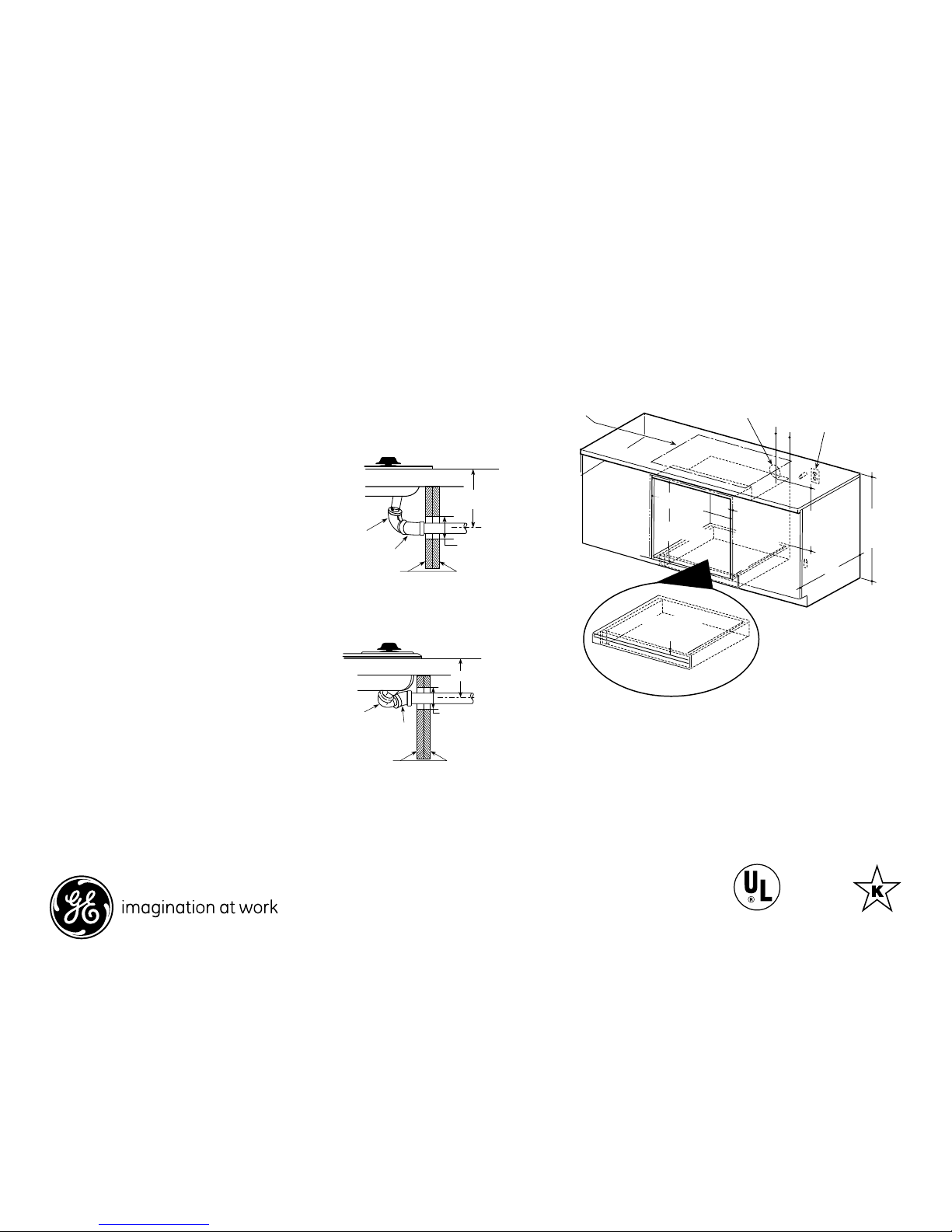

Undercounter Dimensions and Installation Information

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

220365

Note: Oven is rated for use only under 30”

standard or sealed burner gas and selected

30” CleanDesign and Calrod®electric cooktops.

Cabinets installed adjacent to wall ovens must

have an adhesion spec of at least a 194°F

temperature rating.

Electric wall ovens are not approved for

installation with a plug and receptacle.

They must be hard wired in accordance

with installation instructions.

Installation Information: Before installing,

consult installation instructions packed with

product for current dimensional data.

Sealed Burner Gas Cooktop

90°Street el

45°Elbow

Cabinet sides

2" Diameter hole (20-7/8"

from front of countertop

to hole center)

Sealed Burner Gas Cooktop Installation

(Pub. 1-G003 pg. 107) May 11, 1993

5" To center of 2" diameter

hole from countertop

Standard Burner Gas Cooktop

90° Street el

45° Elbow

To center of 2" diamete

hole from countertop

Cabinet sides

3-7/16"

2" MIN. diameter hole

(23-1/4" from front

surface of countertop)

Standard Burner Gas Cooktop Installation

(Pub. 1-G003 pg. 107) May 11, 1993

Gas or electric cooktops may be

installed over this oven. See cooktop

installation instructions for cutout size.

See label on top of oven for approved

cooktop models.

Gas or electric connections

for gas cooktop must be

located in an adjacent

accessible location to the right

240V / 208V

Junction Box

Location

36"

Typical

Countertop

Height

Allow 1"

unit overlap

all edges

25" MIN.

25 1/4" MAX.

27 5/8" MIN.

28 1/8" MAX.

3/4" Support

Platform Required

Must Support 150 Lbs.

22" MIN.

Above

Support

Platform

PK916SR

GE Profile™27" Built-In Single Convection Wall Oven

Specification Created 5/10

Features and Benefits

• Glasstouchcontrols–Smoothcontrolsareeasytouseandaddasophisticatedstyle

to the kitchen

• Blackglossoveninterior–Blackoveninterioraddsastylishtouchtoanykitchen

• PreciseAir™convectionsystem–Areversingfancirculatesheatandairforevenly

browned and baked foods

• Heavy-dutyrollerrack–Racksprovideeasyaccesstoitemsinsidetheovenby

simplifying loading and unloading

• Flatbackconvection–Convectionfansystemisonly1"deeptoprovideadditional

room for cookware

• Hiddenbakeoveninterior–Concealsthelowerovenbakeelementtoeliminatehard-

to-reach areas that collect food and spills for easy cleaning

• ConvectionBake–Thissettingisoptimalforbakingcasserolesorlasagnas,yeast

breads, pies and pizzas with no need to turn the pan

• Convectionroast–Optimalforlargercutsofmeat,thissettingrotatestheheat

around all sides, sealing in the juices, producing rotisserie results at up to 25% faster

than a conventional oven

• Self-cleanoven–Self-cleanallowsyoutospareyourselffromthetroubleandeffort

it takes to scrub the oven interior

• Dualinteriorlighting–Brightinteriorlightshelpyoucheckontheprogressof

your cooking

• ModelPK916SRSS–Stainlesssteel

220365

PK916SR

GE Profile™27" Built-In Single Convection Wall Oven

Specification Created 5/10
