Optional Gas Range Accessory

Drip Pans for Sealed and

Standard Burner Models

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

Gas Self-Clean Range Anti-Tip

Bracket (Part No. 205C1714P001)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before

installing, consult installation

instructions packed with product

for current dimensional data.

*Dimension from wall to front of closed door handle is 28-1/4".

Depth to front edge of cooktop – 25-1/4".

24

30" FS Gas Ranges-CL

30

8

4

9

2

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

30

46-7/8

26-1/4*

46-3/8

36±1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

24

30" FS Gas Ranges-CL

30

8

4

9

2

2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

30

46-7/8

26-1/4*

46-3/8

36±1/4

Installation Information (Dimensions in inches)

Recommended common

area for gas outlet and

electrical outlet

For answers to your Monogram,

® GE Profile™ or

GE® appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

All GE ranges are equipped

with an Anti-Tip device.

The installation of this

device is an important,

required step in the

installation of the range.

Specification Created 3/05

330426

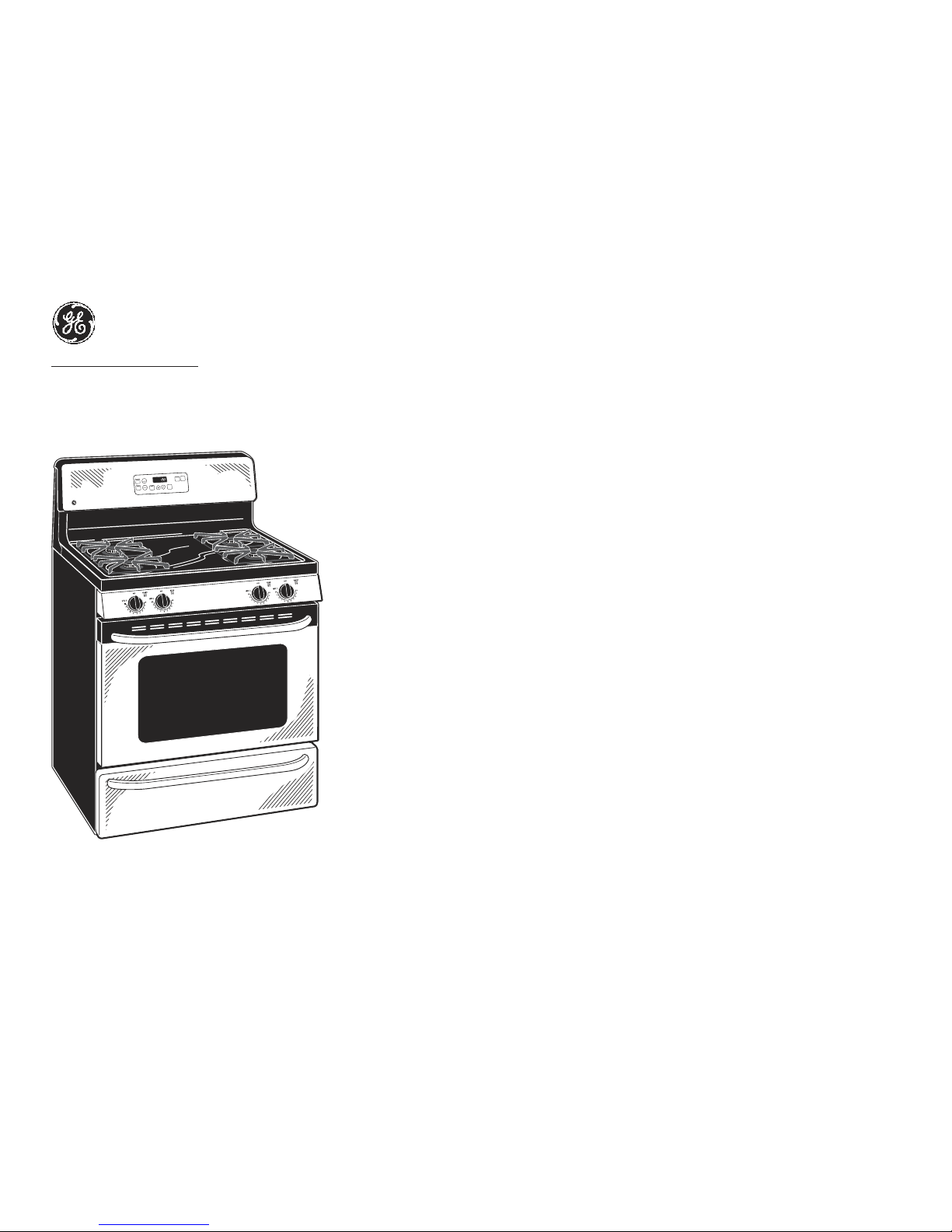

JGBP28MEK – GE® 30" Free-Standing Self-Clean Gas Range

CERTIFIED

GE Appliances

GE Appliances

BROIL SELF

CLEAN

OVEN

LIGHT

CLOCK

TIME CONTROLS

OVEN CONTROLSTrue Temp

ON

TEMP

NORMAL

HI LOOFF

KITCHEN

TIMER

ONOFF

BAKESTART

ON

CLEAR

OFF

JGBP28MEKBS

Features and Benefits

• Self clean oven – Conveniently cleans the oven cavity without the need of scrubbing

• Extra-large oven capacity – Provides a large oven interior ideal for cooking more items at once

• TrueTemp™ system – Delivers even heat distribution and maximum oven control

• QuickSet III oven controls – Feature an easy to use design that allows you to set precise

cooking temperatures

• All purpose burners – Delivers a wide range of heat output ideal for most cooking requirements

• Sealed cooktop burners – Eliminates the space between the burners and the cooktop to help

contain spills and boil over liquids, ensuring easy cleanup

• Standard grates – Provide a sturdy and convenient cookware surface for everyday cooking

• Big ClearView™ window – An extra large clear window makes monitoring the progress of food easy

• Two oven racks – Features a durable construction to help accommodate any size or type of cookware

• Model JGBP28MEKBS – CleanSteel™ (CleanSteel door and control panel and black cooktop) Shown

• Model JGBP28SEJSS – Stainless steel (stainless steel door and control panel and black cooktop)

• Model JGBP28WEJWW – White on white (white door and white cooktop)

• Model JGBP28BEJWH – White (black door and white cooktop)

• Model JGBP2BEJCT – Bisque (black door and bisque cooktop)

• Model JGBP28EEJBB – Black (black door and black cooktop)

JGBP28MEK – GE® 30" Free-Standing Self-Clean Gas Range

Specification Created 3/05
