Specification Created 8/99
JBP85WBWW—GE Profile™Spectra™30" Free-Standing QuickClean™Electric Range

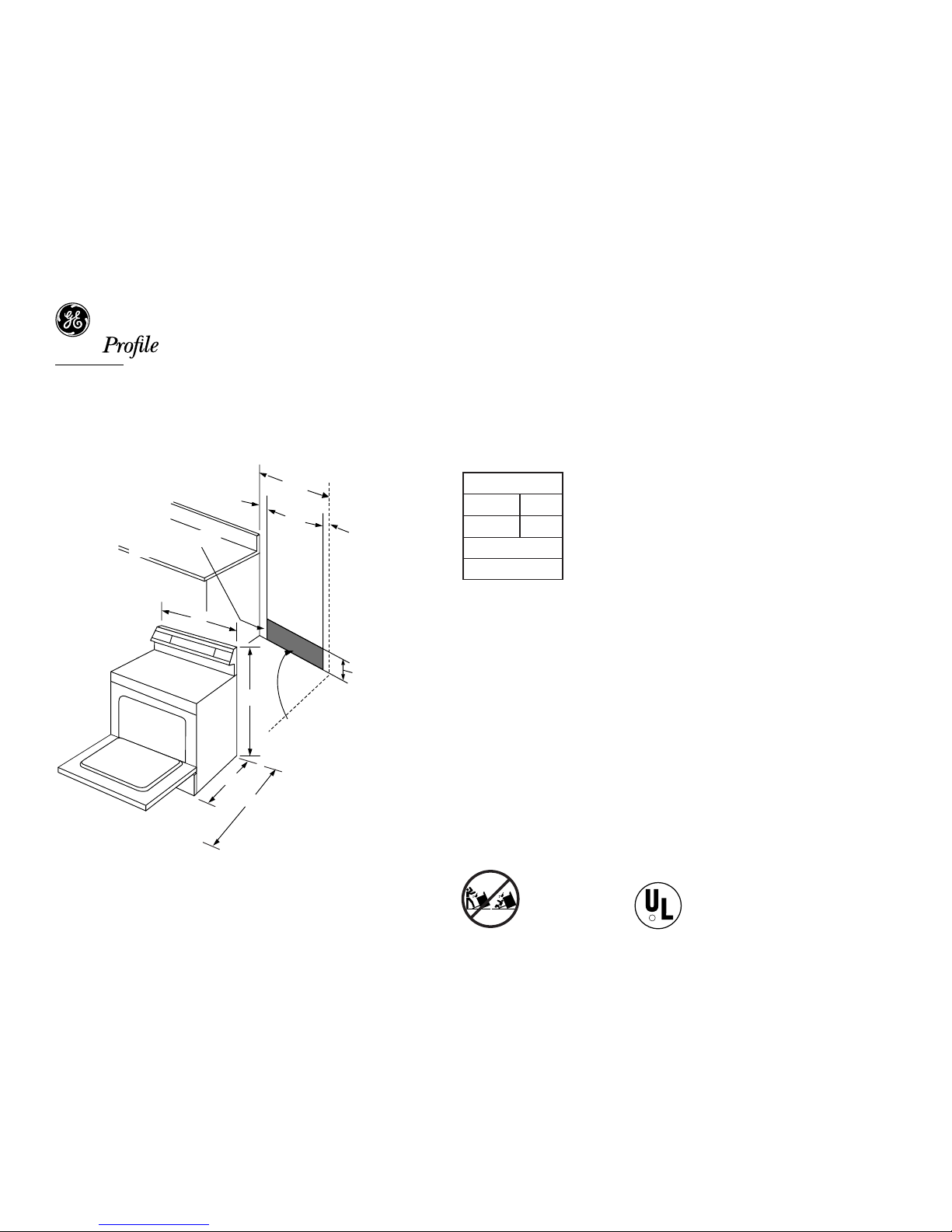

Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed door handle is 27-3/8”.
30
25
2-1/2
7-1/2
29-7/8
25-3/8*
47-5/8
46-1/2
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
R
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
†Note: Check local codes for required breaker size.
A properly grounded branch circuit with a 3 prong grounding type receptacle is required for
GE ranges.
Receptacle Locations
Locally approved flexible service cord or conduit must be used because terminals are not
accessible after range installation. See shaded area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed directly against wall.
Note: Conforms to U.L. requirements for 0" spacing for adjacent walls below countertops.
To reduce possibility of scorching of walls, it is recommended a minimum of 1-1/2" spacing be
allowed from adjacent side walls to allow for possible extended, high-heat, no-load heating
element operation.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
KW Rating
240V 11.5
208V 8.6
Breaker Size
40 Amps†
TM
Specification Created 8/99
JBP85WBWW—GE Profile™Spectra™30" Free-Standing QuickClean™Electric Range
FRONT REAR
HOT
OFF OFF OFF OFF
REAR
WARM
FRONT
LARGE
BURNER
SMALL
BURNER
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
L
O
8
7
6
5
4
3
2
1
9
H
I
H
I
8
6
4
2
L
O
2
4
6
8
OVEN
123456
KITCHEN
TIMER
ON OFF
CLOCK
BROIL
HI LO
BAKE
Convection
Spectra
COOKING
TIME DELAY
START
S
E
T
HOT
7890
CLEAR
OFF
SELF
CLEAN
OVEN
LIGHT
TOP
LIGHT
TIMECONTROLS
CONVECTION
BAKE
CONVECTION
ROAST
START
Features and Benefits
• 4.5 Cu. Ft. Oven Capacity
• Self-Cleaning Convection Oven with Auto Self-Clean Latch
• Patterned Glass-Ceramic Cooktop
• One-Piece Upswept Cooktop
• Two 6" (with Warming Option), One 8" and One 6"/9" Dual Heating Element
• TrueTemp™System with QuickSet V Controls
• Convection Bake and Convection Roast
• Convection Conversion
• Six-Pass Power Bake Element
• SmartLogic™Oven Controls
• Digital Temperature Display with Digipad Numeric Entry
• Oven Function Icons with Glass Touch Controls
• Porcelain-Enameled Broiler Pan with Chrome-Plated Grid
• 3 Oven Shelves
• Roasting Rack
• Time Bake with Delay
• Auto Oven Shut-Off with Override
• Audible Preheat Signal
• Dual Bake Element
• Hot Surface Lights
• Oven "On" Light
• Infinite Heat Controls
• Self-Clean Cool-Down Time Display
• Control Lock Capability
• Frameless Glass Oven Door with Big View Window
• Full-Width Fluorescent Cooktop Night Light
• Sure-Grip Designer-Style Handle
• Color-Matched Extra-Large Storage Drawer
• Model JBP85WBWW - White on white
• Model JBP85BBBB - Black on black
• Model JBP85CBCC - Bisque
