GE Monogram ZDWI240WII Guida utente

ZDWI240WII – GE Monogram®Wine Reserve

Dimensions and Specifications (in inches)

Installation Space

The cutout depth must be 24"

The cutout dimensions shown allow for a full door swing and access

to the pull-out racks when installed as a built-in.

• The wine reserve can be free-standing.

Note: If installing between frameless cabinets, a 1/2" wide filler strip

or side panel may be required. The filler strip will act as a spacer

between the door case and adjacent cabinet and will prevent

interference with cabinet door swing. The width of the opening

must include filler panels.

• Wine reserve is vented at the front toekick to allow built-in

undercounter installation.

• Door swing is reversible.

Additional Specifications:

• A 120 volt 60Hz., 15 or 20 amp power supply is required. An

individual property grounded branch circuit or circuit breaker is

recommended. Install a properly grounded 3-prong electrical

receptacle recessed into the back wall as shown. Electrical

must be located on rear wall as shown. Note: GFI (ground fault

interrupter) is not recommended.

For answers to your Monogram,

®GE Proﬁle™or

GE®appliance questions, visit our website at

GEAppliances.com or call GE Answer Center®

service, 800.626.2000.

Listed by

Underwriters

Laboratories

Product Clearances

15" Minimum

110˚

Wall

24"

Cabinet

14" Minimum

110˚

Wall

24"

Cabinet

All models are factory set for a 110° door swing.

For a minimum 90° door swing:

• Allow 4" min. clearance to wall on the hinge side.

For a full 110° door swing:

• Allow 14" min. clearance to wall on the hinge side.

34-1/2"-35"

24" Min.

23-3/4"

23-3/4" Min.

25-1/2"

Including

Handle

34-1/4"-

34-3/4"

23-3/4" Stainless steel

models

24-1/8" Framed models

1-1/2"

Locate Outlet

Max.

10-1/2"

Specification Created 10/07

120037

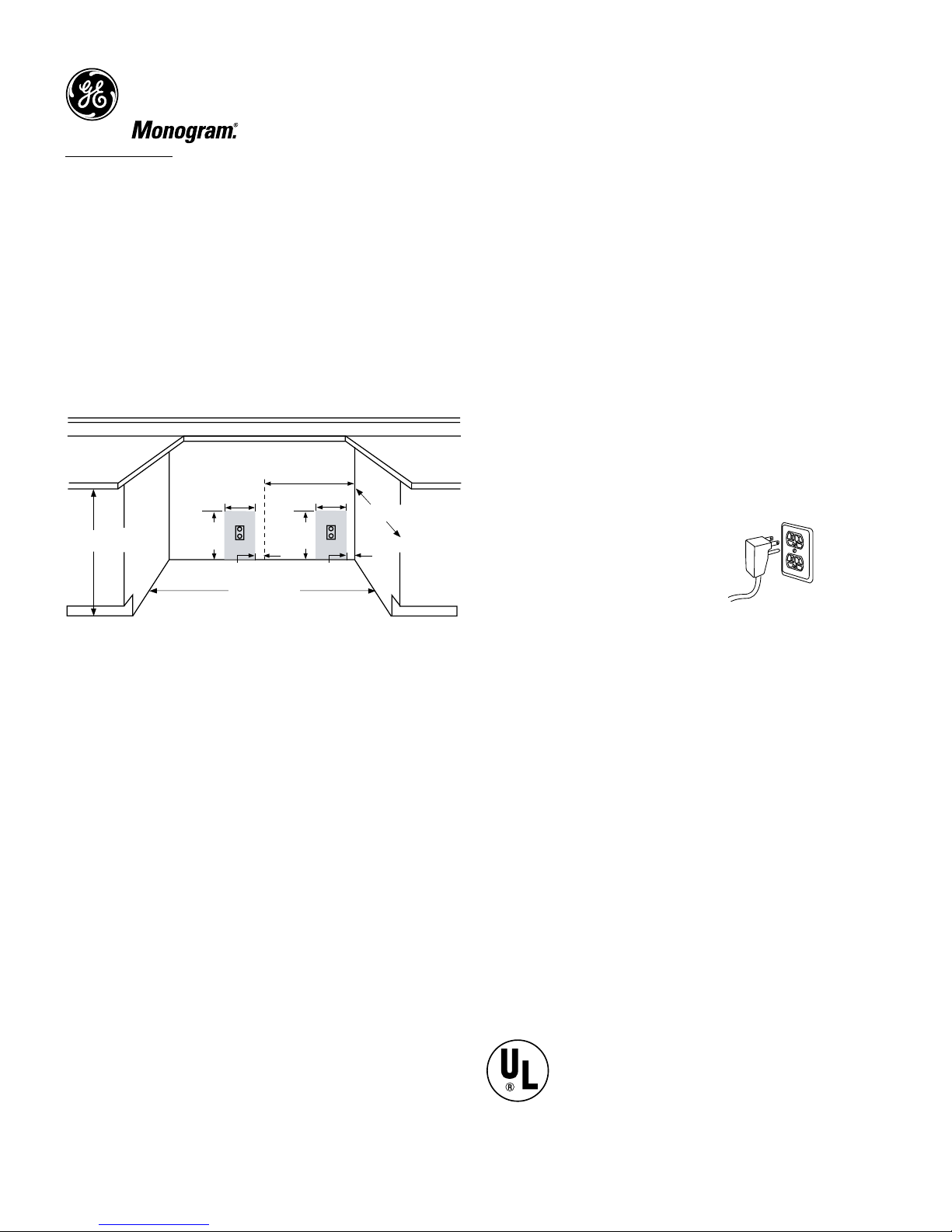

Dimensions and Specifications (in inches)

34-1/2" - 35"

24" Min.

47-1/2" Min.

1-1/2"

Locate Outlets

Max.

10-1/2"

1-1/2"

Max.

10-1/2"

24"

For a complete food storage center, install two Monogram refrigeration

modules side-by-side.

Note: Reversible door swing on wine chillers/reserves and beverage

centers only. See below for combination cutout dimensions.

Important Note: Products must operate from separate, properly

grounded receptacles.

Grounding the Wine Reserve

IMPORTANT – (Please read carefully)

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.

The power cord of this appliance is equipped with a 3-prong

(grounding) plug which mates with a standard 3-prong (grounding)

wall receptacle to minimize the possibility of electric shock hazard

from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

When a standard 2-prong wall outlet is encountered, it is your

personal responsibility and obligation to have it replaced with a

properly grounded 3-prong wall out.

DO NOT, UNDER ANY CIRCUMSTANCES,

CUT OR REMOVE THE THIRD (GROUND)

PRONG FROM THE POWER CORD.

DO NOT USE AN ADAPTER PLUG TO CONNECT THE

REFRIGERATOR TO A 2-PRONG OUTLET.

DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.

Specification Created 10/07

120037

Note: Additional cutout width may be required for models with

custom panels.

For answers to your Monogram,

®GE Proﬁle™or

GE®appliance questions, visit our website at

GEAppliances.com or call GE Answer Center®

service, 800.626.2000.

Listed by

Underwriters

Laboratories

ZDWI240WII – GE Monogram®Wine Reserve

Specification Created 10/07

120037

Features and Benefits

• Custom-Panel Option - Lets you coordinate models with

cabinetry for a look of elegant understatement

• Full-Extension Racks - Offer fronts made of solid heart-

of-cherry, which can be finished to complete cabinetry

• Precise Digital Controls - Are discreetly concealed

behind the door, where they can be easily adjusted

• Digital Touch Temperature Controls - Allow you to

select precise temperature settings, which are essential

for proper wine storage

• Storage Convenience - Full-extension sliding racks store

up to 57 wine bottles and keep them close at hand

• Flexible Installation - The free-standing wine reserve

may be built into cabinetry, and the door swing is easily

reversed as needed

• Model ZDWI240WII –Custom panel

ZDWI240WII – GE Monogram®Wine Reserve

ZIWI240WII
