GE MONOGRAM ZISS480DMSS Manuale

Monogram.

™

For answers to your Monogram,

® GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 2/02

ZISS480DMSS - GE Monogram 48" Built-In Stainless Steel Refrigerator with

Dispenser and Water Filter

47-1/2

Electrical

Area

84 1/2" max

83 1/2" min

Finished

Opening 74" From Floor

to Bottom

of Electrical

24"

5" 5" 3 1/2"

Water Supply

3 1/2"

48" Models 20"

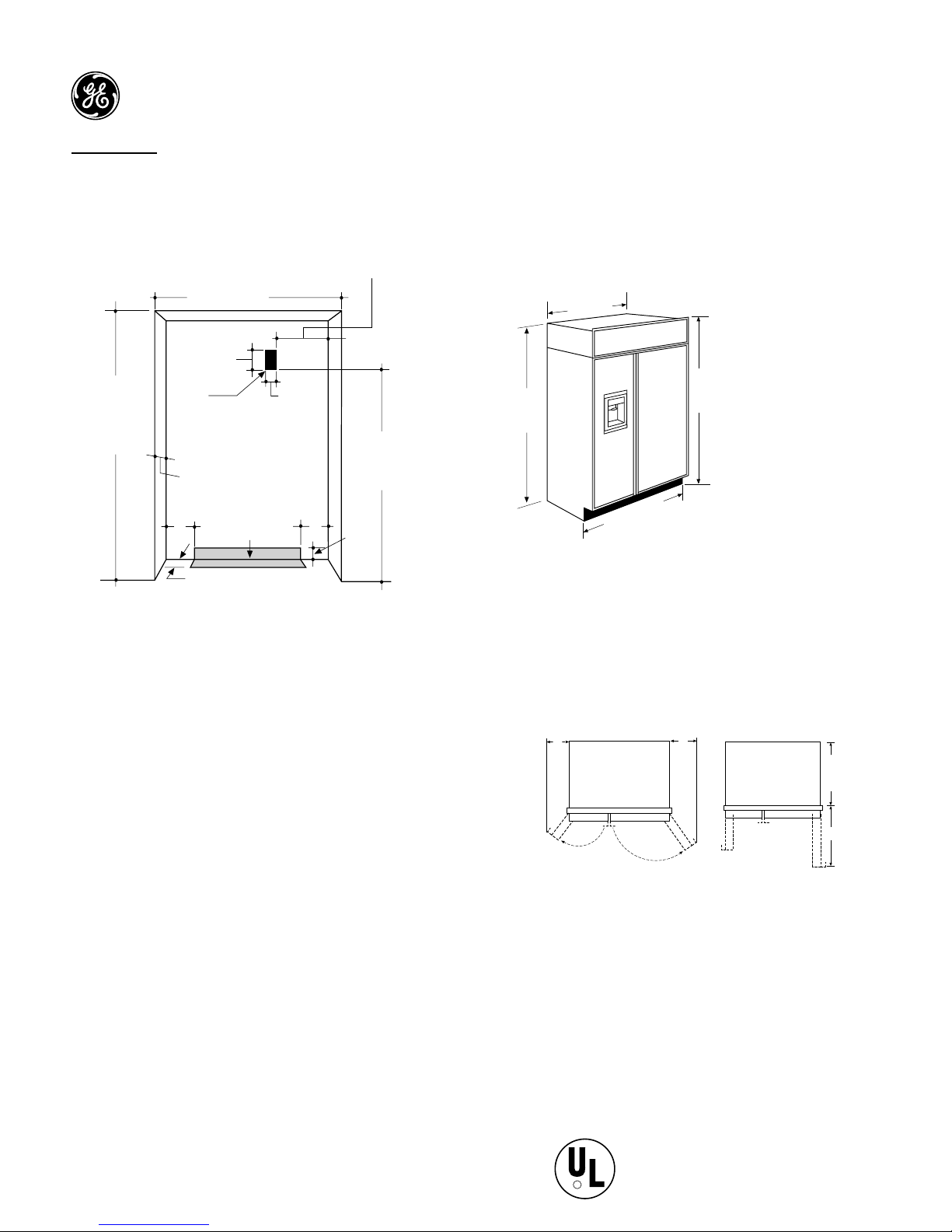

THE INSTALLATION SPACE

Product Clearances

These refrigerators are equipped with a 2 position door

stop. The factory set 130° door swing can be adjusted

to 90° if clearance to adjacent cabinets or walls

is restricted.

20"

15"

23-7/8"

Behind

Frame

28-5/8"

Allow minimum clearances for freezer door and

fresh food door for a full 130°door swing and to

allow for pan removal.

4" minimum clearance is required when door

swing is adjusted to 90°. If the 90°door stop

position is used, pan access is maintained, but

pan removal is restricted.

130°Door Swing 90°Door Swing

Water And Electrical Locations

The opening must be prepared with the electrical and water

supply located as shown.

The cutout depth must be 24".

Designed for industry standard flush installation. The

refrigerator will project forward, slightly beyond adjacent

cabinetry, depending on your installation.

The cutout depth beneath a soffit:

When installed beneath a soffit, the soffit cannot exceed the

24”installation depth shown. The top case trim overlaps the

bottom of the soffit.

Frameless cabinets:

The case trim overlaps cabinets at the top and sides.

Therefore, frameless cabinets may require filler strips to

prevent interference with cabinet door swing. The opening

must allow for filler strips.

Additional Specifications

•A 115 volt 60Hz., 15 or 20 amp power supply is required. An

individual properly grounded branch circuit or circuit breaker

is recommended. Install a properly grounded 3-prong electrical

receptacle recessed into the back wall. Electrical must be

located on rear wall as shown.

Note: GFI (ground fault interrupter) is not recommended.

•Water line can enter the opening through the floor or back

wall. The water line should be 1/4" O.D. copper tubing between

the cold water line and

water connection location, long enough to extend

to the front of the refrigerator. Installation of an easily

accessible shut off valve in the water line is recommended.

*84" From

Floor to

Top Frame

48"

Frame to Frame

47"

Case Width

*83-1/2"

Rear

* Shipping height.

The refrigerator

can be adjusted to

fit into a cutout that

is 83-1/2”min. to

84-1/2”max. height

Note that the top

case trim at the

front is 1/2”higher

and will overlap

upper cabinetry or

soffit. Use leveling

legs and wheels for

height adjustment.

Specification Revised 2/02

Monogram.

™

CONTROL

LOCK

DOOR

ALARM

Features and Benefits

•30.7 cu ft Capacity (Fresh Food 17.8 cu ft /

Freezer 12.9 cu ft)

•Wrapped Stainless Steel Doors and Grille (Trimless)

•Energy Star®Qualified

•Tubular Stainless Steel Handles

•Exterior Proximity Sensor Dispenser with Cubes,

Crushed Ice and Chilled Water

•GE SmartWater™Filtration System

•Climate Control Drawer with Express Chill,

Express Thaw and Select Temp

•Sealed Adjustable Humidity Produce Pan with Easy

Access Lid and Full Extension Slides

•Sealed High Humidity Produce Pan with Full

Extension Slides

•Adjustable Sealed Deli Pan with Full

Extension Slides

•3 Adjustable, 1 Fixed Spill-Proof Glass Fresh

Food Shelves

•Gallon Door Storage

•4 Adjustable Door Bins

•2 Sealed Dairy Compartments

•Wine Caddy

•Glass-Covered Butter Dish

•Freezer Multi-Shelf Halogen Light Tower

•4 Adjustable Wire Freezer Shelves

•2 Utility Baskets with Full Extension Slides

•3 Adjustable Freezer Door Bins

•Slide-Out Can Rack

•Automatic Icemaker

•Removable Ice Storage Bin

•Model ZISS480DMSS–Stainless steel wrap

ZISS480DMSS - GE Monogram 48" Built-In Stainless Steel Refrigerator with

Dispenser and Water Filter
