PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator
with Dispenser
TM
Specification Revised 7/04
210398
Dimensions (in inches)
"94 SxS Refer
A
Front View
Top View
G
D
C
F
BE
H
**When cap is removed: 69-1/4".
**Width including caps is 36-3/16".
† Water hook-up fits in back air clearance when calculating installation depth.
If installed against a wall, allow clearance of 14-3/16" on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without disassembling:
18-15/16".
Plus, allow additional space for any necessary leveling adjustments.
Overall
Dimensions
Height to top of hinge (in.) A 70-1/2*
Height to top of case (in.) B70-1/2
Case depth without door (in.) C†28-1/2
Case depth less door handle (in.) D†32-3/4
Case depth with door handle (in.) E†35-3/16
Depth with fresh food door open 90° (in.) F†50-9/16
Width (in.) G35-7/8**
Width with door open 90° with door handle (in.) H36-1/4
Air
Clearances
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
R
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator
with Dispenser
TM
Specification Revised 7/04
210398
Water Line Coupler
1.
366-15A
Hinge Screws
Wire Harness
Toekick Screw
4.
3.
2.

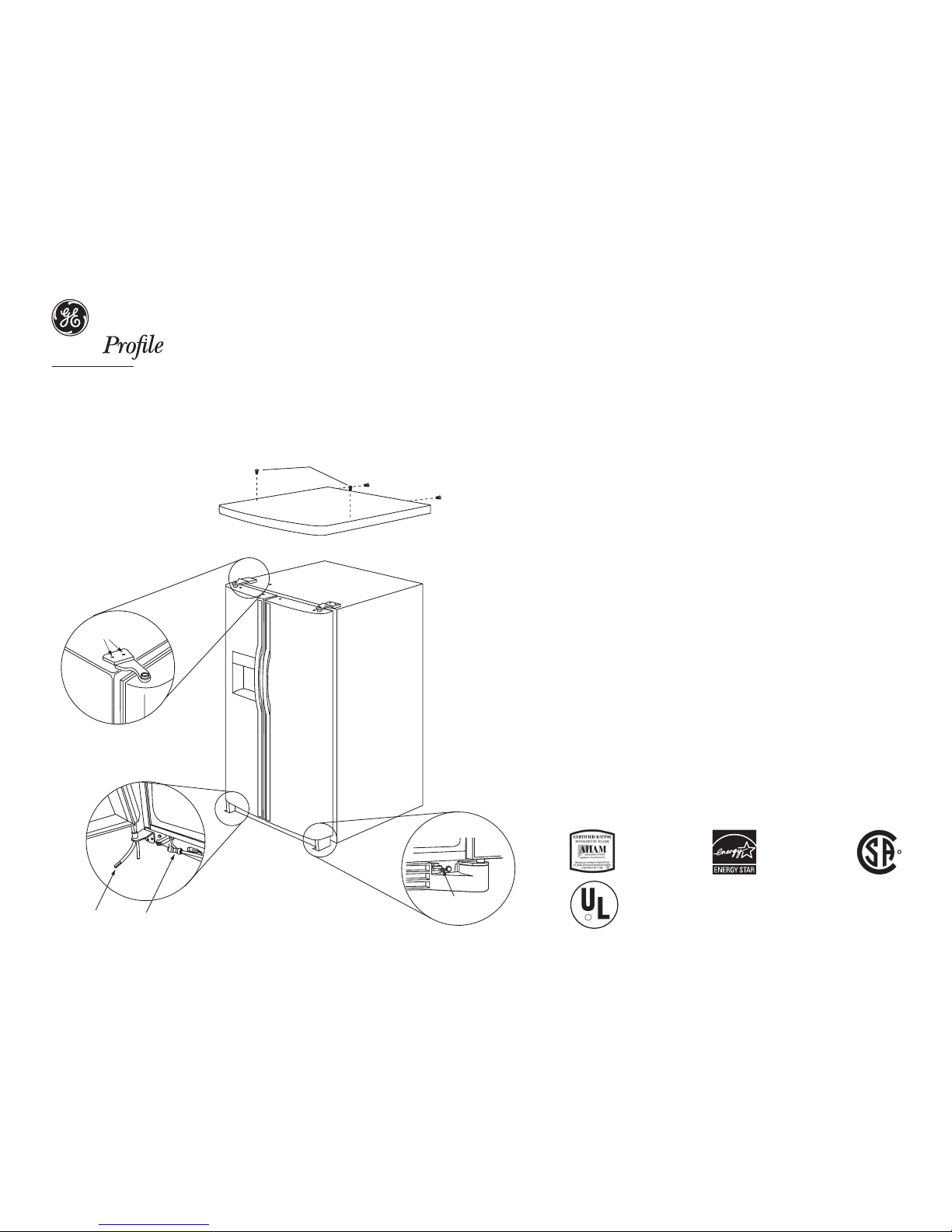

To Remove Top Cap and Doors on PSW26SGR
Step 1: Locate and remove two Phillips head screws on the top of
the refrigerator. Remove two screws, one on each side at
the rear of the top cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the
toekick. Pull forward to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by
pushing against the collar on the left side. Disconnect
wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the
top hinge. Carefully remove hinge while supporting door.
Lift door up and off bottom hinge. Remove fresh food door
in the same manner. Note: Do not remove bottom hinges!
Door alignment will be difficult if bottom hinges
are removed.
Step 5: Place refrigerator onto a hand truck, upright and against
one side. Move refrigerator to the installation location.
Reinstall Doors, Top Cap
Step 6: Carefully lower doors onto bottom hinges. Be sure to route
the tubing and electrical connector through the bottom
hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the
original screws in the top and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
R
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator
with Dispenser
TM
Specification Revised 7/04
210398
Features and Benefits
• Full-wrap stainless design – Features stainless steel doors, side panels and top for a truly dramatic look
• CustomCool™ Technology With Full Extension Slides – Chills in minutes, thaws in hours and keeps foods
fresher, longer
• ClimateKeeper™ Temperature Management System – Best Temperature Management System
You Can Buy!
• Upfront Electronic Digital Display – Clearly displays exact temperatures for the fresh food and
freezer compartments
• Integrated Ice™ System – Frees up valuable freezer space. It tilts down, providing easy access to
cubed ice.
• Contoured Exterior – Create a high-fashion look with gently rounded doors and edges
• In-the-Door Beverage Rack – Conveniently located inside the refrigerator door to increase flexibility
and to free up valuable shelf space
• Model PSW26SGRSS – Stainless steel
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
PSW26PSRSS
WATER
CRUSHED
CUBEDCLOCK SET
LIGHT
DOOR ALARMRESET WATER FILTER
HOLD 3 SEC.
LOCK CONTROL
HOLD 3 SEC.
Arctica
