GE Profile CustomStyle PSI23MGR Manuale

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

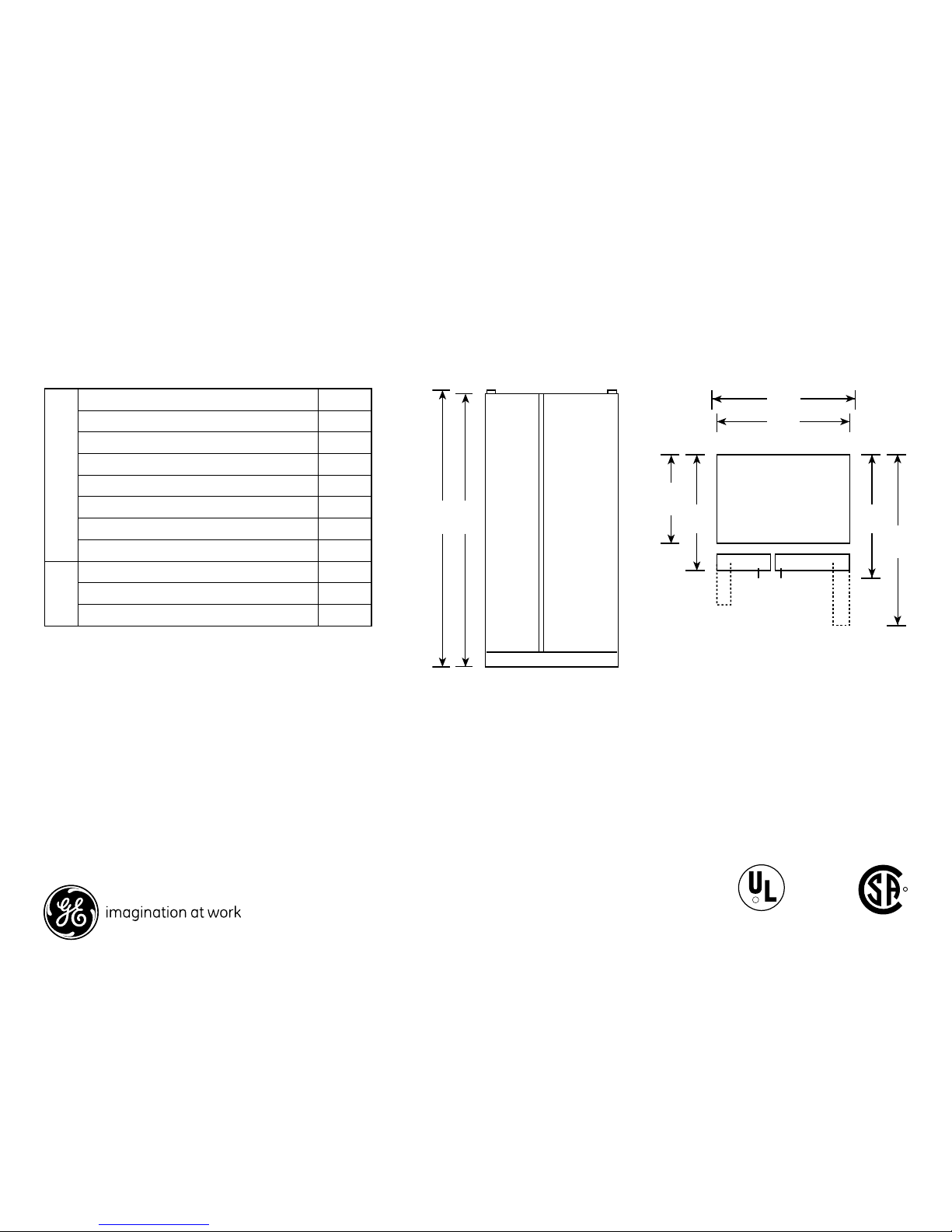

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4*

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-1/5

Depth with fresh food door open 90° (in.) F†45-4/7

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 40

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

* Height to top of door trim (in.): 70-1/4

† Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on

freezer side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

Specification Revised 7/05

Dimensions and Installation Information (in inches)

210288

"94 SxS Refer

Front View

Top View

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

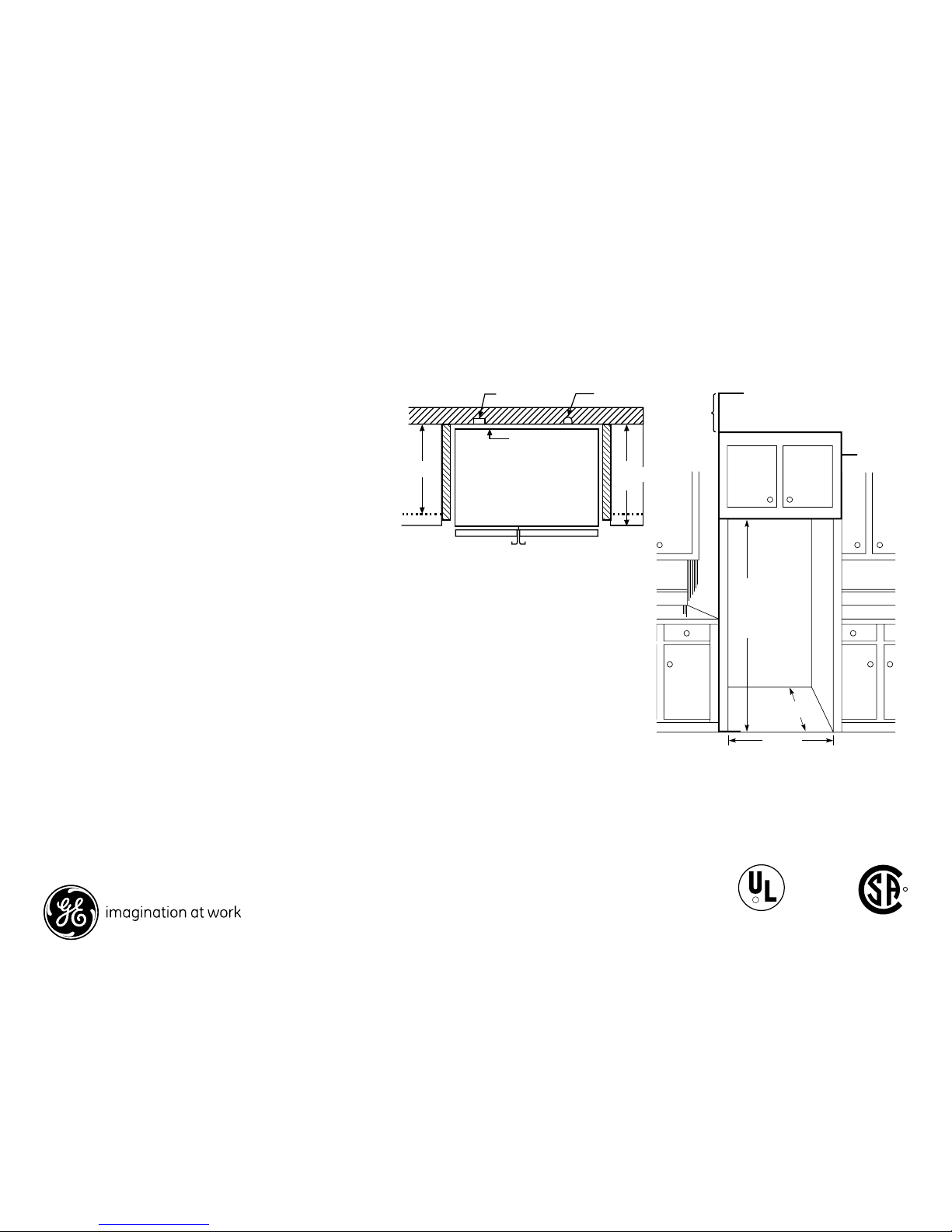

Rough-In Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

Listed by

Underwriters

Laboratories

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

• If optional collar trim kit is to be used or anticipated, see collar

trim installation for different rough-in dimensions

**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and

measured from the finished floor to top of opening (or the

underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refrigerator,

you may need to consider adding a maximum of 1/4" (70-1/2")

to height of opening for 23 cu. ft. models and 1/8" (72-3/8”) for

25 cu. ft. models to allow for additional clearance between the

cabinet doors and the top of refrigerator trim when the cabinet

doors are in open position.

210288

Specification Revised 7/05

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

Specification Revised 7/05 210288

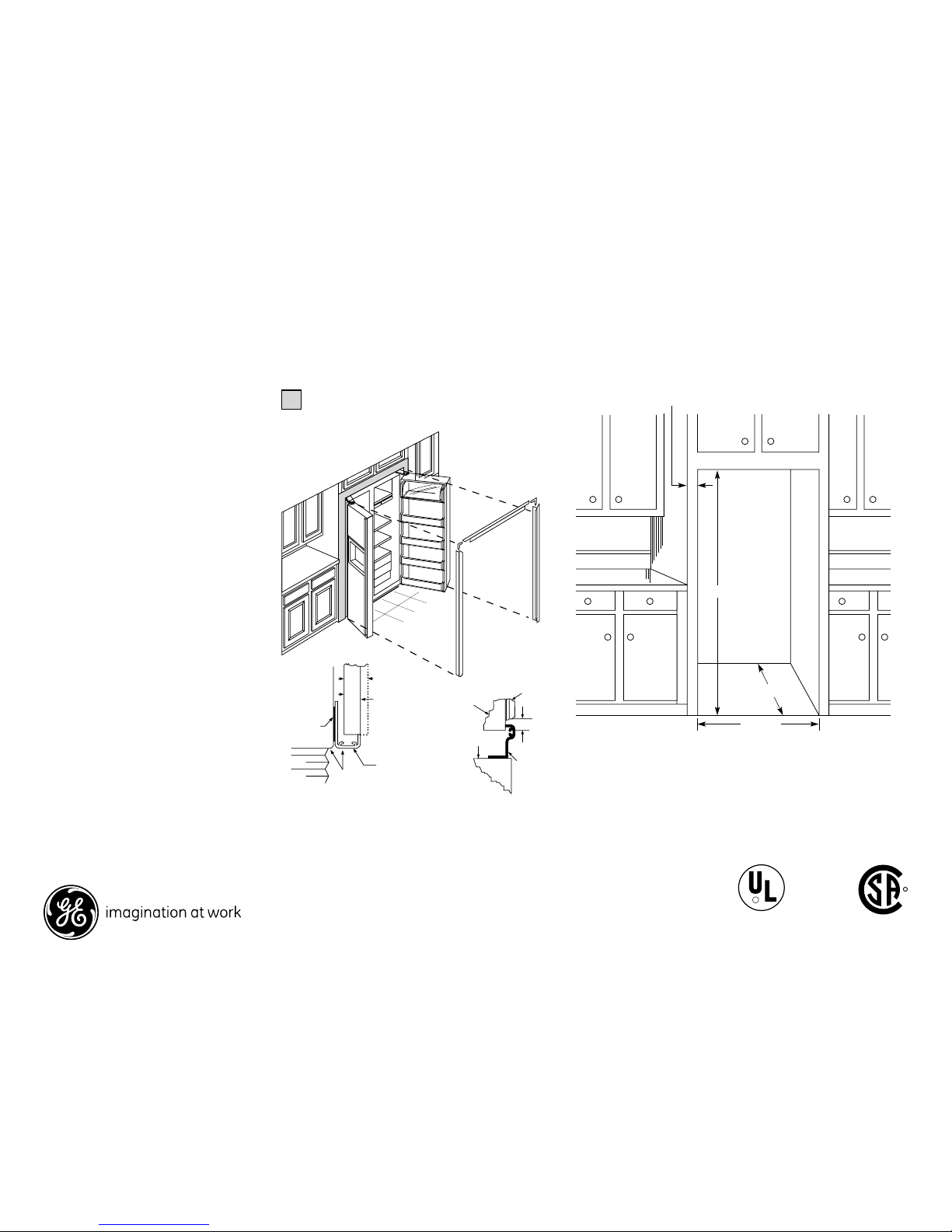

Collar Trim Installation

An enclosure is required to match up to the

trim, see Typical Installation. To obtain the

most integrated look, the cabinet or soffit

above the refrigerator should extend out

to the same depth as the side panels. The

refrigerator opening must have minimum

dimensions of 70-1/4" high x 36-1/8" wide

x 24-1/2" deep as shown at right. If there is

an overhead cabinet, allow 1" for cabinet

door clearance with the top trim piece so

the cabinet doors can be opened without

hitting the top trim. If 1/2" side panels are

used, then side trim and panel will be even.

If 3/4" side panels are used, then some of

the side panel will extend beyond the trim

and must be finished.

IMPORTANT: Before finalizing specifications

for your GE Profile CustomStyle Refrigerator,

please NOTE:

• A minimum of 36-1/8" is required for

refrigerator installation with collar

• Be sure to allow for 1/2" or 3/4" side

panels in addition to the 36-1/8"

minimum.

Typical Installation

Shaded areas represent front surfaces of side panels and

overhead cabinet or soffit that contacts trim.

Refer collar trim install

70-1/4"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

Collar Trim Installation Art

Rough-In Dimensions and Installation Information (in inches)

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Side trim must be installed

flush with the gasket contact

surface on the case.

Refrigerator

Case

Side TrimDoor Gasket

Overhead

Cabinet

Door

Top Trim

Case

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Listed by

Underwriters

Laboratories

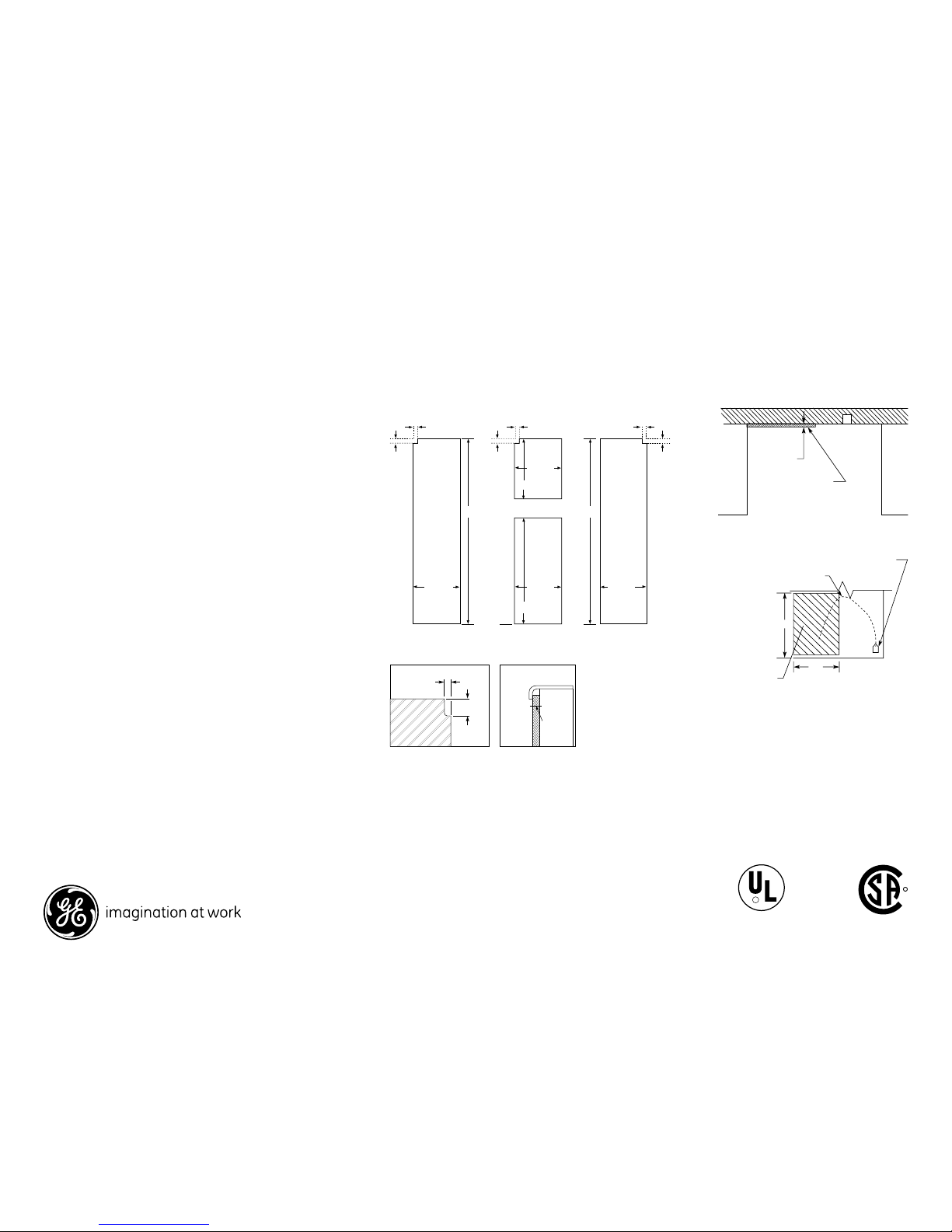

Order your own custom wood panels to match cabinetry

or other decor.

Panels up to 1/4" thick will fit door frame with no special

preparation. Add filler behind material thinner than 1/4"

for proper fit.

Weight Limits: Total weight of panels (i.e., both freezer

panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.

NOTE: Panels up to 3/4” will require special routing area

around handles. Dimensions may vary depending on

depth of panel.

IMPORTANT: Before finalizing specifications for your

GE Profile CustomStyle Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for refrigerator

installation with collar

• Be sure to allow for 1/2" or 3/4" side panels in addition

to the 36-1/8" minimum.

Specification Revised 7/05 210288

Door Panel Dimensions and Installation Information (in inches)

Installation of Water Outlets

Freezer Panel

without Dispenser

Freezer Panel

with Dispenser

Fresh Food

Panel

(Fresh Food panel shown)

Notch required at top

corner as noted.

Detail C

Freezer Panel

Without Dispenser

Freezer Panel

With Dispenser

Fresh Food

Panel

Cut

out

1/8 1/8

14-15/32 14-15/32

14-15/32

33-5/8

17-7/8

19-15/32

5/16

Cut

out

Cut

out 1/8

5/16 5/16

FRONT

67-9/32 67-9/32

FRONT FRONT

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

5/16"

1/8"

Dr. Panel Dim. Detail C

1/4" Max.

Panels 1/4" thick

or less

Dr. Panel Dim. Panel 1/4 Thick

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

PSI23PGR

PSI23NGP

PSI23MGP

WATER

CRUSHED

CUBEDCLOCK SET

LIGHT

DOOR ALARM

RESET WATER FILTER

HOLD 3 SEC.

LOCK CONTROL

HOLD 3 SEC.

Arctica

210288

Specification Revised 7/05

Features and Benefits

• CustomStyleTM Configuration - Offers a built-in look without the built-in expense

• ClimateKeeperTM System - Best Temperature Management System You Can Buy!

• Upfront, Electronic Touch Temperature Controls with Digital Temperature Display -

Precise and easy to use, taking the guesswork out of setting accurate temperatures

• Integrated IceTM System - Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice

• Tall LightTouch! Dispenser - Delivers chilled water cubed ice or crushed ice at the slightest touch

• Integrated Shelf Support System - Provides strong, yet flexible support

• FrostGuardTM Technology - Protects frozen items from freezer burn by monitoring door openings

and defrosting only when needed

• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put

• QuickIceTM Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCoolTM Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings

• GE SmartWaterTM Plus Filtration System - Delivers clean, great-tasting water and ice through the

LightTouch! Dispenser with indicator light

• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility

and to free up valuable shelf space

• ClearLookTM Gallon Door Bins - Holds gallon-size containers with style and ease

• Model PSI23MGRWV - White on white

• Model PSI23MGRCV - Bisque on bisque

• Model PSI23MGRBV - Black on black

PSI23MGR

GE Profile CustomStyle™ 22.6 Cu. Ft. Side-By-Side Refrigerator

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GE Frigorifero

GE Monogram ZIRS360NNLH Manuale utente

GE Cafe CSHS5UGXSS Guida di sicurezza

GE GSCS3KGYSS Istruzioni per il montaggio

GE Profile PFS22SBSSS Manuale

GE ZISS36D SS Manuale utente

GE PFSF5NFY - Profile 25.1 cu. Ft. Bottom-Freezer... Manuale

GE GPV10 Istruzioni originali

GE GSS20DBP Istruzioni utente

GE 17 Istruzioni operative

GE GTE15 Series Manuale utente

GE ENERGY STAR GTH18CCDBB Istruzioni per il montaggio

GE ESH22XGRECC and Istruzioni operative

GE PTS18SHSSS Manuale

GE GTS18ABDBB Istruzioni per il montaggio

GE TBF14 Istruzioni per l'installazione

GE GSH22JFR Manuale

GE Monogram ZFSB25DSS Manuale utente

GE GBS20KBPAWW and Istruzioni operative

GE Monogram ZIC360N RH Guida

GE Profile PFSS5NJXSS Manuale

GE PFSF0MFCBB Manuale

GE GTS22KBPWW - 21.7 cu. Ft. Top-Freezer... Manuale

GE TBF21R Istruzioni per l'installazione

GE PTS25LHSBB - Profile 24.6 cu. Ft. Top-Freezer... Istruzioni per il montaggio

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
