GE Profile PSC23MSTSS Manuale

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Dimensions and Installation Information (in inches)

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-3/16

Depth with fresh food door open 90° (in.) F†45-9/16

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-15/16".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

PSC23MST

GE Profile CustomStyle™22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser

Specification Revised 10/06 210205

Listed by

Underwriters

Laboratories

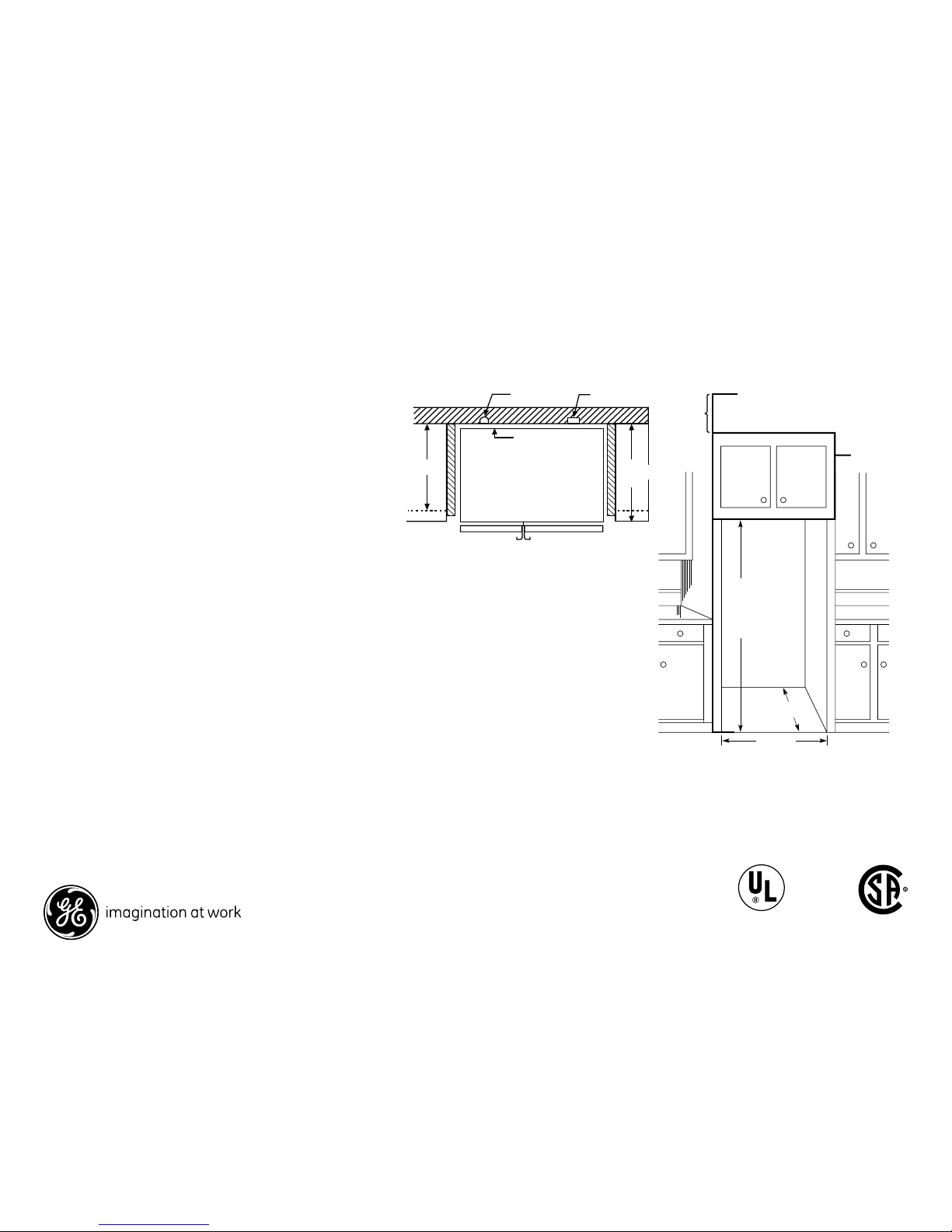

Rough-In Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

PSC23MST

GE Profile CustomStyle™22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser

Specification Revised 10/06 210205

Listed by

Underwriters

Laboratories

*The rough-in dimensions of 70-1/4”/72-1/4” are minimum and measured from the finished

floor to top of opening (or the underside of the overhead cabinets) For Models with Trim Kit:

If frameless style cabinets are planned for above the refrigerator, you may need to consider

adding a maximum of 1/4” (70-1/2”) to height of opening for 23 cu. ft. models and

1/8” (72-3/8”) for 25 cu. ft. models to allow additional clearance between cabinet doors

and top of refrigerator trim when cabinet doors are in open position.

PSS23MSTSS

PSS26MSTSS

WATER

LOCK

Hold3seconds

CRUSHED

DOOR

ALARM

CUBED

LIGHT

Hold3seconds to Reset

QUICKICE

RSET

FILTER

PSC23MST

GE Profile CustomStyle™22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser

Features and Benefits

• Stainless Steel Exterior - Convey a look of utmost polish and sophistication

• CustomStyle™Configuration - Offers a built-in look without the built-in expense

• ClimateKeeper™System - Best Temperature Management System You Can Buy!

• ExpressChill with 3 settings - Chills beverages quickly. Select 15, 30 or 45 minute with easy

one button selection

• Electronic Controls with Actual Temperature Display - Eliminates guesswork in setting

refrigerator temperatures

• Tall LightTouch! Dispenser with Child Lock - Delivers chilled water, cubed ice or crushed ice at

the slightest touch. A child lockout option keeps the dispenser off limits to little hands

• Slide ‘n Store™Full-Extension Freezer Baskets - Extends 12” to 16” beyond the cabinet,

providing easy loading and unloading

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - “Revs up” the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Integrated Shelf Support System - Provides strong, yet flexible support

• Model PSC23MSTSS - Stainless steel

Specification Revised 10/06 210205
