GE Profile PSCS5RGXSS Manuale utente

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 5/08 210296

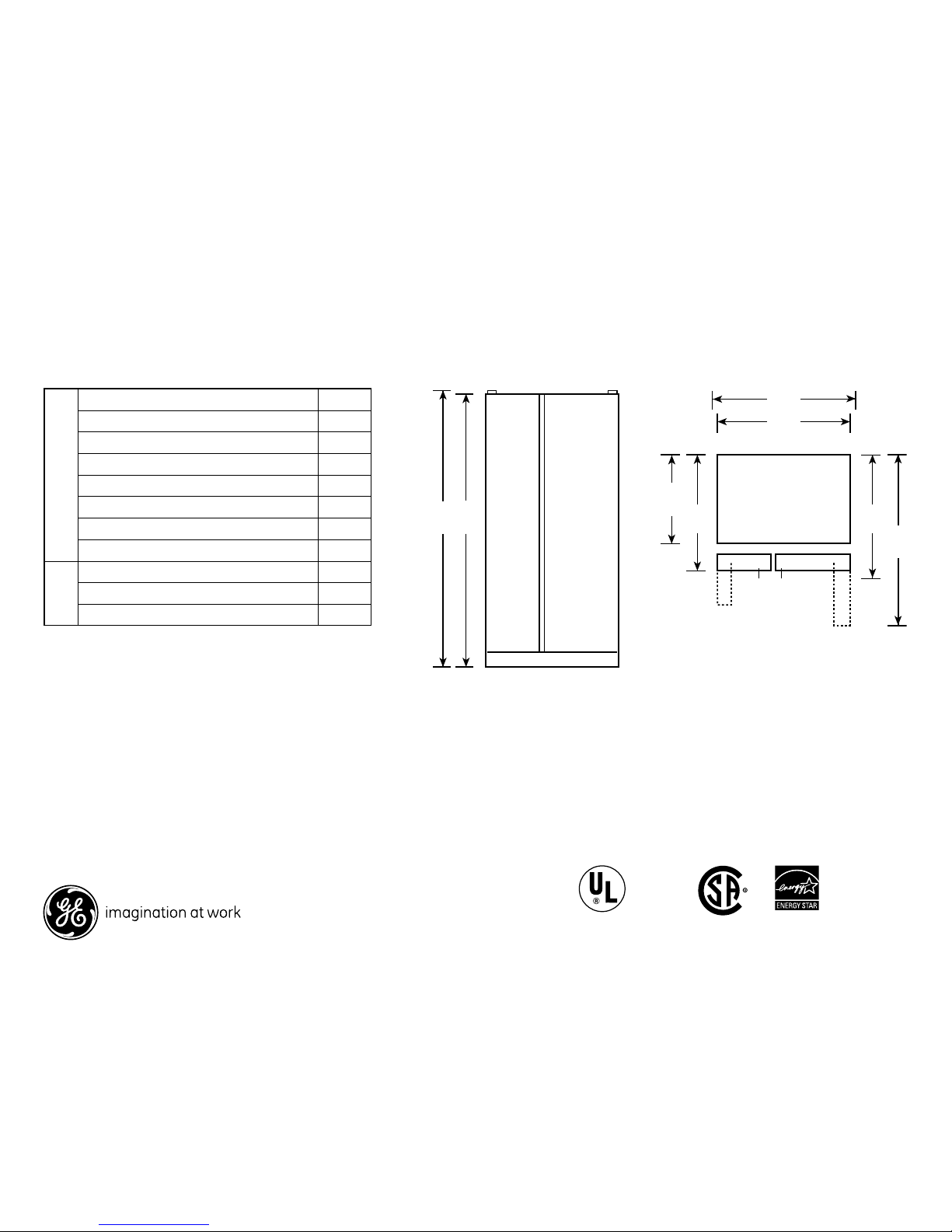

Dimensions and Installation Information (in inches)

Overall

Dimensions

Height to top of hinge (in.) A 72-1/8

Height to top of case (in.) B 71-5/8

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†27-1/8

Case depth with door handle (in.) E†29-5/8

Depth with fresh food door open 90° (in.) F†46

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41-3/8

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1

PSCS5RGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-

1/2" for 25 cu. ft. models are minimum and measured from the

finished floor to top of opening (or the underside of the overhead

cabinets). For Models with Trim Kit: If frameless style cabinets

are planned for above the refrigerator, you may need to consider

adding a maximum of 1/4" (70-1/4") to height of opening for 23

cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for

additional clearance between the cabinet doors and the top of

refrigerator trim when the cabinet doors are in open position.

†Model PSDW3YGX is 71-3/4"

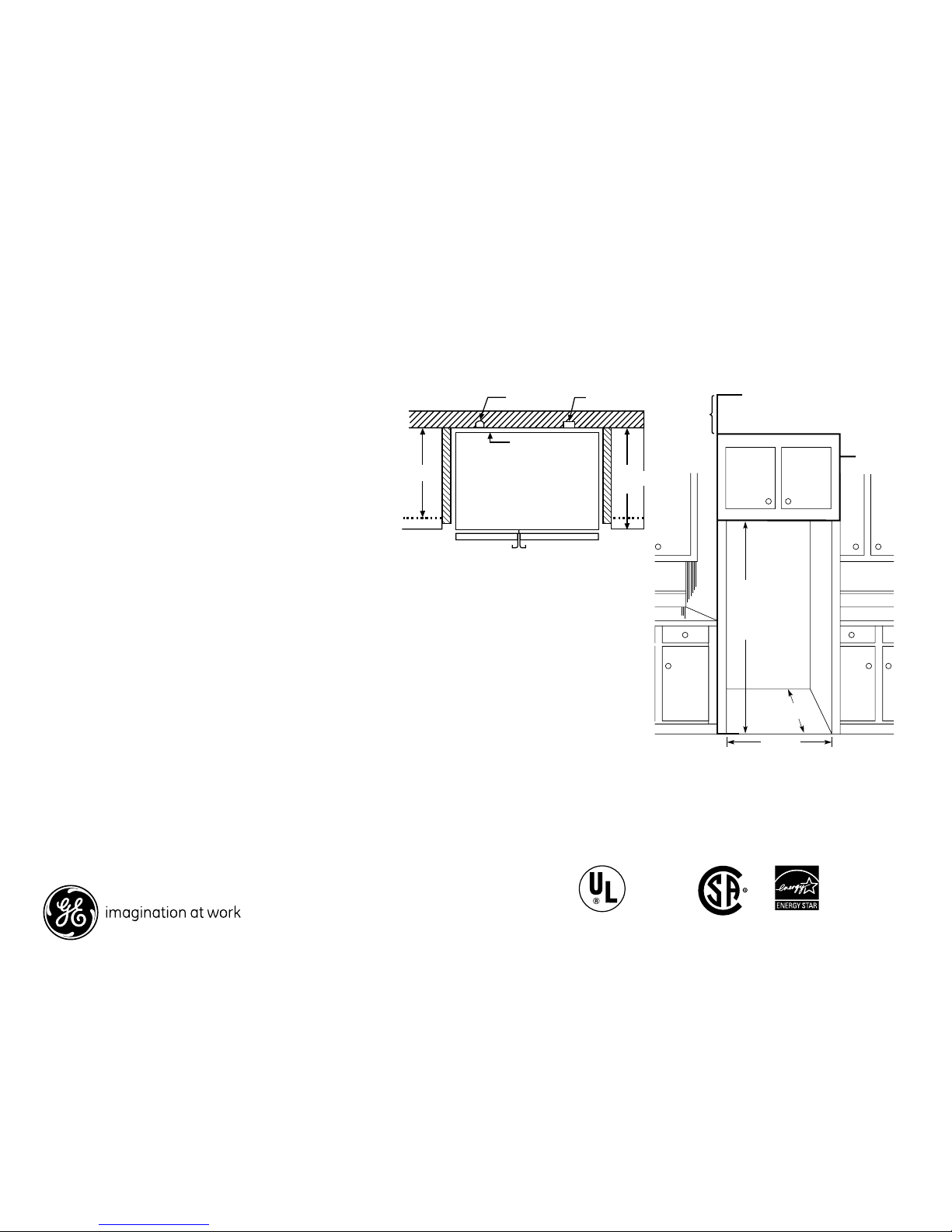

Rough-In Dimensions and Installation Information (in inches)

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

Collar Trim In. w/ceiling

70"*†

23 cu. ft. models

72-1/2"*

25 cu. ft. models

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.

models are minimum and measured from the finished floor to top of opening

(or the underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refridgerator, you may

need to consider adding a maximum of 1/4" (70-1/4") to height of opening

for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional

clearance between cabinet doors and top of refridgerator trim when cabinet

doors are in open position.

†Model PSDW3YGX is 71-3/4".

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 5/08 210296

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

PSCS5RGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 5/08 210296

Features and Benefits

• Counter-Depth Design - Offers a built-in look without the built-in expense

• Stainless Steel - Provides stainless steel doors and side panels for a truly dramatic look

• Integrated Dispenser with LED Lighting & UltraFlow100 - Illuminates the dispenser and pours up to

100 ounces of water per minute

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - Cools the refrigerator quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice

• Integrated Shelf Support System - Provides strong, yet flexible support

• Adjustable ClearLook™Door Bins - Hold gallon-size containers with style and ease

• In-the-Door Beverage Rack - Conveniently located inside the refrigerator door to increase flexibility

and to free up valuable shelf space

• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves

make clean up quick and easy

• GE Water Filtration System - Delivers clean great-tasting water and ice through the

LightTouch! Dispenser

• FrostGuard™Technology - Protects frozen items from freezer burn by monitoring freezer door

openings and defrosting only when needed

• Premium Quiet Design - GE's most advanced sound control system

• Model PSCS5RGXSS - Stainless steel

PSCS5RGXSS

PSCS3RGXSS

Lock

Controls

FreezerTemp

FridgeTemp

On/Off

Set

Features

0°FisRecommended for Freezer

37°FisRecommended for Fridge

Water

FREEZER

REFRIGERATOR

DoorAlarmOn

TurboCoolOn

ReplaceWaterFilter

Crushed Cubed Light

PSCS5RGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator
