GE SmartHome™

IntelliCorder Camera System

User’s Guide

45227-1 07/17/06

Before attempting to connect or operate this product,

please read these instructions carefully and save this

manual for future reference.

Congratulations

With the GE branded IntelliCorder, you can monitor the entrance

of any home or business and safely answer your door before

opening. The internal Digital Video Recorder (DVR), can capture

the video/audio of any visitor even when you are not present.

The IntelliCorder is a high-quality, battery-operated security

monitoring device. It uses a passive infrared (PIR) motion sensor

to detect guests/intruders at your front or back door and projects

an on-screen image onto the internal monitor screen. If set into

record mode, it will activate a video recording, storing it in the

internal memory or onto a SD memory card.

This instruction manual explains in simple steps how to install,

use and care for your new IntelliCorder in your

home, ofﬁce or business.

Parts Checklist

Identify all parts before proceeding with installation

Battery Charger

Clock Battery

(installed in

IntelliCorder)

Mounting Bracket

Support

tubes (2 sizes)

T-Shaped

Lock-Screw

Rechargeable

Battery

IntelliCorder

Camera with PIR sensor and

double-side tape

Adjustment

Tool

Things You Should Know

FCC Warning

Any unauthorized changes or modiﬁcations to the equipment

would void the users authority to operate. This IntelliCorder

complies with part 15 of the FCC rules. Operation is subject

to the following two conditions:

1. The IntelliCorder may not cause harmful interference

2. The IntelliCorder may accept any interference received,

including interference that may cause undesired operation.

Important Safeguards

1. Cleaning – Turn off this video unit before cleaning. Do not

use strong or abrasive detergents. Use a dry cloth to clean the

camera body when dirty. In case the dirt is hard to remove, use a

damp (not wet) cloth for cleaning.

2. Water and Moisture – Do not use any component

of this system in an exposed outdoor area, unless the instructions

clearly state that it is safe. Do not operate this system in the

presence of explosive or ﬂammable fumes.

Precautions

1. Do not attempt to disassemble the camera. There are no

user-serviceable parts inside.

2. Handle the IntelliCorder with care – Avoid striking or shaking.

Improper use or storage could damage the IntelliCorder.

Modifying or tampering with the device or its internal components

can cause a malfunction and void the IntelliCorder’s warranty. If

you feel the IntelliCorder may not be performing correctly, contact

customer service for assistance.

3. Motion Detection – The PIR motion sensor will NOT detect

motion through glass storm doors, screen doors or metal gates.

4. Camera faceplate care – Do not clean the lens with strong or

abrasive detergents. Use lens tissue or a cotton tipped applicator

and ethanol alcohol.

5. Light Source – The Cameras viewing area must be illuminated

with a suitable light source during evening and nighttime hours.

6. Door Mounting – The product should be mounted to a door,

only as recommended by the instructions. Contact customer

service for any questions.

7. Stand-by MODE - When not using your IntelliCorder set mode

switch to Play and Press Power. This will power off IntelliCorder.

8. Do not touch the LCD screen with a sharp-pointed object.

9. If your IntelliCorder is used in a cold environment, a residual

image may appear on the LCD screen. This is not a malfunction.

Contact customer service for any questions. Call 1-800-654-8483

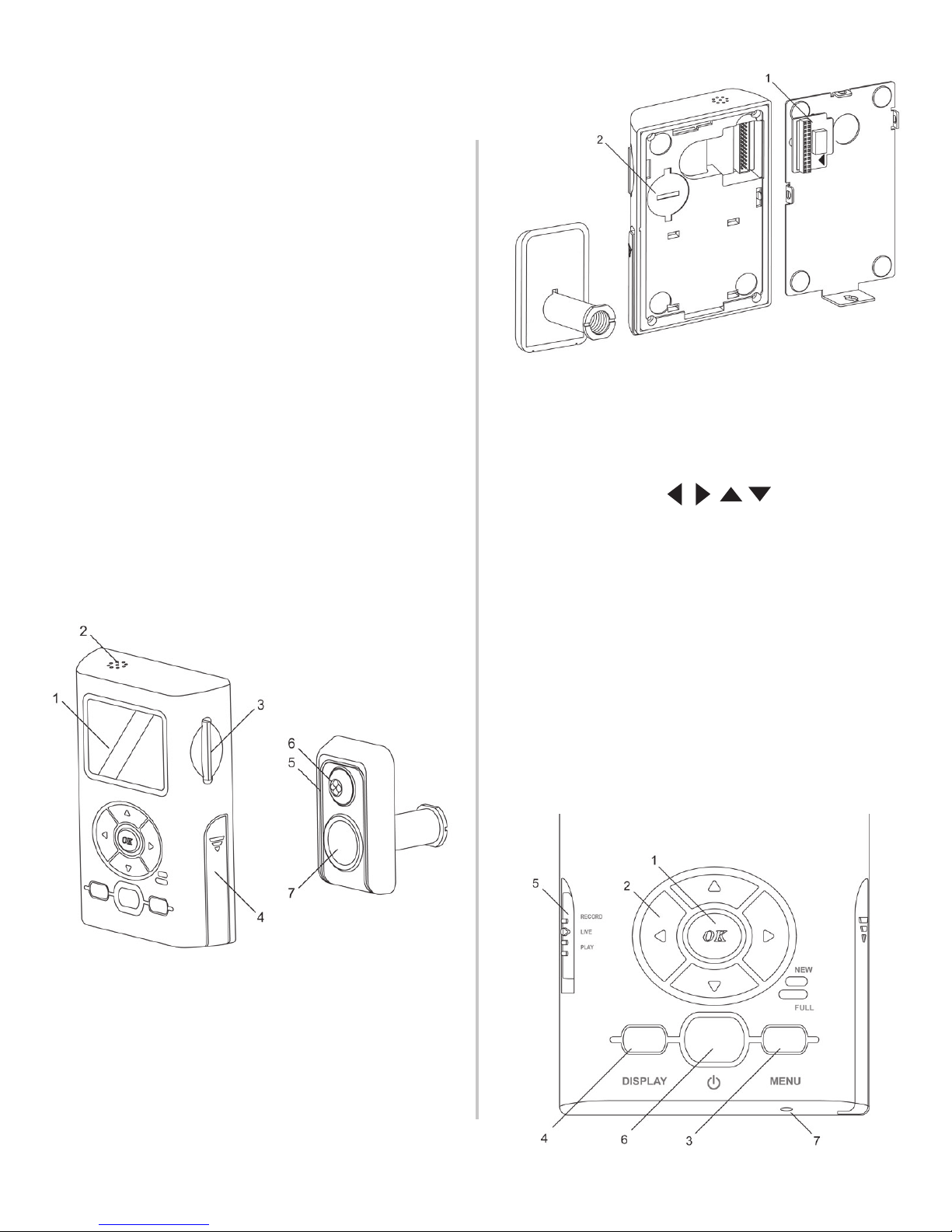

Features

Monitor and Sensor Front

1. LCD Screen - 1.5” LTPS LCD

2. Speaker - play back the audio

sound of recorded ﬁle in PLAY mode

3. SD Card Insert Slot

4. Battery Cover

5. Microphone

6. Motion-activated Sensor – detects

motion up to 6.5 feet (2 meters)

away and from a horizontal angle of

up to 125 degrees (Motion cannot be

detected through glass storm doors,

screen doors or metal gates).

7. Lens

Monitor and Sensor Back

1. Terminal

2. Clock Battery Cover

Control Panel

1. OK – conﬁrm setting

2. CURSOR –

3. MENU – enter Menu screen

4. DISPLAY – press this button to toggle

between Full Display On, Text Off and

Display Off

5. MODE switch – go to RECORD, LIVE,

or PLAY

6. POWER – activates and deactivates

the device in play mode

7. RESET – use a pointer or alike to press

this button to reset the unit

Operation Indicators

1. New Message Light Indicator

(Green)

2. Full Memory Light Indicator (Red)

3. Key Light Guide (Blue) – illuminates

when user presses any button

4. Low Battery Light Indicator (Red)

Preparation

Charging CAMERA Battery

Charge Battery fully before use

1. Plug in Charger.

2. Insert Battery onto the Charger, observing

proper +/- polarities as indicated. The red light

will turn on.

3. When charging is complete, the light

changes to Green.

4. Remove Battery from the Charger.

Notes:

• Charging takes approximately 2 hours.

• An amber light will indicate abnormal use or defective battery.

• Prevent metallic objects from coming into contact with the metal parts

of the Charger’s terminal. This may cause a short circuit, damaging

the Charger.

• Keep the battery dry.

• Battery life gradually decreases after repeated use and recharging

The rechargeable battery can last

up to two years. If operation time

becomes very short even after a

sufﬁcient charge, discard Battery

properly and contact Customer

Service to purchase a replacement

battery.

• If the battery will not be used

for a long period of time, it will

need to be fully charged, then fully

discharged for storage.

Install Battery

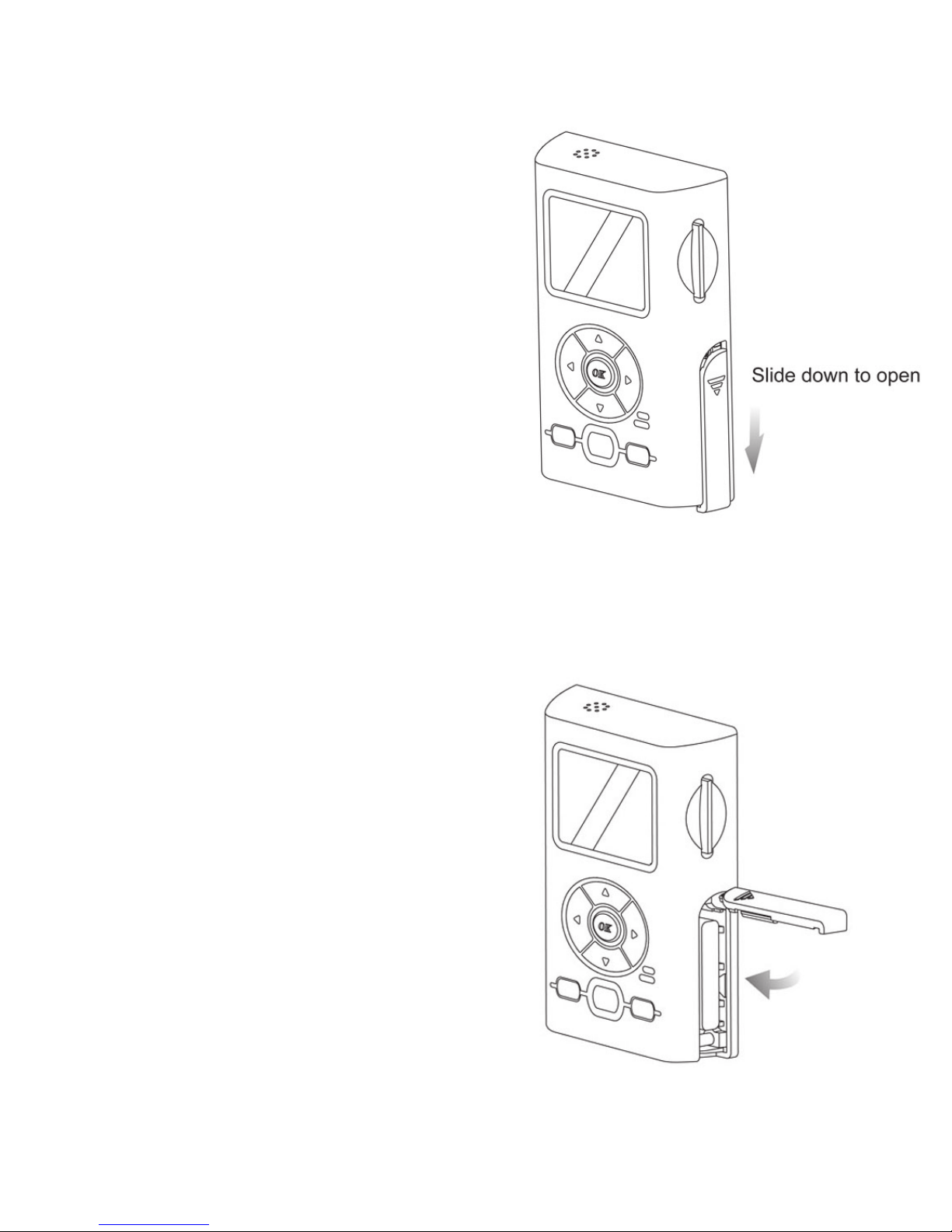

1. Press and slide the battery

cover downward. The cover is

spring-loaded and will open up

horizontally.

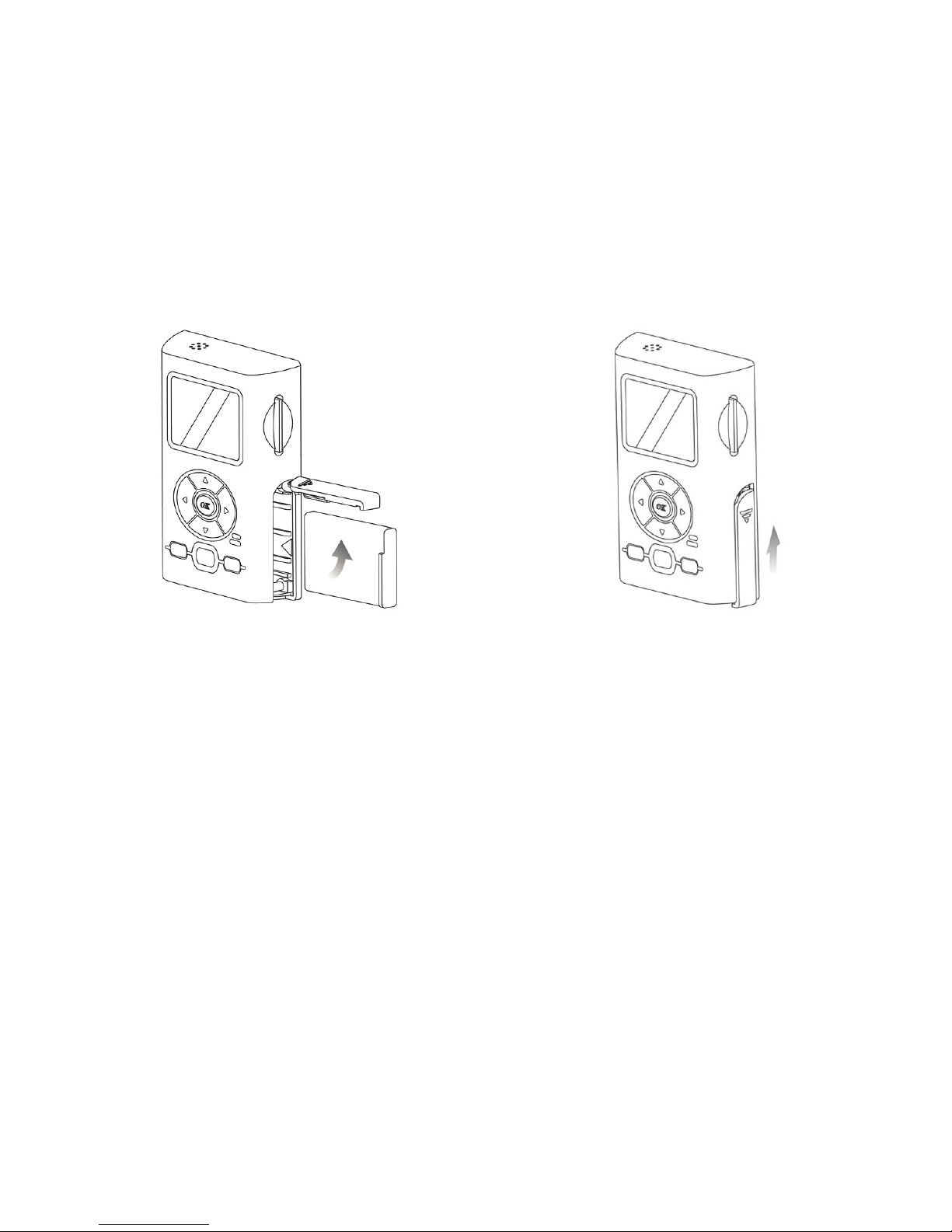

2. Install a fully charged Battery

into the battery compartment,

observing proper +/- polarities

as indicated. Press battery into

compartment until lower tab locks

battery into position.

3. Once the battery is locked, press

the cover down and slide up to

lock the battery cover.

To Remove Battery

1. Press and slide the battery

cover downward. The cover is

spring-loaded and will open up

horizontally.

2. Press Orange BATTERY RELEASE

tab down to unlock battery. The

battery is spring-loaded and will

eject out.

3. Once the battery has been

removed, press the cover down

and slide up to lock the battery

cover.

Battery Care

Caution:

• Charge only with speciﬁed

charger and AC adapter

• Battery can be charged within a

temperature range of 10C (50F)

and 35C (95F)

• Battery is normally warm after

charging or just after use.

• Do not use an insufﬁciently

charged or worn-out Battery

Safety precautions:

• Do not place Battery near, or

dispose of in ﬁre

• Do not directly connect (short

circuit) the positive (+) and

negative (-) terminals

• Never attempt to disassemble or

reassemble Battery

To avoid Battery damage:

• Do not drop or jar Battery

• Use Battery with the IntelliCorder only

• If Battery is used in extremely high

temperatures, an internal safety

circuit will automatically stop the

IntelliCorder’s operation to prolong

Battery life.

• While not in use, remove Battery from

the IntelliCorder and Charger, and store

in a cool, dark, dry place.

• Keep Battery terminals clean

Charger Caution:

• The battery charging unit operates

on AC 100-240 V 50/60Hz.

• Power-Cord Protection – The Power

supply cord should be routed so that

it will not be stepped on, pinched or

punctured by items placed upon or

against it.

• Overloading – Do not overload wall

outlets and extension cords as this can

result in a risk of ﬁre or electric shock.

• During charging operation, the

battery should be kept away from

high temperature, high pressure and

heat sources. Also it should be kept

away from children. Do not charge the

battery for over 24 hours.

CLOCK Battery Installation

The IntelliCorder’s internal clock

operates on a CR2032 lithium ﬂat cell

battery (included). To replace battery

when expired:

1. Remove the cover on the back of

the unit by rotating tabs into unlock

position.

2. Install a new CR2032 battery into the

clock battery compartment, observing

proper + / - polarities as indicated.

3. Replace the battery cover, rotate

tabs into lock position.

Warning:

• Dispose of old battery promptly and

properly.

Do not burn or bury.

• Replace battery with CR2032 only.

Use of another battery may present a

risk of damage to the IntelliCorder.

• Keep away from children. Do not

recharge, disassemble or dispose of

in ﬁre.

Note:

• Keep battery out of children’s reach.

Swallowing it may be harmful.

• Battery life is approximately two years.
