GeBe GPT-4443 Manuale utente

Operating Manual

GPT-4443

Elektronik und

Feinwerktechnik GmbH

Module und Geräte zum Eingeben,

Auswerten, Anzeigen und Ausdrucken ana-

loger und digitaler Daten.

Thermalprinter

GeBE Document No.:

SMAN-E-487-V1.1

Status: 12.03.2004

Pr inted: 15.09.2006

German: SMAN-D-486

The GeBE logo is a registered trademark of GeBE Elektronik und Feinwerktechnik GmbH. All other brands named in this brochure are properties of the re-

spective companies.Errors and changes reserved. The technical data given as e non-committal information and do not represent any assurance of certain

GeBE Elektronik und Feinwerktechnik GmbH

Beethovenstr. 15 • 82110 Germering • Germany • www.oem-printer.com

Telefon:++49 (0) 89/894141-0 • Fax:++49 (0) 89/8402168 • E-Mail:

[email protected]

GeBE E+F GmbH • w ww.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 1/12

Cassette Design

200 dpi Thermal Printer Mechanism

82.5 mm Paper Width

Easylaoding Technology

Report Printer Emulation

Description .......................................................... 3

Operation ................................................................ 4

Service ............................................................................... 4

Status Messages ............................................................ 5

Connections ........................................................................ 6

Interfaces .................................................................... 7

Printer Emulation .............................................. 8

Primo Bit ........................................................................... 8

UNI Bit ................................................................................ 9

MP-3489 .............................................................................10

Technical Data ............................................... 11

Technical Data ............................................................ 11

Dimensions, Product List ............................................ 12

Contents 2

Safety Instructions

Please read the operating instructions before first-time operation.

During installation:

Always disconnect the power.

Proper usage according to the operating instructions is required for pro-

duct warranty. If the user attempts to repair the product, all factory warran-

ties will be null and void. For technical questions, please contact the

GeBE Technical Support.

GeBE E+F GmbH • ww w.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 2 /12

Description 3

Service-Friendly:

The GPT-4443 is designed for industrial appli-

cations. Service technicians appreciate easy

serviceability during hectic days.

The simple service allows the printer to be in-

stalled in places that are difficult to access, sin-

ce for paper roll exchange, the cassette is com-

pletely removeable from the printer.

Connections:

The serial RS232 (V.24) interface and the po-

wer supply are accessable at the back through

standard connectors.

The Right Power Supply:

The GPT-4443 is supplied with 10 - 36VDC. For

short periods of time, the supply voltage may

reach 8 - 40VDC.

• Near Paper-End Detector :

Signals the end of the paper supply (app. 10%).

Options

• real time clock with alarm register

• As an option, the printers can be equipped with a

Centronics interface.

GeBE E+F GmbH • w ww.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 3/12

Operation Service 4

Which thermal paper should be used ?

The printer mechanism is specified for a paper width of 82 mm +/- 0.5, with a weight of

60 g/sqm. Other paper widths may cause dysfunctions. GeBE offers paper rolls with a

42 mm diameter (app.25m) and a weight of 60g/sqm in its standard program . Other

diameters are available on request. For special applications, archivally safe, two-ply,

or water, grease, or alcohol resistant papers are available.

The GeBE team will gladly assist you in selecting a suitable thermal paper.

Which side of the thermal paper can be printed on ?

The printable side of the paper roll is always the side facing out. When in doubt, test

the paper with a fingernail: The thermosensitive side will blacken, when you run your

sharp fingernail over the paper applying pressure.

How is the paper roll inserted?

For easy service, unlock the front lid, and remove the printer cassette from the metal

housing. Then, pull out the rewinder disk on the side, and remove the remaining paper.

Unlock the paper roll axle on both sides, before pulling it out of the paper roll holder to-

ward the top (Avoid wiggling, since it might cause damage to the paper roll holder).

Push the paper roll axle inside the new paper roll, and insert it in the paper roll holder. -

Guide the paper around the rubber roll, below the cassette housing and back to the pa-

per rewinder. Push the printer mechanism cassette back into the housing until the

catch locks in place.

GeBE E+F GmbH • ww w.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 4/12

Operation Status Messages 5

Status Messages

RS232

Status

Centr

.Busy

Centr.

Error

Centr.

Select

Centr

.PE

LED-

Power

LED- Er-

ror

Comments

Paper end

Paper end 10%

"P"

"Z"

LED off

flashing 3:1

flashing 1:1

LED off

also, when casette is removed

Temperature too high

Vp-too low

GND error

Error remedied

"T"

"M"

"G"

"X"

LED off

LED on

flashing 1:1

LED off

RESET

Input buffer empty:ON

Input buffer full: XOFF

Sync. feedback

"R"

= 11h

= 13h

LED off

LED on

LED off

Reset triggered by Vcc

LED off

Operating Console:

An operating console is located on the front of the device with two standard keys and

LEDs.

FEED Key:

When the feed key is pressed, the printing of a line will be completed, before the paper is

transported. At that time, it is fed by only one blank line (24 dot lines, depending on the

selected font), followed by a small brake. If the key is still pressed afterwards, the printer

will feed line by line without interruption until the key is released. This function allows the

specific feeding by only one blank line by striking the key. After the paper feed, normal

printing is continued at the beginning of the next line.

The printer is equipped with a self test function. It is triggered, when the feed key is

pressed immediately after connecting the supply voltage.

ENTER Key:

Pressing the ENTER key initiates the printing of stored text file T1. Depending on its con-

tent, it can call another stored text file.

LED POWER:

The power LED is lit green, whenever the printer is ready for operation. It flashes, when

the paper supply is running low.

LED ERROR:

The error LED does not light up as long as no error occurs. It flashes in case of an error.

For its control, please refer to the table "Status Messages" below.

GeBE E+F GmbH • ww w.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 5/12

Operation Configuration / Printer Connections 6

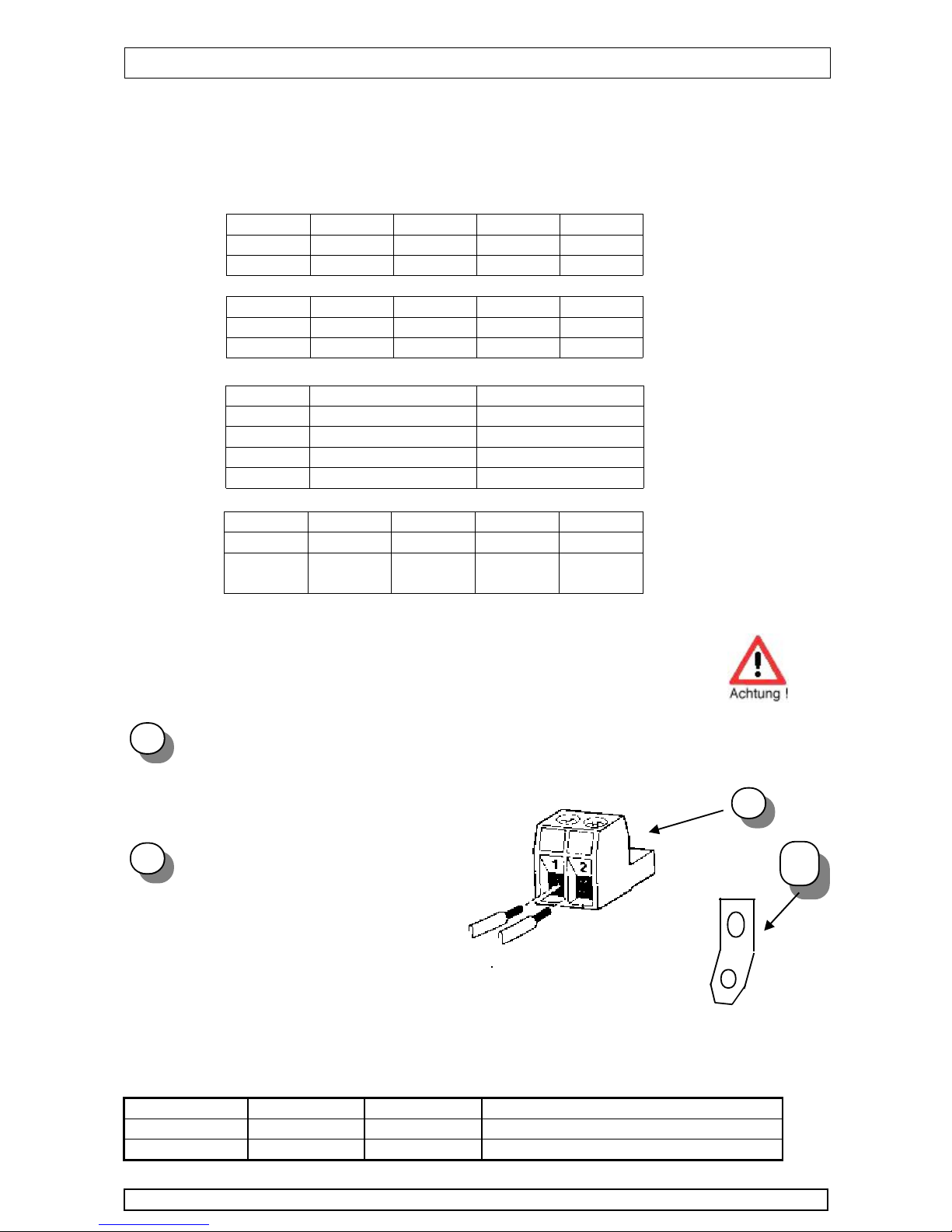

Switchboard Connection 10 - 36V DC

During installation: Always disconnect the power.

Connector:

Multipoint socket connector type

Phoenix is included.

Protective Earthing:

All metal parts inside the device are

connected through the 6.3 mm flat

connector at the back of the hou-

sing.

For safe operation, a connection

with the earthing of the switchboard

needs to be created.

Connection No. Signal Comment

GND

Power Supply Phoenix Type MSTB

DIP Switches:

Eight DIP switches for the printer configuration are located on the back of the housing.

The printer settings take effect only after the power supply is reconnected.

GeBE E+F GmbH • www.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 6/12

Protective Earth

DIL 1

OFF

DIL 2

GeBE

OFF

9600

OFF

19,2K

57,6K

115,2K

Gebe Modus

DIL 6 OFF OFF ON ON

DIL 7

Type

OFF

GeBE

PRIMO

BIT

OFF

UNI Bit

MP-3489

DIL ON OFF

7 databit

DATA MODE

8 Databit

TEXT MODE

Kyr 7x16 dpt.

SLEEP disabled

St. des Druckers

SLEEP enabled

Nur Uni-Bit und MP3489

DIL 1

OFF

DIL 2

Baud

OFF

1200

OFF

2400

4800

9600

Emulations Modus

Opeation Interfaces 7

Connection No. Signal Direction Comment

TXD

RXD

OUT

Data Output

Data Input

GND

DTR

---

OUT

CTS IN

Signal Ground

Host may send data

Host can receive data

Serial Interface RS232 (V.24) SUB-D 9 Pin Socket

Timing einer seriellen Schnittstelle

LSB

MSB

Start

Stop

Pa r

Start

1 Zeichen: (1S tar t, 8 Daten, 1 P ar i ty , 2 Stop)

"1" (M ark)

0 1 2 3 4 5 6 7

Bit

Achtung : Standard Schnittstelle hat kein P ar ity Bit

Achtung : Standard Schnittstelle hat zwei Stop Bits

"0" (Space)

OPTION (only factory-installed) Serial Interface TTL SUB-D 9 Pin Connector

Connection No. Signal Direction Comment

Vcc

RXD

---

+ 5V logic

data input

dtr

CTS

OUT

GND

dsr

---

(optional for power-down)

host can receive data

signal ground

TXD

RTS

OUT

dcd

data output

host may send data

(optional for reset IN)

Signal Position Level TTL Level RS 232 (V.24) Level RS 422 / 485

"1" (mark)

"0" (space)

+5V (TTL level)

0V (TTL level)

-3V ....-12V

+3V .. +12V

A < B (0.2-6V)

B > A (0.2 - 6 V)

GeBE E+F GmbH • www.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 7/12

Operation Primo Bit Emulation 8

Primo Bit Emulation

Handshake:

Activates the DTR line, when less than 32 free bytes are available in the input buffer.

Since a TxD (printer data output) does not exist, neither a software handshake, nor a

transmission error message is possible.

Paper End:

Since an extra handshake line at the printer is not available, the TXD line is used. Whene-

ver there is no paper, the printer changes TXD to inactive: -12V. Operational = +12V

Primo Bit uses the following control commands:

Command Description Comment

DLE (10 hex) Data Line Escape Erase Memory

LF (0A hex) Line Feed Line Feed

CR (0D hex) Carriage Return Trigger Printing with Feed

SO (0E hex) Shift out Wide Format Print Off

SI (0F hex) Shift in Wide Format Print On

Character Sets:

Primo Bit. Works with 25 or 12 characters / line

Virtual print width is set to 400 pixels , 50 bytes:

Standard Print : 25 Z/Z = 16x24 font standard

Wide Format Print : 12 Z/Z = 16x24 font standard double width

GeBE E+F GmbH • www.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 8/12

Connection

No.GPT-4443

Signal

Direction

Comment

Connection No.

at Primo Bit

Signal

Primo Bit

TXD

RXD

OUT

paper end or cassette removed

printer data input

DTR

RXD

GND

DTR

---

OUT

signal ground

handshake output of the printer

GND

RTS

Connecting the Serial Interface RS232 (V.24) to the SUB-D 9 Pin Socket

Operation UNI Bit Emulation 9

UNI Bit Emulation

Handshake:

The printer activates the feedback DTR, whenever paper is missing. At the same time,

X-OFF is transmitted on the TxD line. If less than 32 free bytes are available in the input

buffer, the DTR line is activated as well. X-OFF is sent on the TxD line.

Uni-Bit uses the following control commands:

Command Description Comment

LF (0A hex) Line Feed Line Feed

CAN (18 hex) Cancel Erase Buffer

ESC z 2 01h Data Mode

ESC z 2 02h Text Mode

SI (0F hex) Shift in 40% Reduced Print

DC2 (12 hex) Device Control 2 Stop Comp. Print

DC4 (14 hex) Device Control 4 Stop Wide Format Print

ESC W1 Double Width Until Canceled

ESC W0 Double Width Until Canceled

SO (0E hex) Shift Out Print Double Width

CR, LF, DC4 or CAN

Cancels Wide Print

Character Sets:

The Uni Bit works with 40 or 80 characters / line. The 132 cpl font is cannot be realized

and is processed as 80 cpl.

Virtual print width is set to 560 pixels, 70 bytes:

Standard Print : 80 cpl = 7x16 font standard double height

Wide Format Print : 40 cpl = 7x16 font standard double height double width

Condensed Print: 80 cpl = 7x16 font standard double height

Cyrillic character set only requires 20h – 7Fh (not implemented yet)

Standard Print : 80 cpl = 7x16 font cyr double height

Wide Format Print : 40 cpl = 7x16 font cyr double height double width

Condensed Print: 80 cpl = 7x16 font cyr double height

GeBE E+F GmbH • www.oem-pr inter.com • GeBE Doc.No. SMAN-E-487-V1.1 • GPT-4443 • Page 9/12

Connection

No. GPT-4443

Signal

Direction

Comment

Connection

No. at Uni Bit

Signal

Uni Bit

TXD

RXD

OUT

printer data output

printer data input

TXD

RXD

GND

DTR

---

OUT

signal ground

PE / handshake printer output

2c, 4c, 6c

GND

DTR

Connecting the Serial Interface RS232 (V.24) to the SUB-D 9 Pin Socket

Operation MP-3489 Emulation 10

MP-3489 Emulation

Hardware Handshake:

The MP-3489 uses the DTR line for paper end and buffer full as hardware handshake.

Software handshake is supported.

When the printer is ready to receive, it will change DTR to LOW and transmit XON to the

host computer.

When the character buffer is filled except for 32 characters, the interface will change DTR

to HIGH and transmit XOFF to the host computer.

When the printer mechanism cassette is removed to exchange the paper roll, the interface

will set DTR to HIGH and maintain this status until the cassette is put back in its place.

Commando Description Comment

CR (0D hex) Carriage Return Line Feed

LF (0A hex) Line Feed Line Feed

SI (0F hex) Shift Off Wide Print Off

SO (0E hex) Shift In Wide Print On

CAN (18 hex) Cancel Erase Buffer

ESC A Print Standard

ESC D Print Cyrillic

ESC C Reset

Character Sets:

The MP-3489 works with 40 and 20 characters / line.

The virtual width of the mechanisms is set to 560 pixels, 70 bytes:

Standard Print : 40 cpl = 14x22 font standard

Wide Format Print : 20 cpl = 14x22 font standard double width

Cyrillic character set only requires 20h – 7Fh

Standard Print : 40 Z/Z = 14x22 font standard

Wide Format Print : 20 Z/Z = 14x22 font standard double width

GeBE E+F GmbH • w ww.oem-pr inter.com • GeBE Doc.Nr. SMAN-E-487-V1.1 • GPT-4443 • Page 10/12

Connection No.

GPT-4443

Signal

Direction

Comment

Connection No.

at MP-3489

Signal

MP-3489

TXD

RXD

OUT

printer data output

printer data input

TXD

RXD

GND

DTR

---

OUT

signal ground

PE / handshake printer output

GND

RTS

Connecting the Serial Interface RS232 (V.24) to the SUB-D 9 Pin Socket

Indice

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
