Gefen DVI DL Splitter Manuale utente
DVI DL Splitter
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 884-6294
(800) 545-6900
Fax (818) 884-3108
Technical Support Hours:
9:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
DVI DL Splitter is a trademark of Gefen Inc.
© 2006 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Descriptions
Connecting and Operating the DVI DL Splitter
Specifications
Warranty
1
2
3
4
5
6
Congratulations on your purchase of the DVI DL Splitter. Your complete satisfaction is
very important to us.
Gefen’s line of KVM (Keyboard Video & Mouse), DVI, ADC, USB, switches, extenders,
converters and hubs is designed to make computer use more comfortable, more pro-
ductive and less expensive.
KVM switches allow access to multiple computers from a single keyboard, while the ex-
tenders give the user control over a computer up to 330 feet away from the work area.
The line offers solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, and school and
corporate training environments.

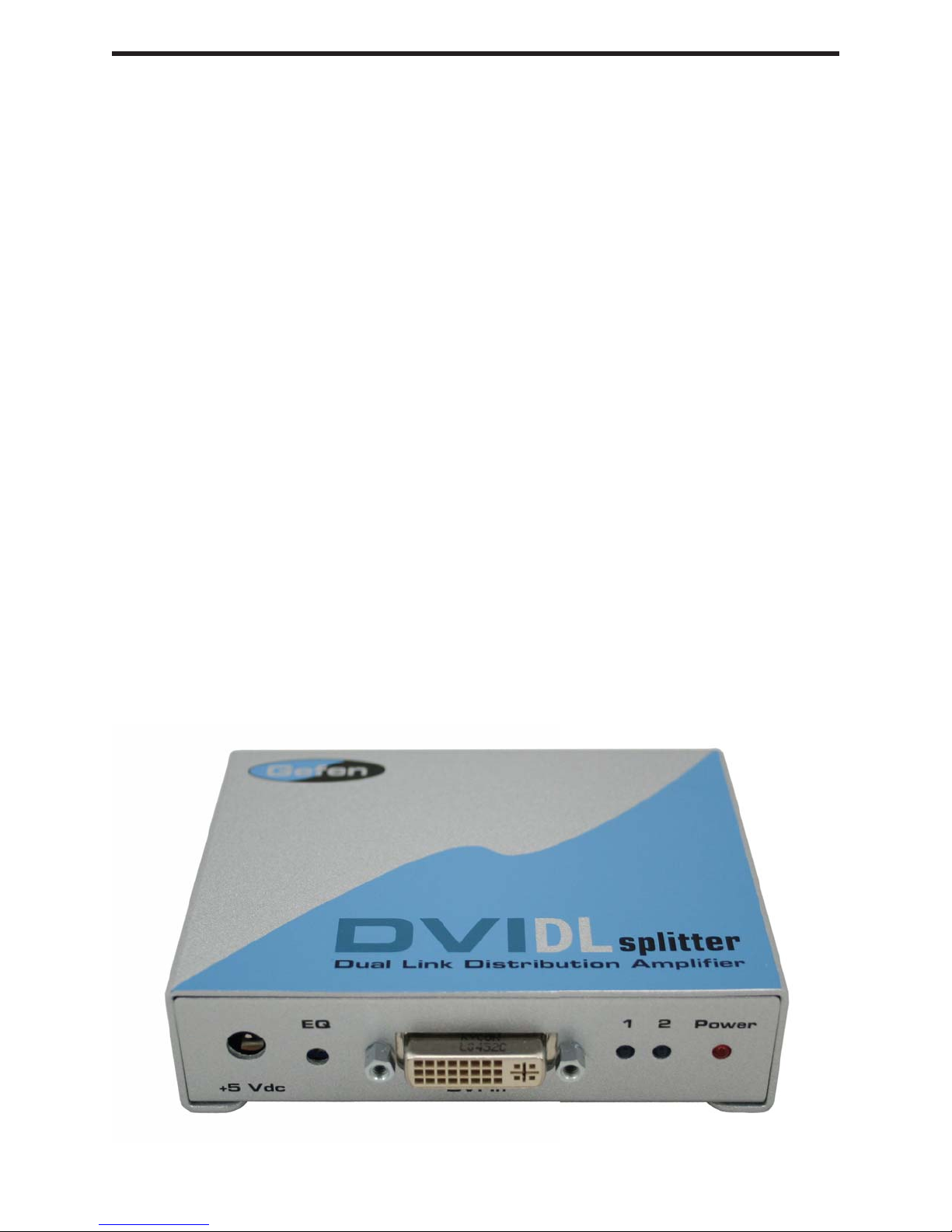

The DVI DL Splitter allows computers with Dual Link DVI graphic cards to be connected
to one or two Dual Link DVI compatible monitors or projectors.
The DVI DL Splitter also lets you keep your Dual Link DVI monitor next to your
computer, while adding a second Dual Link DVI display such as a projector or another
Dual Link DVI monitor.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
INTRODUCTION
1
FEATURES
Features
• Splits a Dual Link DVI signal to two or more Dual Link DVI displays
• Uses high quality DVI cables for connections
• Allows simultaneous display
• Supports 720P, 1080i, and 1080P resolutions
• Supports HDCP compliant devices for output one
• Supports DDWG standard for DVI compliant monitors
• Installs in seconds
Includes:
6’ Dual Link DVI cable (m-m)
5V DC Power Supply
DVI DL Splitter
User's Manual
2

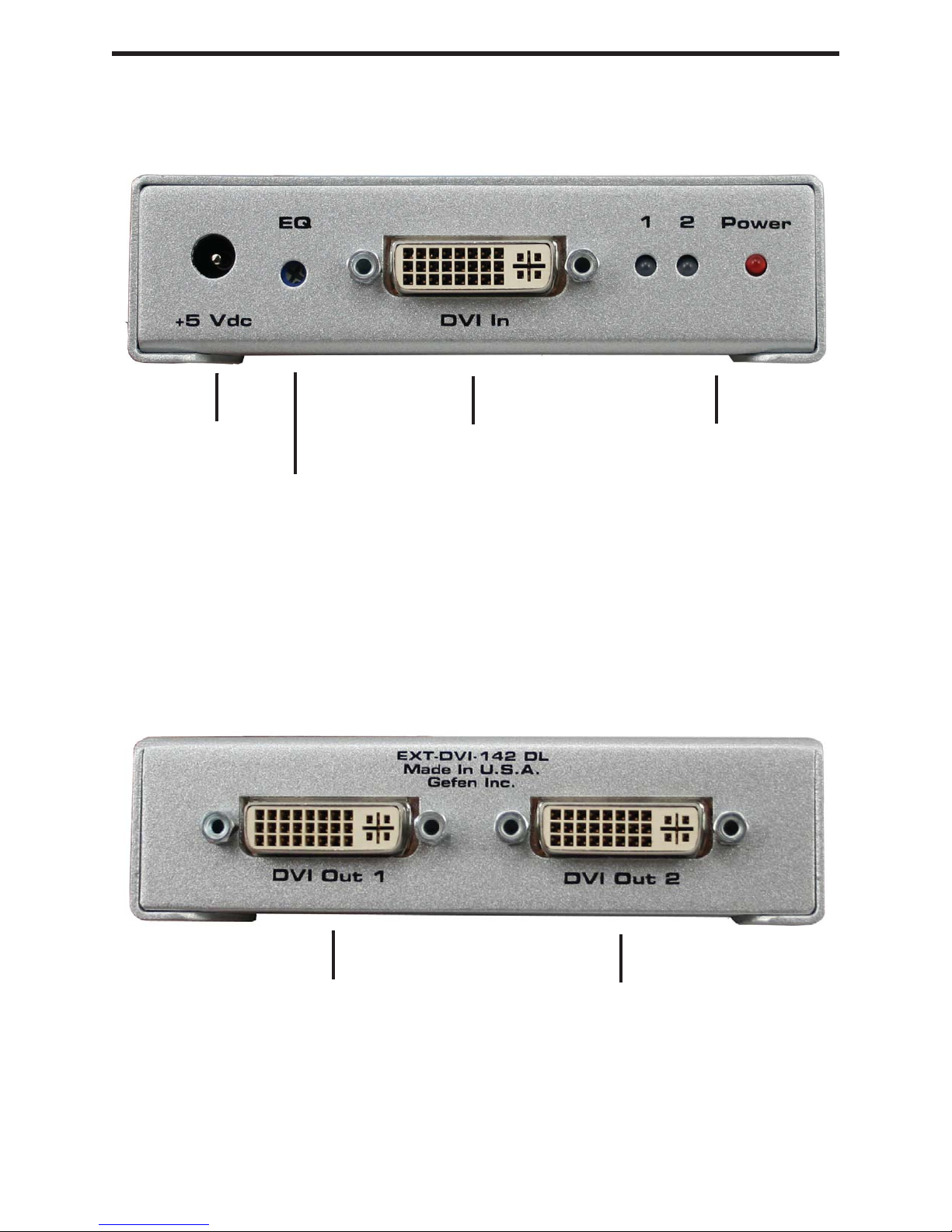

PANEL DESCRIPTIONS
3
DVI In
5V Power
Input
DVI Out 1 DVI Out 2
Status LEDs
Input Equalization
Adjustment
Connecting and Operating the DVI DL Splitter
How to Connect the DVI DL Splitter to your devices
1- Connect the supplied Dual Link DVI cable from the back of the computer into the
input of the DVI DL Splitter.
2- Connect the cable from your first display (monitor or projector) into the DVI Out 1 slot
on the DVI DL Splitter. (this will be what the computer will recognize)
3- Connect the cable from your second display (monitor or projector) into the DVI Out 2
slot on the DVI DL Splitter.
4- Plug the 5v power supply into the DVI DL Splitter.
5- Plug the 5v wallmount power supply into the wall outlet.
6- Restart your computer only after you’ve made all the connections.
7- Adjust the EQ to resolve any inperfections in the image.
*Note: Only output #1 of the DVI DL Splitter is HDCP pass-through.
4
SPECIFICATIONS
5
Video Amplifier Bandwidth .......................................................................... 2 x 1.65 Gbps
Dual Link Range ............................................................................................ 3840 x 2400
Vertical Frequency Range ................................................................................ 50 - 85 Hz
DVI Input/Output Connector ....................................... DVI-I (29 pin) female (Digital Only)
Power Consumption ................................................................................. 20 Watts (max)
Power Supply ......................................................................................................... 5V DC
Dimensions .......................................................................................... 5” W x 1” H x 4” D
Shipping Weight ........................................................................................................ 4 lbs
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within one
(1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the of repair. Such repairs are warranted for
ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose,
all of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding DVI DL Splitter features and specifications is
subject to change without notice.
WARRANTY
6
