Gefen DVI-FM Manuale utente

DVI FM Extender

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen, Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The DVI FM Extender is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Front Panel Descriptions

Back Panel Descriptions

How To Connect DVI FM Extender

DVI FM Wiring Diagram

Programming the DVI Detective

Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING DVI FM EXTENDER

• The ﬁber optics cable must be treated carefully when connectors are exposed. They

are susceptible to dust which can contribute to loss of pixels.

• DVI FM Extender works for all DVI displays and supports resolutions up to 1920x1200

• DVI FM Extender is housed in a metal box for better RF shielding.

• Supports DDWG standard for DVI compliant monitors

• Uses the included DVI Detective for EDID information

OPERATION NOTES

INTRODUCTION

Thank you for purchasing Gefen’s DVI FM Extender. The DVI FM Extender allows exten-

sion of DVI up to 2000 feet without losing any quality.

CONTENTS

DVI FM Extender consists of:

--- (1) DVI FM Sender (Computer (Tx)) Unit

--- (1) DVI FM Monitor (Monitor (Rx)) Unit

--- (1) DVI Detective

--- (1) DVI cable (1FT)

--- (1) 5V Power supply for the DVI FM Sender Unit

--- (1) 5V Power supply for the DVI Detective

--- (1) User's Manual

REAR VIEW

Unused

DVI FM SENDER PORT DESCRIPTIONS

FRONT VIEW

Connects to the

DVI Output on

the DVI Detective

5V Input

REAR VIEW

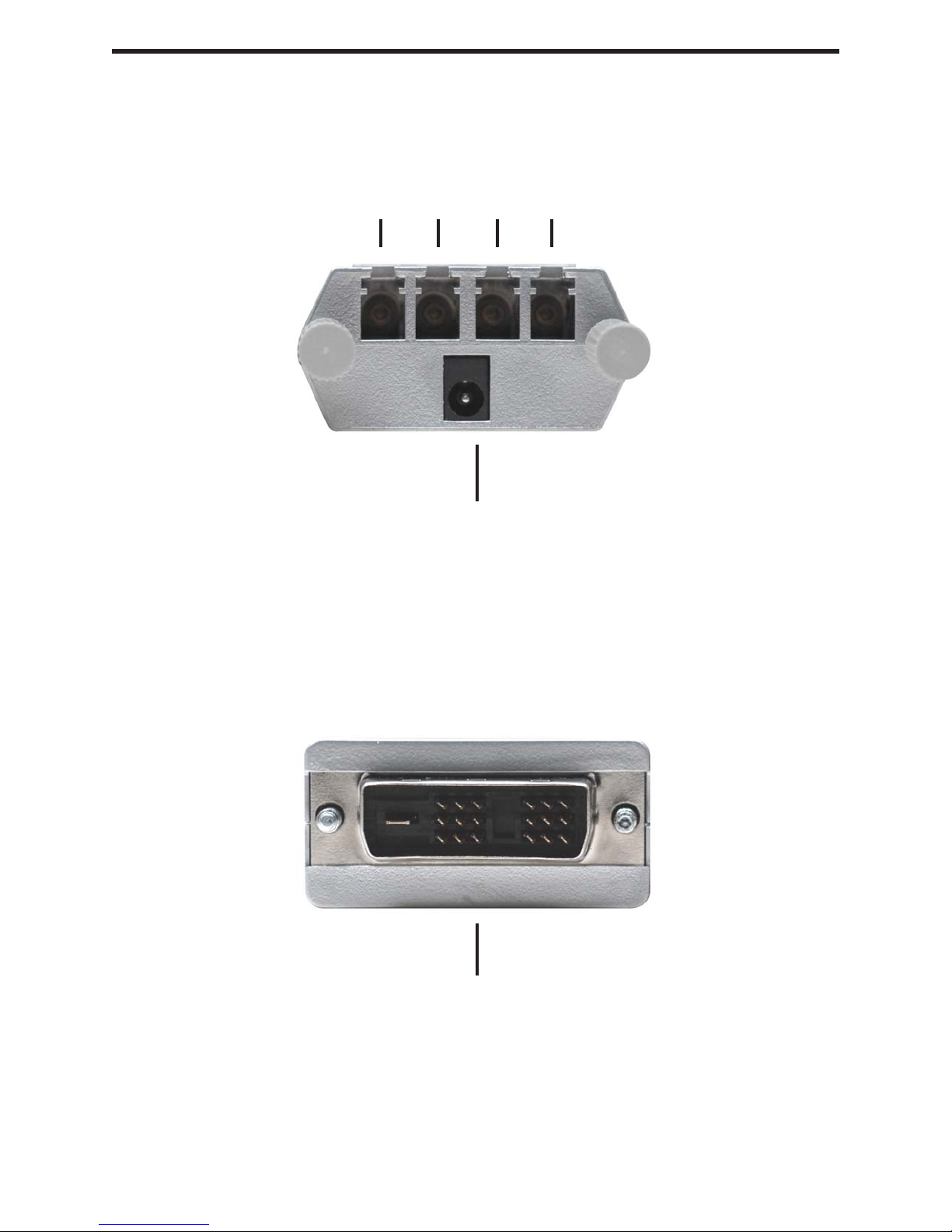

DVI FM RECEIVER PORT DESCRIPTIONS

FRONT VIEW

2134

Connects to the

DVI port on the

monitor

Program the DVI Detective with your DVI monitor (see page 6 for instructions).

Connect the DVI Detective Input to the DVI source using the supplied cable

Connect DVI FM Extender Sender unit directly to the DVI Detective output.

Connect DVI FM Extender Receiver unit to your DVI display.

Connect the four ﬁber optics between the sender and receiver.

Plug the 5V power supply into DVI FM Extender receiver.

Power on your source and you should see a beautiful picture.

* Cable Requirement - 50 or 62.5 micron multimode ﬁber optics cable

HOW TO INSTALL THE DVI FM EXTENDER

DVI 1000 WIRING DIAGRAM

PROGRAMMING THE DVI DETECTIVE

How to Program the DVI Detective

1- Power on your display, and connect your display to the DVI Out on the DVI Detective.

2- Plug the 5V power supply into the DVI Detective, once the LED stops blinking the

DVI Detective has ﬁnished reading the EDID of the display*. After programming you will

not need to use the power supply again (If your source does not output enough power

to drive the DVI FM Sender, powering the DVI Detective will ﬁx the issue).

3- You can now connect the DVI IN on the DVI Detective into your computer with sup-

plied DVI cable, and plug the DVI FM Sender directly into the DVI Detective's DVI Out.

* If the LED does not stop blinking after 8 seconds of having the power supply

connected, try recording with the monitor on with a picture.
