Gefen EXT-FW-1394BP Manuale utente

www.gefen.com

Firewire 800

Extender Plus

EXT-FW-1394BP

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

Firewire 800 Extender Plus is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting And Operating The Firewire 800 Extender Plus

9 Wiring Diagram

10 Speciﬁcations

11 Warranty

Congratulations on your purchase of the Firewire 800 Extender Plus. Your com-

plete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen Firewire 800 Extender Plus

This solution uses a sender and receiver system to instantly send your data from

your source to your extended Firewire device. It boasts a remarkable transfer

rate of up to 980 Mbps and easily bridges distances up to 1640 feet (500 me-

ters). This gives you the freedom to operate your computer based equipment

and video cameras as if they were connected locally with no signal degradation

or time lag. Receiving units have a second pair of ﬁber connectors to daisy chain

multiple Receiving units for extreme distances.

How It Works

Simply connect your computer to the Firewire Extender 800 sender unit with the

supplied cable. Connect your extended device to the receiver unit - up to 1640

feet away. One 2-strand LC-LC ﬁber optic cable, available in several lengths from

Gefen, connect sender (computer) to receiver (Firewire device).

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE FIREWIRE 800 EXTENDER PLUS

• The ﬁber optics cable must be treated carefully when connectors are

exposed. They are susceptible to dust which can contribute to loss of pixels.

• The Firewire 800 Extender Plus is housed in a metal box for better RF

shielding.

• Only LC terminated multi-mode ﬁber optic cable can be used with the

Firewire 800 Extender Plus system.

• Units can be cascaded up to 63 levels deep with a maximum distance

between each of 1640 feet (500 meters).

OPERATION NOTES

Features

• Extends Firewire devices up to 1640 (500 meters) feet

• Transfer Rates of 100/200/400/800 Mbps

• Compliant with IEEE 1394a and 1394b

• Allows remote devices to operate in real-time, connected to the source

• Works withApple and PC computers

• Uses ﬁber optics to ensure long distance performance

• Daisy chain multiple receivers for extreme distances

Package Includes

(1) Firewire 800 Extender Plus Sender

(1) Firewire 800 Extender Plus Receiver

(2) 6 Foot Firewire 400 to 800 cable (M-M)

(1) 6 Foot Firewire 800 to 800 cable (M-M)

(1) 12V DC Power supply

FEATURES

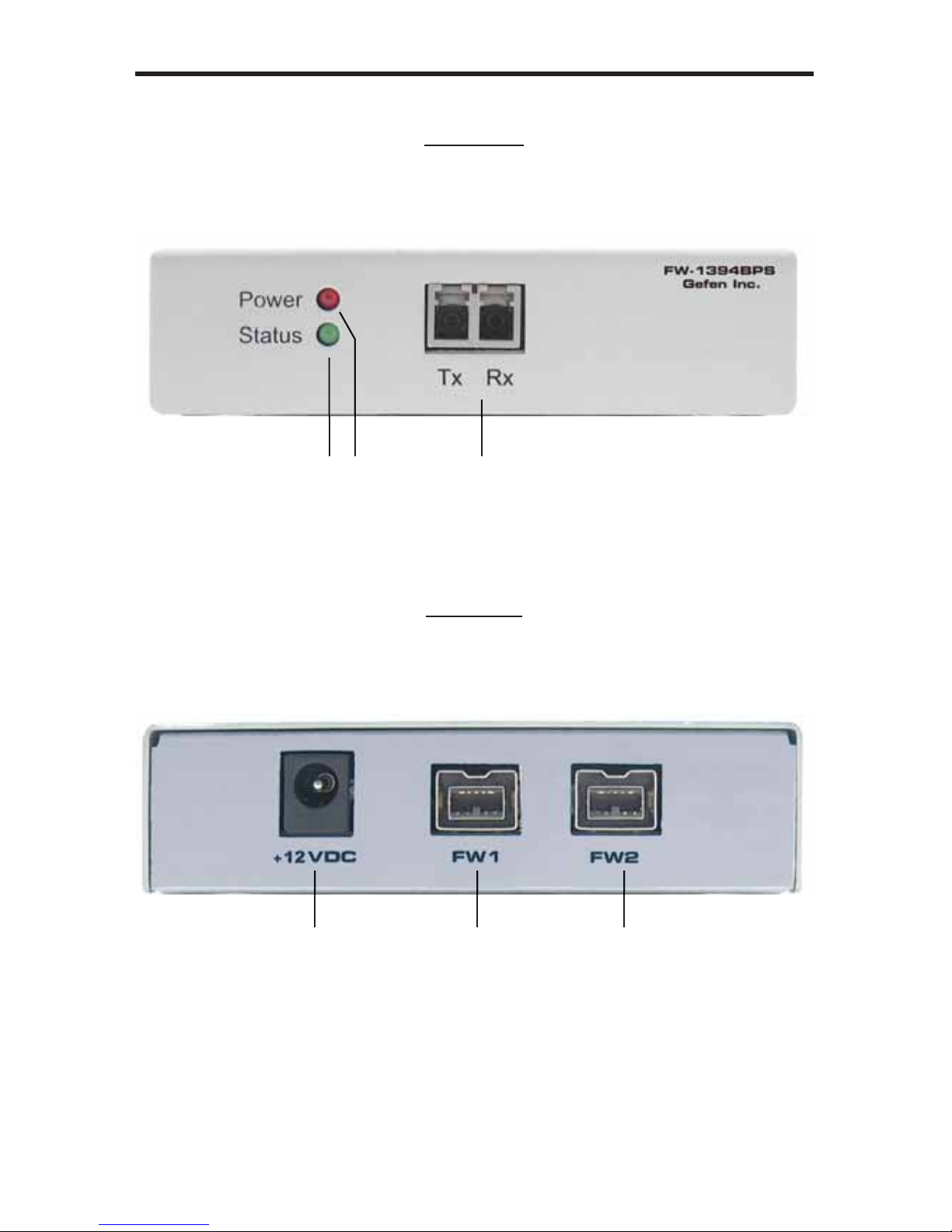

Front Panel

Back Panel

456

12 3

SENDER PANEL LAYOUT

1 Status LED

This LED will become active once a stable link has been established between

the sending and receiving units.

2 Power LED

This LED will become active once the included power adapter has been

connected.

3 Fiber Optic TX and RX Inputs

Connect a LC terminated ﬁber optic cable for both the transmit (TX) and receive

(RX) signals between the Firewire 800 sending and receiving units.

4 12V DC Power Supply Input

Input for the supplied 12V DC power adapter.

5 Firewire Input 1

Connects to a Firewire hub, or Firewire device.

6 Firewire Input 2

Connects to a Firewire hub, or Firewire device.

SENDER PANEL DESCRIPTIONS

Front Panel

Back Panel

RECEIVER PANEL LAYOUT
