Gefen DVI RS232 Manuale utente

DVI RS232

Extender over CAT5

with Ethernet

EXT-DVI-CAT5-ELR

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Rev A2

29.81

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

DVI RS232 Extender over CAT5 with Ethernet

is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Unit Layout

5 Sender Unit Descriptions

6 Receiver Unit Layout

7 Receiver Unit Descriptions

8 Connecting and Operating the DVI RS232 Extender over CAT5 with Ethernet

9 DIP Switches

10 DIP Switch Conﬁguration

12 Network Cable Wiring Diagram

13 Mounting Plate Installation

14 Speciﬁcations

15 Warranty

Congratulations on your purchase of the DVI RS232 Extender over CAT5 with

Ethernet. Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to install and simple to operate.

The Gefen DVI RS232 Extender over CAT5 with Ethernet

The DVI RS232 Extender over CAT-5 with Ethernet extends any DVI source to

a monitor, touch screen display, or other digital signage application placed at a

distance up to 330 feet (100 meters) using one CAT-5 cable. This product also

extends Ethernet and RS-232 using the same CAT-5 cable extension, allowing

access to control devices using RS-232.

How It Works

Place the Sender Unit next to the DVI input source. Use the included DVI cable

to connect the source to the Sender Unit. Connect the Receiver Unit to the moni-

tor or digital signage display with a DVI cable (not supplied). Use one CAT-5

cable, up to 330 feet (100 meters), to connect the Sender Unit to the Receiver

Unit. Connect an RS-232 serial cable from the RS-232 port on the Sender Unit

to the RS-232 control device. Connect the RS-232 port on the Receiver Unit to

the RS-232 device. Connect the Ethernet ports on both the Sender Unit and the

Receiver Unit to any computer source and extended Ethernet device.

INTRODUCTION

OPERATION NOTES

PLEASE READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DVI RS232 EXTENDER OVER CAT5 WITH

ETHERNET

• CAT-5 or CAT-6 cables should not exceed 330 feet (100 meters).

• Shielded (STP) CAT-5 or CAT-6 is recommended. However, un-shielded

(UTP) CAT-5 or CAT-6 is acceptable.

NOTE: The shielded cable has an advantage by providing immunity to

Electromagnetic Interference (EMI), cell phones and A/C motors.

• The DVI RS232 Extender over CAT5 with Ethernet features the ability to

generate compatible EDID and Hot Plug signals when working with different

brands of source devices and monitors.

• This product does not support HDCP content with DVI.

FEATURES

Features

• Extends any DVI, RS-232, and Ethernet devices up to 330 feet

• Supports resolutions up to 1080p, 2K, and 1920x1200

• Excellent for digital signage applications

• Maximum Ethernet throughput of 100 Mbps, Full Duplex mode.

• Uses one CAT-5e cable for DDC and control signals.

• All-digital signal transmission for zero signal loss.

• Locking power connectors.

• Metal enclosure improves RF shielding.

Package Includes

(1) Gefen DVI RS232 Extender over CAT5 with Ethernet Sender Unit

(1) Gefen DVI RS232 Extender over CAT5 with Ethernet Receiver Unit

(1) 6 ft. DVI Cable (M-M)

(2) 5V DC Locking Power Supplies

(1) User Manual

SENDER UNIT LAYOUT

Back

Front

124

SENDER UNIT DESCRIPTIONS

1 5V DC Locking Power Connector

Connect the included 5V DC locking power supply to this connector.

2 Power Indicator

This LED will turn bright red once the included 5V DC locking power supply has

been properly connected to the unit and the locking power supply has been

connected to an available electrical outlet.

3 Locking DVI Port

Connect a DVI source to this port.

4 RS-232 Port

Connect the RS-232 host device to this port.

5 Link Output Jack

Connects the Sender Unit to the Receiver Unit using a CAT-5 cable.

6 Ethernet Input Jack

Connects the Sender Unit to the network using an Ethernet cable.

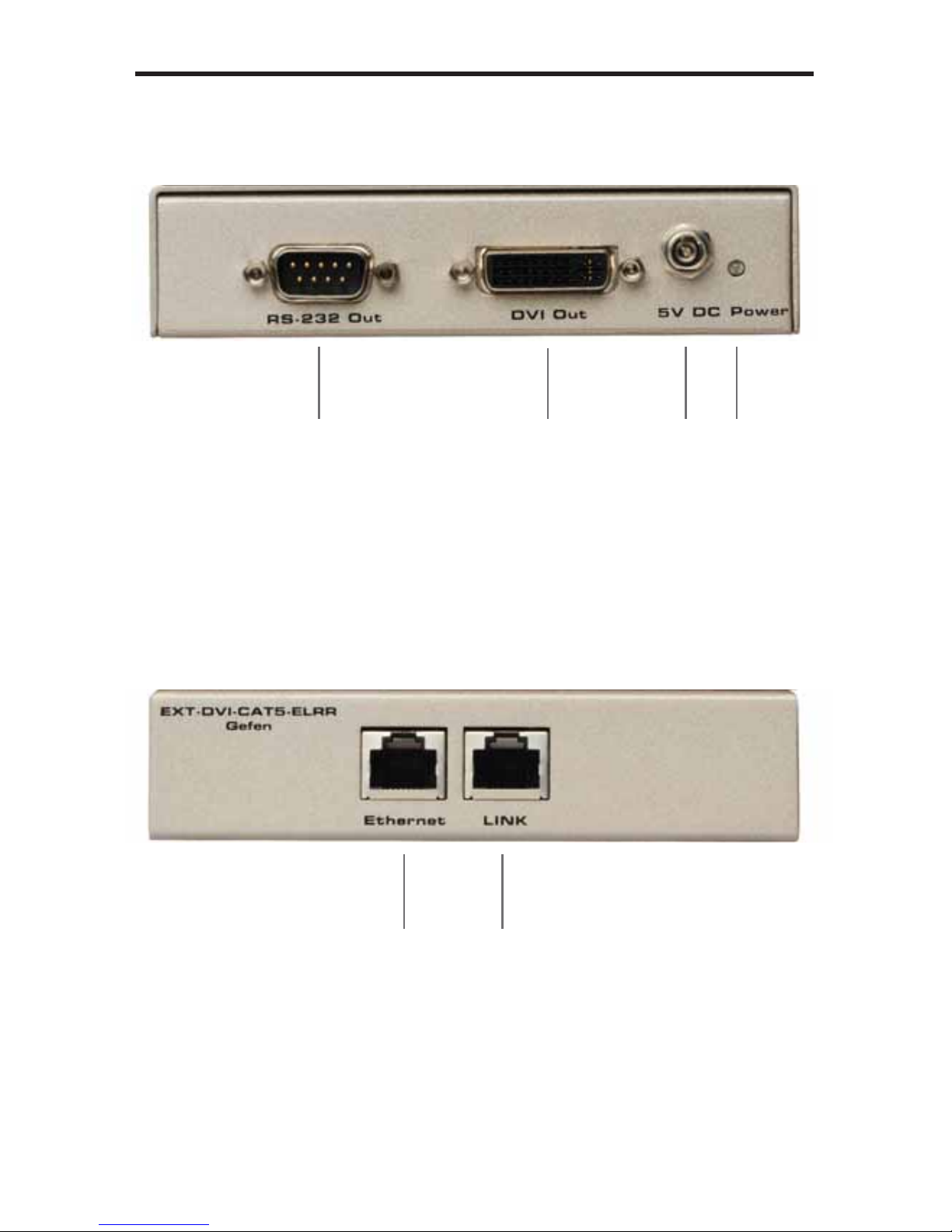

RECEIVER UNIT LAYOUT

Back

Front

123

RECEIVER UNIT DESCRIPTIONS

1 RS-232 Port

Connect the RS-232 device to this port.

2 Locking DVI Port

Connect a DVI source device to this DVI port.

3 5V DC Locking Power Connector

Connect the included 5V DC locking power supply to this connector.

4 Power Indicator

This LED will turn bright red once the included 5V DC locking power supply has

been properly connected to the unit and the locking power supply has been

connected to an available electrical outlet.

5 Ethernet Output Jack

Connects the Receiver Unit to the network device.

6 Link Input Jack

Connects the Sender Unit to the Receiver Unit using CAT-5 cabling.
