CAT5•7500HD

EXT-CAT5-7500HD

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday Paciﬁc Time

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

[email protected]

www.gefen.com

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

All trademarks are the property of their respective owners.

ASKING FOR ASSISTANCE

Rev A5

TABLE OF CONTENTS

Introduction and Operation Notes

How it Works

CAT5•7500HD Front Panel Descriptions

CAT5•7500HDS Back Panel Layout

CAT5•7500HDS Back Panel Functions

CAT5•7500HDR Back Panel Layout

CAT5•7500HDR Back Panel Functions

CAT5•7500HD - Wiring Diagram

CAT5 Link Cable Wiring Diagram

Service Switch Usage Guide

Frequently Asked Questions

Terminology

System Speciﬁcations

Warranty

INTRODUCTION

Thank you for purchasing the new ex•tend•it CAT5•7500HD series by Gefen, Inc.

The CAT5•7500HD by Gefen allows users the beneﬁts of extending USB, audio in,

audio out, PS/2, RS-232, and video signals beyond the desktop. In a growing number

of applications, broadcast stations and production facilities there is a need to locate a

computer remotely, from the keyboard, mouse, and video monitor.ACPU may need to be

shared between several users or moved to another room because of annoying fan noise.

TheCAT5•7500HD series can be used to extend computers withnoisy fans, printers, hard

drives, scanners, cameras, keyboards, mouse, and any other USB-type peripherals. The

CAT5•7500HD has the potential to cover the distance of 200 feet over industry standard

Category 5 (CAT-5) cables. One can connect additional CAT5•7500HD series to the

same computer, allowing access to the same computer from other locations up to 200

feet apart.

Lengths and Distances Supported:

Up to 200 Feet....................................................................................1280x1024 @ 60Hz

Up to 150 Feet....................................................................................1920x1200 @ 60Hz

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•7500HD SYSTEM

• IndustrystandardCategory-5(CAT-5)cablesareusedtooperateCAT5•7500HDsystems.

• The CAT5•7500HD units are housed in a metal box for better RF shielding.

OPERATION NOTES

di i

CONTENTS

The CAT5•7500HD system consists of:

--- (1) CAT5•7500HDS (Sender unit)

--- (1) CAT5•7500HDR (Receiver unit)

--- (2) 5 VDC power supply

--- (2) DVI cables (6FT)

--- (1) USB cable (6FT)

--- (2) PS/2 cables (6FT)

--- (1) Audio cable (6FT)

--- (1) Rack ears

--- (1) User Manual

HOW IT WORKS

Inits most basic application,the CAT5•7500HDS Senderunitresides next tothe computer.

Suppliedwiththesystem,DVIcables,PS/2keyboard,PS/2mouse,audio,and USB cables,

they connect the computer to the CAT5•7500HDS Sender unit.

The CAT5•7500HDR Receiver unit is placed next to the monitors, keyboard, mouse, and

USB peripherals at the remote location. The monitor and keyboard are connected to the

CAT5•7500HDR, similar to the way they are connected to the back of the computer (PC

or Macintosh).

HOW IT WORKS

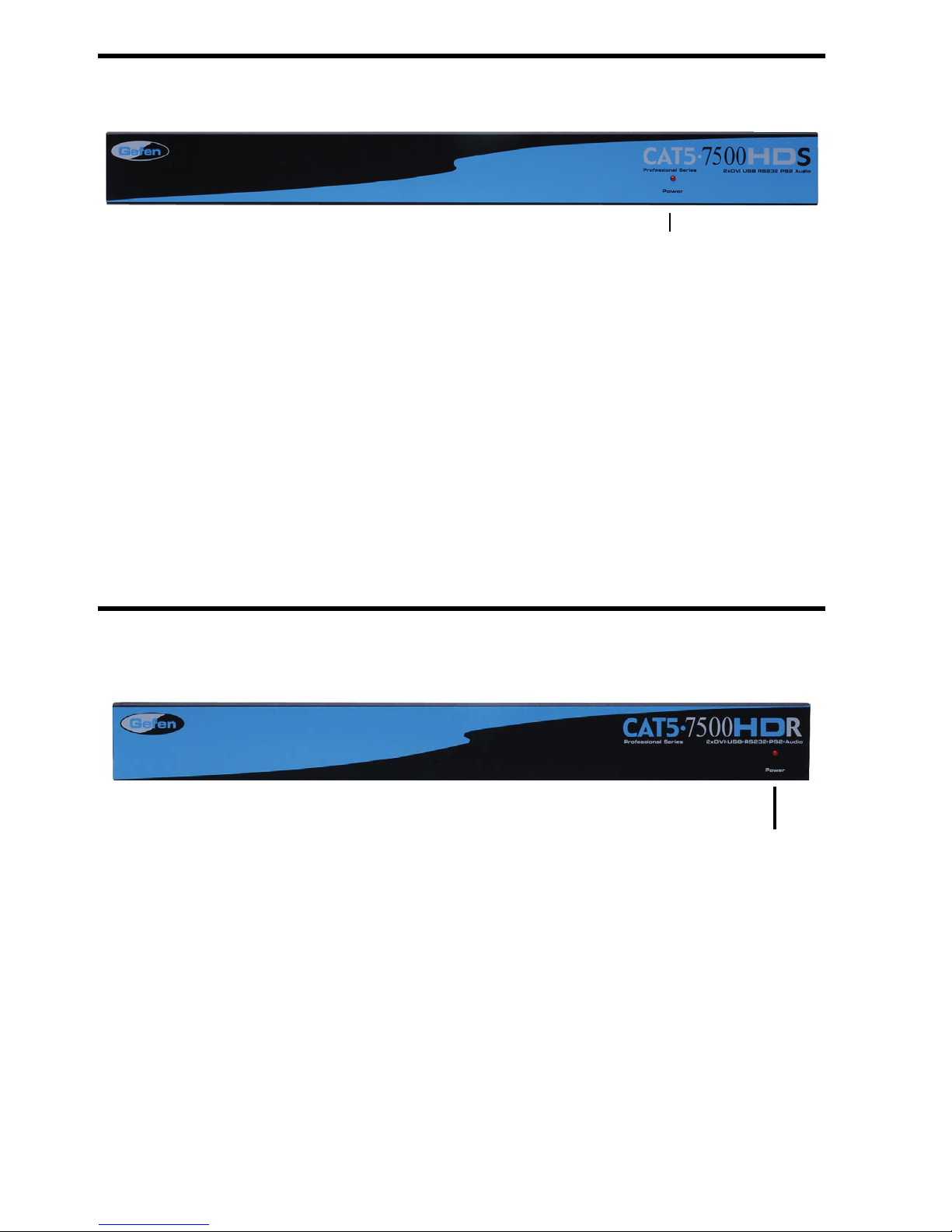

CAT5•7500HDS FRONT PANEL DESCRIPTIONS

Front Panel Function Descriptions

Power On Indication - Indicates that the unit is on and plugged in.1

CAT5•7500HDR FRONT PANEL LAYOUT

Front Panel Function Descriptions

POWER ON INDICATOR - Indicates that the unit is on and plugged in.

CAT5•7500HDS BACK PANEL LAYOUT

123 4 56 7 9 11 12 13

108 14

CAT5•7500HDS BACK PANEL LAYOUT

POWER - 5V DC external power supply plugs in here with a locking power

connector. When attaching the power tip, gently screw it into the threaded socket

until it refuses to turn any further. Do not apply force when turning the connector.

CAT5 Video 1 - RJ-45 input extends DVI input 1 with CAT-5 cable

CAT5 USB / DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5

cable

DVI IN 1 - DVI Input connects to your computer with the supplied DVI cable

CAT5 Video 2 - RJ-45 input extends DVI input 2 with CAT-5 cable

CAT5 USB / DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5

cable

DVI IN 2 - DVI Input connects to your computer with the supplied DVI cable

USB IN - USB Input from computer

KEYBOARD - Mini-DIN PS/2 keyboard input from computer

MOUSE - PS2 mouse input from computer

AUDIO / PS2 and RS-232 - RJ-45 input extends audio as well as RS-232 and

PS2 signals with a set of two (2) CAT-5 cables here.

RS-232 IN - RS-232 DB9 serial input from computer

MIC OUT - 3.5mm mini-Stereo input jack connects to computers' mic input

AUDIO IN - 3.5mm mini-Stereo input jack connects to computers' audio output

socket

nnector

CAT5•7500HDR BACK PANEL LAYOUT

123 4 56 7 911 12 13108 14 15
