Gefen USB 2.0 LR Extender EXT-USB2.0-LR Manuale utente
www.gefen.com
f
USB 2.0 LR
Extender
EXT-USB2.0-LR
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
USB 2.0 LR Extender is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
Rev X1
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The USB 2.0 LR Extender
9 Troubleshooting
10 Network Cable Wiring Diagram
11 Wiring Diagram
12 Specifications
13 Warranty
Congratulations on your purchase of the USB 2.0 LR Extender. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen USB 2.0 LR Extender
Gefen’s USB 2.0 LR extends high-speed USB devices simply and reliably.
The compact USB 2.0 LR Sender/Receiver units install in minutes and fully
support all USB versions (V1.1 and V2.0), at speeds of up to 480 mbps
-- essential for high-performance applications such as digital imaging and
interactive gaming.
The two-port USB 2.0 LR hub is ideal for remotely accessing laser printers,
scanners, web cameras, external hard drives, CD/DVD burners, and flash
drives. Additional applications include security, industrial control, digital signage,
scientific data acquisition and much more due to the universal implementation of
USB standards.
How It Works
Gefen’s USB 2.0 LR supports all major operating systems -- Windows, MacOS
and Linux. No software drivers are required.
When using in-wall building wiring, stranded patch cables may be used to
connect the Sender and Receiver to CAT5 wall plates. The combined length of all
patch cables must not exceed 33 feet (10m) and must be included as part of the
total extension.
A powered USB hub may be connected to the USB 2.0 Extender LR Receiver
to allow more USB devices to be extended. A maximum of 14 USB devices
(including hubs) may be connected to the USB 2.0 LR Receiver.
1
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE USB 2.0 LR EXTENDER
• Use industry standard CAT-5, CAT-5e or CAT-6. Gefen recommends using solid
core cabling for maximum performance.
• The USB 2.0 LR Extender is USB 2.0/1.1 compliant
• The USB 2.0 LR Extender can extend USB a maximum of 330 ft (100m)
• Use only theAC adapter supplied with the USB 2.0 LR Extender. Use of
substitute adapters may cause permanent damage to the system and will
void the warranty.
2
OPERATION NOTES
3
Features
• Operate USB 2.0 peripherals up to 330ft (100m) from a computer
• Supports low and high-speed USB
• Uses industry-standard CAT5, CAT5e, or CAT6 cable
• Supports all major operating systems -- Windows, MacOS and Linux.
• True plug-and-play, 100% hardware solution with no drivers required
• Operates at full 480 Mbps speed when running in USB 2.0 mode
• Receiver supports up to 2 USB powered connections at 500 mAeach
• Specifications:
Package Includes
(1) Gefen USB 2.0 Extender over CAT5 LR Sender
(1) Gefen USB 2.0 Extender over CAT5 LR Receiver
(1) 5V DC Power Supply
(1) 6 ft. USB Cable
(1) User’s Manual
FEATURES
4
Front Panel
Back Panel
Front
Panel
1
4 5 6 7
2 3

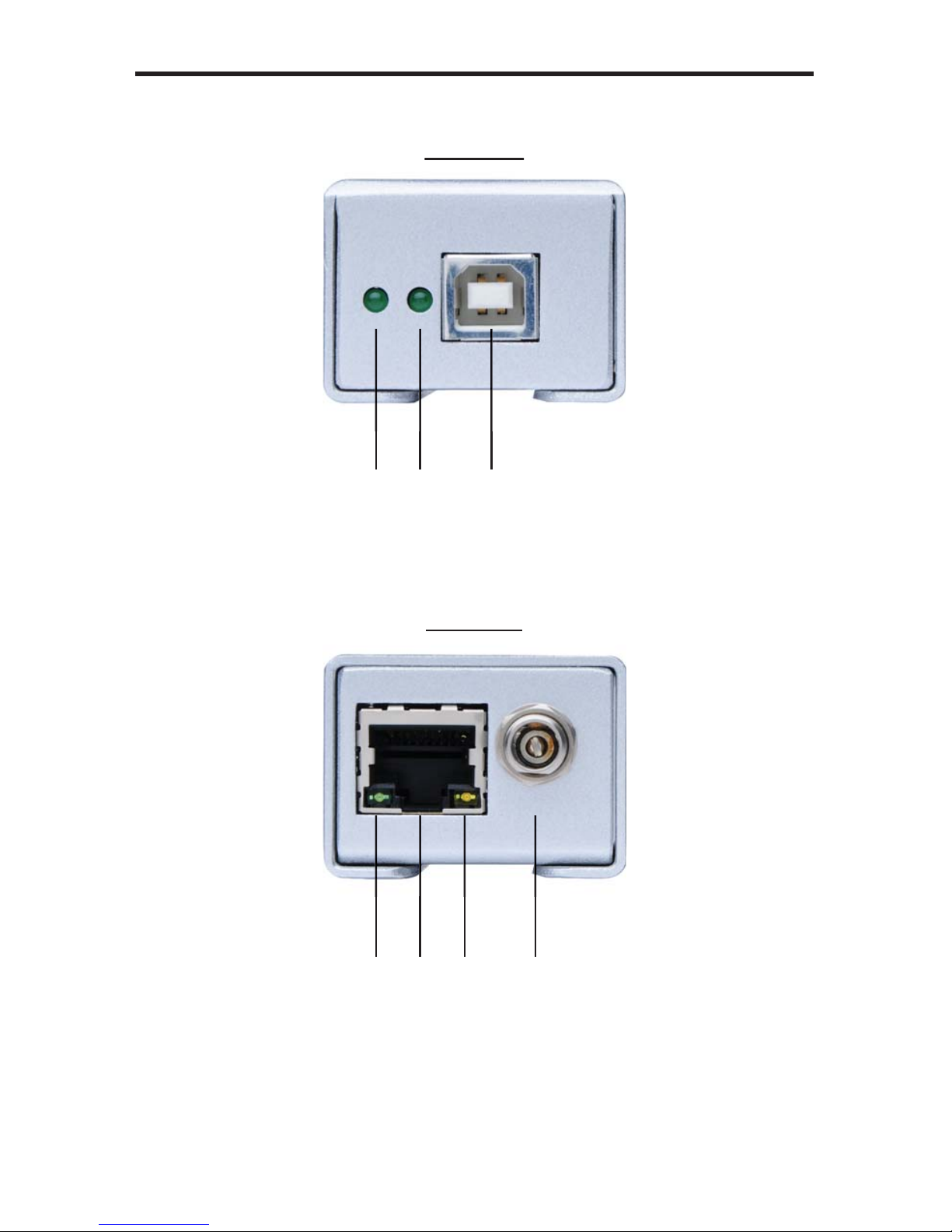

SENDER PANEL LAYOUT
5
1 Host Connection LED Indicator
This LED will become active once a valid connection is made by the host source
and the USB 2.0 LR Extender.
2 Power LED Indicator
This LED will become active once a valid connection is made between the
included 5V DC power supply and an open wall power socket.
3 USB “B” Input
Connect the USB source to this input.
4 Link LED Indicator
This LED will become active once a valid connection is between the sender and
receiver units.
5 CAT-5 Connection Port
Connect a CAT-5, CAT-5e or CAT-6 cable between this port and the CAT-5
connection port on the receiving unit.
6 Activity LED Indicator
This LED will be active when traffic is passing between the sending and
receiving units.
7 5V DC Locking Power Receptacle
Connect the included locking 5V DC power supply between this port and an
open wall power socket.
SENDER PANEL DESCRIPTIONS
6
Front Panel
Back Panel
Fr
on
t
Pa
ne
l
1
5 6 7 8
2 3 4

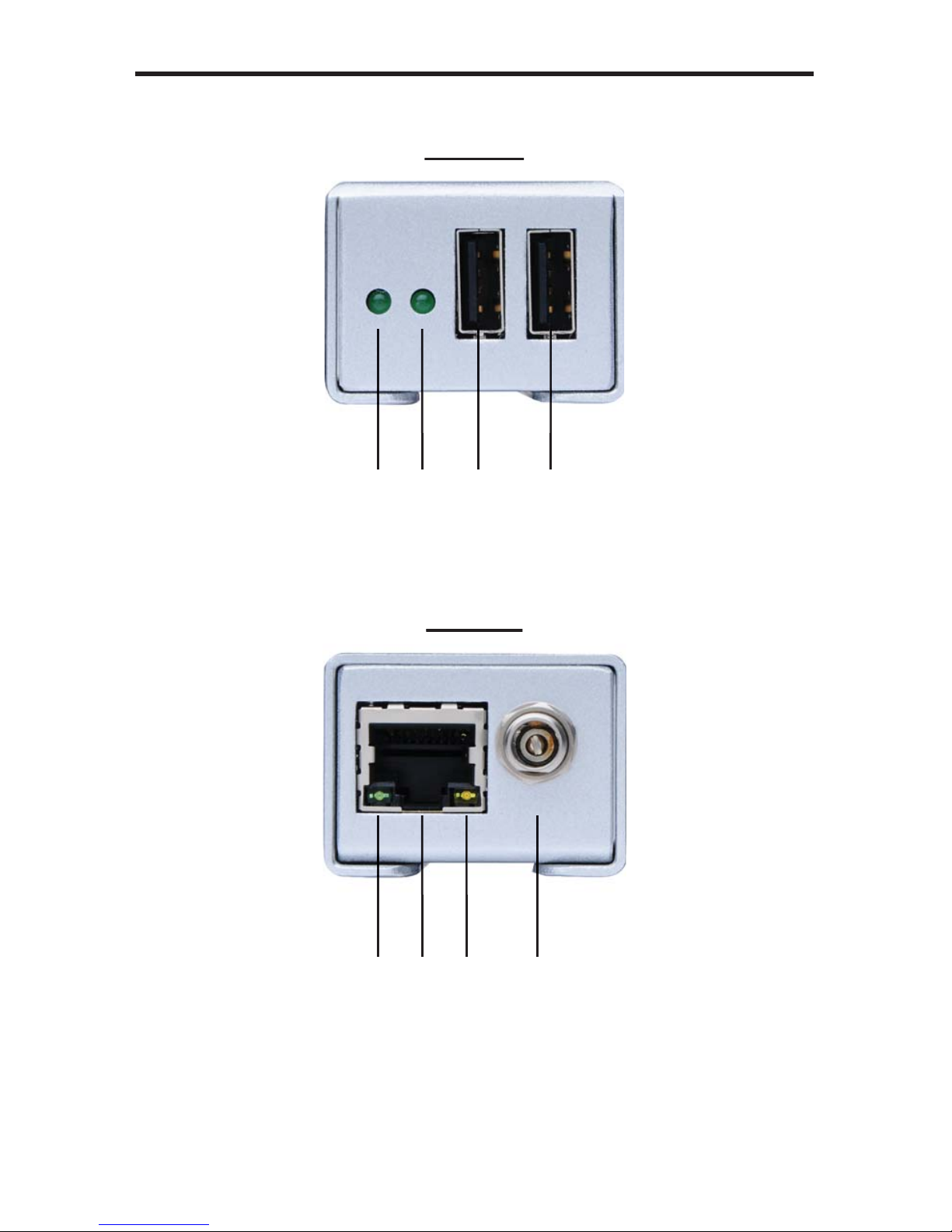

RECEIVER PANEL LAYOUT
7
1 Host Connection LED Indicator
This LED will become active once a valid connection is made by the host source
and the USB 2.0 LR Extender.
2 Power LED Indicator
This LED will become active once a valid connection is made between the
included 5V DC power supply and an open wall power socket.
3 USB “A” Input 1
Connect the USB device to this input.
4 USB “A” Input 2
Connect the USB device to this input.
5 Link LED Indicator
This LED will become active once a valid connection is between the sender and
receiver units.
6 CAT-5 Connection Port
Connect a CAT-5, CAT-5e or CAT-6 cable between this port and the CAT-5
connection port on the sending unit.
7 Activity LED Indicator
This LED will be active when traffic is passing between the sending and
receiving units.
8 5V DC Locking Power Receptacle
Connect the included locking 5V DC power supply between this port and an
open wall power socket.
RECEIVER PANEL DESCRIPTIONS
