4x4 DVI Dual Link
Matrix
EXT-DVI-444DL
User Manual
®
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM (PST) Monday thru Friday PST
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
4x4 DVI DL Matrix is a trademark of Gefen, LLC
© 2011 Gefen, LLC. All rights reserved.
All trademarks are the property of their respective owners.
Rev X4
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
6 Connecting And Operating The 4x4 DVI DL Matrix
7 Conguring The 4x4 DVI DL Matrix
9 RS-232 Serial Control Interface
10 Rack Mount Installation
11 Specications
12 Warranty
1
Congratulations on your purchase of the 4x4 DVI DL Matrix. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 4x4 DVI DL Matrix
Easily combine any four cross-platform Dual Link DVI video display outputs and
four Dual Link DVI digital displays without networking. Our 4x4 DVI Dual Link
Matrix provides a simple, reliable and highly effective method of creating multiple
Dual Link DVI display consoles, with each console capable of accessing any one
of the Dual Link DVI video sources at any time by remote control. You also have
the option of setting up the four displays locally or extending them with a Gefen
extender..
How It Works
The 4x4 DVI Dual Link Matrix has four Dual Link DVI inputs and four Dual Link
DVI outputs. You simply connect your four Dual Link DVI video sources to the
Switcher’s inputs, then connect your four Dual Link DVI displays to the Switcher’s
outputs.
INTRODUCTION
2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 4X4 DVI DL MATRIX
• The 4x4 DVI DL Matrix does not have any scaling functionality. All of the
attached monitors must be able to display the attached sources’ resolution.
For maximum compatibility it is recommended that only one compatible/
common resolution for all displays be used by all sources.
OPERATION NOTES
3
Features
• Increases your productivity by letting you view any four Dual Link DVI video
sources on any four Dual Link DVI displays
• Maintains highest resolution digital video with no loss of quality
• Supports 1080p Full HD at 120Hz and dual-link resolutions up to
3840 x 2400
• Supports DDWG standards for DVI monitors
• Discrete IR Remote (included)
• Includes rack ears
Package Includes
(1) 4x4 DVI Dual Link Matrix
(1) RMT-16IR
(1) 5V DC Power Supply
(4) 6 Foot Dual Link DVI cables
(1) Set Of Rack Ears
(1) User’s Manual
FEATURES
4

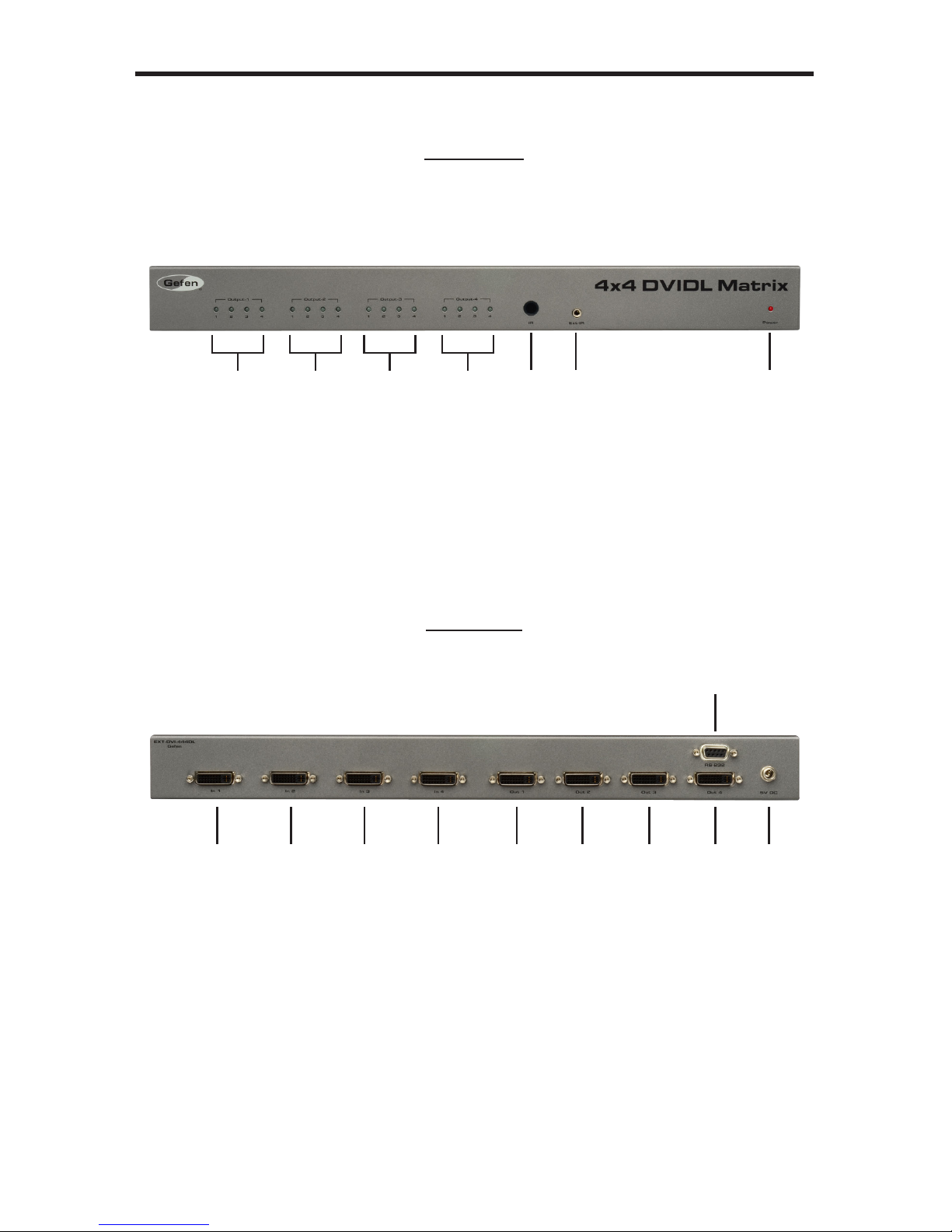

Front Panel
Back Panel
PANEL LAYOUT
1 2 3 4 5
9 10 11 12 13 14 15 16
8
17
6 7
5
PANEL DESCRIPTIONS
1 Display 1 Selected Source LED
The array of 4 LED’s correspond to the 4 source inputs on the back panel of the 4x4 DVI DL
Matrix. The currently selected source being displayed on DVI Output 1 will be indicated by an
active LED.
2 Display 2 Selected Source LED
The array of 4 LED’s correspond to the 4 source inputs on the back panel of the 4x4 DVI DL
Matrix. The currently selected source being displayed on DVI Output 2 will be indicated by an
active LED.
3 Display 3 Selected Source LED
The array of 4 LED’s correspond to the 4 source inputs on the back panel of the 4x4 DVI DL
Matrix. The currently selected source being displayed on DVI Output 3 will be indicated by an
active LED.
4 Display 4 Selected Source LED
The array of 4 LED’s correspond to the 4 source inputs on the back panel of the 4x4 DVI DL
Matrix. The currently selected source being displayed on DVI Output 4 will be indicated by an
active LED.
5 IR Receiver
This IR receiver will receive commands from the included RMT-16-IR remote control.
6 IR Extension Port
Connect an optional IR extension (part# EXT-RMT-EXTIR) to this port.
7 Power LED Indicator
This LED will become active once the included 5V DC power adapter is properly connected.
8 RS-232 Serial Control Interface
Use the commands on page 9 to control the 4x4 DVI DL Matrix using the RS-232 interface.
9 DVI Input 1
Connect a DVI DL source to this input.
10 DVI Input 2
Connect a DVI DL source to this input.
11 DVI Input 3
Connect a DVI DL source to this input.
12 DVI Input 4
Connect a DVI DL source to this input.
13 DVI Output 1
Connect a DVI DL display to this port.
14 DVI Output 2
Connect a DVI DL display to this port.
15 DVI Output 3
Connect a DVI DL display to this port.
16 DVI Output 4
Connect a DVI DL display to this port.
17 Locking 5V DC Power Adapter Input
Connect the included 5V DC power adapter to this port.
6
How to Connect the 4x4 DVI DL Matrix
1. Connect up to 4 DVI DL sources to the 4x4 DVI DL Matrix input ports using
the supplied DVI DL cables.
2. Connect up to 4 displays to the 4x4 DVI DL Matrix output ports using user
supplied DVI DL cables.
3. Connect the supplied 5V DC power supply to the 4x4 DVI DL Matrix.
4. Power on the displays.
5. Power on each source individually ensuring that a display is pointing to it
while the power on procedure completes.
NOTE: It is extremely important to ensure that when each source is being
powered on it has a display pointing to it. Most sources require (a denite
requirement if computers are being used) a display to be attached to
receive EDID (display information) and to begin operation. If a source
does not have a display that is pointing to it, a video image may fail to be
displayed. It is recommended that each source be powered on and veried
that it is outputting video before moving on to power the next source.
CONNECTING AND OPERATING THE 4X4 DVI DL MATRIX
