Gefen HD-SDI Manuale utente

4x2 HD-SDI

Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 884-6294

(800) 545-6900

Fax (818) 884-3108

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

C/O Customer Service

6265 Variel Ave.

Woodland Hills, CA91367-9897

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

4x2 HD-SDI Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Desciptions

Connecting and Operating the 4x2 HD-SDI Switcher

RMT4-IR Installation

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 4x2 HD-SDI Switcher. Your complete

satisfaction is very important to us.

Readily Access One of Four Sources with One or Two Displays

4 Sources + 1 or 2 Displays = Cost Effective Multi-Tasking

The ex•tend•it 4x2 HD-SDI Switcher is unique in its ability to connect two HD-SDI

displays to four HD-SDI sources. Select from multiple sources using the IR remote

control that comes with the unit. When selected, a source may be viewed on either one

or two HD-SDI displays. Source switching is completed swiftly and high deﬁnition video

up to 1080p is supported.

SDI

SDI (serial digital interface), used primarily in broadcasting, converts and transmits digi-

tal video through SDI connectors. It enables computers to process high deﬁnition, high

quality video.

How it Works

Connect your HD-SDI sources and the one or two HD-SDI displays to the 4x2 HD-SDI

Switcher. When all the equipment is powered and connected, switching can begin.

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

The ex•tend•it 4x2 HD-SDI Switcher allows two HDTV DVI devices to be switched easily

in to one HDTV DVI compatible monitor or projector. The 4x2 HD-SDI Switcher can also

be placed at the end of a long DVI cable to regenerate the DVI signal.

INTRODUCTION

FEATURES

Features

• Saves money—use one or two displays to access four sources

• Saves space—eliminates unnecessary hardware while increasing efﬁciency

• Saves time—switch between sources in an instant using the RMT-4 IR remote. Installs

in seconds

• Lifetime support—includes one-year manufacturer’s warranty and free technical

support for the lifetime of the product

Includes:

4x2 HD-SDI Switcher

One 5v Power Supply

RMT-4 IR remote control

PANEL DESCRIPTIONS

Connects to 5VDC

powersupply

SDI Out 1

SDI Out 2

SDI In 1 SDI In 2 SDI In 3 SDI In 4

CONNECTING AND OPERATING THE 4X2 HD-SDI SWITCHER

How to Connect the 4x2 HD-SDI Switcher to your devices

1 Connect your HD-SDI inputs into Input 1 thru 4 on the 4x2 HD-SDI Switcher.

2Connect one or two displays into the outputs.

3Connect the 5VDC power supply into the 4x2 HD-SDI Switcher.

How to Operate the 4x2 HD-SDI Switcher

1 Use the RMT4-IR remote control port to remotely toggle between sources.

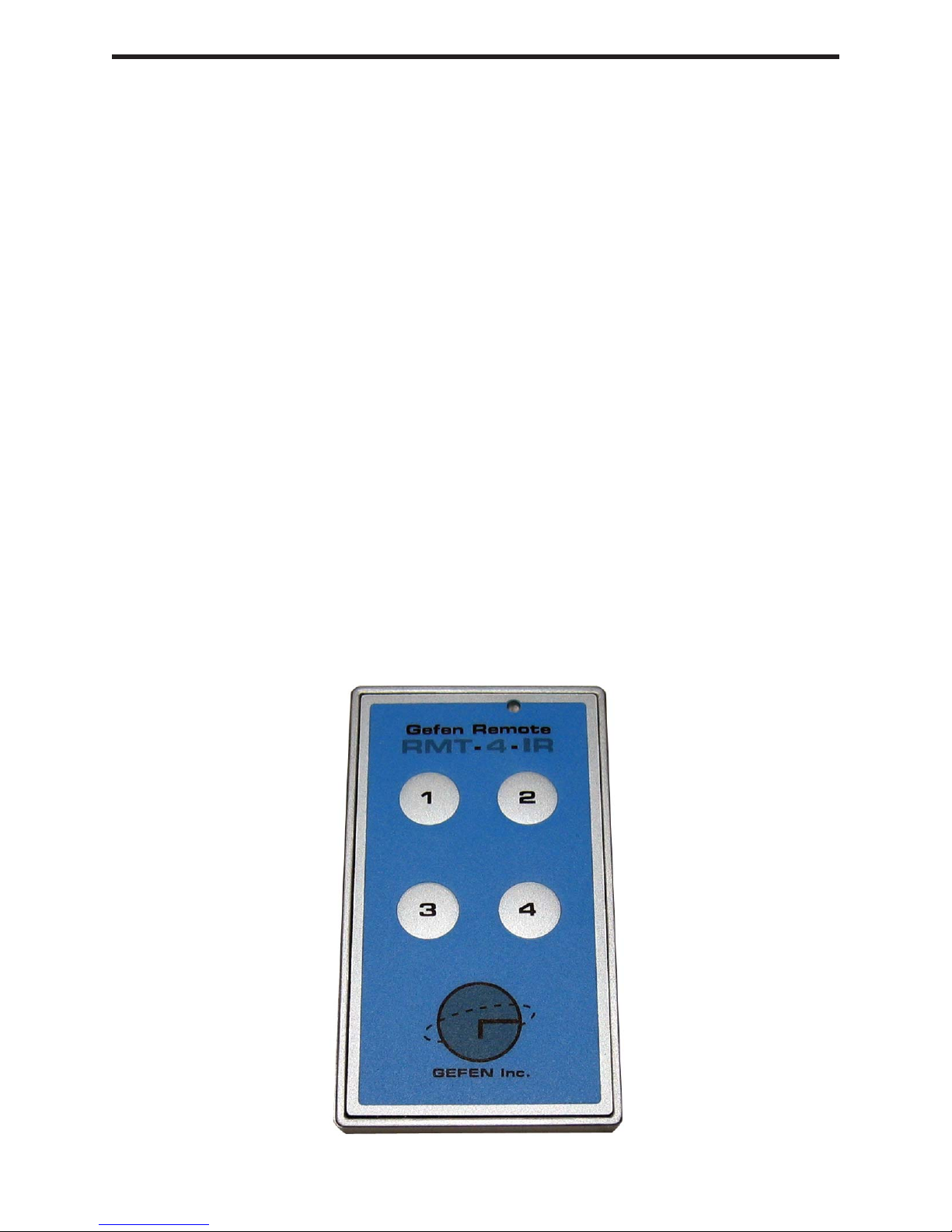

RMT4-IR INSTALLATION

1. Remove battery cover from the back of the RMT4-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT4-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT4-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

SPECIFICATIONS

• Input/Output: SDI - SMPTE 259M-C (270Mbps);HD-SDI - SMPTE 292M (1.485, 1.485/

1.001 Gbps); NTSC; PAL:

720p @ 60, 59.94, 50Hz

1080p @ 30, 29.97, 25, 24 & 23.98Hz,

1080i @ 60, 59.94, 50, 48 & 47.95Hz

• Power Supply: 5VDC

• Power: external adapter with locking power connector

• Dimensions: 3.5“ D x 2.875” W x 1” H

• Shipping Weight: 4 lbs.
