Gefen VGA Manuale utente

4x1 VGA Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The 4x1 VGA Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Front Panel Descriptions

Back Panel Descriptions

How To Connect The 4x1 VGA Switcher

System Speciﬁcations

Warranty

INTRODUCTION

Thank you for purchasing Gefen’ s ex•tend•it 4x1 VGA Switcher series. The 4x1 VGA

Switcher switches VGA, USB and audio between any combination of four computers.

Now you can switch easily and reliably between any combination of four computers using

one or two VGA displays, USB keyboard and mouse. The 4x1 VGA Switcher is switched

using the RMT-4IR. The 4x1 VGA Switcher saves space – there’s no need to work on a

desk crowded with four monitors, keyboards and mouse devices. It saves time – there’s

no need to move from one monitor to another to access different computers.And it saves

money – there’s no need to purchase additional monitors, mouse devices, keyboards etc.

The 4x1 VGA Switcher allows you to choose between any combination of Macintosh or

PC computers.

CONTENTS

The 4x1 VGA Switcher system consists of:

(1) 4x1 VGA Switcher

(1) 12VAC power supply

(4) VGA to DVI cables (6FT)

(4) USB cables (6FT)

(4) Audio cables (6FT)

(1) DVI to VGAAdapter

(1) User Manual

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE 4X1 VGA SWITCHER

• If two monitors are connected to the switcher, both monitors must have the same na-

tive resolution.

• The 4x1 VGASwitcher is housed in a metal box for better RF shielding.

OPERATION NOTES

1-4Indicator LED

Power LED

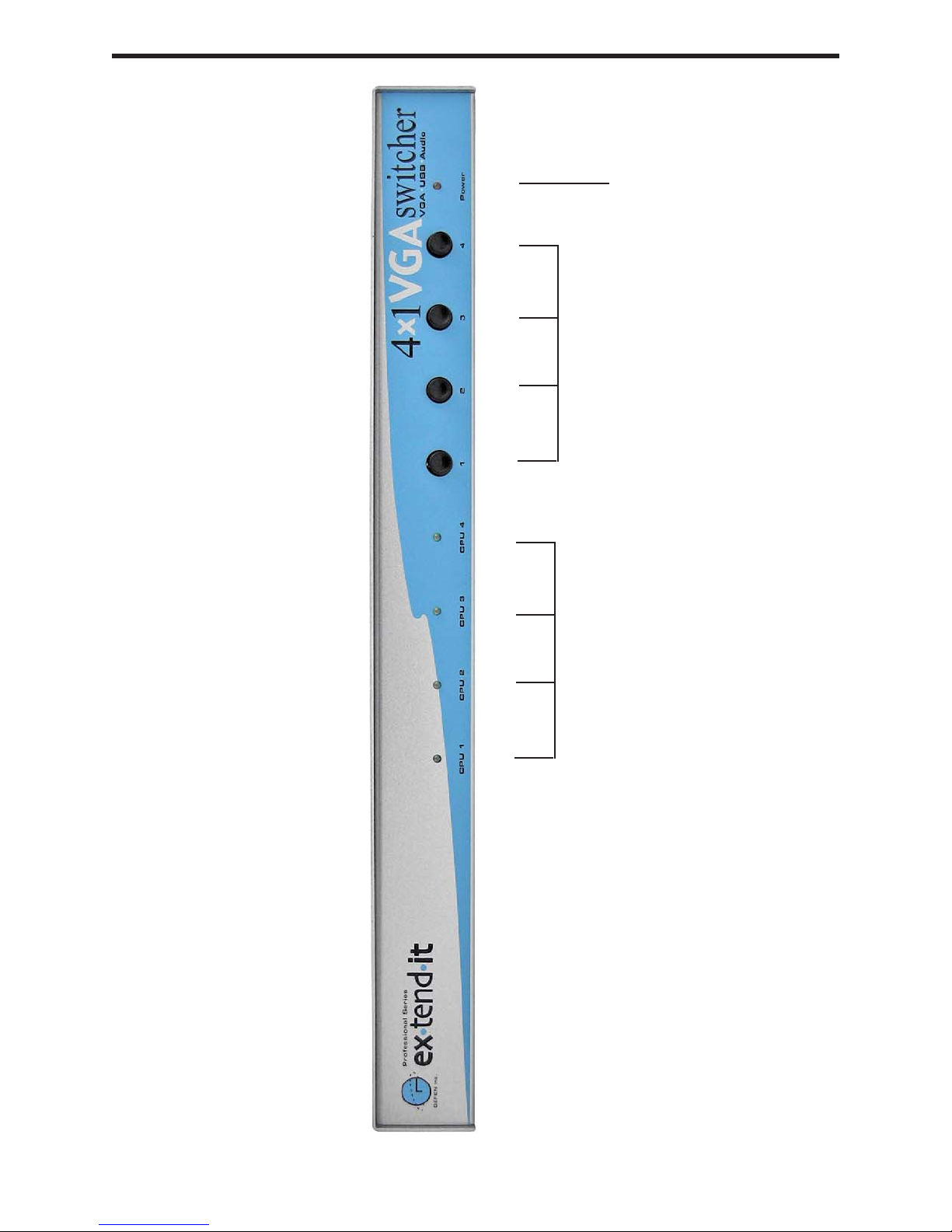

FRONT PANEL DESCRIPTIONS

1-4 Switch Buttons

BACK PANEL DESCRIPTIONS

POWER

INPUT VGA IN 1 VGA IN 2 VGA OUT VGA OUT

VGA IN 4 USB OUT

4 USB INPUTS

REMOTE -

RJ-45 Connecter

For RMT-4 Wired

Remote

AUDIO IN 1 AUDIO IN 2 AUDIO IN 3 AUDIO IN 4 AUDIO OUT

VGA OUT

Connect your computers VGA, USB, and audio to the 4x1 VGASwitcher inputs using

the supplied cables.

Connect one or two VGA monitor to the VGA Out. If only one monitor is connect you

must use VGA Out 1.

Connect your USB and audio devices to the USB and audio outputs.

Connect the RMT-4 remote control (if applicable).

Plug the 12VAC power supply into the 4x1 VGA Switcher.

Your computers must be turned on one at a time and the switcher must be selected

to the computer that is booting up.After one computer completes the startup process,

you can boot up the second computer and repeat the process with the remaining

computers.

HOW TO CONNECT THE 4x1 VGA SWITCHER

Video Ampliﬁer Bandwidth ................................................................................. 350 MHz

Single Link Range ......................................................................................... 1920 x 1200

Vertical Frequency Range .................................................................................. 60-80 Hz

DVI Input/Output Connector Type ........................................................................... DVI-A

USB Input Connector .......................................................................................... Type “B”

USB Output Connector ........................................................................................ Type “A”

Power Consumption ................................................................................ 18 Watts (max.)

Power Supply ........................................................................................................ 12VAC

Dimensions ...................................................................................... 16”W x 1.75”H x 4”D

Rackmountable .......................................................................................... 1 Rack Space

Shipping Weight ..................................................................................................... 12 Lbs

SPECIFICATIONS

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two (2) year

from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment,

provided that the equipment has not been subjected to mechanical, electrical, or other

abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose, all

of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

Theinformationin this manualhasbeen carefully checked andisbelieved to beaccurate.

However, GefenInc. assumes noresponsibility for anyinaccuracies that maybe contained

in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,

or consequential damages resulting from any defect or omission in this manual, even if

advised of the possibility of such damages. The technical information contained herein

regarding the 4x1 VGA Switcher features and speciﬁcations is subject to change without

notice.

WARRANTY
