Generac Power Systems Mobile Power MLG25 Manuale utente

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 1 of 4

6/12

Mobile Lite Generator – MLG25 Specifications

ENGINE

Isuzu®4LE1NYGV-01 -naturally aspirated, diesel engine

oPrime – 32.1 hp @ 1800 rpm

o4 cylinder

o2.2 L displacement

oInterim Tier IV approved

Polyethylene fuel tank

o56 gal. capacity

o31 hr. run time – full load

o3 ½” fill port

Fuel consumption at prime:

o100% - 1.80 gph (6.81 Lph)

o75% - 1.35 gph (5.11 Lph)

o50% - 0.90 gph (3.41 Lph)

Cooling system capable of operating at 120°F ambient

Rubber vibration dampers isolate engine/generator from frame

Full flow oil filter, spin on type

Fuel filter with replaceable element

Dry type cartridge air filter

60 Hz engine/generator

GENERATOR

Marathon Electric®

oBrushless

o4 pole

oClass H insulation

Voltage regulation +/- 1% with Marathon SE350 Voltage Regulator

SYSTEM OUTPUT

3 position selector switch

oSingle phase – 120 / 240V Zig Zag

oThree phase – 120 / 208V Low Wye

oThree phase – 277 / 480V High Wye

16 kW / 16 kVA – standby, single phase

15 kW / 15 kVA – prime, single phase

20 kW / 25 kVA – standby, three phase

18 kW / 23 kVA – prime, three phase

SYSTEM CONTROLS

Microprocessor-based controller

oBacklit, 128x64 pixel resolution display

o-40°F to 185°F operating temperature range

oThermostatically controlled LCD heater

MLG25 Generac Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 2 of 4

6/12

oSix LED indicators w/ lamp test

Alarm / Fault (Red)

Ready / Manual (Red)

Running (Green)

Warning (Yellow)

Ready / Auto (Green)

Supplying Load (Green)

Push buttons for easy operation

oManual or Auto Start

oEngine Start or Stop

oAlarm Cancel & Fault Reset

oScrolling Arrows for Diagnostic Information

System kW output display

Line output & frequency display

Engine diagnostic display

Oil pressure

Engine temperature

Fuel level

Battery

System hours

Running hours

kW hours

Time to service

oAlarm list – warnings / shutdowns are date & time stamped

Fuel level: warning – 15%; shutdown – 5%

Overspeed protection: shutdown – 115%

Oil pressure: warning – 25 psi; shutdown – 20 psi

Coolant temperature: warning – 220°F; shutdown – 230°F

Battery voltage: over – 15VDC; under – 11VDC

Generator over voltage: warning – 110%; shutdown – 111%

Generator under voltage: warning – 87%; shutdown – 86%

Generator over frequency: warning – 105%; shutdown – 110%

Generator under frequency: warning – 95%; shutdown – 90%

Over current shutdown

ELECTRICAL SYSTEM AND CONTROLS

90A breaker

Convenience receptacles with individual breakers

o(2) 120V 20 Amp GFCI duplex outlets (Nema 5-20R type)

o(2) 240V 30 Amp twistlock outlets (Nema L6-30R type)

o(2) 240V 50 Amp twistlock outlets (Non-Nema 6369)

oLug terminals for single and three phase output

720 CCA wet cell battery

MLG25 Generac Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 3 of 4

6/12

ENCLOSURE

Generac Mobile Power decals

Steel, 14-gauge, sound attenuated enclosure

oUV & fade resistant, high temperature cured, white polyester powder paint

oInsulated and baffled

o68 dB(A) at 23 feet – prime power

Fully lockable enclosure

Stainless steel hinges, door latches and exterior hardware

Emergency stop switch located on front panel

License plate holder with light

Multi-lingual operating/safety decals

Document holder with operating manual including AC/DC wiring diagrams

TRAILER

DOT approved tail, side, brake, and directional lights

oRecessed rear lights

Transportation tie downs

Safety chains with spring loaded safety hooks

Single wall polyethylene fenders

2” ball hitch

2200 lb. leaf spring axle

2000 lb. tongue jack with footplate

ST205/75R15 tubeless tires – 6 ply

48” track width

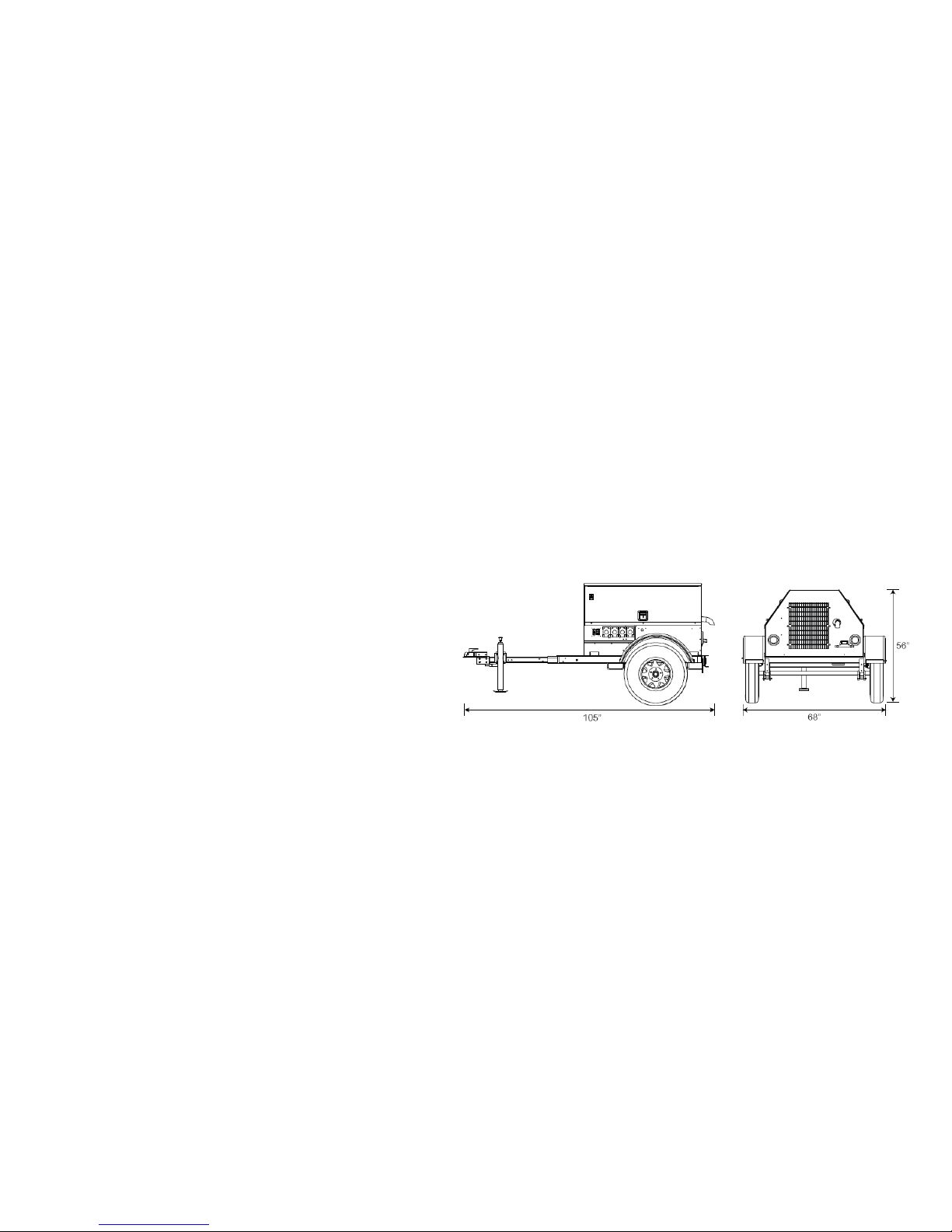

WEIGHTS & DIMENSIONS

Dry weight: 1640 lbs (744 kg)

Operating weight: 2038 lbs (924 kg)

105 x 68 x 56 in

(2.67 x 1.73 x 1.42 m)

WARRANTY

Engine and generator covered under OEM warranty – consult factory for details

CERTIFICATIONS

CSA certified

MLG25 Generac Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 4 of 4

6/12

MLG25 Options

ENGINE OPTIONS

Heated fuel filter

Lower radiator hose – engine heater

Oil drain valve kit

ELECTRICAL CONTROLS OPTIONS

720 CCA gel cell battery

685 CCA gel cell battery

Battery disconnect

Battery charger – 2A trickle

VOLTAGE OUTPUT OPTIONS

Alternative receptacle panel – consult factory for configurations

COOLANT OPTIONS

60/40 Coolant – cold weather applications

ENCLOSURE OPTIONS

Interior cabinet light

Level indicator

Tamper pack

Liquid containment / Quiet pack

Lift structure

FUEL TANK OPTIONS

56 gal. fuel tank

Tethered fuel tank cap

TRAILER OPTIONS

6 pin or 7 spade electrical connectors

Outrigger package

Tube and sleeve jack

Spare tire/wheel kit

HITCH OPTIONS

2.5” lunette ring

3” lunette ring

3” HD lunette ring

2 5/16” ball

Combination hitch – 2.5” lunette ring / 2” ball
