Generac Power Systems 1300PSI Manuale utente

1300PSI

The Reliable Ones

High Pressure Washer

Owner’s Manual

Problems?

Questions?

Before taking your unit

back to the store,

call the pressure washer

helpline at

1-800-2 0-1408

M-F 8-5 CST

GENERAC

This symbol points out important safety instructions, which, if not followed, could endan-

ger the personal safety and/or property of yourself and others. Read and follow all

instructions in the manual before attempting to operate this unit.

Model No. 0 (1300 PSI High Pressure Washer) Manual No. B2351 Revision 0 (12/16/9 )

CAUTION! Read all instructions

before using this product to reduce

the risk of injury.

DANGER! Risk of electrocution!

 Inspect cord before every use. Do not use if cord is

damaged.

 Keep all connections dry and off the ground.

 Do not touch plug with wet hands.

 Double-insulated  When servicing, use only iden-

tical replacement parts.

 his product shall only be connected to a power

supply receptacle protected by a Ground Fault Cir-

cuit Interrupter (GFCI).

 Read instruction manual before using.

WARNING! To reduce the risk of

injury, close supervision is neces-

sary when product is used near

children.

 Know how to stop the product and bleed the pres-

sure quickly. Be thoroughly familiar with controls.

 Stay alert. Watch what you are doing.

 Do not operate the product when fatigued or under

the influence of alcohol or drugs.

 Keep operating area clear of all persons.

WARNING! Risk of injury or injection

to persons  Do not discharge

stream at persons or animals.

 High pressure hose can develop leaks from wear,

kinking, abuse, etc. Water spraying from a leak is

capable of injecting material into skin. Do not point

the pressure washer spray at people or animals.

 Do not overreach or stand on unstable support.

Keep good footing and balance at all times.

 Follow the maintenance instructions specified in the

manual.

 his product shall only be connected to a power

supply receptacle protected by a Ground Fault Cir-

cuit Interrupter (GFCI). his is done to comply with

National Electrical Code (NFPA 70) and to provide

additional protection from risk of electrical shock.

 Save these instructions.

 Operate this pressure washer only in areas away

from combustible materials, combustible fumes or

dust.

 Some chemicals or detergents may be harmful if

inhaled or ingested, causing severe nausea, faint-

ing or poisoning. he harmful elements may cause

property damage or severe injury.

 Do not allow CHILDREN to operate the Pressure

Washer at any time.

 Before starting the Pressure Washer in cold

weather, check all parts of the equipment and be

sure ice has not formed.

 Units with broken or missing parts, or without pro-

tective housing or covers should NEVER be

operated.

DANGER! Risk of Explosion  Do

not spray flammable liquids.

 Never aim the gun at people, animals or plants.

 For household use. For indoor or outdoor use.

 High pressure stream of fluid that this equipment

can produce may pierce skin and its underlying tis-

sues, leading to serious injury and possible

amputation.

 High pressure spray can cause paint chips or other

particles to become airborne and fly at high speeds.

 Always wear eye protection when you use this

equipment or when you are in vicinity where the

equipment is in use.

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

Save these instructions

IMPORTANT!  SAFETY INSTRUCTIONS  IMPORTANT!

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

 Never move the machine by pulling on high pres-

sure hose. Use the handle provided on the top of

the unit.

 Use a respirator or mask whenever there is a

chance that vapors may be inhaled. Read all

instructions with the mask so you are certain the

mask will provide the necessary protection against

inhaling harmful vapors.

 High pressure spray may damage fragile items

including glass. Do not point spray gun at glass

when in the high pressure mode.

 Keep the hose connected to machine or the spray

gun while the system is pressurized. Disconnecting

the hose while the unit is pressurized is dangerous.

 Hold the spray gun firmly in your hand before you

start the unit. Do not leave the pressure washer

unattended while the machine is turned on.

 Cleaning area should have adequate slopes and

drainage to reduce possibility of a fall due to slip-

pery surfaces.

 Keep water spray away from electric wiring or fatal

electric shock may result.

 Do not by-pass any safety device on this machine.

 Operate and store this unit on a stable surface.

 Inspect hose each time before using it. Check all

hoses for cuts, leaks, abrasions, bulging of cover,

damage or movement of couplings. If any of these

conditions exist, replace hose immediately. Never

repair high pressure hose. Replace it with another

hose that meets minimum pressure rating of your

pressure washer.

 Store in a clean, dry area. Ideally, the unit should be

stored in a frost-free room.

Servicing of a Double Insulated Product.

In a double-insulated product, two systems of insula-

tion are provided instead of grounding. No means of

grounding is provided on a double-insulated product,

nor should a means for grounding be added.

Servicing a double-insulated product requires extreme

care and knowledge of the system and should be

done only by qualified service personnel. Replace-

ment parts for a double-insulated product must be

identical to the parts they replace. Use only genuine

replacement parts. A double-insulated product is

marked with the words DOUBLE INSULA ION or

DOUBLE INSULA ED.

he symbol may also be marked on the product.

Extension Cords

Use only extension cords that are approved for out-

side use. hese extension cords are identified by a

marking ACCEP ABLE FOR USE WI H OU DOOR

APPLIANCES; S ORE INDOORS WHILE NO IN

USE. Use only extension cords having an electrical

rating greater than the rating of the product. Do not

use damaged extension cords. Examine extension

cord before using and replace if damaged. Do not

abuse extension cord and do not yank on any cord to

disconnect it. Keep cord away from heat and sharp

edges. Always disconnect the extension cord from the

receptacle before disconnecting the pressure washer

from the extension cord.

Save these instructions

IMPORTANT!  SAFETY INSTRUCTIONS  IMPORTANT!

High Pressure Washer

CONGRATULATIONS on your purchase of a GEN-

ERAC electric high pressure washer. It has been

designed, engineered and manufactured to give you

the best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest GENERAC

Authorized Service facility, or call the

18002 01408 number listed on the front of this

manual. We have competent, well-trained technicians

and the proper tools to service or repair this unit.

Please read and retain this manual. he instructions

will enable you to assemble and maintain your high

pressure washer properly. Always observe the

SAFE Y RULES.

CUSTOMER RESPONSIBILITIES

 Read and observe the safety rules.

 Follow regular schedule in maintaining, caring for

and using your high pressure washer.

 Follow the instructions under Maintenance and

Storage sections of this Owner's Manual.

PRODUCT SPECIFICATIONS

Pressure Washer Specifications

Pressure 1300 pounds per square inch

(PSI)

Flow Rate 1.5 gallons per minute (GPM)

Detergent Mix Use Undiluted Detergent

Water Supply Inlet water not to exceed

Temperature 104°F

Motor Brush ype (Universal)

Rated Voltage 120 Volts

Current 14 Amperes

Read these instructions and Operators Manual in its

entirety before you attempt to assemble or operate

your new high pressure washer. Your high pressure

washer has, for the most part, been assembled at the

factory. Before you can operate your new high pres-

sure washer, you must properly connect the high

pressure hose and the water supply.

If you have any problems with the assembly of your

pressure washer, please call the pressure washer

helpline at 1-800-2 0-1408.

GENERAC

Generac 1300PSI Electric High Pressure Washer

Model

Number 07770

Serial

Number_________________________________

Date of

Purchase________________________________

he model and serial numbers will be found on a

decal attached to the pressure washer. You

should record both serial number and date of pur-

chase and keep in a safe place for future

reference

GENERAC

Generac 1300PSI High Pressure Washer

High Pressure Washer

Spray Gun  Controls the application of water onto

cleaning surface with trigger device. Includes safety

latch.

High Pressure Outlet  Connection for high pres-

sure hose.

Master On/Off Switch  his switch ONLY enables

the Grip Start system to function.

Grip Start System  Pressing and releasing the

spray gun trigger starts and stops the electric motor in

the pressure washer.

Safety Flow System  Electric motor will not start

unless water is supplied to the pump.

Foamer  Used to apply detergent. Mixes water

and detergent in outlet water flow.

Bayonet Adapter (Not Shown)  Connector accom-

modates the connection of a utility and rotating brush

to the spray gun.

Water Inlet  Connection for garden hose. (Note:

You need to use the quickconnect to attach the

garden hose to the pressure washer)

Nozzle Lance  Attaches to spray gun and accom-

modates the adjustable and turbo nozzles.

Rotating Brush  Attaches to the spray gun with the

bayonet adapter. Automatically scrubs surfaces when

trigger is engaged.

Utility Brush  Attaches to the spray gun with the

bayonet adapter. Use this brush to scrub a variety of

surfaces.

Turbo Nozzle  Attaches to the nozzle lance.

Expands the high pressure stream to allow for high

pressure cleaning of larger areas.

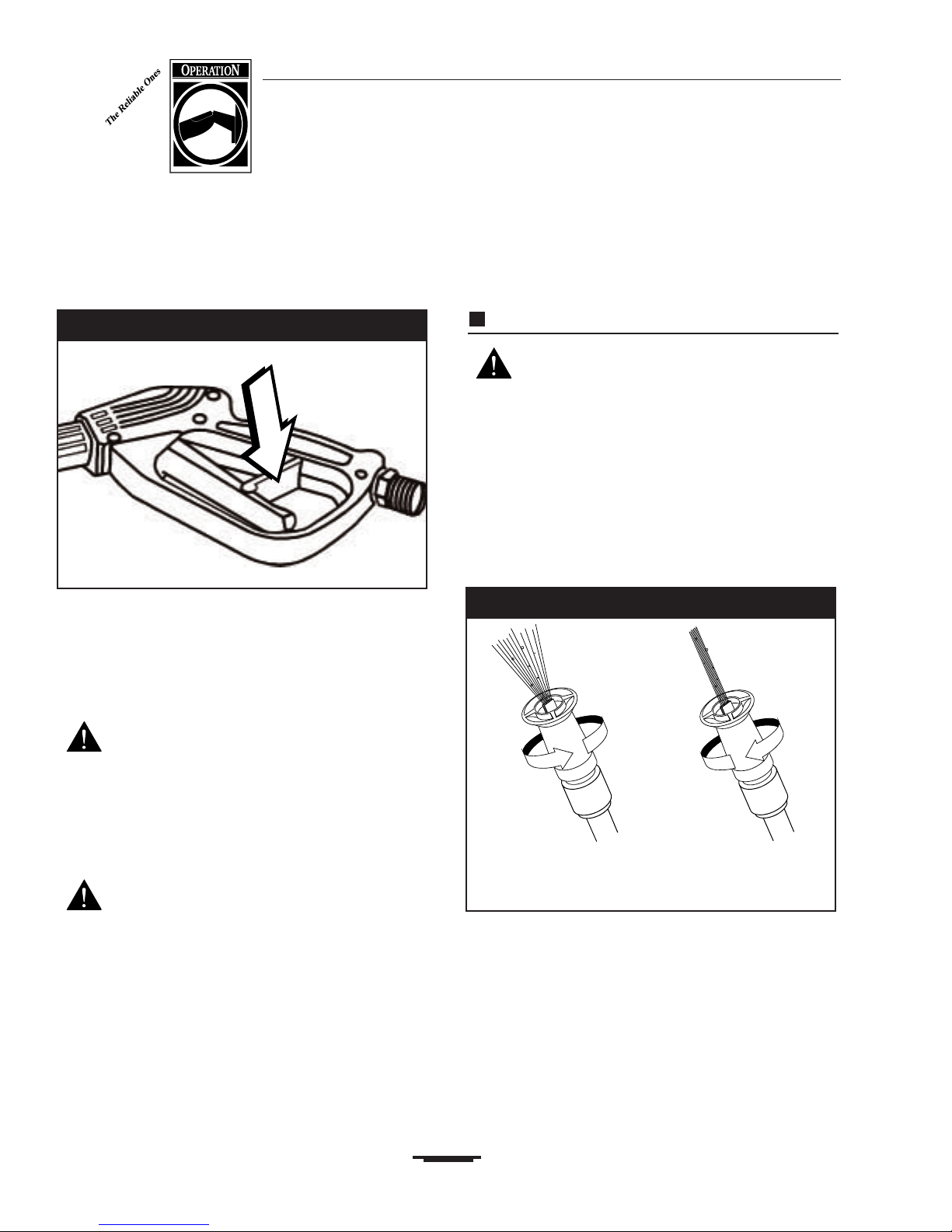

Adjustable Nozzle  urn nozzle clockwise for

narrow spray and counterclockwise for fan spray.

Read this owners manual before operating your high pressure washer. Compare the illustrations with your

high pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this

manual for future reference.

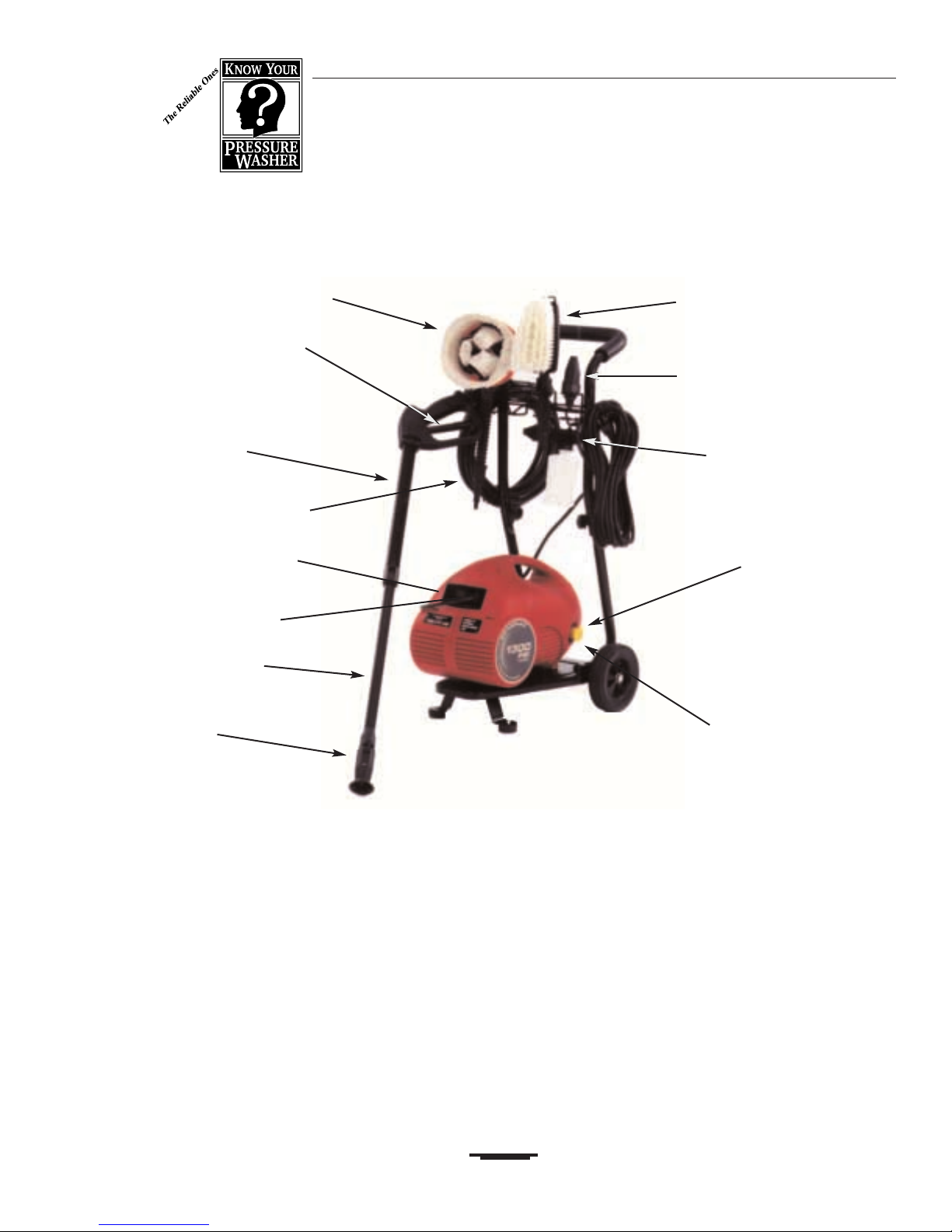

Spray Gun

Master On/Off Switch

High Pressure Outlet

High Pressure Hose

Adjustable Nozzle

Extension

Nozzle Lance

Water Inlet

Grip Start System

Rotating Brush Utility Brush

Turbo Nozzle

Safety Flow System

Foamer

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

CARTON CONTENTS

Items in the carton include:

 Main Unit

 Cart Box (which includes instructions and hardware

to assemble the cart)

 Parts Box (which includes the following):

 Goggles

 Owners Manual

 Spray Gun

 Nozzle Lance

 Foamer

 Rotary Brush

 urbo Nozzle

 Utility Brush

 High Pressure Hose

 Parts Bag (which includes the following):

 Nozzle Cleaning Kit

 Bayonet adapter, must be used to attach the

brushes to the gun.

 Quick Connect (male and female ends)

Refer to the above list for an illustrated listing of all

items included with your pressure washer. Become

familiar with each piece before assembling the pres-

sure washer. Check all contents against list. If any

parts are missing, call the pressure washer helpline at

1-800-2 0-1408.

HOW TO SET UP YOUR PRES-

SURE WASHER

 Follow the instructions in the cart box to assemble

the cart and install it onto the main unit.

 Unwind the high pressure hose and attach it to

spray gun (Figure 1).

 Attach the high pressure hose to the high pressure

outlet and tighten by hand (Figure 2).

 Included with this unit is a quick-connect fitting that

you must attach to the water inlet and your garden

hose. You can install the grey male connector by

hand but you may need to use an adjustable

wrench to tighten it (Figure 3).

 Check the screen on the female connector. Make

sure it is clean and check for damage. If you see

any damage in the screen, do not use that female

connector.

 Attach the female quick connect to your garden

hose.

 Attach garden hose to the water inlet using the

quickconnect. he quickconnect should lock in

place. (Figure 4 on page 7).

AASSSSEEMMBBLLYY

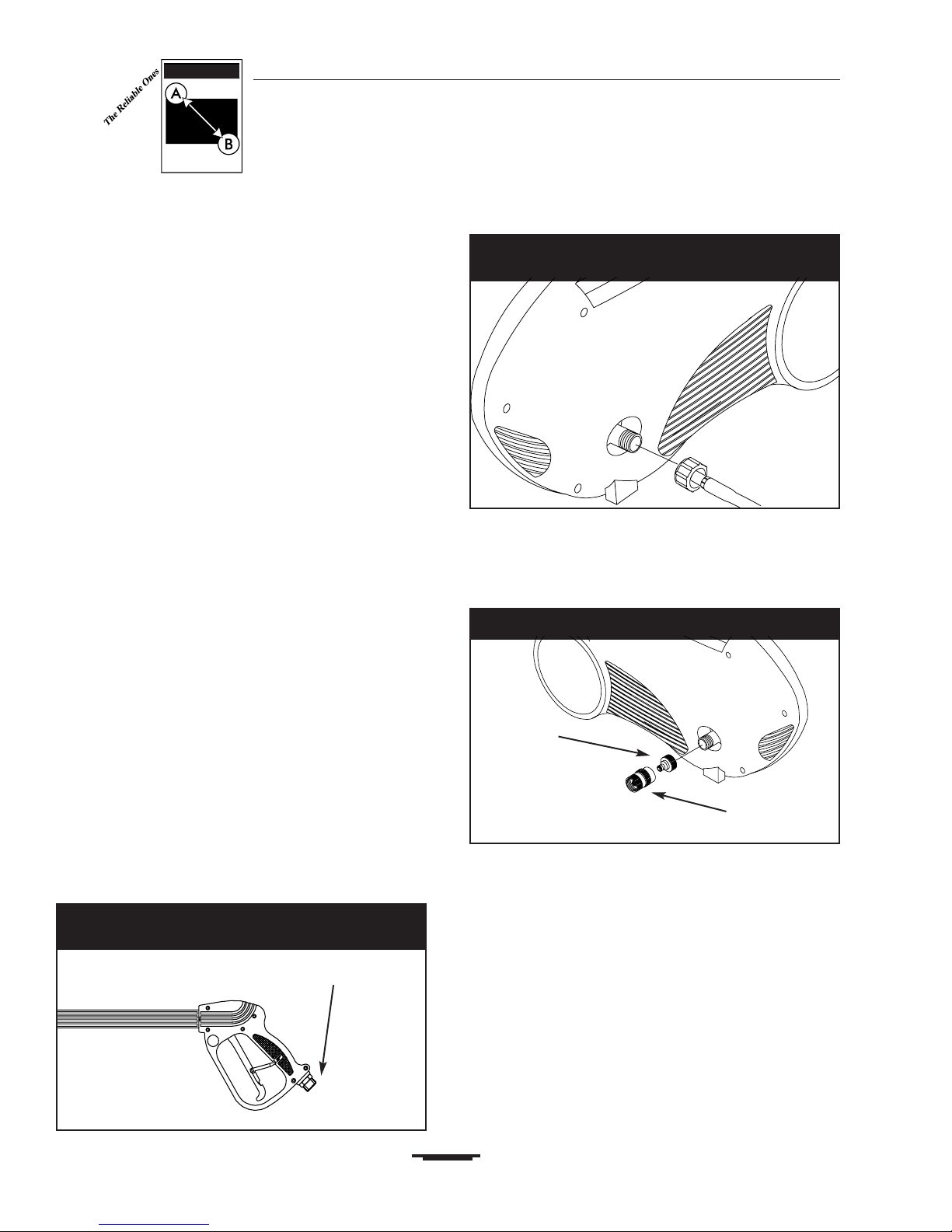

Figure 1 — Attach High Pressure Hose to Spray

Gun.

Figure 2 — Attach High Pressure Hose to Main

Unit.

Figure 3 — Install Quick–Connect

Connect high pressure

hose here

Male QuickConnect

Female QuickConnect

Generac 1300PSI Electric High Pressure Washer

High Pressure Washer

GENERAC

DANGER: When connecting the unit to a

power supply receptacle, use ONLY a

receptacle protected by a Ground Fault Cir-

cuit Interrupter (GFCI). This will help

protect against electrical shock.

CAUTION: Before starting you should be

sure the electrical supply is rated at 120

volts, 15 amps.

WARNING: To reduce the risk of electrocu-

tion, keep ALL connections dry and off the

ground. DO NOT touch plug with wet

hands.

 We do not recommend that you use extension

cords with this pressure washer. If, however, your

application requires that you need an extension

cord, use only extension cords that are approved for

outside use. hese extension cords are identified by

a marking ACCEP ABLE FOR USE WI H OU -

DOOR APPLIANCES; S ORE INDOORS WHILE

NO IN USE. Use only extension cords having an

electrical rating not less than the rating of the prod-

uct. Do not use damaged extension cords.

 urn on the water.

NOTE: Inlet water temperature should not exceed

104°F.

DANGER: You must attach the spray gun

and all hoses before you start the motor.

DANGER: You must be careful at this point.

Anytime you squeeze the trigger, the motor

will start and water will spray out of the

gun.

 Squeeze trigger to purge pump of system air and

impurities.

 Attach nozzle extension to spray gun by aligning the

locking tabs on the extension with the grooves in

the gun. Push extension inward and twist clockwise

to lock in place (Figure 5).

 Press the master On/Off Switch to the On position

(Figure 6).

CAUTION: Before starting the pressure

washer, be sure you are wearing adequate

eye protection. Goggles are included with

this unit.

WARNING: Gun kicks back. Use both

hands.

DANGER: Risk of injury or injection to

people and animals. DO NOT discharge

stream at people or animals.

AASSSSEEMMBBLLYY

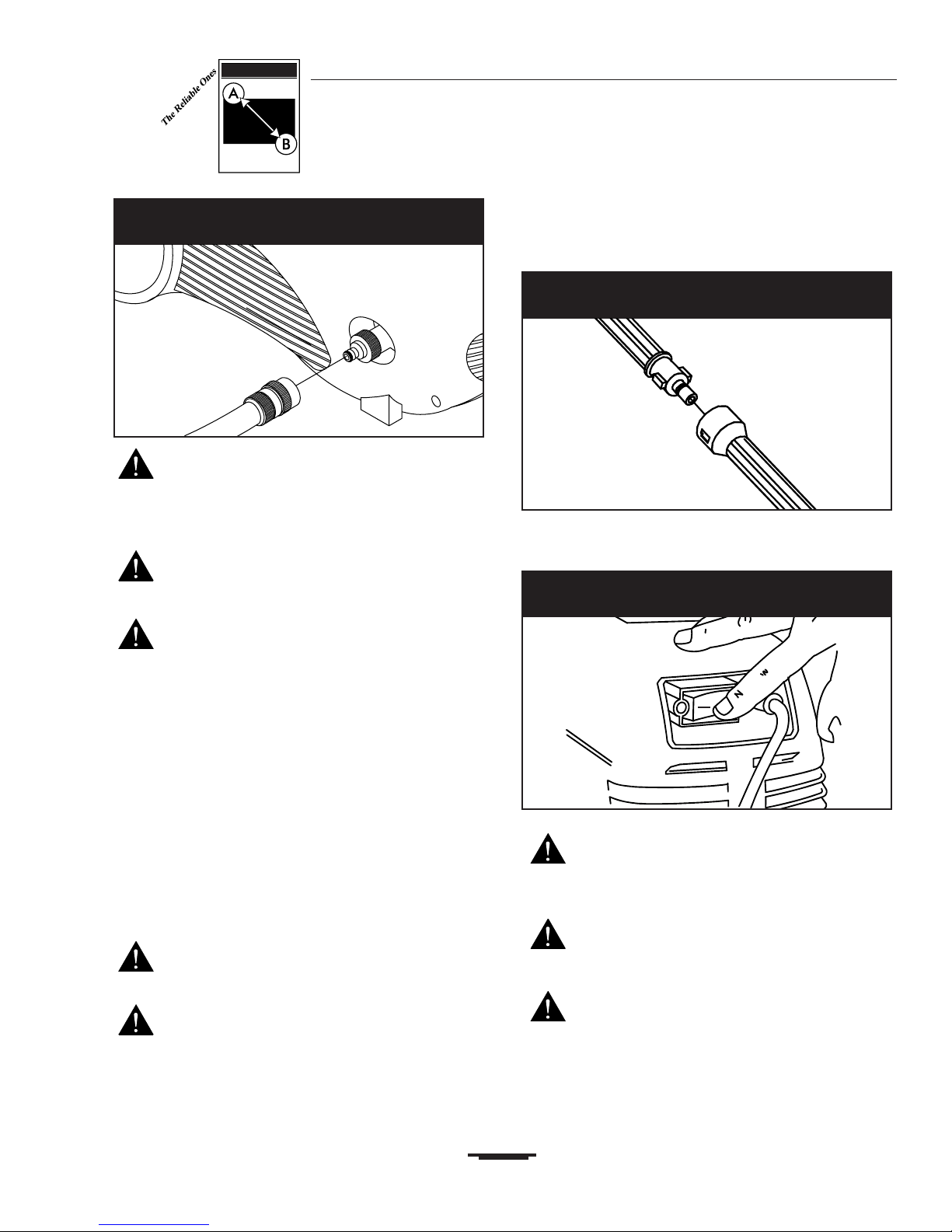

Figure 4 — Connect Garden Hose to Water

Inlet Opening

Figure 6 — Press the Master On/Off Switch to

the “On” Position

Figure 5 — Connect the nozzle extension to

spray gun

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

 Squeeze trigger to produce spray.

NOTE: Behind the trigger to the gun is a SAFE Y

LA CH. You can place this latch as shown in Figure 7

to keep the washer from accidentally spraying while

you are changing the nozzle head or foamer or per-

forming other tasks.

STOPPING YOUR PRESSURE

WASHER

 If the pressure washer is running, release the trig-

ger.

DANGER: Releasing the trigger will shut

off the motor but does not shut off the

unit. You must also place the Master

On/Off Switch to the OFF position.

 Place Master On/Off switch in Off position.

Simply shutting OFF motor will not release pres-

sure in the system. Squeeze the trigger on the gun

to relieve the pressure in the hose.

DANGER: Never leave your pressure

washer unattended even when turned off.

HOW TO USE YOUR WASHER

You now should know how to S AR your pressure

washer and how to S OP it. he information in this

section will tell you how to adjust the spray pattern

and apply detergent or any other cleaning chemicals.

HOW TO USE ADJUSTABLE NOZZLE

DANGER: Never adjust spray pattern when

spraying. Never put hands in front of spray

nozzle to adjust spray pattern. You could

be injured.

On the end of your spray gun is a nozzle that you can

twist from side to side. With the adjustable nozzle you

can adjust the spray configuration to be either concen-

trated in a stream or expanded into a fan pattern.

 wist nozzle counterclockwise when you wish to

produce an expanded stream. wist nozzle clock-

wise to produce a narrow, concentrated stream

(Figure 8).

Figure 7 — Apply the Safety Latch.

Figure 8 — Using the Adjustable Nozzle.

Twist Nozzle

Counterclockwise

for Fan Spray

Twist Nozzle

Clockwise for

Narrow Spray.

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

 Point the nozzle toward the ground and press the

trigger to test the pattern.

 For most effective cleaning, keep spray nozzle

between 8 to 24 inches of cleaning surface.

 If you get the spray nozzle too close, especially

using high pressure mode, you may damage the

cleaning surface.

 Do not get closer than 6 inches when cleaning auto-

mobile tires.

Applying Detergent With Foamer

IMPORTANT: Use soaps designed specifically for

pressure washers. Household detergents could

damage the pump.

NOTE: Never use garden hose inlet to siphon deter-

gent or wax.

DANGER: You MUST attach all hoses and the spray

gun before you start the motor.

WARNING: Before removing any spray gun

extension, be sure to turn off the pressure

washer and relieve pressure by pressing

the trigger. You could be injured if you try

to remove an extension if the pressure

washer is running and there is pressure in

the system.

Pressure washers are useful cleaning tools designed

to clean almost any surface in two easy steps.

 he first step involves applying an appropriate

detergent/solvent solution to penetrate and loosen

grime. he detergent is applied at low pressure to

avoid splashing, overspraying and waste. Leave the

solution on surface for 3 to 5 minutes to allow solu-

tion to work.

 he second step involves cleaning the surface you

have prepared with the pressure washer and then

rinsing it clean.

To apply detergent follow these steps:

 Detach the nozzle extension by pushing in and

unlocking it counterclockwise.

 Remove the bottle from the foamer.

 Align the locking tabs on the foamer with the groves

in the gun. Push inward and twist clockwise to lock

in place. (Note: make sure that the when you lock

the foamer into place you have the hose that con-

nects to the foamer bottle hanging downward.)

 Prepare your detergent solution as required by your

job and fill bottle with the solution.

 Attach bottle back onto foamer making sure the

bottle hangs down.

 Start washer and apply detergent to a dry surface,

starting from the bottom and working up.

 o rinse, YOU MUST, stop the pressure washer,

remove the foamer and connect the adjustable

nozzle extension.

NOTE: Detergents are most effective applied to a dry

surface.

To Clean

Start at lower portion of area to be washed and work

upward, using long, even overlapping strokes. Deter-

gent or degreaser works best when you apply it to a

dry surface first. Let it set for 3-5 minutes before

washing and rinsing.

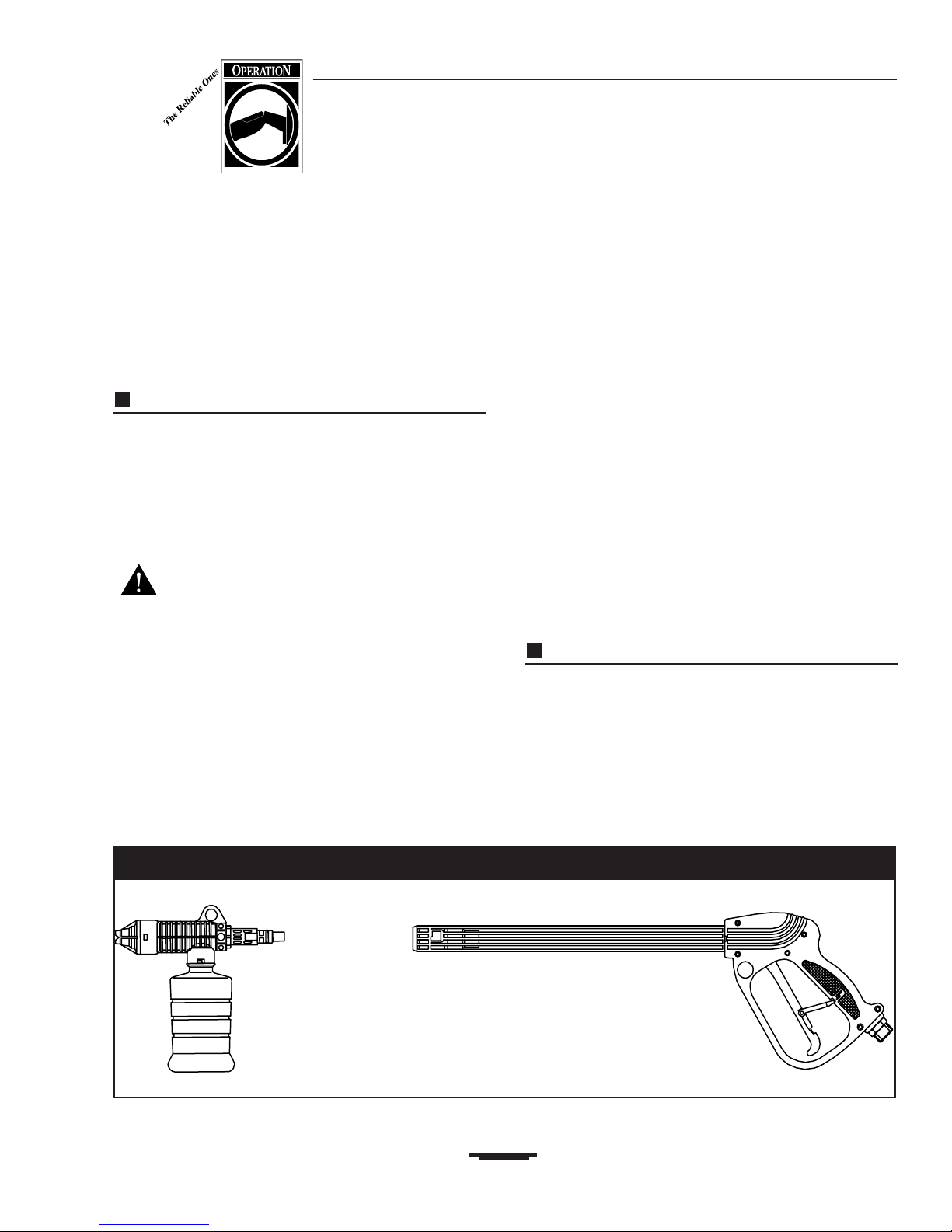

Figure 10  Connecting the Foamer

High Pressure Washer

GENERAC

Generac 1300PSI Electric High Pressure Washer

GENERAC

Rinse

Start at the top of area to be rinsed, working down

with the same action as for cleaning.

How to Use the Rotating and Utility

Brushes

he rotating and utility brushes allow you to scrub

surfaces with water filtering through the bristles.

To attach a brush to the gun:

 Attach the bayonet adapter to the base of the

brush. ighten.

 Remove the adjustable nozzle lance from the gun if

attached.

 Attach the brush with the bayonet adapter to the

spray gun by aligning the locking tabs on the

adapter with the grooves in the gun. Push the brush

inward and twist clockwise to lock in place.

Note: You must use the bayonet adapter to attach the

brush to the gun.

How to Use the Turbo Nozzle

he turbo nozzle, in essence, expands the area of the

high pressure stream. Use this nozzle when a large

area needs to be cleaned with the high pressure

stream.

To attach the turbo nozzle:

 Remove the adjustable nozzle from the lance.

 Attach the turbo nozzle to the lance.

CUSTOMER RESPONSIBILITIES

AND MAINTENANCE

he warranty of the high pressure washer does not

cover items that have been subjected to operator

abuse or negligence. o receive full value from the

warranty, operator must maintain high pressure

washer as instructed in this manual.

BEFORE EACH USE

Check and Clean Quick-Connect

Screen

Remove quick-connect and examine the inlet screen

on the female connector. Clean if clogged or replace

the quick-connect inlet screen if damaged.

Check High Pressure Hose

DANGER: Water spraying from a leak is

capable of injecting material into skin.

Inspect hose each time before using it.

Never repair high pressure hose. Replace it

with another hose that meets minimum

pressure rating of your pressure washer.

High pressure hose can develop leaks from wear,

kinking, and abuse. Check all hoses for cuts, leaks,

abrasions or bulging of cover, or damage or move-

ment of couplings. If any of these conditions exist,

replace hose immediately.

Check Gun and Wand

Examine hose connection and make sure it is secure.

est trigger by pressing it and making sure it springs

back into place when released. Put safety latch in ON

position and test trigger. You should not be able to

press trigger.

PURGE PUMP OF AIR AND

CONTAMINANTS

To remove the air from the pump, follow these

steps:

 Set up the pressure washer as described in the

ASSEMBLY section and connect the water supply.

 Remove the nozzle lance from the gun.

 Pull the trigger on the gun and hold.

To remove the contaminant from the pump, follow

these steps:

 Set up the pressure washer as described in the

ASSEMBLY section, connect the water supply and

start the pressure washer according to instructions

in the OPERA ION section.

 Remove the nozzle lance from the gun.

 Pull the trigger on the gun and hold.

 When the water supply is steady and constant, you

may refasten the nozzle attachment and start the

pump.

Altri manuali per 1300PSI

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Generac Power Systems Idropulitrice

Generac Power Systems

Generac Power Systems 1014-0 Manuale utente

Generac Power Systems

Generac Power Systems OneWASH 6412 Manuale utente

Generac Power Systems

Generac Power Systems 1537-0 Manuale utente

Generac Power Systems

Generac Power Systems 1042-1 Manuale utente

Generac Power Systems

Generac Power Systems 006022-0 Manuale utente

Generac Power Systems

Generac Power Systems 6000CP Manuale utente

Generac Power Systems

Generac Power Systems 1460-0 Manuale utente

Generac Power Systems

Generac Power Systems 1043-1 Manuale utente

Generac Power Systems

Generac Power Systems BELT DRIVEN POWER WASHER Manuale utente

Generac Power Systems

Generac Power Systems 1420-0 Manuale utente

Generac Power Systems

Generac Power Systems 1455-0 Manuale utente

Generac Power Systems

Generac Power Systems 1300PSI Manuale utente

Generac Power Systems

Generac Power Systems 2700PSI 1676-0 Manuale utente

Generac Power Systems

Generac Power Systems 2500PSI Manuale utente

Generac Power Systems

Generac Power Systems 1046-0 Manuale utente

Generac Power Systems

Generac Power Systems 4040 PRO GAS PW 49ST Manuale utente

Generac Power Systems

Generac Power Systems 1417-0 Manuale utente

Generac Power Systems

Generac Power Systems 1043-2 Manuale utente

Generac Power Systems

Generac Power Systems 2000PSI Manuale utente

Generac Power Systems

Generac Power Systems OneWASH Manuale utente

Generac Power Systems

Generac Power Systems 2000PSI Manuale utente

Generac Power Systems

Generac Power Systems 1042-2 Manuale utente

Generac Power Systems

Generac Power Systems 1292-2 Manuale utente

Generac Power Systems

Generac Power Systems 1455-0 Manuale utente

Manuali Idropulitrice popolari di altre marche

Shark

Shark RG-232637 Manuale utente

Shakti Technology

Shakti Technology S3 Manuale utente

Kärcher

Kärcher K 4 Pure Manuale utente

Porter-Cable

Porter-Cable D25806-025-2 Manuale utente

REM POWER

REM POWER HDEm 662 Manuale utente

Landa

Landa HS-3000 Manuale utente

Craftsman

Craftsman 580.752270 Manuale utente

HIKOKI

HIKOKI AW 100 Manuale utente

Delco

Delco DC 1302 Manuale utente

Kärcher

Kärcher K 3 Full Control Manuale utente

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manuale utente

ARKSEN

ARKSEN 014-HG-14141-HR Manuale utente

Black & Decker

Black & Decker PW1700SPX Manuale utente

Kärcher

Kärcher 595 - SPARE Guida

Kranzle

Kranzle B 10 200 Manuale utente

Stihl

Stihl RE 90 Manuale utente

Husky

Husky HU80911 Manuale utente

PowR-Quip

PowR-Quip PQ-2600 Manuale utente
