Genie GS5360VDC Manuale utente

COLOR WEATHERPROOF INRARED CAMERA

GS5360VDC

1/3" High-Resolution Weatherproof Vari-Focal IR Camera

Before operating this unit, please read this manual

thoroughly and retain it for future reference.

Instruction Manual

Features:

Patent External Focus / Zoom Adjustment Design.

Built-in AES, BLC, AGC, ATW.

Optional IR-Cut Filter & Heater device available.

1/3” Sony CCD, 550TV Lines / 420TV Lines of Resolution

For Vari-Focal Lens: Optional 4~9mm / 9~22mm Auto Iris Vari-Focal Lens.

For Fixed Lens: Optional 4.0mm / 6.0mmm / 8.0mm / 12.0mm Board Lens.

Low Illumination, no color noise.

Weatherproof design, pass IP66 rating.

Dual Voltage AC/DC (12~24)V or AC 99~240V (Switching Power).

Precautions:

Do not point the camera lens toward the sun or other strong light.

Use AC 110V or AC 220V power supply.

Be careful while handling or installing the camera. Do not drop it or subject it to strong shock or

vibration to prevent damages to it.

When using adaptors, be sure to choose the following types:

1) DC 12V 2A

2) DC 15V 1.5A

3) DC 18V 1A

4) AC 24V 800mA

If extending power cord is necessary, be sure to use the cord with more than 50 cores inside.

Installation Instructions:

To connect the camera’s power and video as the following:

1. Connect AC power on.

2. Connect the BNC Video Output to the desired video line.

3. Position the camera on place you desired.

4. The camera comes set up from the factory. If you need to make minor adjustments, use the

external magnetic controller to adjust focus/zoom. (Only camera with vari-focal lens needs to

adjust the focus.)

5. It is not recommended to take apart the camera, which will cause possible damage to the

weatherproof function.

Specification

◎Sony Color Weatherproof IR Camera w/ Vari-Focal Lens

Description 1/3" High-Resolution Weatherproof

Vari-Focal IR Camera 1/3" Weatherproof Vari-Focal IR

Camera

Pick up Element Sony Ex-View

CCD + Sony HQ1

DSP

Sony Super-Had

CCD + Sony SS-11X DSP Sony SS-11

CCD Image Sensor

Number of Pixels <NTSC> 768(H)×494(V)

<PAL> 752(H)×582(V) <NTSC> 510(H)×492(V)

<PAL> 512(H)×582(V)

Back

Light

Compensation ON

Auto Electronics

Shutter ON

Line Lock ON -

AGC ON

ATW ON

Sync. Mode Internal Sync.

Scanning System 2:1 Interlace

Resolution 550 TV Lines 420 TV Lines

S/N Ratio More than 48dB

Gamma 0.45

Minimum illumination

0.03 Lux, F 1.4

(0 Lux with IR) 0.5 Lux, F 1.4

(0 Lux with IR)

Infrared

LED

Quantity 28

Peak

Wavelength

850nm

Radiant

Distance 25 meters (at least)**

Horizontal Sync.

Frequency <NTSC> 15.734 KHz

<PAL> 15.625 KHz

Video Output 1.0 Vp-p, 75 ohm

Power Source AC / DC (12~24)V or AC 99V~240V (Switching Power)

Power Consumption

12 W

Operating

Temperature -10℃to +60℃

Lens Amount 4.0mm~9.0mm Auto Iris Vari-Focal Lens (Standard)

9.0mm~22mm Auto Iris Vari-Focal Lens (Optional)

Shutter Control <NTSC> 1/60~1/100,000 sec.

<PAL> 1/50~1/100,000 sec.

Dimension 235(L)×100(ø) mm

Net Weight 1.6 kg

Ext. Model With Heater / IR-Cut Filter

* Specifications are subject to change without prior notice.

** Depending on screen reflection.

Specification

◎Sony Color Weatherproof IR Camera w/ Board Lens

Description 1/3" High Resolution Weatherproof IR Camera

1/3" Color Weatherproof IR

Camera

Pick up Element Sony Ex-View

CCD + Sony

HQ1 DSP

Sony

Super-Had

CCD + Sony

SS-11X DSP

Sony CCD Image Sensor

Number of Pixels <NTSC> 768(H)×494(V)

<PAL> 752(H)×582(V) <NTSC> 510(H)×492(V)

<PAL> 512(H)×582(V)

Back Light

Compensation ON

Auto Electronics

Shutter ON

Line Lock ON - ON -

AGC ON

ATW ON

Sync. Mode Internal Sync.

Scanning System 2:1 Interlace

Resolution 550 TV Lines 420 TV Lines

S/N Ratio More than 48dB

Gamma 0.45

Minimum

illumination 0.03 Lux, F 1.4

(0 Lux with IR)

0.5 Lux, F 1.4

(0 Lux with IR)

Infrared

LED

Quantity 64

Peak

Wavelength

850nm

Beam

Spread 30∘(f=6mm), 35∘(f=8mm)

Radiant

Distance 25 meters (at least)**

Horizontal Sync.

Frequency <NTSC> 15.734 KHz

<PAL> 15.625 KHz

Video Output 1.0 Vp-p, 75 ohm

Power Source AC / DC (12~24)V or AC 99V~240V (Switching Power)

Power Consumption

12 W

Operating

Temperature -10℃to +60℃

Lens Amount 6.0mm, F2.0 Board Lens (Standard)

4.0mm /8.0mm / 12.0mm, F2.0 Board Lens (Optional)

Shutter Control

<NTSC> 1/60~1/100,000 sec.

<PAL> 1/50~1/100,000 sec.

Dimension 235(L)×100(ø) mm

Net Weight 1.6 kg

Ext. Model With Heater

* Specifications are subject to change without prior notice.

** Depending on screen reflection.

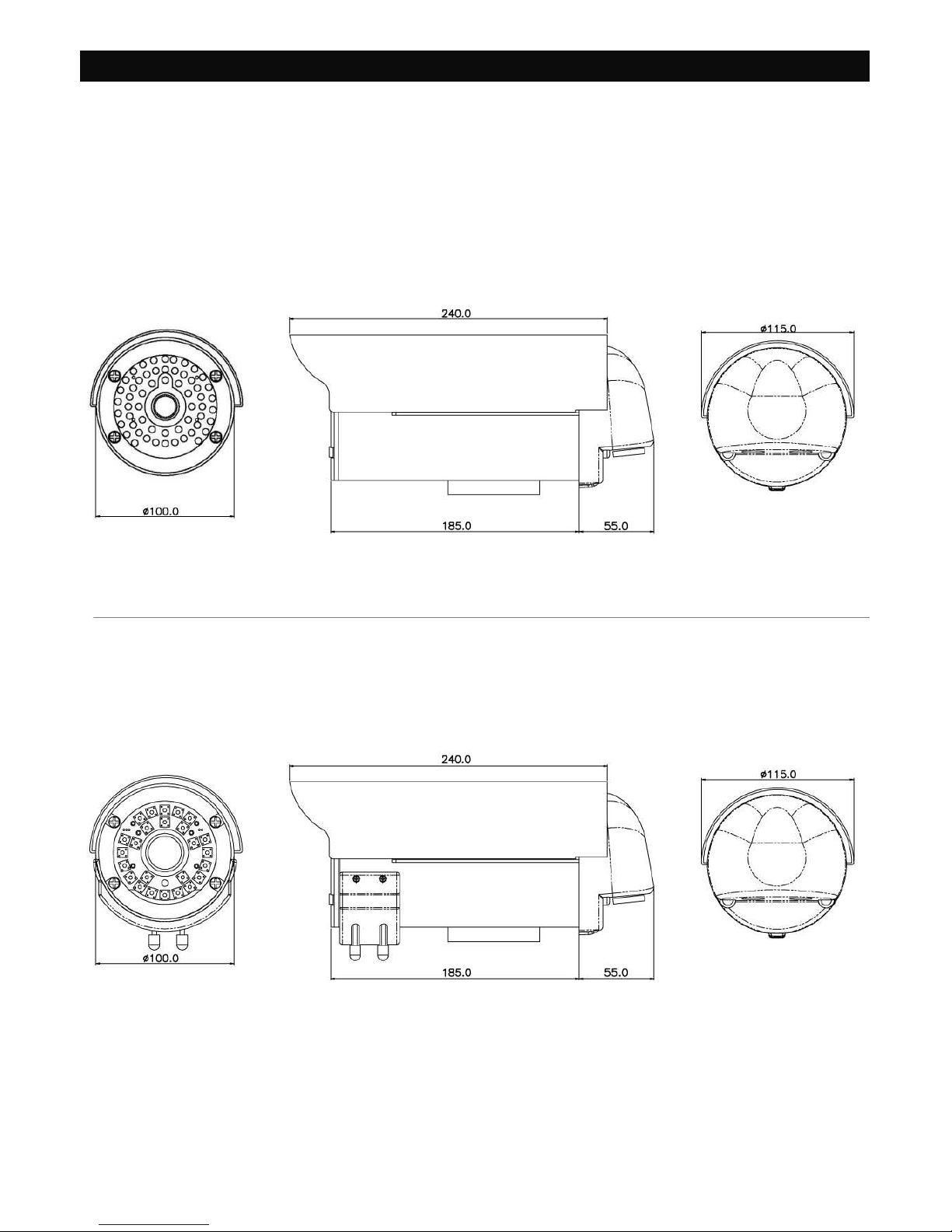

Camera Layout

1/3”Color Weatherproof IR Camera W/ Board lens



1/3”Color Weatherproof IR Camera W/

Vari

Focal lens

CR200000156
