SSAHD2BVAF - AHD 2MP Stainless Steel Varifocal Bullet Camera with Auto Focus

1. Key Features

2. Installation

3. Cable

• 1/3” Panasonic CMOS Image Sensor

• Full HD Mega Pixel (1080P)

• Auto Compensation and Long Range Transmission

• Low Illumination Performance

• 2 Pcs LED’s

• 2.8 ~ 12mm DC Auto Iris Motorized Megapixel Lens

• True Day / Night with ICR Mechanism

• Sens-Up

• D-WDR (Digital Wide Dynamic)

• External Zoom & Focus Adjustable

• DC12V

STEP 1 STEP 2

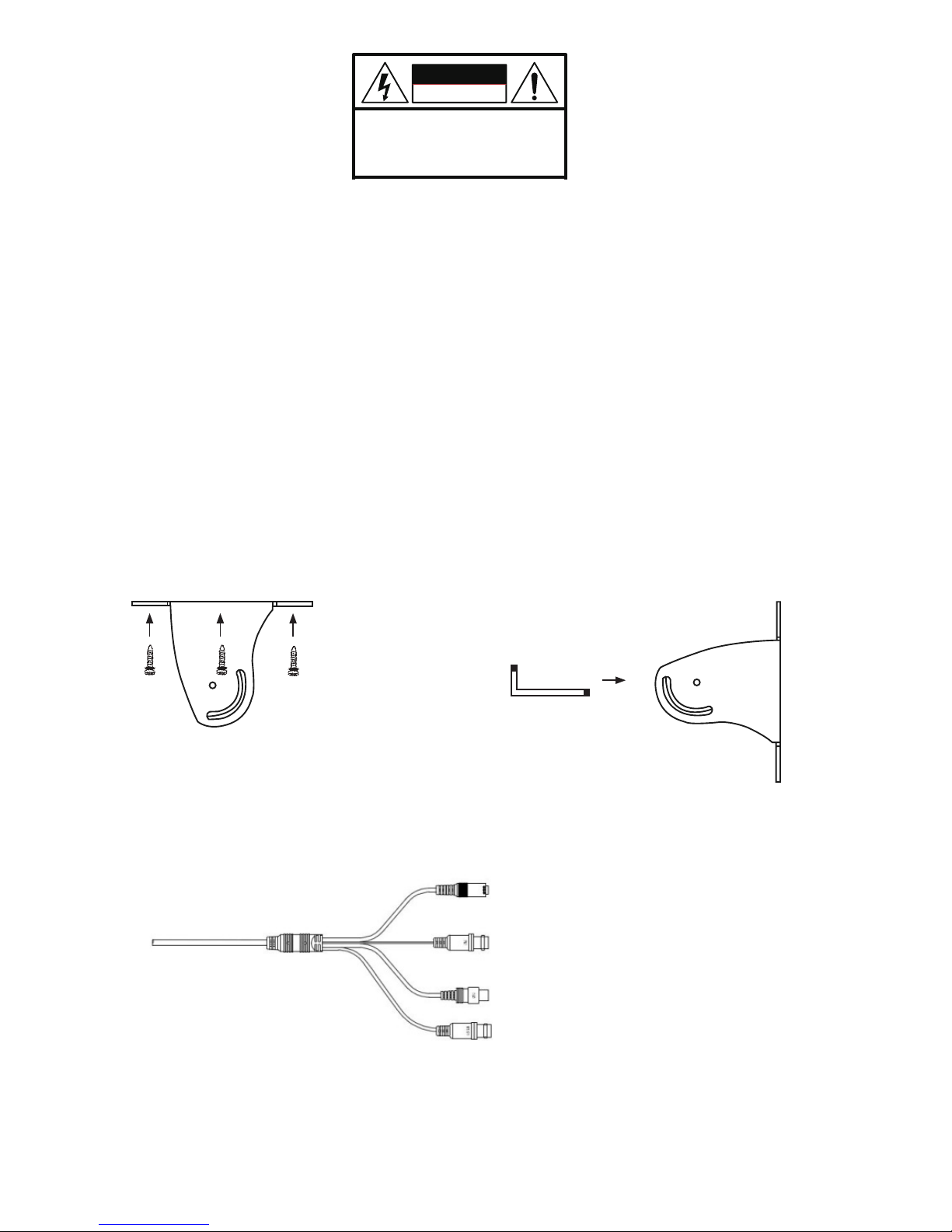

Fix Bracket at desired place.

CAUTION! Please use regulated Power Supply DC12V, 500mA Reverse Polarity Protection

Adjust View Angle with 3-Axis Bracket.

Wrench

Power - DC12V

OSD Connection

AHD Video

Analogue Video

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

SSAHD2BVAF - AHD 2MP Stainless Steel Varifocal Bullet Camera with Auto Focus

3

4. Technical Specication

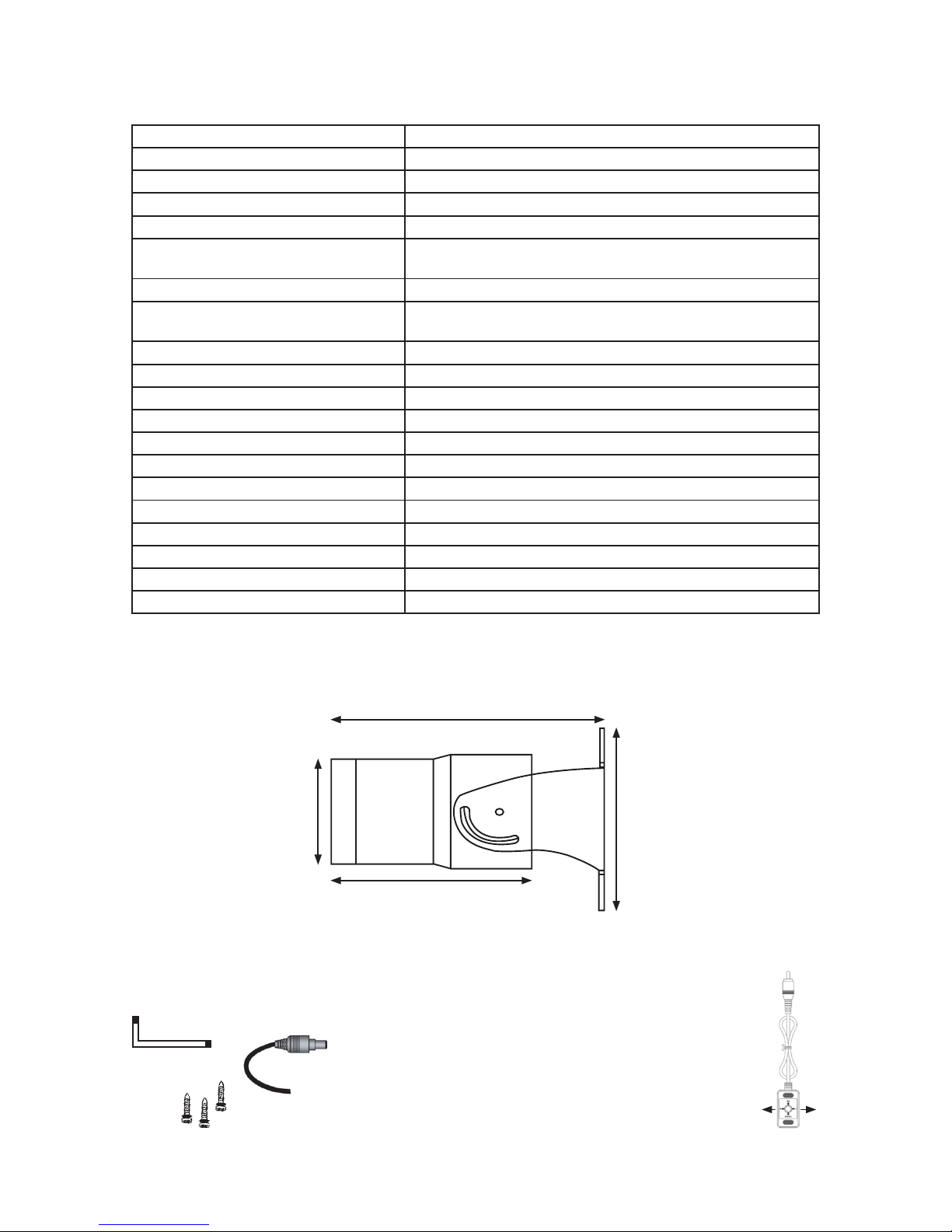

5. Dimensions

6. Accessories 7. Mode Change

STEP 2

Adjust View Angle with 3-Axis Bracket.

All Specications and Pictures are subject to change without notice.

120

158.5

121.5

72

Model Number SSAHD2BVAF

Image Sensor 1/3” Panasonic CMOS

Resolution 1080P

Lens 2.8 ~ 12mm DC Auto Iris MP Lens (ICR)

Scanning System Progressive

Video Output AHD: 1080P, 720P

Analogue: NTSC / PAL CVBS

S/N Ratio More than 50dB (AGC Off)

Minimum Illumination Colour: 1.0 Lux, B&W: 0.5 Lux

Colour DSS: 0.002 Lux, B&W DSS: 0.0008 Lux

D-WDR Off / 0~8

Sens-Up Off / x2 - x30

Backlight Off / BLC / HSBLC

DNR Off / Low / Middle / High

Privacy Mask 4 Masks

Motion Detection Off / On

Power Source DC12V ±10%

Power Consumption Max 2.0 Watt

Operating Temperature -10°C to 50°C

Operating Humidity 10% to 85%

Dimensions (D x L x H) 72 x 158.5 x 120 mm

Weight 1520g

L-Wrench

Screws

CVBS Mode: Push the left OSD Key for 3 seconds

AHD Mode: Push the right OSD key for 3 seconds

Server Cable

OSD

CVBS AHD

GENIE CCTV LTD.

CCTV House, City Park, Watchmead, Welwyn Garden City, Hertfordshire, AL7 ILT

Tel: +44 (0) 1707 330541 Fax: +44 (0) 1707 330543

www.geniecctv.com

Edition. GN-February 2016
