Genius LOOK 320S Manuale utente
English
-1-
Symbol for Separate Collection in European Countries
This symbol indicates that this product is to be
collected separately.
The following apply only to users in European
countries:
zThis product is designated for separate collection
at an appropriate collection point. Do not dispose
of as household waste.
zFor more information, contact the retailer or the local authorities in
charge of waste management.
1. SnapShot Button You can take real-time images by simply
clipping on the snapshot button.
2. LED Indicator When the Look 320S is successfully
connected to the PC, the LED indicator will
light up.
Look 320S Features
English
-2-
3. Fixed LENS You don’t have to adjust the focus. The
effective image distance is from 60cm to
300cm.
4. Support Neck
The support neck can be pulled upwards and
pushed downwards to adjust the length.
The support neck can be moved forward and
backward to adjust the position.
5. Clipping base You can adjust the clipping base by turning
the body clockwise or counterclockwise.
The Look 320S is designed for standing on a desk or clipping on a
laptop or flat panel monitor.
Please kindly note that the supporting neck has 2 sections.
To use the clipping base properly, please follow the steps as below
to take good use of elegant design of the clipping base.
Step
1
Hold the black ring and
pull the top portion of the
web cam upwards.
Step 2 Hold the black ring and
turn the body clockwise
to open the base.
Look 320S Special Clipping Base Design
Black Ring
English
-3-
Step
3
Position the Look
320S/Look 310S on the
top or side of your laptop
or flat panel
Step
4
Use a finger to adjust
the width of the base so
it fits on your laptop or
flat panel.
Step
5 Now, you can adjust to
the web cam position you
want.
Step
6 You can adjust the web
cam position at any
time.
Step
7
When you finish the
hardware installation, go
to the next section to start
the software installation.
1. Please install the driver first and then connect Look 320S to
the USB port.
2. Installing the Look 320S driver
Installing the Look 320S
English
-4-
Windows Environment
a. Insert the Look 320S Installation CD into the CD-ROM
drive.
a. The Autorun screen will bring up the installation screen. Click on
“Driver” then simply follow the on-screen instructions.
b. Install DirectX from the CD.
Notice: If the Autorun screen doesn’t start, please follow the
steps:
zClick on “Start Menu”
zType D：\SETUP.EXE , then click Enter key.
(Assume your CD-ROM is in Drive D)
Mac Environment
a. Insert the Look 320S Installation CD into the CD-ROM drive.
b. Double click on the CD-ROM drive.
c. Click on the file folder of “Look 320S Driver OSX 1.0”.
d. Click on “Look 320S Driver Install” then simply follow the
on-screen instructions.
e. Restart the computer
3. Insert the Look 320S’s USB cable to your desktop’s or
laptop’s USB port.
4. Complete software and hardware installation. You can
install the software you would like to use for video
conferencing or chat with your friends.
English
-5-
NOTE
To remove the driver installation,
Windows Environment:
Please go to the taskbar and follow “Start ÆProgram ÆLook 320S
ÆClick “Uninstall”, then follow the on-screen instructions to remove the
driver.
Mac OS X Environment:
Please go to the HDD of the operation systemÆ“Application”Æ“Look
320S”ÆClick “Uninstall”, then follow the on-screen instructions to remove
the driver.
You can use our software to capture the real-time image, record or
execute the simply security function.
To run the software, please go to the task bar and follow “Start”Æ
Click “Program”ÆChoose “Look 320S”ÆClick “Look 320S”. Or you
may execute the software by simply clicking the shortcut of “Look
320S”.
NOTE
After installing the driver of Look 320S, the system will automatically create a
file (C:\WINDOWS\Album or C:\WINNT\Album)to save the images you take
using the Genius Application.
Genius Application (Windows Only)
English
-6-
1. Description for the major icon
Preview mode
Snapshot mode
Video Clip Mode
Security monitoring system
Exit the Genius UI
Camera Control
NOTE
In the “camera control section”, you can personalize your camera
settings for different circumstances.
English
-7-
1-You can flip the image horizontally or vertically by choosing “Image Mirror” or
“Image Flip”.
-When the light is not sufficient, you may click on “Low Light” to get a clear
image.
2You can adjust different values for different circumstances and environment
3When you want a still image capture, you can drag the bar to select a resolution
size you want.
-VGA: 640 x 480;
-SVGA: 800 x 600
-XGA: 1024 x 768
-SXGA1280 x 960
4You may adjust values toward image appearance. Before adjusting values, you
have to unclick “Auto” to unlock.
5-Press “Reset” to return to the manufacturer’s settings.
-Press “Restore” to return to the previous settings.
-Press “Save” to save the values you set up.
English
-8-
6Select the correct frequency according to the country where you are using the
web camera. (Before doing this, you will need to select “Indoor”.)
7-If your web camera is located in backlight position, you may click “Backlight
compensation” to get a sharper image.
-You can have a black-and-white photo effect by clicking on “B/W Mode”.
English
-9-
1There will be 27 different kinds of video effects/frames for you to select. The
effects can also be applied to the video chat software, like MSN Messenger.
You can directly connect to this effect page from the web camera settings in the
video chat software.
2Besides the 27 kinds of video effects/frames in section 1, you also can bring in
your customized frame. Please note that, in the customized frame, you must have
the color in Pantone 255 in the area, where you want your image show up.
English
-10-
3Auto Change: Once you choose this, the 27 kinds of video effects will take turns
from the first one to the last one.
No effects & frame: Once you choose this, the video effects will be determinate.

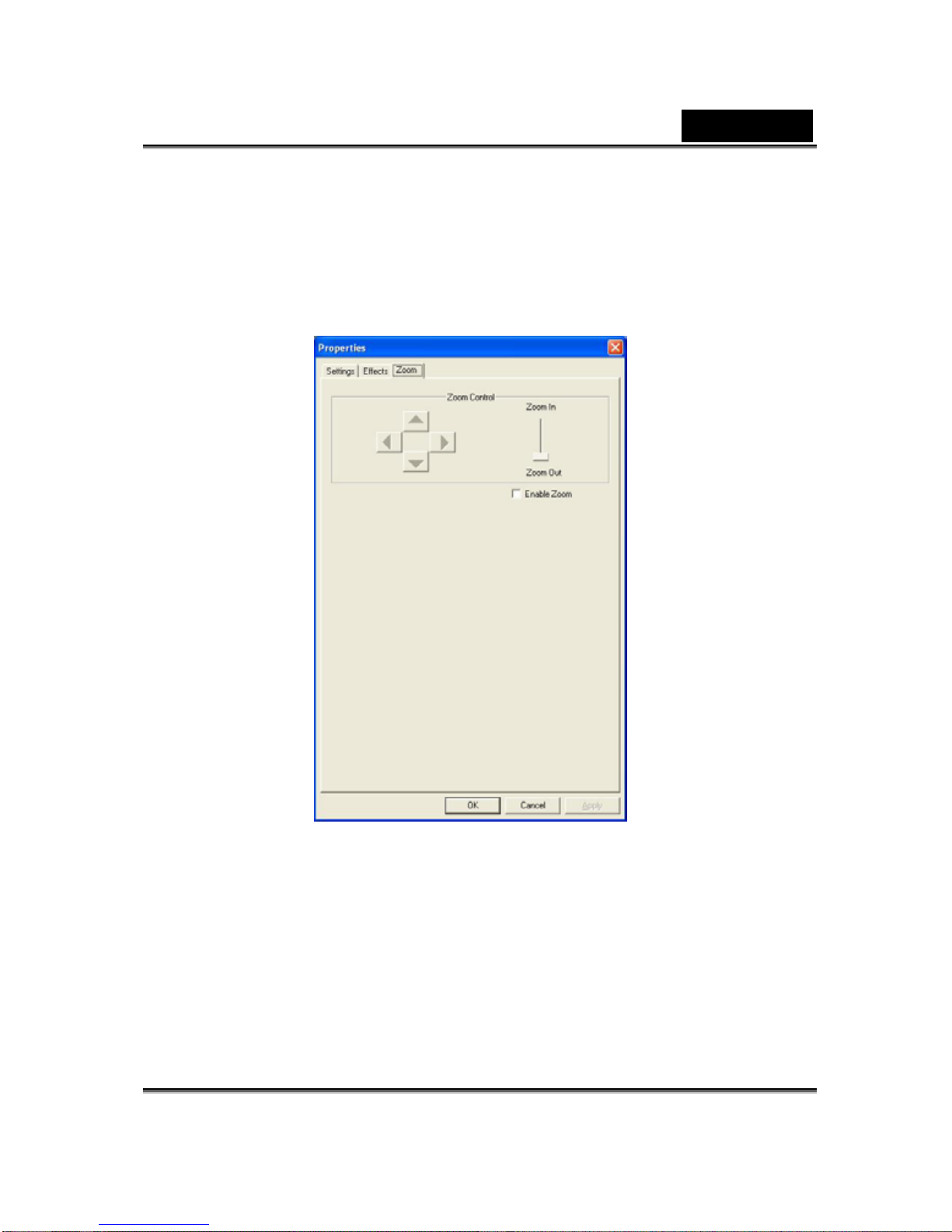

In this section, you can enable the “Zoom” function. Please select
“Enable Zoom” before zooming.
-Scroll the bar to zoom in or zoom out
-Press the 4-direction button to move the image upward, downward,
leftward, and rightward.
