GeoVision GV-BL1300 Manuale utente

GV-BL1300 September 16, 2013

- 1 -

GV-BL1300 1.3MP H.264 IR Bullet IP Camera

1.3 megapixel progressive scan CMOS

Dual streams from H.264 and MJPEG

Up to 30 fps at 1280 x 1024

Intelligent IR

Vandal resistance (IK10 for metal casing)

Ingress protection (IP67)

Cable-concealed bracket preventing cable from being cut

One alarm input and sensor output

Built-in Micro SD (SDHC / SDXC) card slot for local storage

2-way audio

Wide Dynamic Range (WDR)

Defog

Motion detection

Tampering alarm

Privacy mask

IP address filtering

DC 12V / AC 24V / PoE

Removable IR-cut filter for Day/Night function

Supports iPhone, iPad, Android & 3GPP

31 languages on Web interface

ONVIF (Profile S) conformant

* No Memory Card Slot & local storage function for Argentina.

Introduction

The Bullet Camera features a weather sealed and IP67rating housing for outdoor use. The camera also features 16 IR LEDs for

infrared illumination in night vision applications. Additionally, the Bullet Camera supports both DC 12V and AC 24V power supply.

Active Tampering Alarm

Tampered

Focus Change

Camera Shift

Dimensions

GV-BL1300 September 16, 2013

- 2 -

Specifications

Camera

Image Sensor

1/2.5”progressive scan CMOS ”

Picture Elements

1280 (H) x 1024 (V)

Minimum

Illumination

Color

0.15 Lux

B/W

0.10 Lux

IR ON

0 Lux

Shutter Speed

Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance

Automatic, Manual (2800K ~ 8500K)

Gain Control

Automatic

S/N Ratio

45 dB

BLC

Yes

Lens

Megapixel

Yes

Focal Length

3 ~ 9 mm

Day/Night

Yes (with removable IR-cut filter)

Lens Type

Varifocal

Maximum Aperture

F/1.2

Mount

Ø 14 mm

Image Format

1/2.7”

Operation

Focus

Manual (w/lock)

Zoom

Manual (w/lock)

Iris

DC Drive

Max. Torque (Focus/ Zoom Screws)

0.049 N.m

IR LED Quantity

16 IR LEDs

Max. IR Distance

15 m (50 ft.)

Operation

Video Compression

H.264, MJPEG

Video Stream

Dual streams from H.264 and MJPEG

Frame Rate

30 fps at 1280 x 1024 (SXGA)

* The frame rate and the performance may vary depending on the number of connections and data

bitrates (different scenes).

Image Setting

Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation,

Backlight Compensation, Shutter Speed, D/N Sensitivity, WDR, Defog

Audio Compression

G.711

Two-way Audio

Yes

Sensor Input

1 Input (Dry Contact)

Alarm Output

1 Digital Output (200mA 5V DC)

Video Resolution

Main Stream

4 : 3

1280 x 960, 640 x 480, 320 x 240

16 : 9

1280 x 720, 640 x 360, 448 x 252

5 : 4

1280 x 1024, 640 x 512, 320 x 256

Sub Stream

4 : 3

640 x 480, 320 x 240

16 : 9

640 x 360, 448 x 252

5 : 4

640 x 512, 320 x 256

Network

Interface

10/100 Ethernet

Protocol

HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS

(DSCP), ONVIF (Profile S)

Mechanical

Temperature Detector

Yes

Camera Angle

Adjustment

Pan

0°~ 360°

Tilt

90°~ 180°

Rotate

0°~ 360°

Connectors

Power

2-pin terminal block, PoE

Ethernet

RJ-45

Audio

1 In (RCA female for microphone)

1 Out (RCA female for speaker)

Digital I/O

I/O Wires

Auto Iris

DC Drive

GV-BL1300 September 16, 2013

- 3 -

Mechanical

Connectors

Local Storage

Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)

TV-Out

None

General

Environment Temperature

-30 °C ~ 50 °C (-22 °F ~ 122 °F )

Humidity

10% to 90% (no condensation)

Power Source

12V DC / 24V AC / PoE

Max. Power Consumption

6.72 W

Dimensions

Camera Body

277.5 x 87.75 x 148.95 mm (10.9”x 3.45”x 5.86”)

Cable Length

1 m (3.28 ft.)

Maximum Cable

Diameter

ø 7.1 mm (0.28”)

Maximum Connector

Diameter

ø 25.2 mm (0.99”)

Weight

1.35 kg (2.98 lb)

Ingress Protection

IP67

Vandal Resistance

IK10 for metal casing

Regulatory

CE, FCC, C-Tick, RoHS compliant

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PD

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management

Web-based configuration

Maintenance

Firmware upgrade through Web Browser or Utility

Access from Web Browser

Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O

Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,

Text Overlay, Digital PTZ

Language

Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew /

Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese /

Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /

Traditional Chinese / Turkish

Application

Network Storage

GV-NVR, GV-System, GV-Backup Center, GV-Recording Server

Smart Device Access

GV-Eye for Android smartphone, tablet, iPhone and iPod Touch

GV-Eye HD for iPad

Live Viewing

IE, mobile phone

CMS Server support

GV-Control Center, GV-Center V2, GV-VSM

Note: Specifications are subject to change without prior notice.

Packing List

1. Bullet Camera

2. Lens (Megapixel and Built-In 16 IR LEDs)

3. Self Tapping Screw x 3

4. Plastic Screw Anchor x 3

5. Torx Wrench x 2

6. Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head

Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws

included)

7. Silica Gel Bag x 2

8. 2-Pin Terminal Block

9. GV-IPCAM H.264 Quick Start Guide

10. GV-IPCAM H.264 Software CD

11. GV-NVR Quick Start Guide

12. GV-NVR Software DVD

GV-BL1300 September 16, 2013

- 4 -

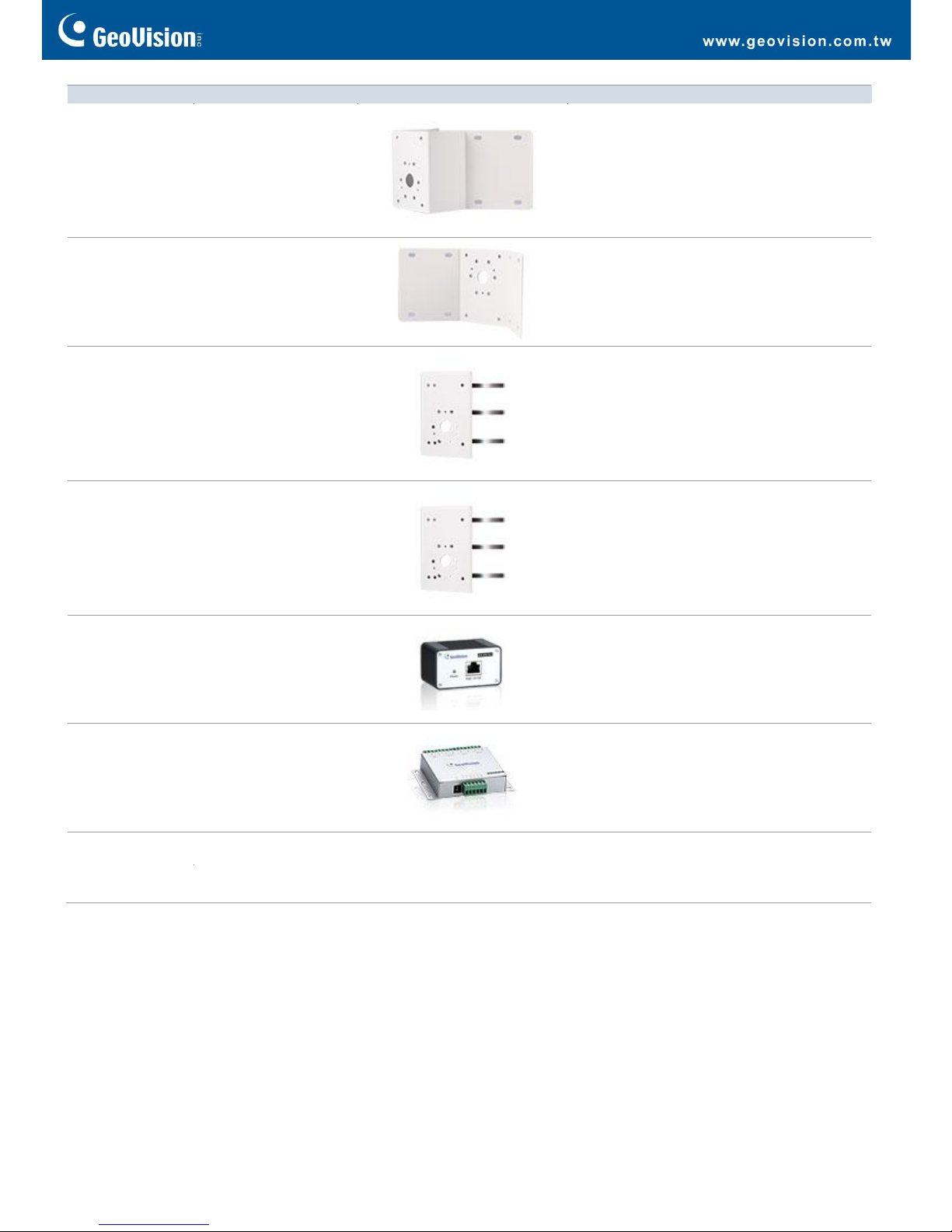

Accessories

Model No. Name

Name

Details

GV-Mount300

Convex Corner Adapter Kit

Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)

Weight: 4.27 Kg (9.41 lb)

GV-Mount310

Concave Corner Adapter Kit

Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)

Weight: 4.27 Kg (9.41 lb)

GV-Mount400

Pole Mount Bracket Kit

(Ø 4" ~ 6")

Dimensions

Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 Kg ( 3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV-Mount410

Pole Mount Bracket Kit

(Ø 6" ~ 7.5")

Dimensions

Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 Kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV-PA191 PoE

Adapter

Power over Ethernet (PoE)

Adapter

The GV-PA191 is a Power over Ethernet (PoE) adapter

designed to provide power to the IP device through a

single Ethernet cable.

GV-Relay V2

The GV-Relay V2 is designed to expand the voltage load

of GV IP devices. It provides 4 relay outputs, and each

can be set as normally open (NO) or normally closed

(NC) independently as per your requirement.

Power Adapter

Power adapters are available in 4 regions: U.S.A., Australia, U.K and Europe.

GV-POE Switch

The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in

various models with different numbers and types of ports.
