GeoVision GV-VD120D Manuale utente

Quick Start Guide

GV-IPCamera

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Vandal Proof IP Dome

Target Vandal Proof IP Dome

ICH265HISIV108-B

Under the copyright laws, this manual may not be copied, in whole or in

part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any

kind and assumes no responsibility for errors or omissions. No liability is

assumed for incidental or consequential damages arising from the use of

the information or products contained herein. Features and specifications

are subject to change without notice. Note: no memory card slot or local

storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows is the

registered trademark of Microsoft Corporation.

September 2017

Content

Content ................................................................................i

Caution............................................................................... v

Safety Notice ..................................................................... v

Options ............................................................................. vi

Note for Adjusting Focus and Zoom............................ viii

Note for Installing Camera Outdoor................................ix

Note for Silica Gel Bags...................................................xi

Chapter 1 Vandal Proof IP Dome (Part I)........................1

1.1 Packing List..............................................................................3

1.2 Overview ..................................................................................4

1.3 Installation................................................................................6

1.3.1 Hard-Ceiling Mount......................................................7

1.3.2 In-Ceiling Mount.........................................................12

1.4 Connecting the Camera..........................................................15

1.4.1 Wire Definition ...........................................................15

1.4.2 Power Connection......................................................17

1.4.3 Voltage Load Expansion (Optional)............................18

1.5 Loading Factory Default..........................................................19

1.5.1 Using the Web Interface.............................................19

1.5.2 Directly on the Camera ..............................................20

Chapter 2 Vandal Proof IP Dome (Part II).....................21

2.1 Packing List............................................................................24

2.2 Overview ................................................................................27

2.3 Installation..............................................................................29

2.3.1 Installation of Weatherproof Shield.............................39

2.4 Connecting the Camera..........................................................41

2.4.1 Power Connection......................................................41

2.4.2 I/O Device Connections .............................................41

2.4.3 Voltage Load Expansion (Optional)............................42

2.5 Loading Factory Default..........................................................43

2.5.1 Using the Web Interface.............................................43

2.5.2 Directly on the Camera ..............................................43

Chapter 3 Vandal Proof IP Dome (Part III)....................44

3.1 Packing List............................................................................45

3.2 Overview ................................................................................47

3.3 Installation..............................................................................49

3.4 Connecting the Camera..........................................................55

3.4.1 Definition....................................................................55

3.4.2 Power Connection......................................................56

3.4.3 Voltage Load Expansion (Optional)............................57

3.5 Loading Factory Default..........................................................58

3.5.1 Using the Web Interface.............................................58

3.5.2 Directly on the Camera ..............................................58

Chapter 4 Vandal Proof IP Dome (Part IV)....................59

4.1 Packing List............................................................................61

4.2 Overview ................................................................................64

4.3 Installation..............................................................................68

4.4 Connecting the Camera...........................................................79

4.5 I/O Connector.........................................................................80

4.5.1 Voltage Load Expansion (Optional)............................80

4.6 Loading Factory Default..........................................................81

4.6.1 Using the Web Interface.............................................81

4.6.2 Directly on the Camera ..............................................81

Chapter 5 Target Vandal Proof IP Dome.......................82

5.1 Packing List............................................................................83

5.2 Overview ................................................................................86

5.3 Installation..............................................................................88

5.4 Connecting the Camera..........................................................99

5.5 Loading Factory Default........................................................100

5.5.1 Using the Web Interface...........................................100

5.5.2 Directly on the Camera ............................................100

Chapter 6 Accessing the Camera................................101

6.1 System Requirement............................................................101

6.2 Accessing the Live View.......................................................102

iii

6.2.1 Checking the Dynamic IP Address...........................103

6.2.2 Configuring the IP Address ......................................105

6.3 Adjusting Image Clarity.........................................................107

6.3.1 Using Focus Adjustment Cap...................................110

Chapter 7 The Web Interface .......................................112

Chapter 8 Upgrading System Firmware .....................115

Caution

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Safety Notice

The GV-IPCAM uses a Lithium battery as the power supply for its internal

real-time clock (RTC). The battery should not be replaced unless required!

If the battery does need replacing, please observe the following:

Danger of Explosion if battery is incorrectly replaced

Replace only with the same or equivalent battery, as recommended by

the manufacturer

Dispose of used batteries according to the manufacturer's instructions

Options

Optional devices can expand your camera’s capabilities and versatility.

Contact your dealer for more information.

Device Description

Power Adapter The power adapter is available for all Vandal Proof

IP Dome. Contact your sales representative for the

countries and areas supported.

GV-PA191 PoE

Adapter

The GV-PA191 PoE adapter is designed to provide

power and network connection to the cameras over

a single Ethernet cable.

GV-POE Switch

The GV-POE Switch is designed to provide power

along with network connection for IP devices. The

GV-POE Switch is available in various models with

different numbers and types of ports.

GV-Mount

Accessories

The GV-Mount Accessories provide a

comprehensive lineup of accessories for installation

on ceiling, wall corner and pole. For details, see GV-

Mount Accessories Installation Guide on the

Software DVD.

Device Description

GV-Relay V2

The GV-Relay V2 is designed to expand the voltage

load of GV IP devices. It provides 4 relay outputs,

and each can be set as normally open (NO) or

normally closed (NC) independently as per your

requirement.

GV-Relay V2 does not support GV-EVD2100 / 3100

/ 5100.

Metal PG21

Conduit

Connector

The metal PG21 conduit connector is used for

running the wires of GV-VD1530 / 2430 / 2530 /

3430, GV-VD1540 / 2440 / 2540 / 3440 / 4711 /

5340 / 5711, GV-VD2540-E / 5340-E, GV-VD2702 /

2712 / 4702, and GV-EVD2100 / 3100 / 5100

through a 3/4” conduit pipe.

Weatherproof

Shield

The weatherproof shield is made for GV-VD1530 /

2430 / 2530 / 3430, GV-VD1540 / 2440 / 2540 /

3440 / 4711 / 5340 / 5711, and GV-VD2540-E /

5340-E to protect the camera from rain and snow.

vii

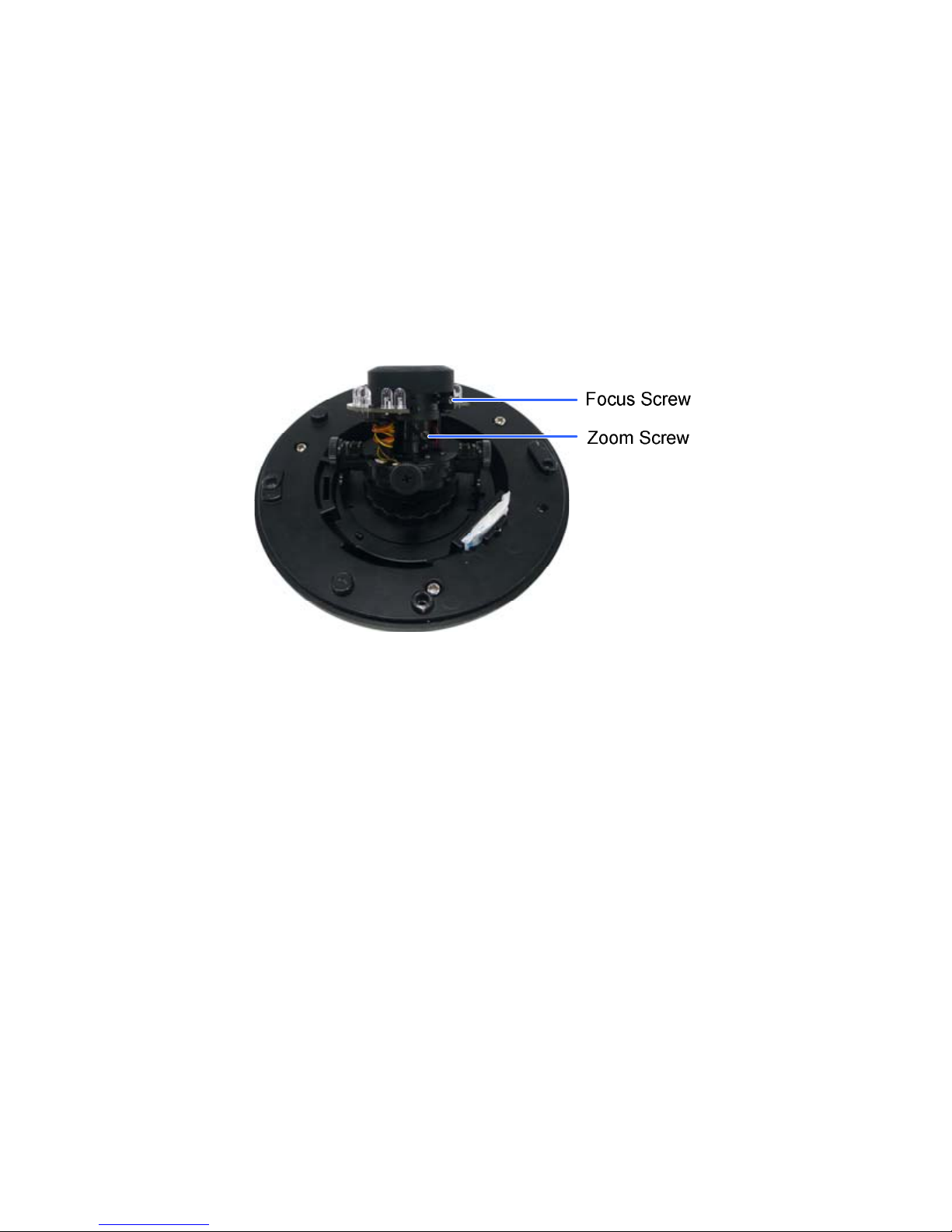

Note for Adjusting Focus and Zoom

When adjusting the Focus and Zoom Screws, do not over tighten the

Focus and Zoom screws. The screws only need to be as tight as your

finger can do it. It is not necessary to use any tools to get them tighter.

Doing so can damage the structure of lens.

The maximum torque value for all the zoom and focus screws is 0.049 N.m

viii
