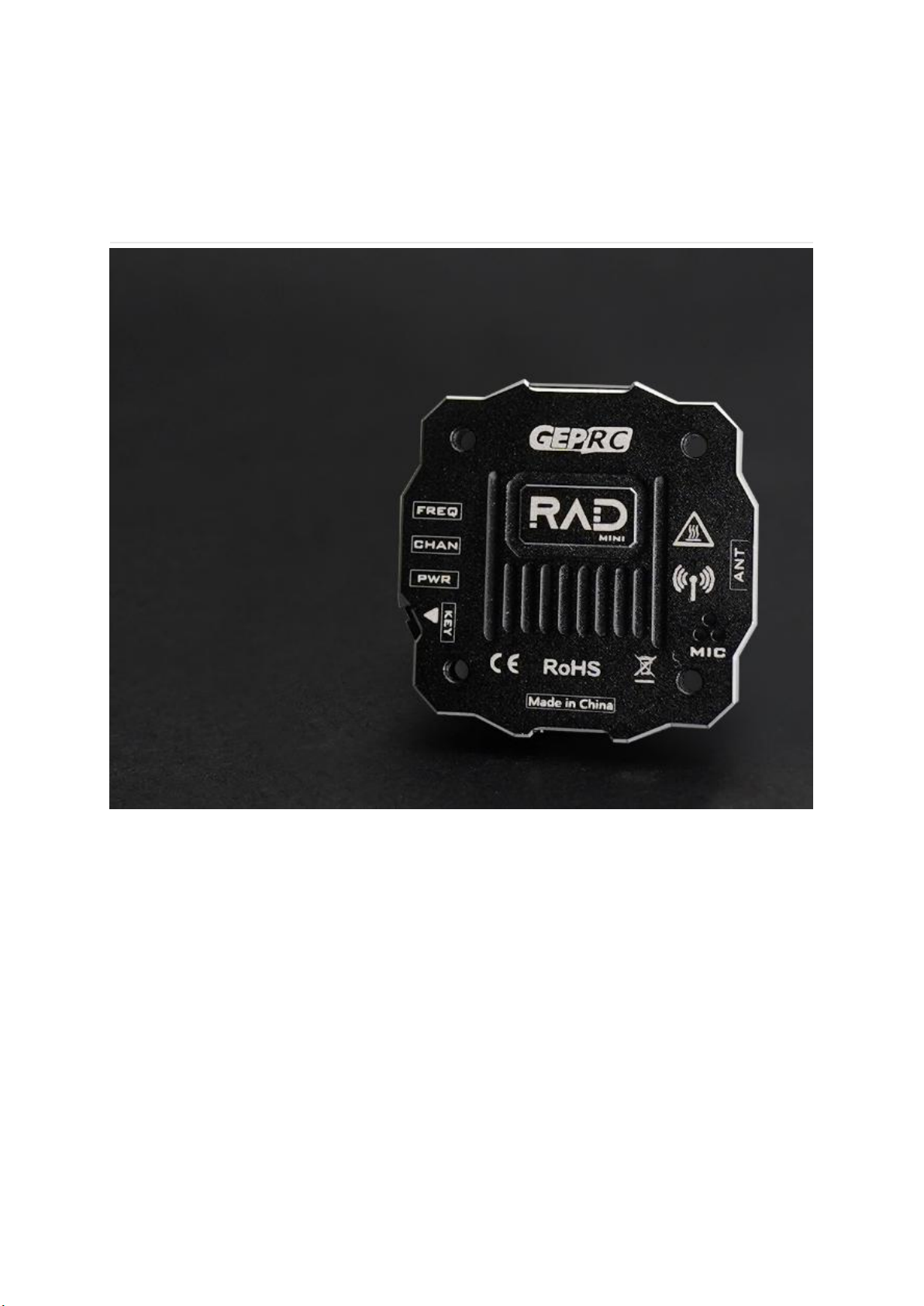

GEPRC RAD MINI 5.8G VTX Manuale utente
RAD MINI 5.8G VTX
Summary:
RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC.It has 4 adjustable power
levels and a maximum power of 1000mW,with a stable transmission signal,suitable for short and
medium range flight to ensure image transmission quality.
RAD MINI adopts 6061 high-strength aluminum alloy shell to assist in heat dissipation,which has
stronger impact resistance and better heat dissipation.
IRC Tramp protocol,OSD settings adjustment,Built-in microphone can provide a real-time sound
transmission.
7-28V wide voltage input,with temperature control protection function to prevent overheating and
burnout.
With 20x20mm PCB mounting hole,and the diameter of single hole is 3.05mm.The aluminum alloy
shell can be removed and installed as a stack.
Covering the shell with a 20X20 mounting hole, and a single hole with M2 thread.It is recommended
to be installed at the rear of the frame where there are 20X20 holes. Pay attention to insulation when
installing,the PCB side down, and pad with four nylon spacers for installation. (included in the
package)
Specification:
Model：GEPRC RAD MINI 5.8G 1W VTX
Input voltage：DC7-28V（2-6S Battery）
Output voltage: 5V@600mA(power 5V to Camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX
Cable connector：SH1.0 5pin+SH1.0 3pin
Output power：25mW/200mW/500mW/1000mW/PIT MODE
Frequency band :
Universal frequency band(40CH),American FCC frequency band(37CH),European EU frequency
band(26CH)
Video format: PAL/NTSC
Microphone: Built in microphone
Mounting hole: 20x20mm
Size: 30.83x30.83mm
Net weight: 4.7g
With metal shell: 8.4g
Feature:
1. Lightweight ,high power,with a maximum power of 1000mW,suitable for short and medium range
flight to ensure image transmission quality.
2. 4 Power levels: PitMode/25mW/200mW/500mW/1000mW.
3. Adopts 6061 high-strength aluminum alloy shell to assist in heat dissipation,which has stronger
impact resistance and better heat dissipation.
4. With temperature control protection function to prevent high temperature burnout
5. Wide voltage input,supports 7V-28V voltage input.
6. 3 adjustable regional frequency band to meet the needs of various regions.
7. IRC Tramp protocol,OSD settings adjustment.
8. Built-in microphone can provide a real-time sound transmission.
9. One adjustment button, three indicator lights, easy to operate
Includes：
1 x GEPRC RAD MINI 5.8G 1W VTX
1 x Copper tube antenna MMCX 80mm
1 x MMCX to SMA（Internal foramen）connector
1 x SH.0 5pin VTX cable(100MM)
1 x SH1.0 to SH1.25 camera cable(65MM)
1 x Set of screws
Connector Definition Description
Indicator light and button
Blue light: Channel indicator
Green light: Band indicator
Red light: Power indicator

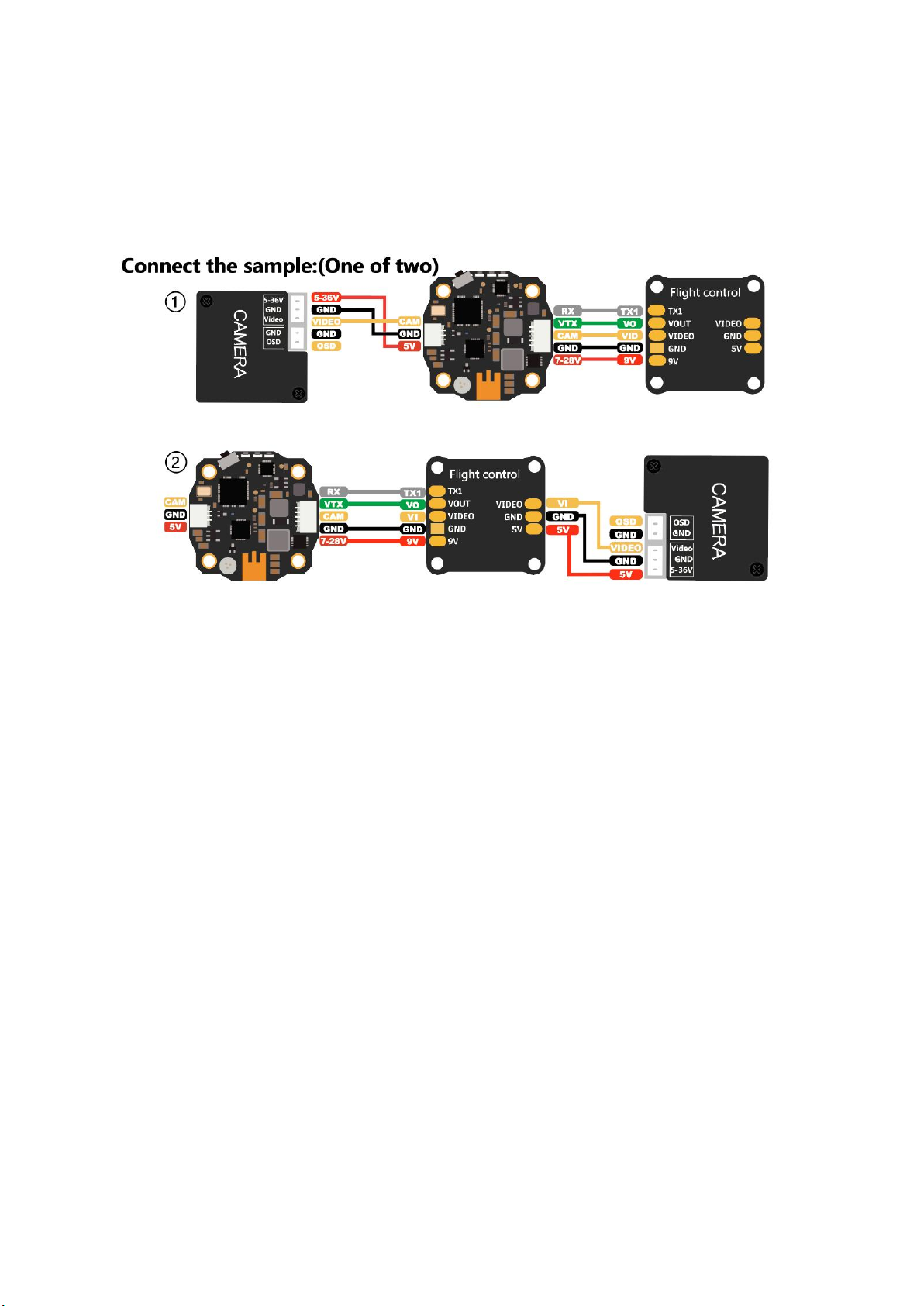

Connection
Diagram
.
.
.
.
.
.
Regional Frequency Band:
Blue, green, and red lights, flashing once at the same time represents the universal regional frequency
band; flashing twice at the same time represents the US FCC frequency band; flashing three times at
the same time represents the European EU frequency band.
Adjustment method:
Long press the function button for 8 seconds and then release, three LEDs will flash at the same time,
the flashing times represent different regional bands.
Universal regional
（BAND）
Channel
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
1，A（BOSCAM）
5865MHz
5845MH
z
5825MH
z
5805MHz
5785MHz
5765MHz
5745MHz
5725MH
z
2，B（BOSCAM）
5733MHz
5752MH
z
5771MH
z
5790MHz
5809MHz
5828MHz
5847MHz
5866MH
z
3，E（BOSCAM）
5705MHz
5685MH
z
5665MH
z
5645MHz
5885MHz
5905MHz
5925MHz
5945MH
z
4，F（FATSHARK)
5740MHz
5760MH
z
5780MH
z
5800MHz
5820MHz
5840MHz
5860MHz
5880MH
z
5，R（RACEBAND)
5658MHz
5695MH
z
5732MH
z
5769MHz
5806MHz
5843MHz
5880MHz
5917MH
z
6，L（LOWBAND）
5362MHz
5399MH
z
5436MH
z
5473MHz
5510MHz
5547MHz
5584MHz
5621
US FCC Frequency
Band（BAND）
Channel
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
1，A（BOSCAM）
5865MHz
5845MHz
5825MHz
5805MHz
5785MHz
5765MHz
5745MHz
5725MH
z
2，B（BOSCAM）
5733MHz
5752MHz
5771MHz
5790MHz
5809MHz
5828MHz
5847MHz
5866MH
z
3，E（BOSCAM）
5705MHz
5685MHz
5665MHz
5665MHz
5885MHz
5905MHz
5905MHz
5905MH
z
4，F（FATSHARK)
5740MHz
5760MHz
5780MHz
5800MHz
5820MHz
5840MHz
5860MHz
5880MH
z
5，R（RACEBAND)
5658MHz
5695MHz
5732MHz
5769MHz
5806MHz
5843MHz
5880MHz
5917MH
z
EU Frequency Band
（BAND）
Channel
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
1，A（BOSCAM）
5865MHz
5845MHz
5825MHz
5805MHz
5785MHz
5765MHz
5745MHz
5745MHz
2，B（BOSCAM）
5733MHz
5752MHz
5771MHz
5790MHz
5809MHz
5828MHz
5847MHz
5866MHz
3，F（FATSHARK)
5740MHz
5760MHz
5780MHz
5800MHz
5820MHz
5840MHz
5860MHz
5860MHz
4，R（RACEBAND)
5732MHz
5732MHz
5732MHz
5769MHz
5806MHz
5843MHz
5843MHz
5843MHz
CAUTION
1. In order to prolong the service life of the video transmission, please install the
antenna before power on.
2. If the VTX overheats, the temperature control protection will be activated. When it
reaches 95 degrees, it will automatically reduce the power by one gear. If it is still
higher than 95 degrees, it will continue to reduce the power by one gear until it
reaches 25mW. If it is lower than 90 degrees, the VTX will automatically adjust to the
setting power.
3. Please ensure good ventilation and heat dissipation when using. When the
environment is limited, a cooling fan can be installed for the VTX.
4. The 5V output is only used for the camera or cooling fan. Do not connect the power
input to the 5V output port, otherwise the VTX will be seriously damaged.
WARNING
1.When using this product, please comply with local radio laws and regulations,
and use the local permitted frequency band and channel.
2. To prolong the service life of the VTX, please install the antenna before power on.
3. Good heat dissipation can make the VTX run continuously under high power.
4. This product will produce high temperature when working, please do not touch
directly with your hands to avoid scalding
5. Longer transmission distance can be obtained by using high-quality antenna.
