GFA 10004055 10011 Manuale utente

Installation Instructions

ELEKTROMAT

SI 180.12 FU-60,00

Model: 10004055 10011

-en-

Status: 23.08.2018

GfA ELEKTROMATEN GmbH & Co. KG

Wiesenstraße 81

D-40549 Düsseldorf

www.gfa-elektromaten.de

[email protected]

Table of contents

1General safety information .............................................................................................. 4

2Technical Data ................................................................................................................ 5

3Mechanical installation .................................................................................................... 6

4Electrical installation ..................................................................................................... 11

5Limit switch adjustment ................................................................................................. 12

6Motor connection .......................................................................................................... 13

7Limit switch connection ................................................................................................. 13

8Emergency manual operation (emergency hand crank) ................................................ 14

9Completion of commissioning / testing .......................................................................... 16

10Declaration of incorporation / Declaration of conformity ................................................. 19



Symbols

Warning - Potential injury or danger to life!

Warning - Danger to life from electric current!

Note - Important information!

▶ Requirement - Required action!

Schematic representations are based on product examples. Deviations from delivered

products are possible.

1 General safety information

Specified normal use

The drive unit is intended for doors, which have to be secured against falling down; a safety

brake is included in the gearbox. The drive unit is directly mounted on the door shaft.

The safe operation is only guaranteed with normal specified use. The drive unit is to be

protected from rain, moisture and aggressive ambient conditions. No liability for damage

caused by other applications or non-observance of the information in the manual.

Modifications are only permitted with the agreement of the manufacturer. Otherwise the

Manufacturer’s Declaration shall be rendered null and void.

Safety information

Installation and initial operation tasks are to be performed by trained, skilled fitters only.

Only trained electrical craftsmen are permitted to work on electrical equipment. They must

assess the tasks assigned to them, recognise potential danger zones and be able to take

appropriate safety measures.

The installation is only to be carried out with the supply off.

Observe the applicable regulations and standards.

Coverings and safety devices

Do not operate unless corresponding coverings and safety devices are fitted/installed.

Ensure that gaskets are correctly positioned and cable glands are correctly tightened.

Spare parts

Use only original spare parts.

2 Technical Data

Type SG 115F

Output torque 1800 Nm

Output speed OPEN 5-12 rpm

Output speed CLOSE 5-12 rpm

Output speed CLOSE > 2,5m 5-12 rpm

Output shaft / hollow shaft 60,00 mm

Locking torque moment 3125 Nm

Safety brake (testhouse/approval number) 14-003305-PR01

Supply voltage 3~ 400 V

Maximum holding torque 1800 Nm

Operating current 12,40 A

Operating frequency 50 Hz

Power factor cos φ 0,76

Maximum movement per hour 8 h-1

Hand forces 348 N

Class of protection IP 65

Limit switch range

(maximum revolutions of output shaft / hollow shaft) 20

Braking torque 20 / 5 Nm

Braking voltage 103 / 103 V DC

Rectifier type FU

Temperature range +5 / +40 (+60) 1) °C

Operating sound pressure level < 70 dB(A)

1) When using a temperature range of +40°...+60°C use half of maximum movements per hour.

3 Mechanical installation

Prerequisites

The permissible loads on walls, fastenings, mountings and transmission elements must not

be exceeded, even for maximum holding torques or locking torques (▶ refer to technical

data).

Connection elements

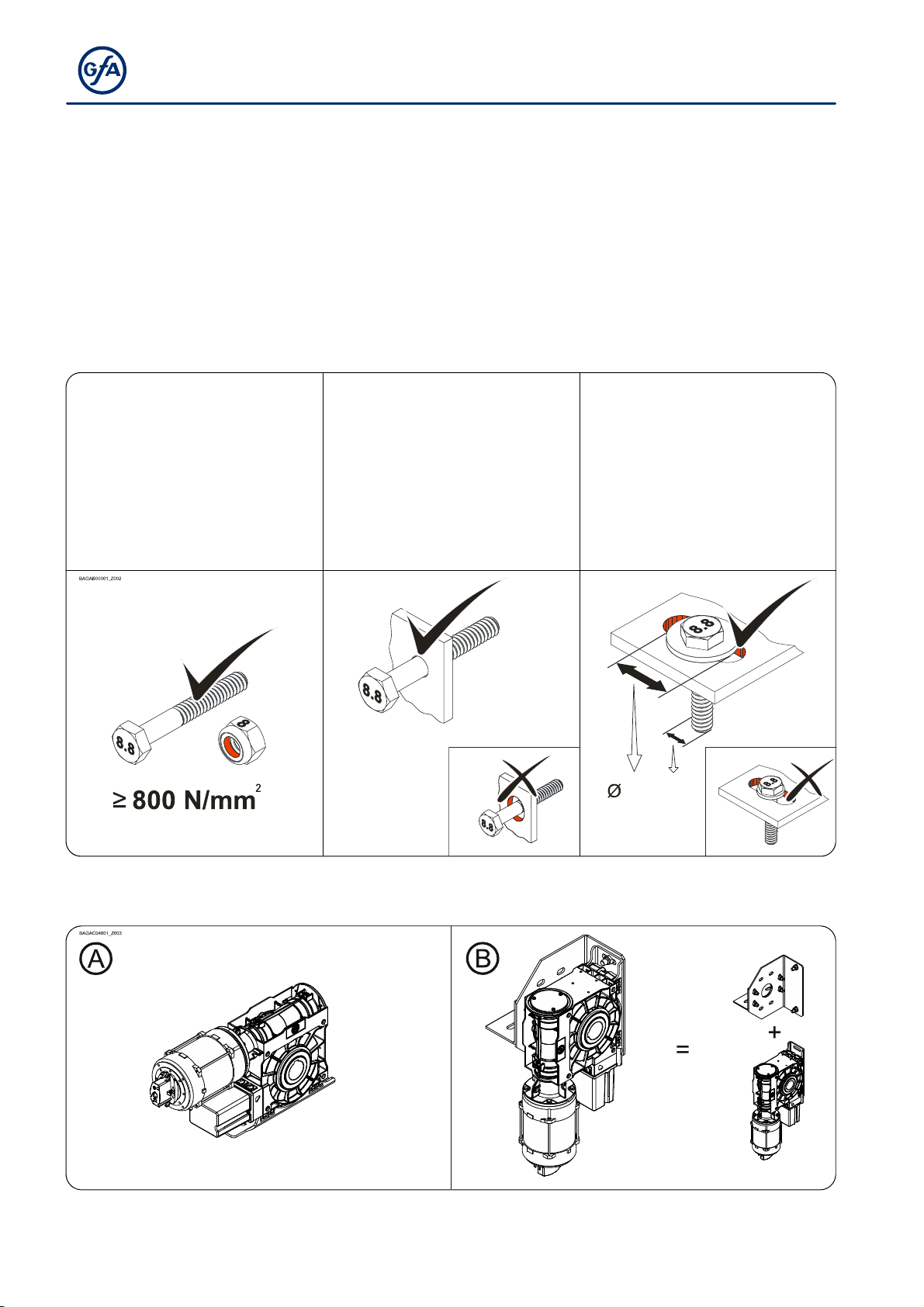

▶ Self-locking connection

elements with a minimum

strength of 800 N/mm2

(8.8) must be used.

▶ Utilize the hole diameter

to the full.

▶ Use adequately

dimensioned washers for

elongated holes.

BA GAB00002_Z002

BA GAB 00003_Z002

3 : 1

Permissible mounting positions

Mounting

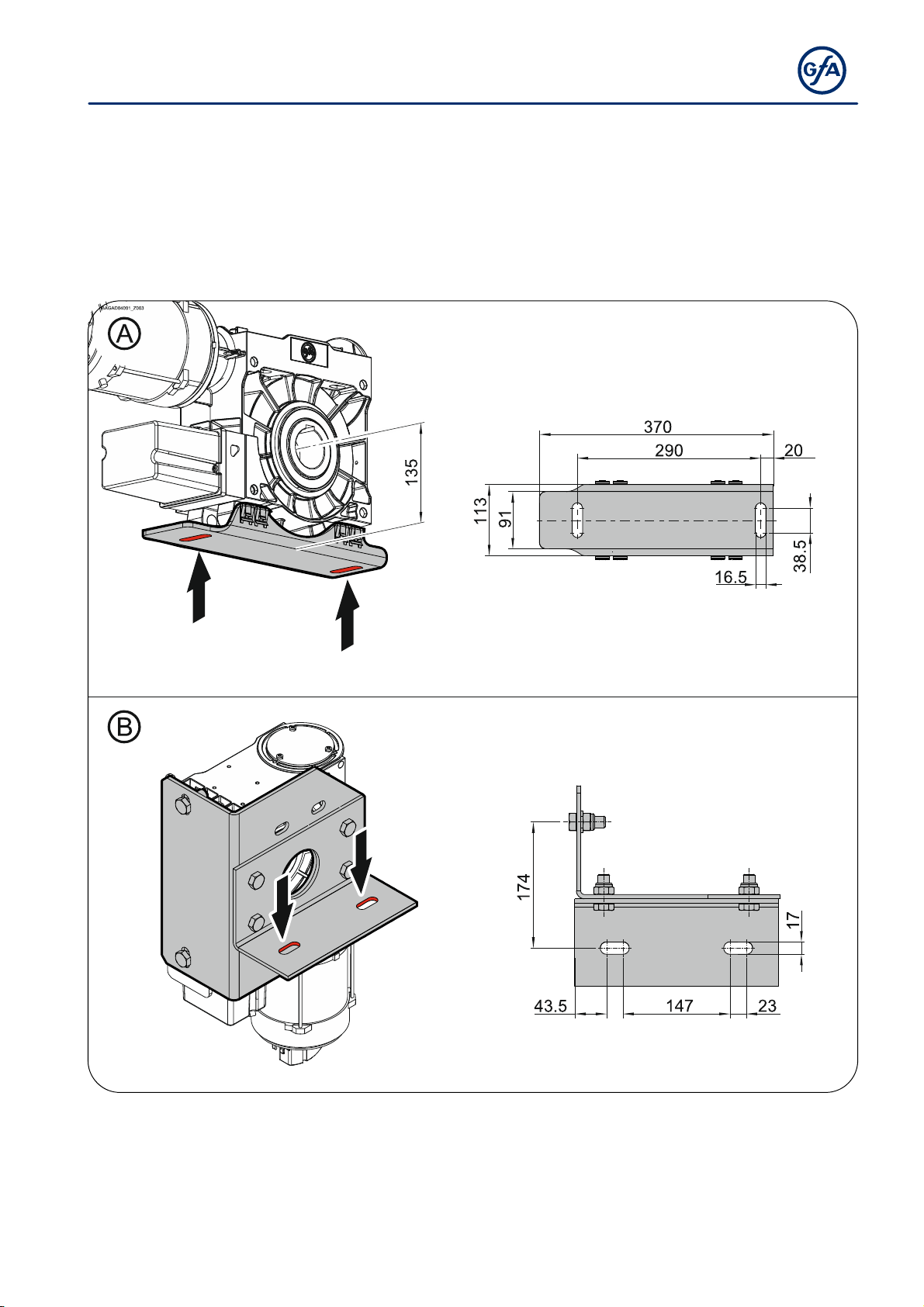

Two elongated holes are provided for mounting (Ⓐ+Ⓑ).

▶ Vertical installation is possible only when an additional torque mount is used (Ⓑ).

Installation

The descriptions below apply to general door specifications. The specifications of the door

manufacturer must also be observed during installation.

Warning - Potential injury or danger to life!

 During installation, be sure to use a lifting device that has a sufficient load-carrying

capacity.

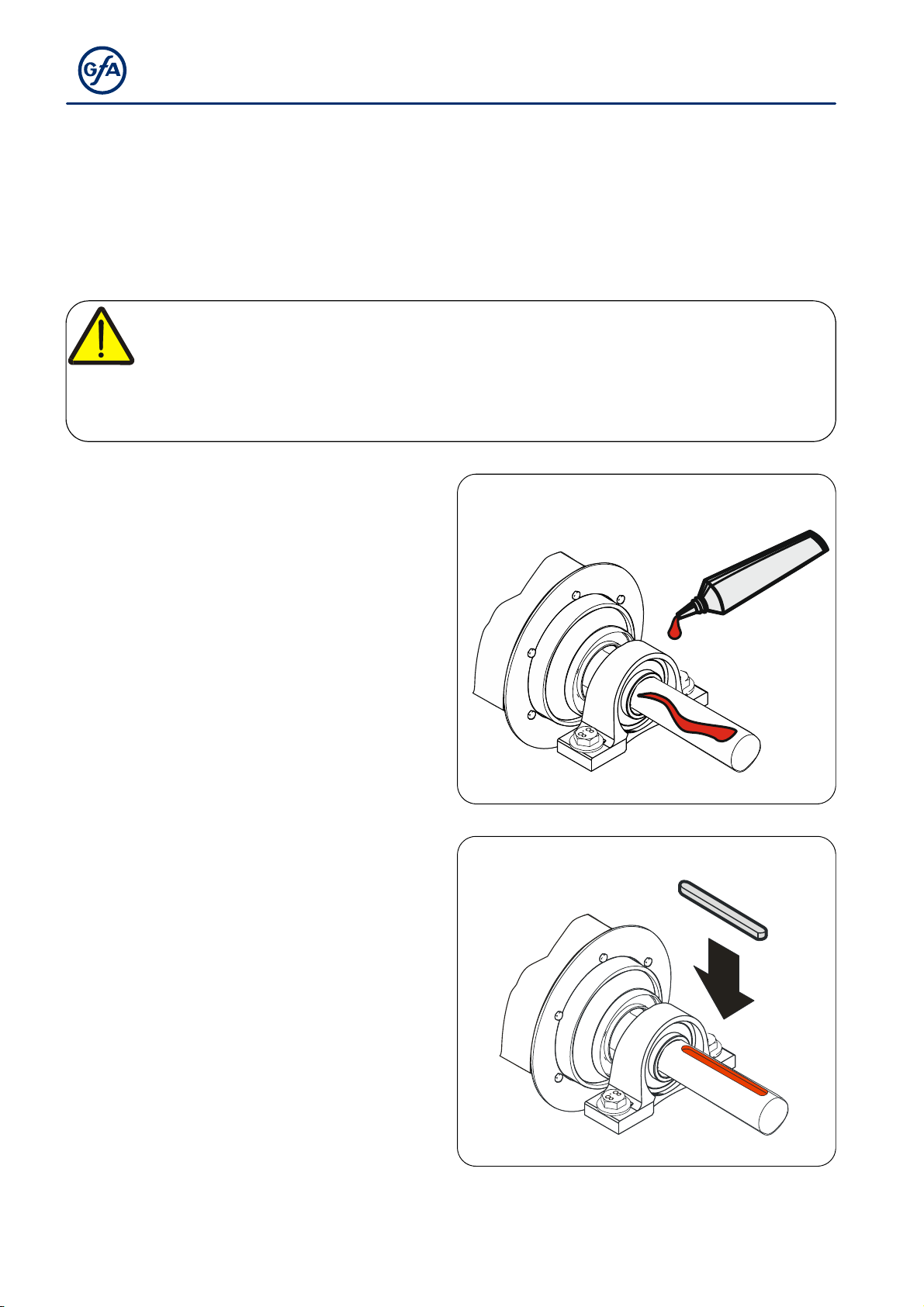

▶ Thoroughly grease the door shaft. BAGAE03003_Z002

▶ Mount the keys.

BAGAE03004_Z001

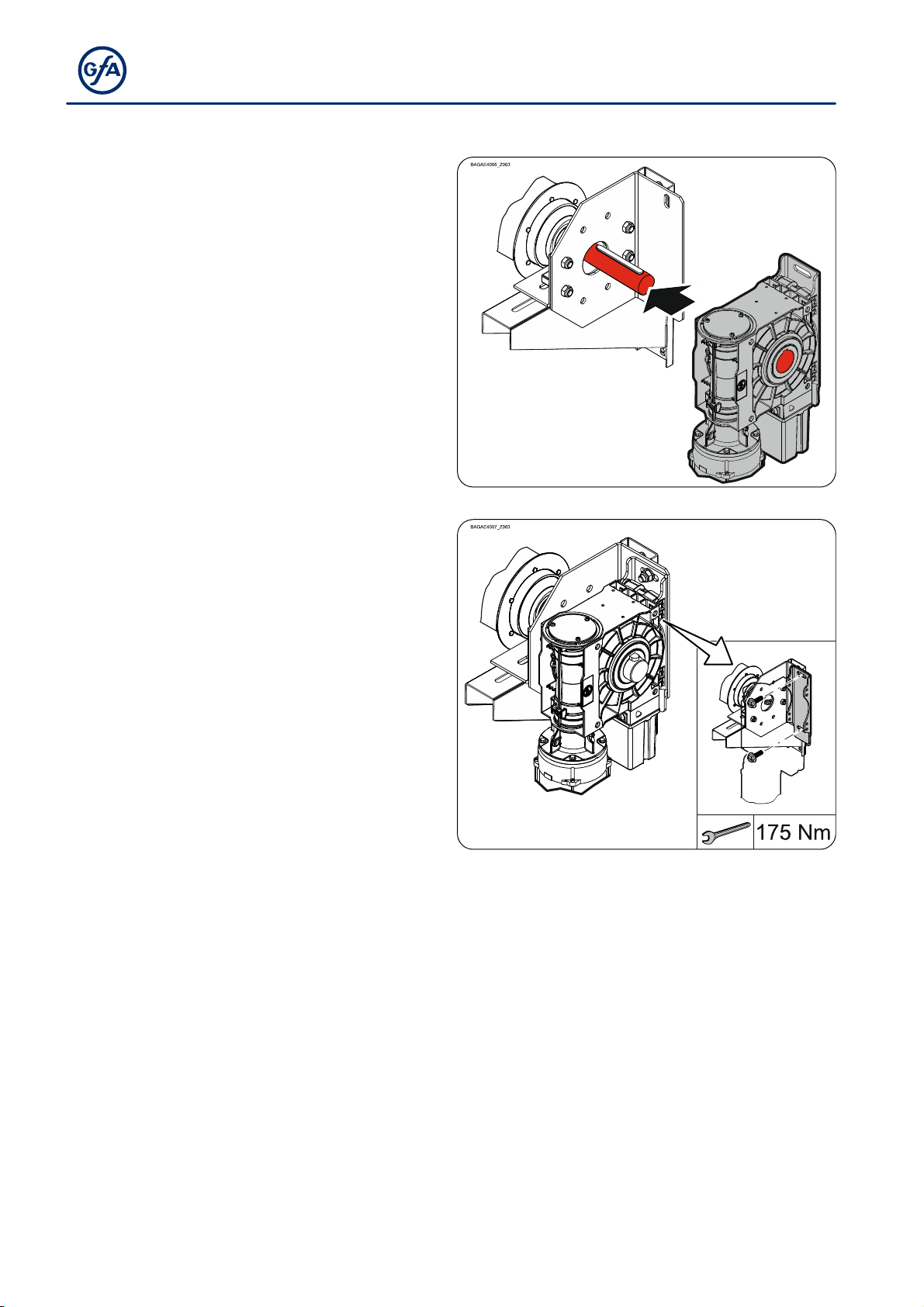

Version Ⓐ:

▶ Attach the drive unit.

Version Ⓐ:

▶ Tighten all connection elements (M16) to

175 Nm. Install all other connection

elements according to the specifications of

the door manufacturer.

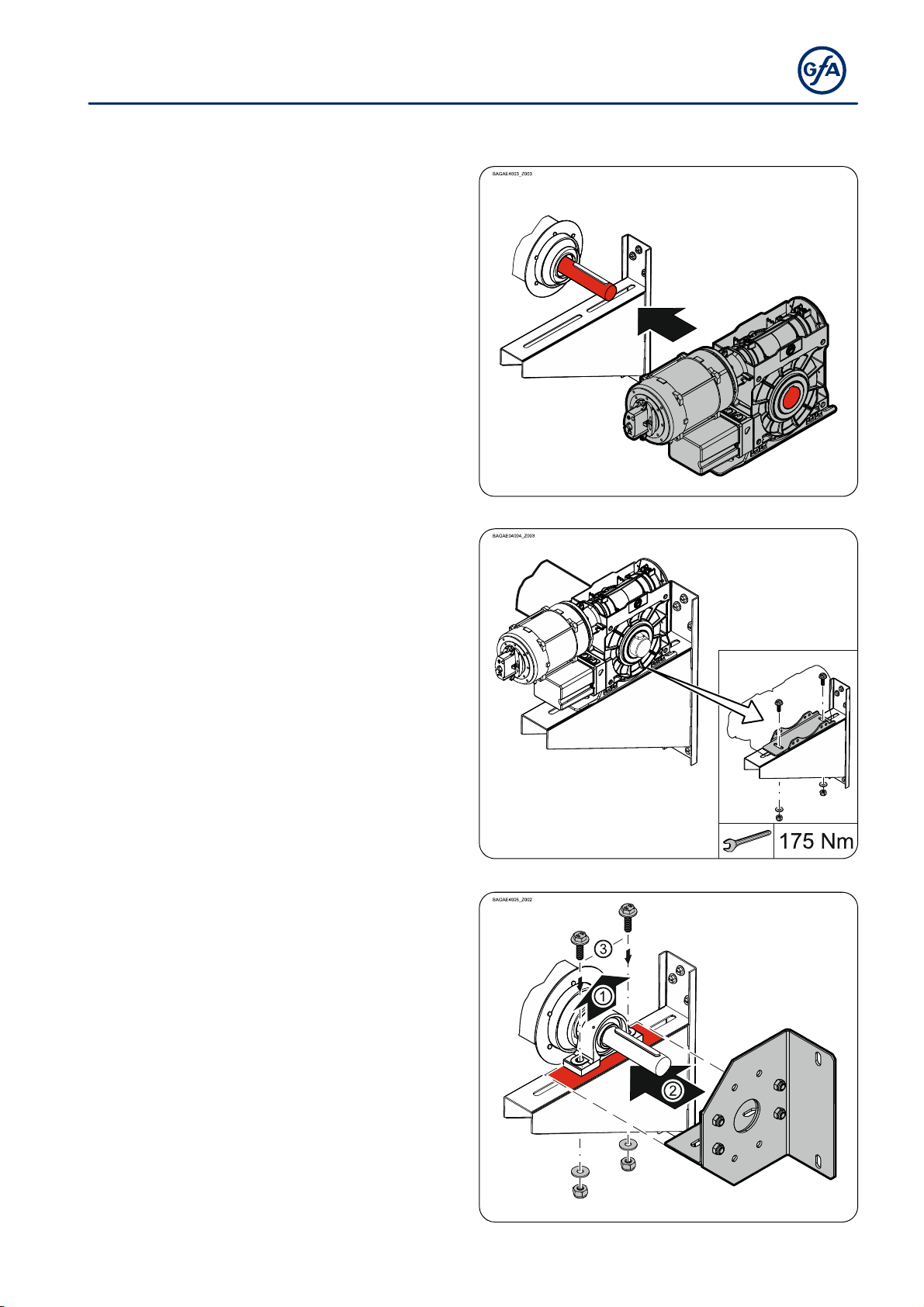

Version Ⓑ:

▶ Raise the pedestal bearing (①). Install the

torque mount (②+③). Do not tighten yet.

Version Ⓑ:

▶ Attach the drive unit.

Version Ⓑ:

▶ Tighten all connection elements (M16) to

175 Nm. Install all other connection

elements according to the specifications of

the door manufacturer.
