Installation Instructions

ELEKTROMAT

ST 80.24-50,00

Model: 10003195 00001

-en-

Status: 06.03.2020

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Pos: null /BA_Module/BA_ CA Leerblatt/BACA00 0001_M002 @ 15\mod_1416821 436083_28.doc x@ 864410 @ @ 1

GfA ELEKTROMATEN GmbH & Co. KG

Wiesenstraße 81

D-40549 Düsseldorf

www.gfa-elektromaten.de

[email protected]

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Pos: null /BA_Module/BA_ DA Inhaltsverzeic hnis/BADA000001_M001 @ 0\ mod_1192624580455_28. docx @ 710 @ @ 1

Table of contents

1General safety information .............................................................................................. 4

2Technical Data ................................................................................................................ 5

3Mechanical installation .................................................................................................... 6

4Electrical installation ..................................................................................................... 10

5Motor connection .......................................................................................................... 11

6Limit switch connection ................................................................................................. 11

7Completing commissioning / inspection ......................................................................... 12

8Declaration of incorporation / Declaration of conformity ................................................. 14



Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Symbols

Warning - Potential injury or danger to life!

Warning - Danger to life from electric current!

Note - Important information!

▶ Requirement - Required action!

Schematic representations are based on product examples. Deviations from delivered

products are possible.

Pos: null /BA_Module/BA_ EA Sicherheitshinweise/BAEA 000004_M003 @ 10\mod_1 362389720702_28.doc x@ 7848 40 @ 1 @ 1

1General safety information

Specified normal use

The drive unit is intended for horizontally operating sliding doors.

The safe operation is only guaranteed with specified normal use. The drive unit is to be

protected from rain, moisture and aggressive ambient conditions. No liability for damage

caused by other applications or non-observance of the information in the manual.

Modifications are only permitted with the agreement of the manufacturer. Otherwise the

Manufacturer’s Declaration shall be rendered null and void.

Safety information

Installation and initial operation tasks are to be performed by skilled personnel only.

Only trained electrical craftsmen are permitted to work on electrical equipment. They must

assess the tasks assigned to them, recognise potential danger zones and be able to take

appropriate safety measures.

Installation work is only to be carried out with the supply off.

Observe the applicable regulations and standards.

Coverings and protective devices

Do not operate unless corresponding coverings and protective devices are installed.

Ensure that gaskets are fitted correctly and that cable glands are correctly tightened.

Spare parts

Only use original spare parts.

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Pos: null /BA_Module/BA_ FA Technische Daten/BAF A001103_M001 @ 0\mod_119323 7363659_28.doc x@ 1290 @ 1 @ 1

2Technical Data

Type SG 115R

Output torque 800 Nm

Output speed 24 rpm

Output shaft / hollow shaft 50,00 mm

Maximum output speed open / close

for frequency inverter operation 42 / 42 rpm

Maximum door weight 80000 N

Supply voltage 3N~ 400 V

Operating current 4,70 A

Operating frequency 50 Hz

Power factor cos φ 0,77

Maximum movement per hour 10 h-1

Class of protection IP 54

Limit switch range

(maximum revolutions of output shaft / hollow shaft) 20

Braking torque of magnetic brake 130 Nm

Braking voltage 103 V DC

Rectifier type B1 230/103

Temperature range -10 / +40 (+60) °C

Pos: null /BA_Module/BA_ FC Temperaturbereic h/BAFC000002_M002 @ 23\mod_151 1339779197_28.doc x@ 105987 8 @ @ 1

1) When using a temperature range of +40°...+60°C use half of maximum movements per hour.

Temperature Extension!

If the magnetic brake will be continuously supplied the drive can be fitted into areas

down to a -20°C ambient temperature.

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Pos: null /BA_Module/BA_ GA Mechanische Montage/ BAGA004301_M001 @ 10\mod_1 365771756315_28.d ocx @ 788330 @ 1 @ 1

3Mechanical installation

Requirements

The permissible loads on walls, mountings, connection and transmission elements must not

be exceeded even for maximum holding or locking torque (▶ observe technical data).

Connection elements

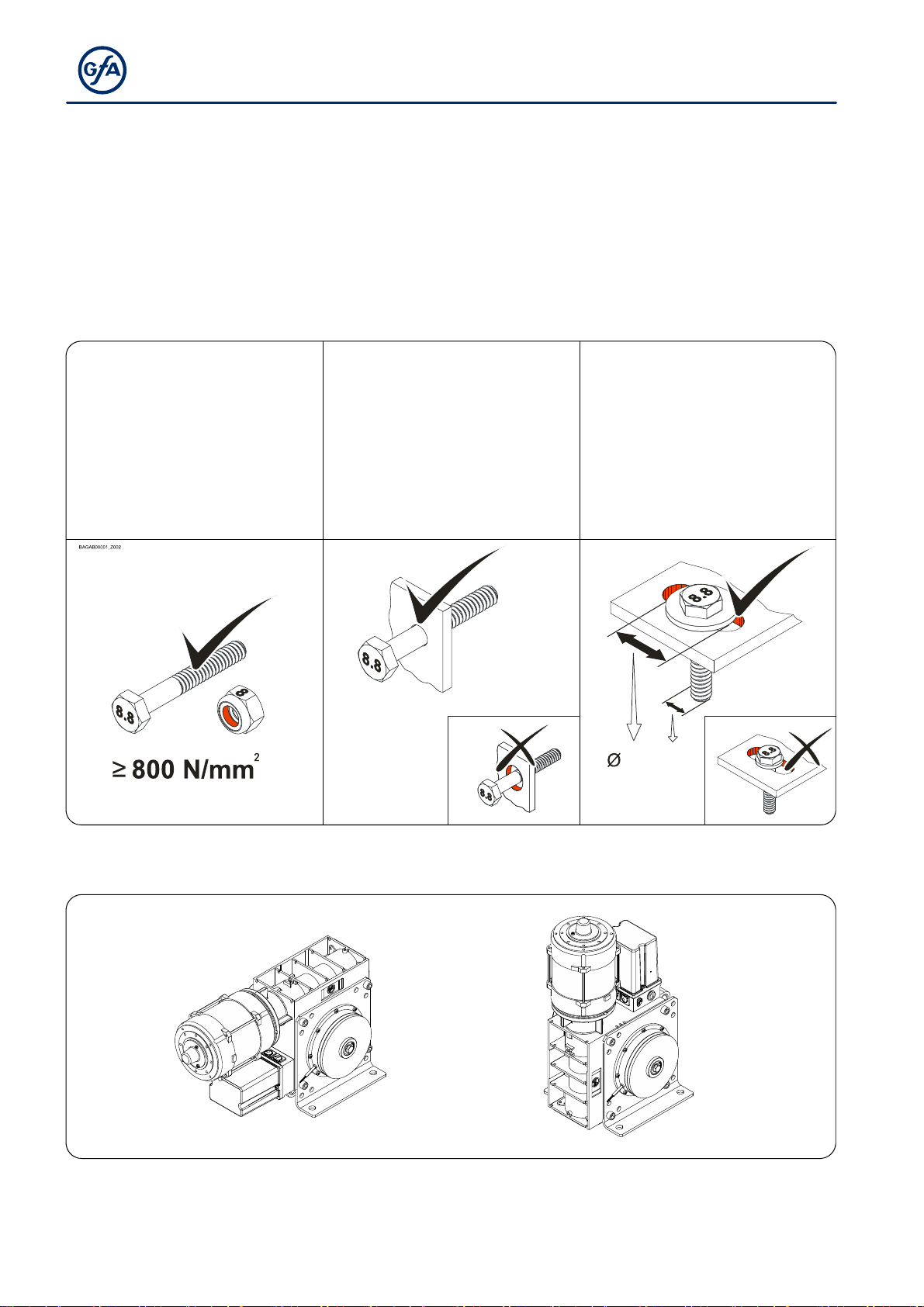

▶ Use self-locking

connection elements with

a minimum strength of

800 N/mm2 (8.8).

▶ Use a screw that

precisely fits the hole.

▶ Use adequately

dimensioned washers for

elongated holes.

BAGAB00002_Z002 BAGAB00003_ Z002

3 : 1

Permissible mounting positions

BAGAC04301_Z002

Mounting

4 boreholes are provided for mounting.

BAGAD04301_Z002

Installation

The following descriptions refer to a door which is not further defined. The door

manufacturer's specifications must also be observed.

Warning – Injury or danger to life possible!

Use a lifting device with sufficient load-carrying capacity for installation tasks.

Adequate space around the adjusting screw must be ensured for the safe

activation of the slipping clutch.

▶ Tighten all connection elements (M16) with

a torque of 175 Nm. Install all further

connection elements according to the

specifications of the door manufacturer.

BAGAE004302_Z002

175 Nm

Warning – Injury or danger to life possible!

Disconnect the electrical voltage for the setting of the slipping clutch.

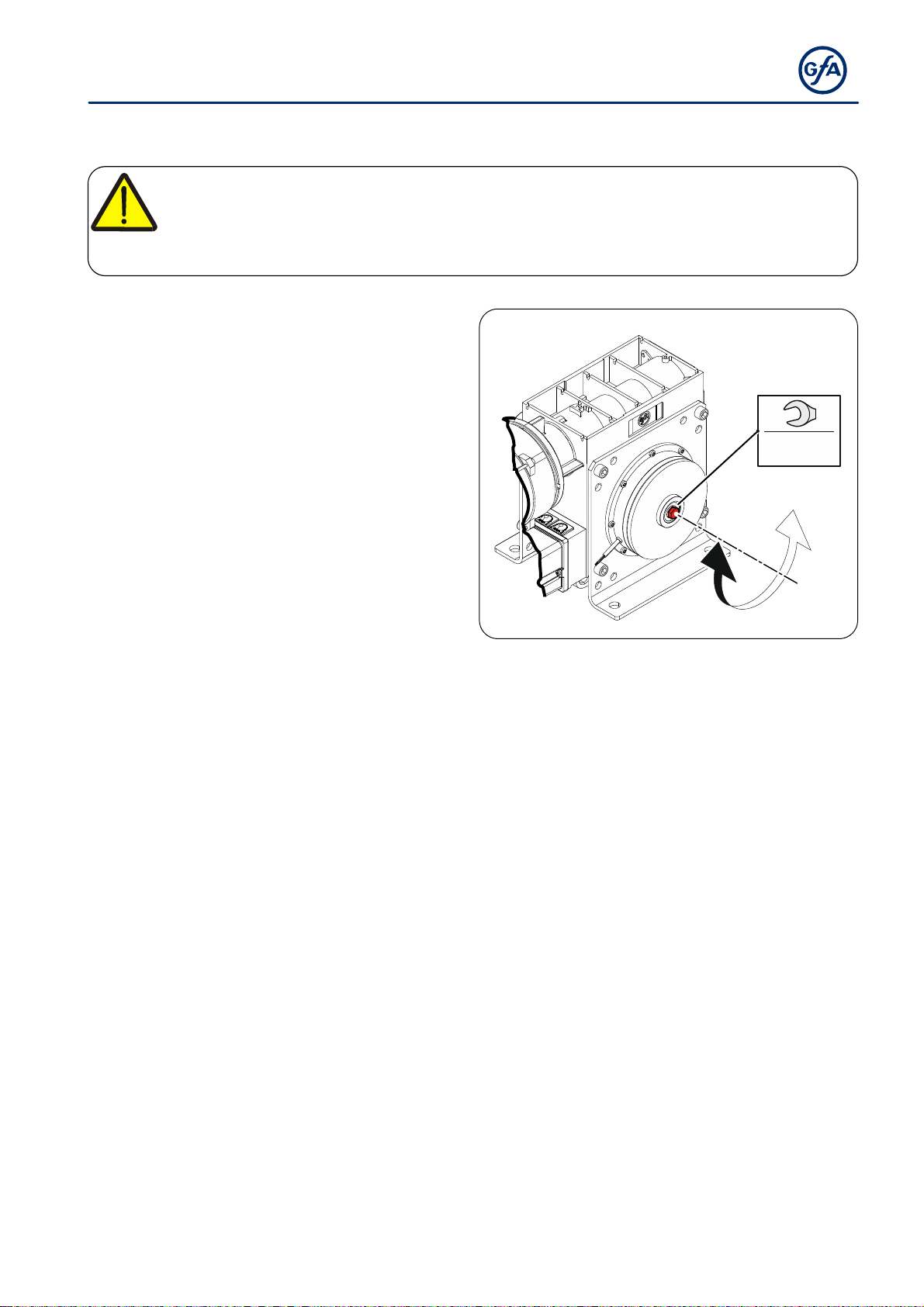

▶ The slipping clutch acts as an overload

protection. The factory setting for the

tightening torque is 24Nm (ST 60) or 30Nm

(ST 80). Rotation to the right will increase

the transmittable torque. Rotation to the

left will decouple the drive unit from the

door.

BAGAE4303_Z002

SW 17

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1

Pos: null /BA_Module/BA_ HA Elektrische Montage/ BAHA190300_M001 @ 0\mod_ 1260284652159_28. docx @ 462982 @ 1 @ 1

4Electrical installation

Warning - Danger to life from electric current!

Switch the mains OFF and check that the cables are de-energised

Observe the applicable regulations and standards

Make the electrical connection according to standard

Use suitable tools

Performing electrical installation

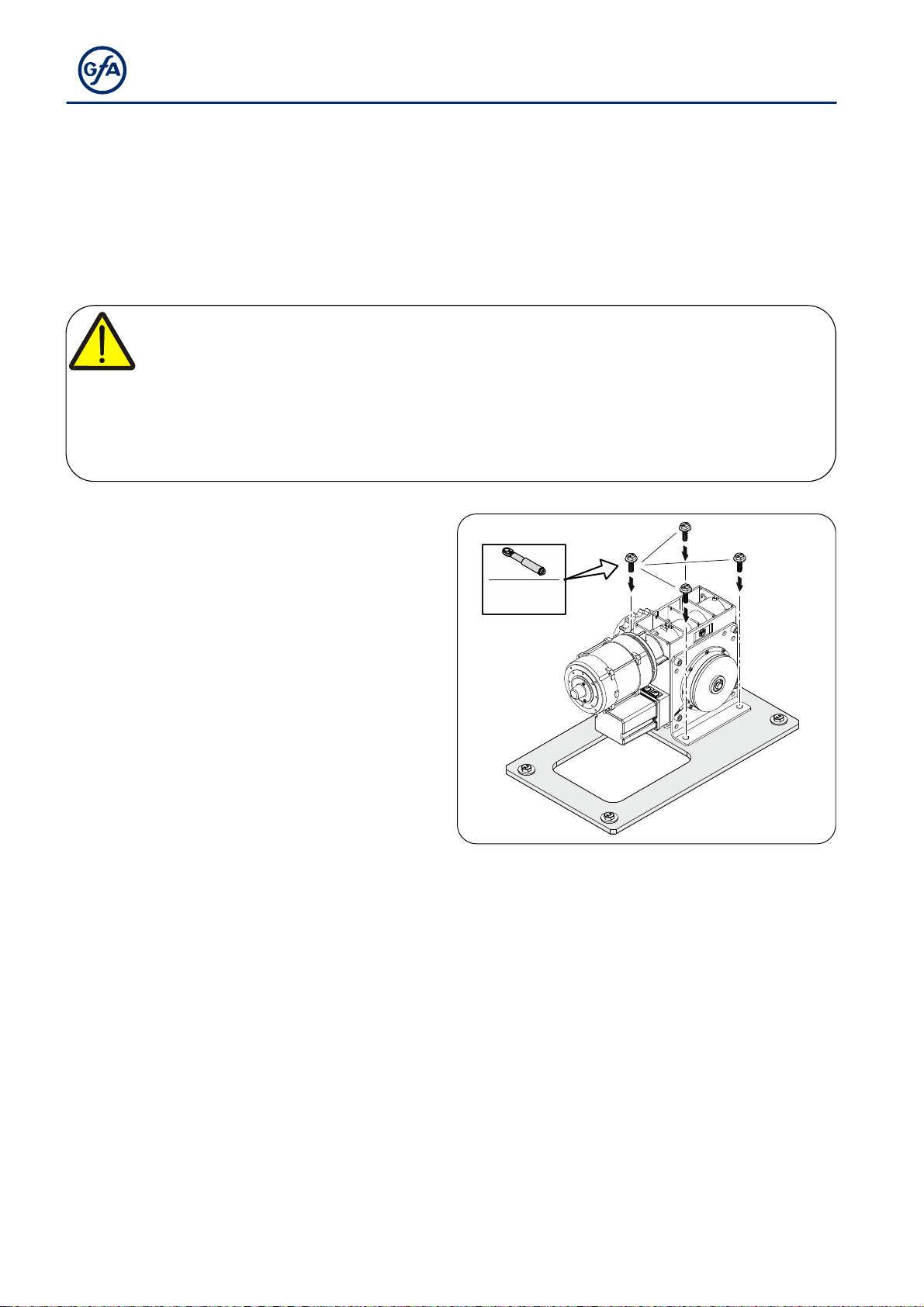

Remove the cover. Insert the motor plug.

Connect the brake cables.

BAHAA19_Z001

BAH AB03_Z001

Completing the electrical installation

Mount the cable entries and/or cable glands.

Pos: null /BA_Module/BA_ Seitenumbruch @ 0\ mod_1190719383361_0.d ocx @ 550 @ @ 1
